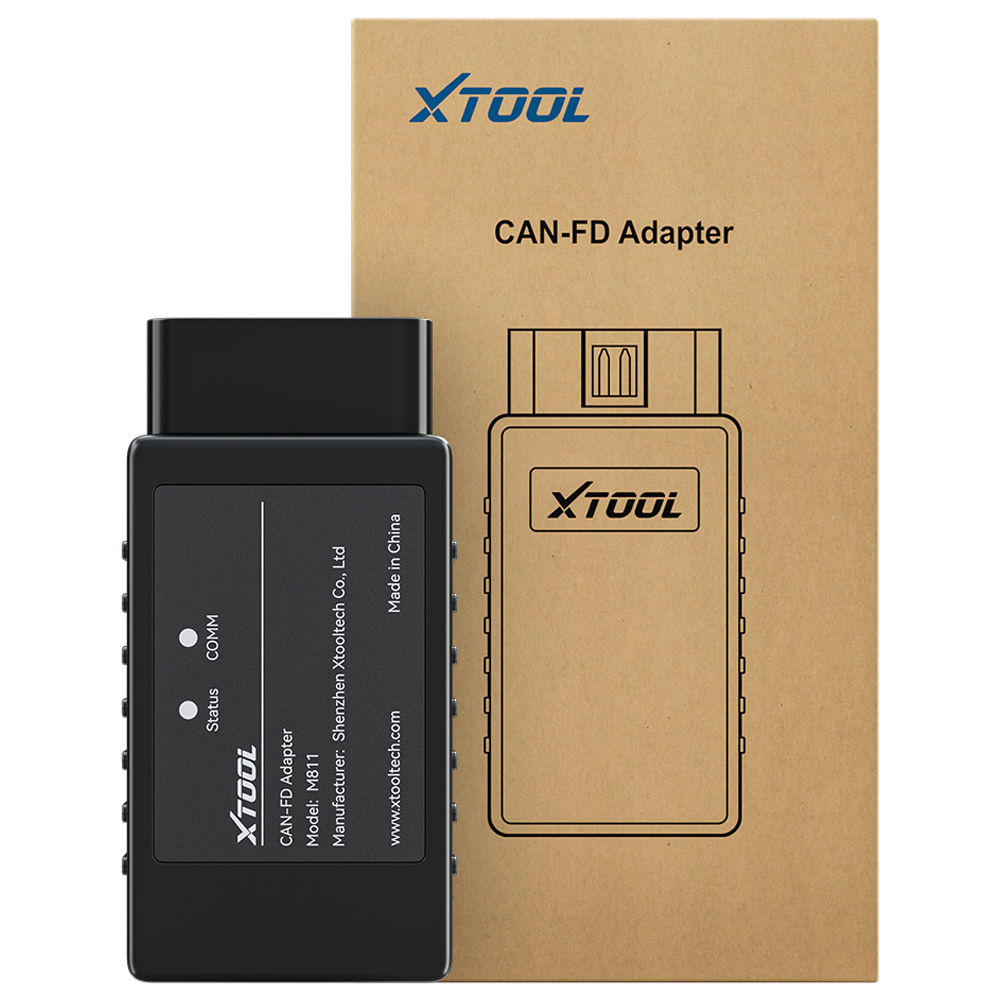

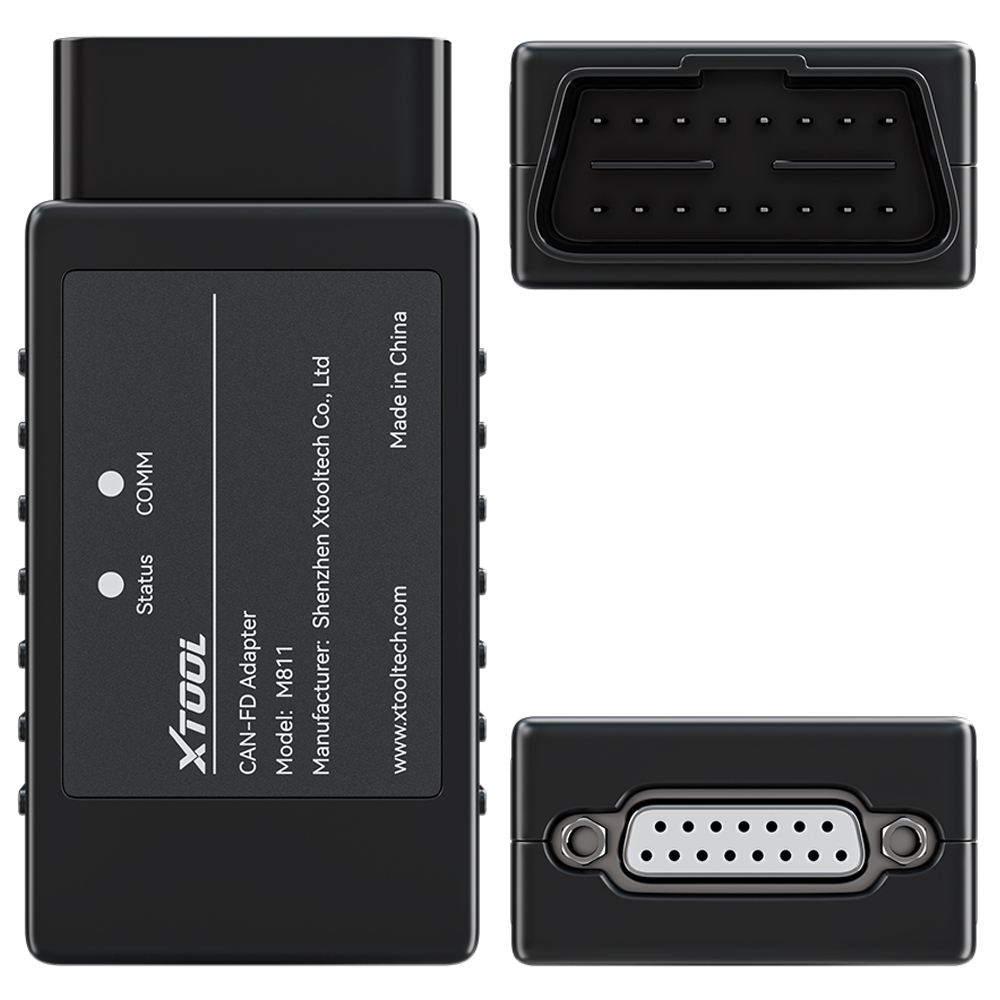

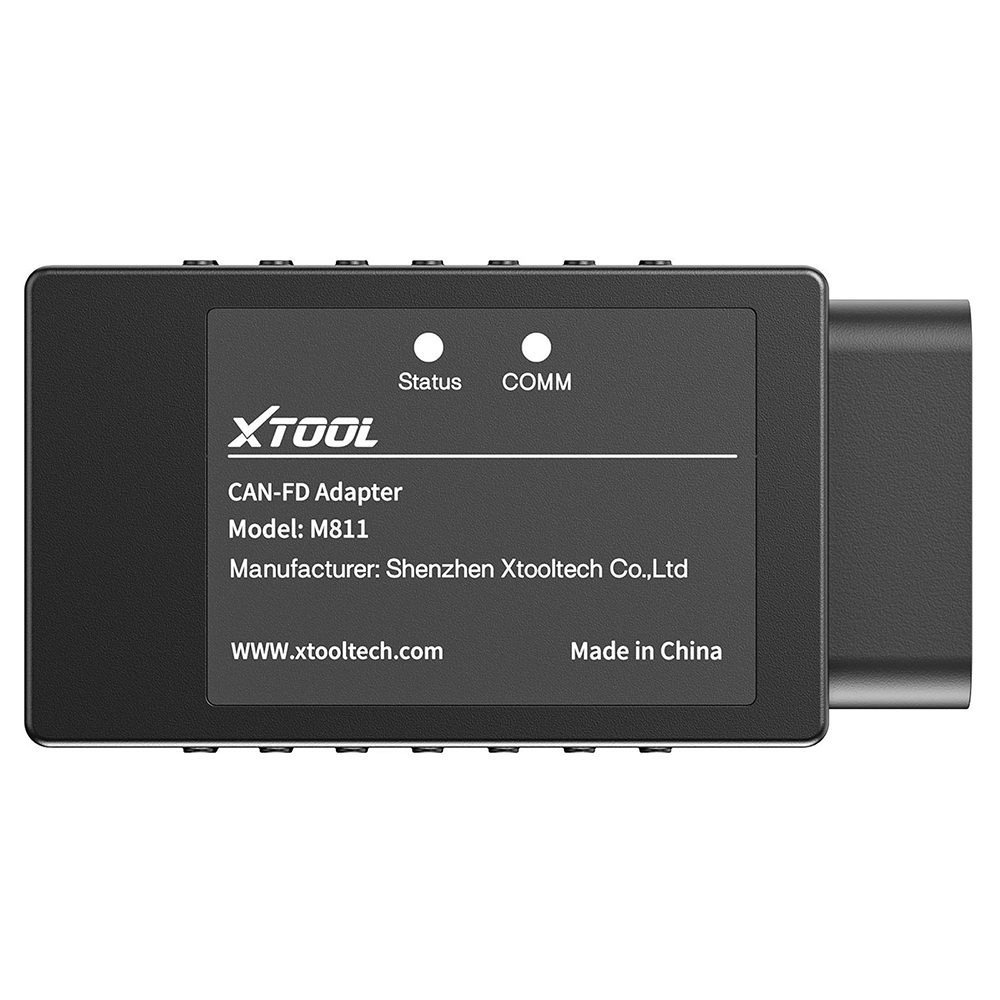

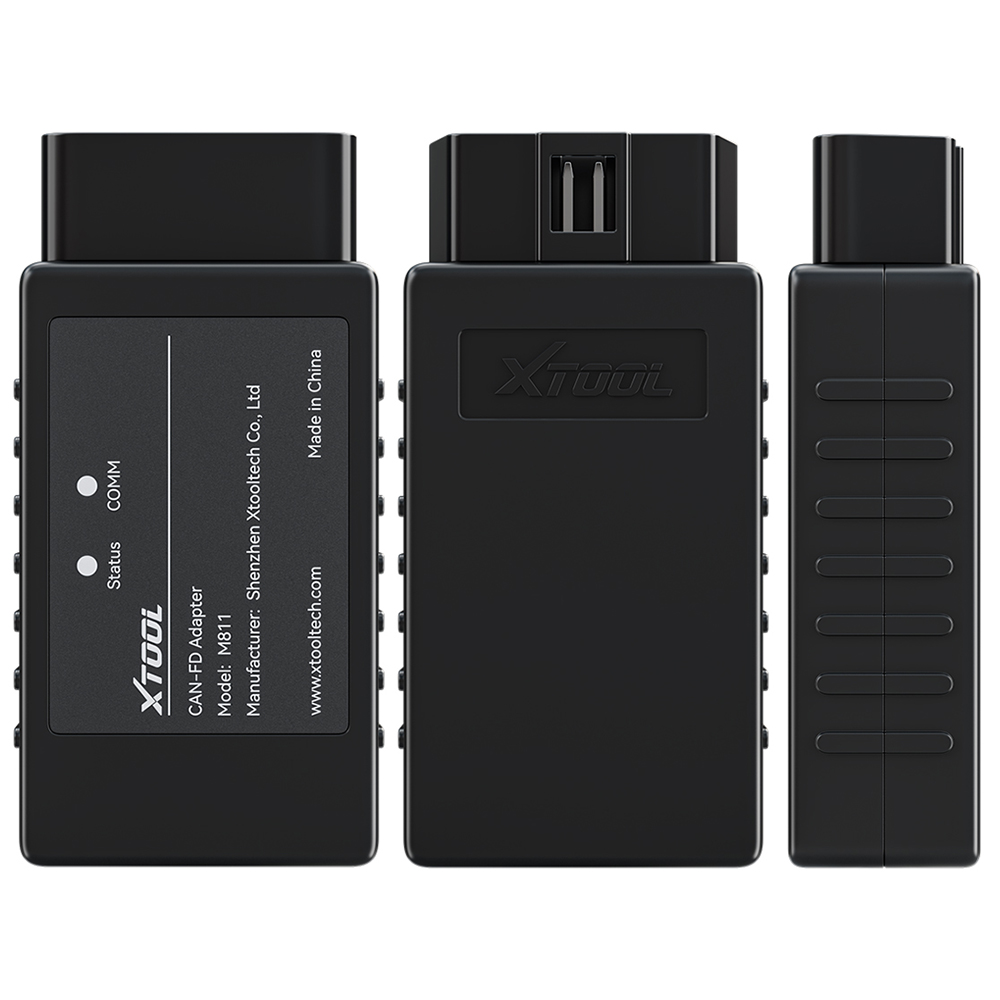

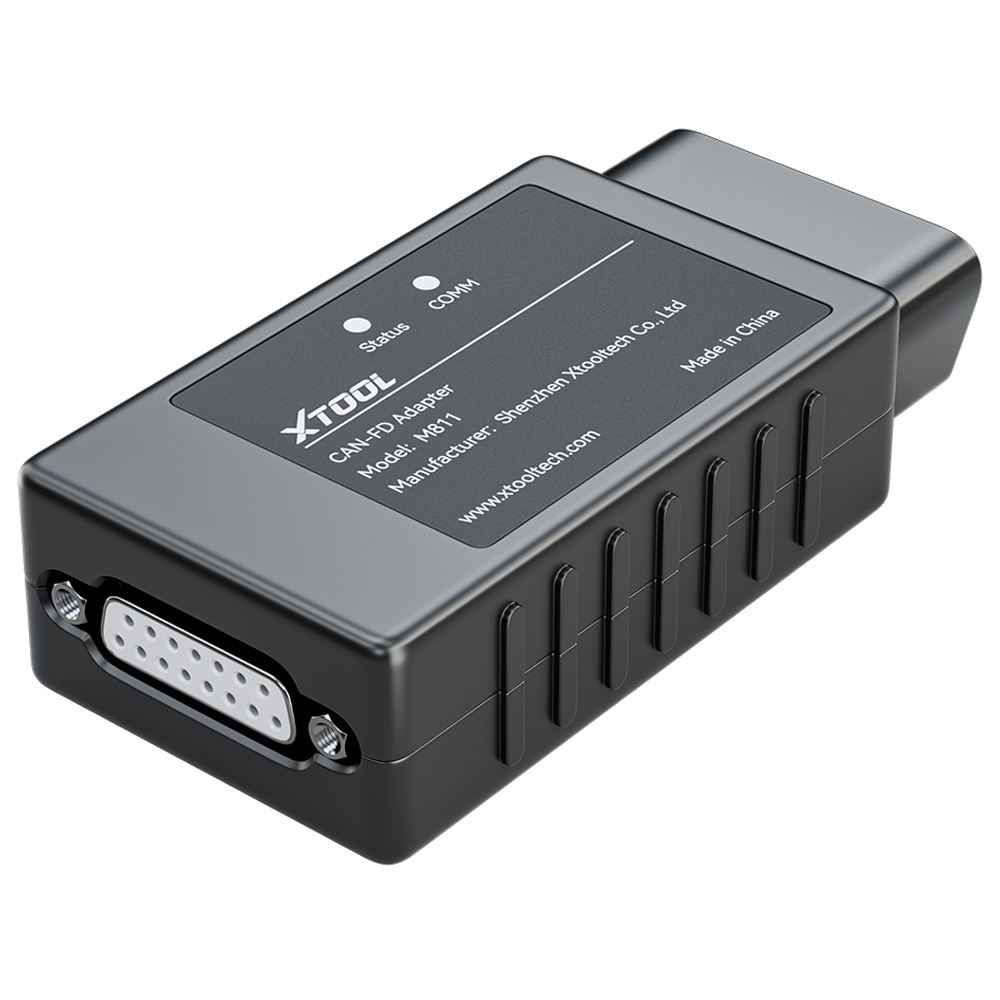

Name: XTool CAN FD CAN FD Adapter
Description:
XTool CAN-FD Adapter simply replaces the standard OBD2 Connector of XTool tablet series products. No other software or hardware is required, this adapter can be used with existing software and can replace standard OBD2 connector.
XTool CANFD Adapter is designed for diagnosing ECUs systems of cars with CAN FD protocols. It is used with XTool tablets series products. It is high-performance and easy operation. When the user selects the CANFD model, if current device does not support CANFD communication, the user needs to be prompted to use this CAN FD Adapter to connect.
XTool CAN-FD Adapter supports 2020 and newer model year vehicles using the Controller Area Network Flexible Data-Rate protocol, and is an extension to the original CAN BUS protocol that was specified in ISO 11898-1.
Data rate transmits up to 5 times faster than the original CAN data allowing more data to be sent between modules required on newer vehicles when diagnosing ECUs and programming new modules.
Compatible Models:
T2021+ Buick Envision
2020+ Cadillac CT4/CT5
2022 Cadillac XT4/XT5/XT6
2020+ Cadillac Escalade
2020+ Chevy Corvette
2021+ Chevy Tahoe
2022 Chevy Silverado
2022 Chevy Suburban
2022 GMC Sierra
2021-2022 GMC Yukon
Compatible XTool Products:
XTool X100 PAD2 / PAD3 / Elite series
XTool PS80 / PS90 series
XTool A80 series
XTool D7 / D8 series
XTool EZ400 Pro
XTool A30 Pro
XTool A80 / A80 Pro / A80 Pro Master
AutoProPAD Full
AutoProPAD G2
AutoProPAD G2 Turbo
|
