Description:

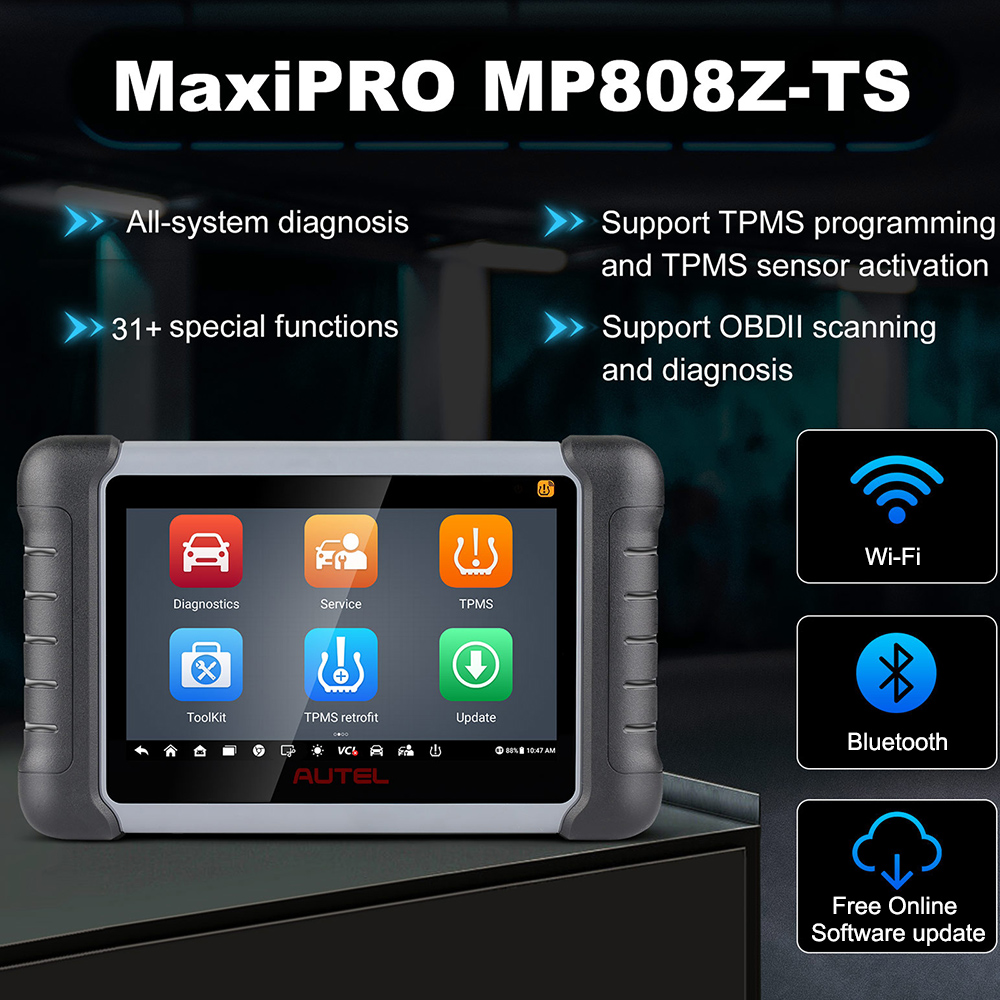

Autel MaxiPro MP808Z-TS is upgraded version of Autel MaxiPro MP808TS / Autel MaxiPro MP808BT.

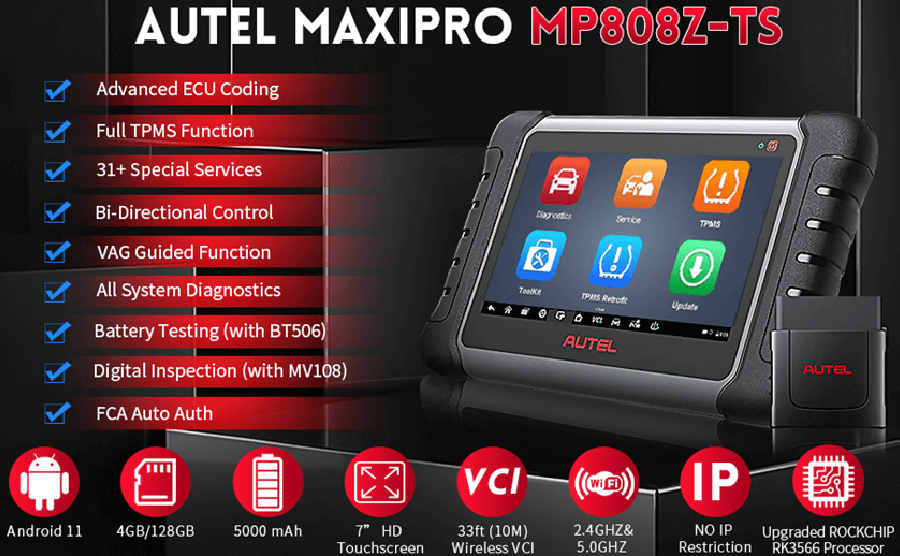

Autel MaxiPro MP808Z-TS supports new functions that can not achieved by Autel Autel MaxiPro MP808TS & Autel MaxiPRO MP808BT, such as ECU Coding, Battery Testing, Special Functions, TPMS ToolKit, FCA AutoAuth...



Software Update: 1 year free update online

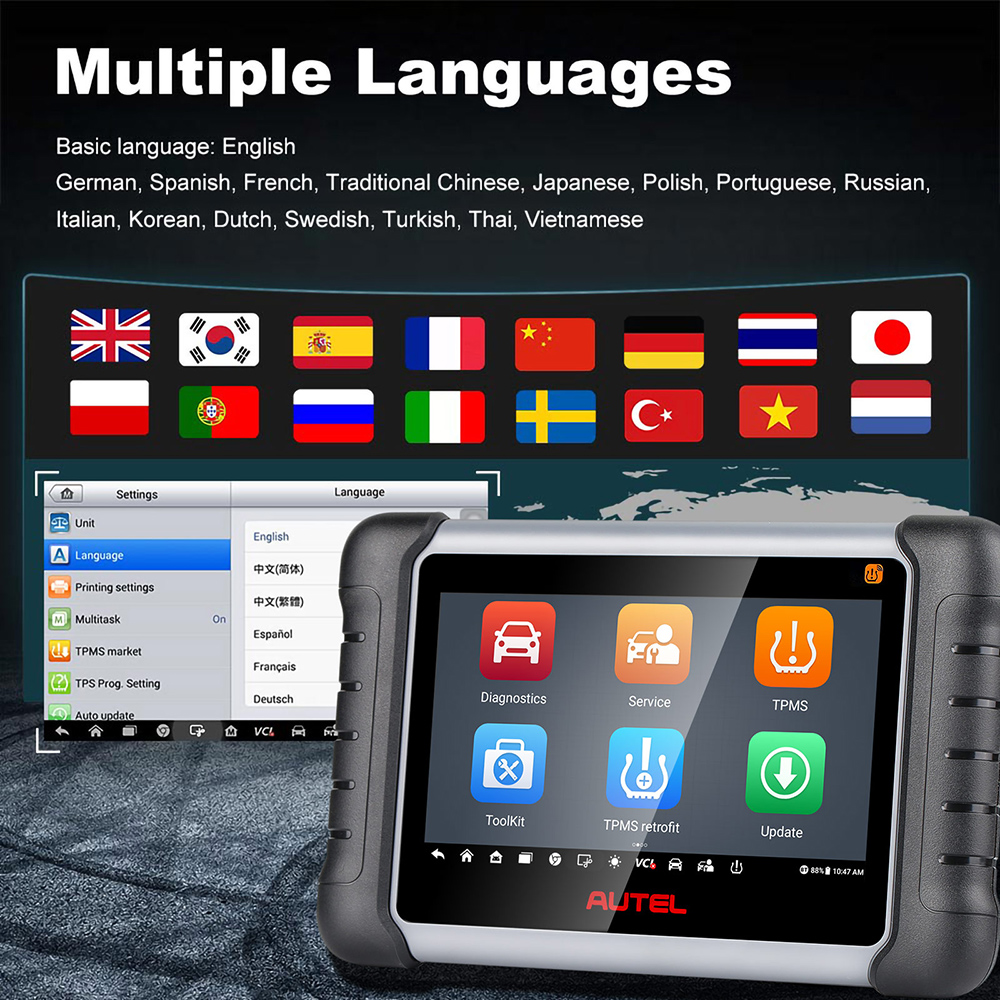

Supported Languages:



English, French, German, Spanish, Portuguese, Russian, Italian, Dutch, Swedish, Polish, Japanese, Korean, Chinese



Highlights:



1. Autel MP808Z-TS features same ECU coding functions as Autel MaxiSys MS906BT and support other high-end functions such as Activate Hidden Functions, Customize OE-Settings, VAG Guided Functions and so on.



2. Autel MP808Z-TS is the best Autel product for TPMS function. Besides the completely same TPMS functions as Autel MaxiTPMS TS608, new added ToolKit functions enables Program TPMS by OEM Part No., Unlock ECU for Toyata, Unlock REDI7002A, Activate OEM Sensors, Check Key Fob Signal and more, which is not available on all the other scan tools such as Autel MK808TS/MP808TS/MS906TS/MS906 Pro-TS/MK906 Pro-TS.



3. Supports Australia Holden and Ford



Functions:



1. ECU Coding



Autel Scanner MaxiPro MP808Z-TS supports same ECU Coding functions as Autel MaxiSys MS906BT / Autel MaxiCOM MK906BT.



Autel MaxiPRO MP808Z-TS can perform ECU Coding function which normally only available on high price models like Autel MK906BT/MS906BT/MS906TS, and support much more vehicle models than Autel MaxiPro MP808 & Autel MaxiPro MP808BT.



1). Online ECU Coding:

Perform Online software modifications to a vehicle to allow the use of functions not available in the car when it left the factory for different reasons, mainly local regulations. Online coding for BMW, for VW, for Nissan, for Nissan-GTR, for Infiniti, for Hyundai, for Toyota, for Ford, for Mazda, etc.;



2). Offline ECU Coding/Adaptation:

Write the codes from the original modules to newly replaced modules, work for Jaguar, for Vauxhall, for Opel, etc.



3): Activate Hidden Functions:

Autel MP808Z-TS support hidden function activation and current function ban: such as Automatic Engine Start-Stop, Automatic Mirror Folding/Unfolding, Seat Belt Warning Sounds; Closing the Windows after locking the car door with the key and much more.



4). Customize OE-Settings:

Take dashboard display as examples: Displaying of the real speed via GPS signal; Displaying the amount of fuel consumption at a given speed; Incoming call display; Select whether the display should be on the dashboard or head-up display and much more. Other setting are also supported such as lighting settings, acoustic warning signal settings and much more.



5). Replacement Module Matching:

Autel MaxiPRO MP808Z TS support matching/ coding/ recording/ adaptation after new modules or component being replaced to allow it be recognized by the car system or modify relevant parameters for the best drivability.



Note: All the above mentioned functions vary by car makes, models and year.



2. Full TPMS Function



Best Autel TPMS product supports same TPMS functions as Autel MaxiTPMS TS608, Autel MaxiSys MS906 Pro-TS / MS906TS, Autel MaxiPRO MP808TS, Autel MaxiCOM MK808TS.



New Added TPMS ToolKit Functions:



1). Program TPMS by OEM Part No.

2). Unlock TPMS ECU for Toyata

3). Unlock REDI7002A

4). Awake OEM Sensors

5). Check Key Fob Signal



TPMS Functions List:



1). Program TPMS by OEM Part No.

TPMS by OEM Part No.: Easy way to activate and program MX-Sensors with the original sensor’s OEM part number, able to program up to 20 sensors at the same time.



2). Activate All Known TPMS Sensors

Trigger almost all known TPMS sensors (315/433MHz), including the OE sensors, Autel MX-sensors, and other sensors in the market.; Sleep/Park Mode: For those OEM sensors that are delivered in Sleep Mode, this function is used to wake and set them to Park Mode.



3). TPMS Check & Diagnostics

Check the status of the TPMS system, retrieve sensor IDs and DTCs present in the ECU, detect TPMS DTCs with detailed description, TPMS Sensor live data such as sensor ID, tire pressure, tire temperature, sensor battery, sensor position, and sensor frequency, perform special functions for resetting or re-matching, and then clear the DTCs and turn off the faulty light



4). Programming Autel MX-Sensor

Programs new MX-Sensor to replace OEM sensors by 4 methods:

a. Copy by Activation – Program the sensor ID retrieved from activated sensor.

b. Copy by OBD – Program the sensor ID retrieved from TPMS ECU.

c. Copy by Input – Manually input the original sensor ID for programming.

d. Auto Create – Create a random ID to program MX-Sensor.



5). TPMS Sensors Relearn

This function is used to write the newly programmed sensor IDs into the vehicle ECU for sensor recognition. Four relearn methods: OBD Relearn; Stationary Relearn; Automatic Relearn; Copy Relearn.



6). TPMS Retrofit

For cars that do not have TPMS module, this function can install TPMS System to backup and save the data of the original vehicles for safety driving.

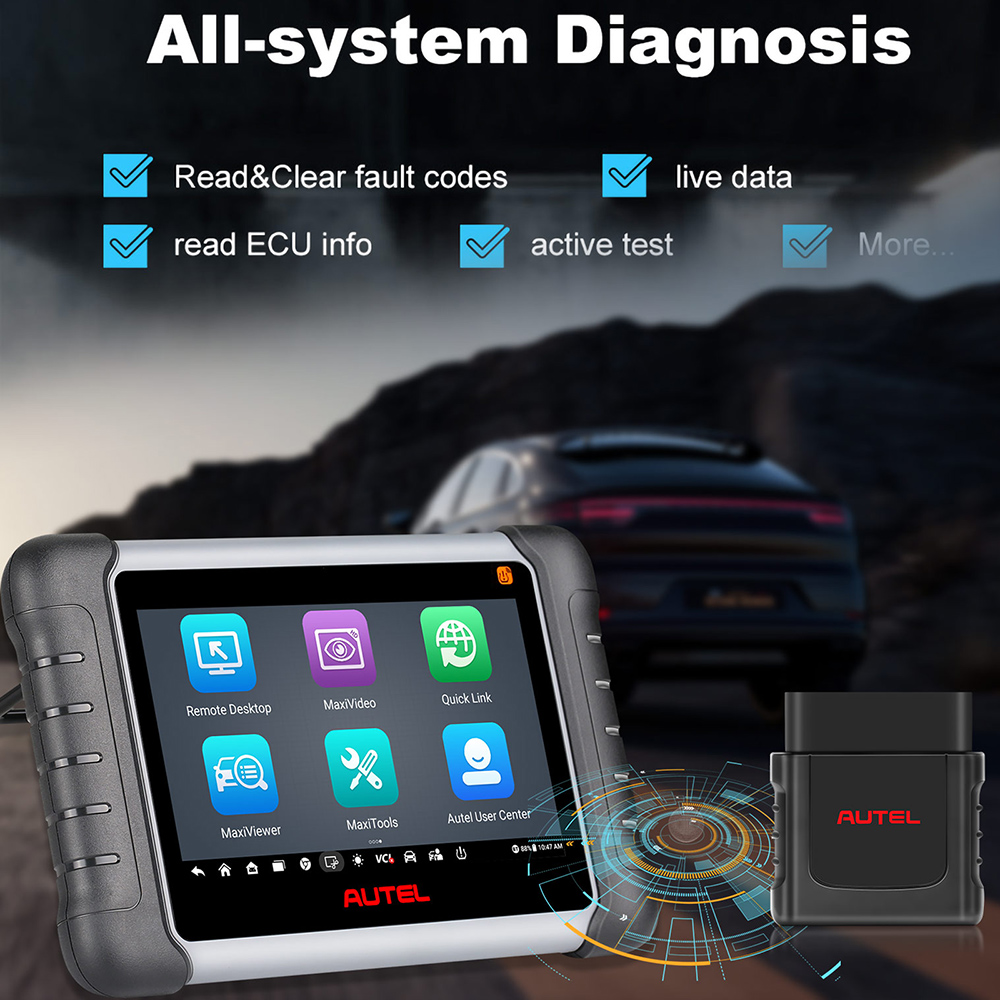

3. All System In-depth Diagnosis



As the fully upgrade version of Autel MP808TS & MaxiPRO MP808BT, Autel MP808Z-TS can access all available systems or modules such as Engine, Transmission, ABS, SRS, IC, BCM, TPMS, Air Conditioning, IMMO, Air Suspension, Airbags, Cruise Control, etc. to perform more in-depth diagnose with feaster speed: Retrieve ECU Info, Get Freeze Frame Data, Live Data in Graphic & Text, Read Codes, Clear Codes, Active Test and so on for accurate efficient solution.



4. Bi-Directional Control



Autel MP808Z-TS supports Bi-Directional Control(same level as  MS906BT/MS906TS/MS906 Pro).



Autel MaxiCOM MP808Z-TS features the same Bi-Directional Control functions as more expensive models such as Autel MaxiSys MS906BT / Autel MaxiSys MS906 Pro / Autel MaxiCOM MK906BT. MP808Z-TS is able to output the commands signals to ECUs & and receives information from vehicle control modules, which can help technicians to determine the functioning status of the tested parts without dismantling and decide if it need to be replaced.



For example:

In case of OBD-II generic information Mode 1 (which relates to data parameters), use Autel MK808Z-BT to initiates a request for information from the powertrain control module (PCM), and the PCM responds by sending the information back to the scan tool for display. If it's not responding, you will know that there is problem with PCM. It can also be used to actuate relays, injectors and coils, perform system tests, etc.



Here below are the most commonly tested parts:

Headlamp Adjustment; Window Wipers Setting; Window Glass Up & Down; Sunroof Switch On/Off; Power Seats Adjustment; Steering Wheel Heating, Horns, ABS, Fuel Pump...



Note:



Autel MP808Z-TS supports Bi-Directional Control on various modules but it is not universally compatible for all vehicles. Available tests vary depending on the make, year, and model.



5. 31+ Services Functions



Autel MP808Z-TS supports 31+ Services Functions include commonly used reset & maintenance functions that a DIYer or auto technician would need for everyday car care. Here below is some of the most popular services:



Oil Reset: Reset the new calculation of Engine Oil Life System for an accurate reading of the next oil change.



EPB Reset: Reset the calipers, brake discs or pads after the electronic parking brake system is repaired.



BMS Reset: Reset after replacing the battery to clear the low battery fault information of the original battery and protect the new battery.



IMMO / Key Programming: Disable a lost vehicle key to protect the vehicle from being stolen and add the new key. (work only on Asian cars that feature low-grade IMMO system.



Injector Coding: Code a new injector to better identify injectors to accurately control fuel injection.



ABS Bleeding: Perform to bleed the brake system to restore ABS braking sensitivity and obtain a firm brake pedal.



SAS Adjustment: Clear the fault steering angle sensor memories, perform reset steering angle sensor, and turn off steering wheel warning light.



Throttle Relearn: Reset the throttle actuators to accurately regulate throttle (or idle engine) operations, helps keep your idling and acceleration smooth.



Headlight Matching: Initialize the adaptive headlight system

    ...



More can be done after Maintenance / Reset or Component Replacement: Initial Adaptation, Auto-Learning, Relearn, Auto Detection. For example: Crankshaft Sensor Learn



Note:



The above mentioned is just a small portion of all supported services and more are not listed. Please also know that NOT ALL Service & Special Functions are universally compatible.



6. Intuitive & Convenient Auto Scan:



Autel MP808Z-TS features one-click Auto Scan to allow users quickly know the health status of all systems to take proper fix avoid any potential risk in the future.



Autel MaxiPRO MP808Z-TS support 4 methods for Vehicle Identification:



1). Auto VIN

2). Manual VIN Input

3). Automatic Selection

4). Manual Selection

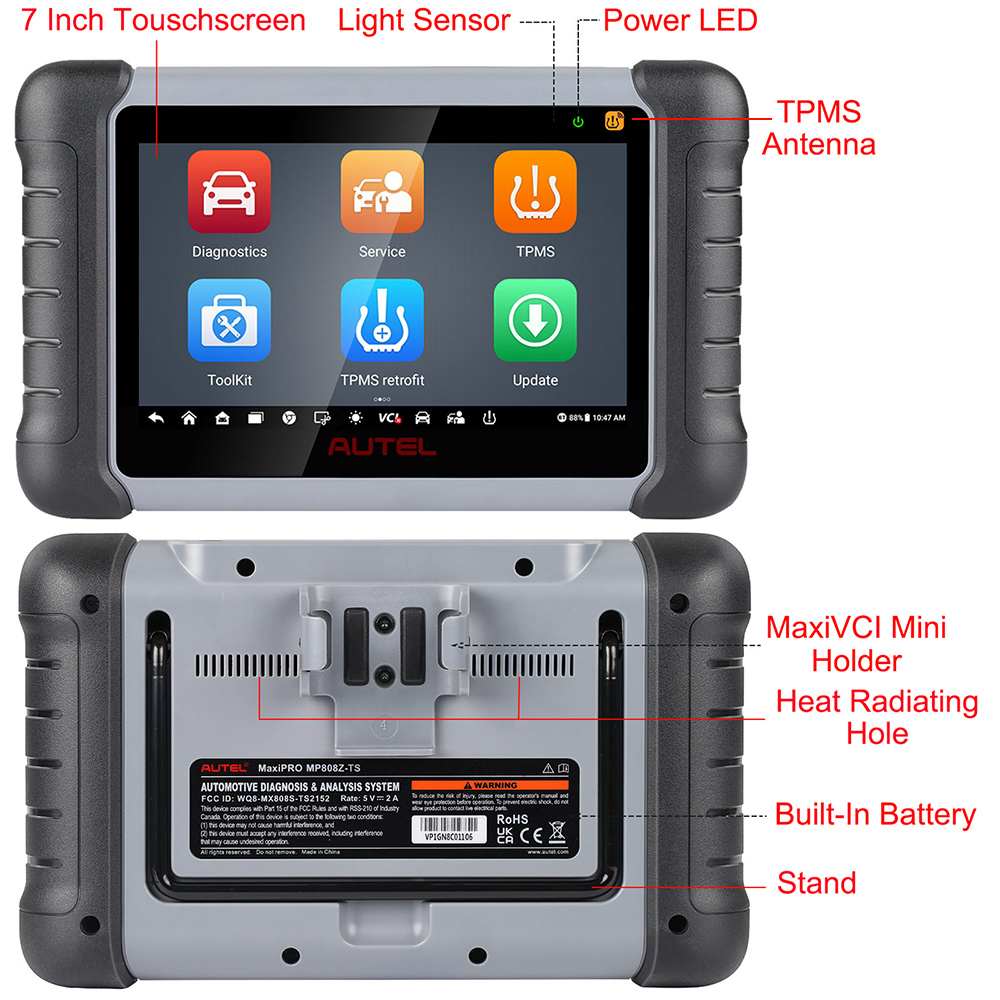

Specifications:



Operating System: Android 11

Processor: Rockchip RK3566

Display: 7-inch LCD capacitive touchscreen with 1024*600 resolution

RAM: 4G

Storage: 64G

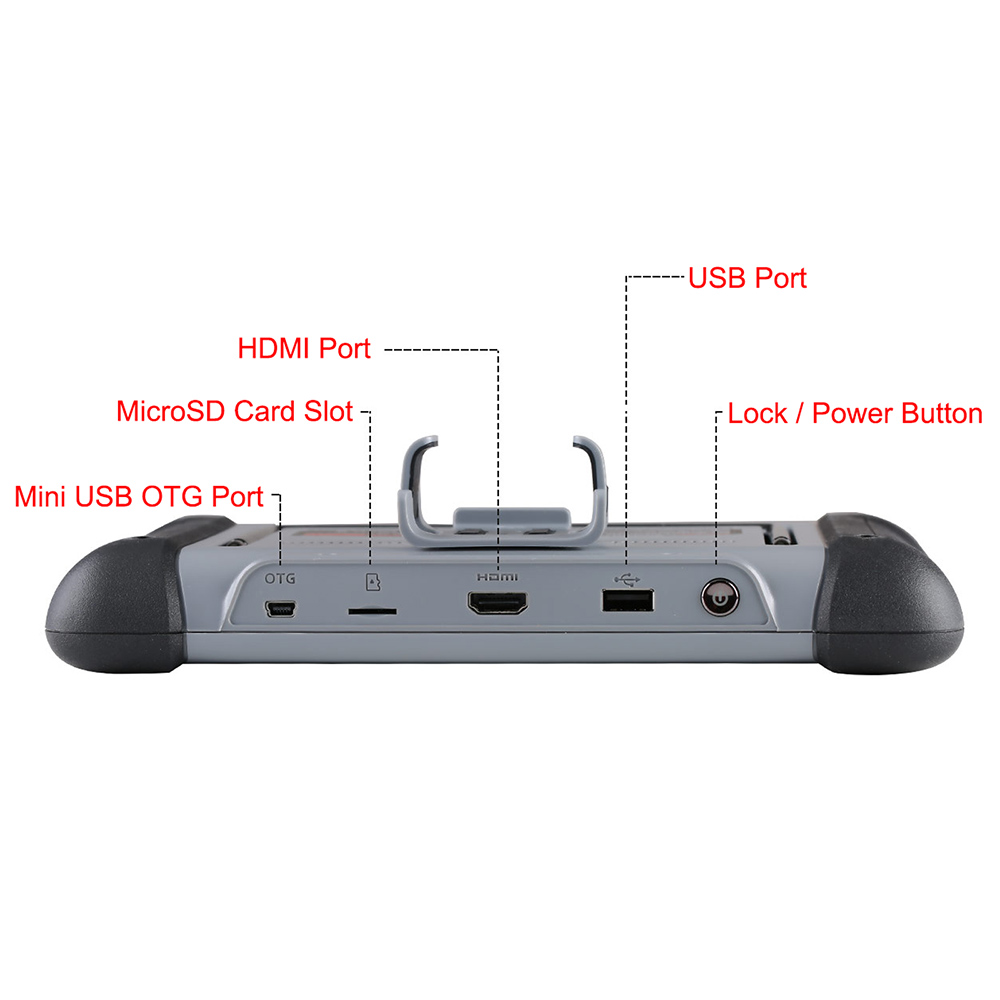

Connectivity: mini USB 2.0 / USB 2.0 / Wi-Fi (2.4 & 5GHz) / HDMI type A / MicroSD card (supports up to 64GB)

Sensors: light sensor for automatic brightness adjustment

Audio Input: N/A

Output: beep

Power and Battery: 3.7V/5000mAh lithium-polymer battery charges via 5V DC power supply

Tested Battery Life: around 7 hours of continuous use

Battery Charging Input: 5V/1.5 A

Power Consumption: 600mA (LCD on with default brightness, Wi-Fi on) @ 3.7V

Operating Temperature: 0 to 55 degree centigrade

Storage Temperature: -20 to 60 degree centigrade

Operating Humidity: 5% - 95% non-condensing

Dimensions(W*H*D): 270.8*176*36mm

Net Weight: 885g
Protocols: ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (High-Speed/Middle-Speed/Low-Speed/Single-Wire CAN, Fault-Tolerant CAN), SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6

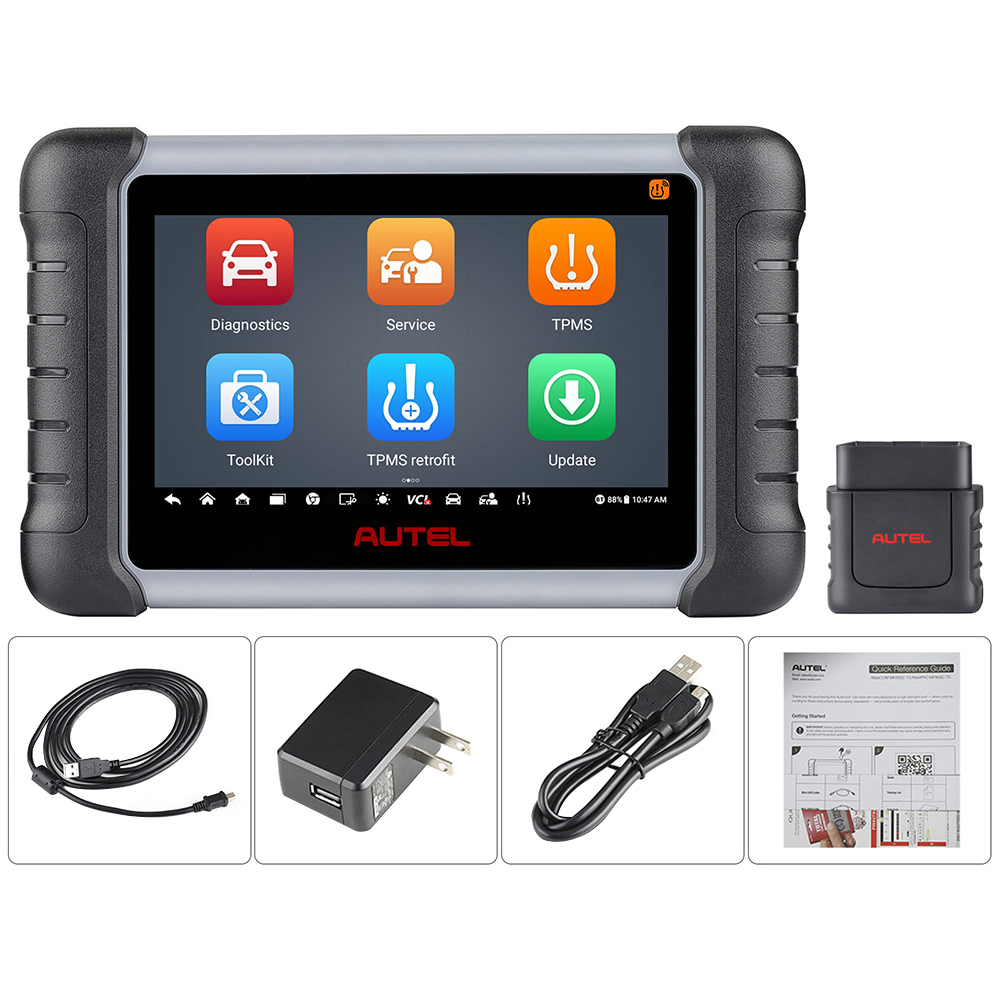

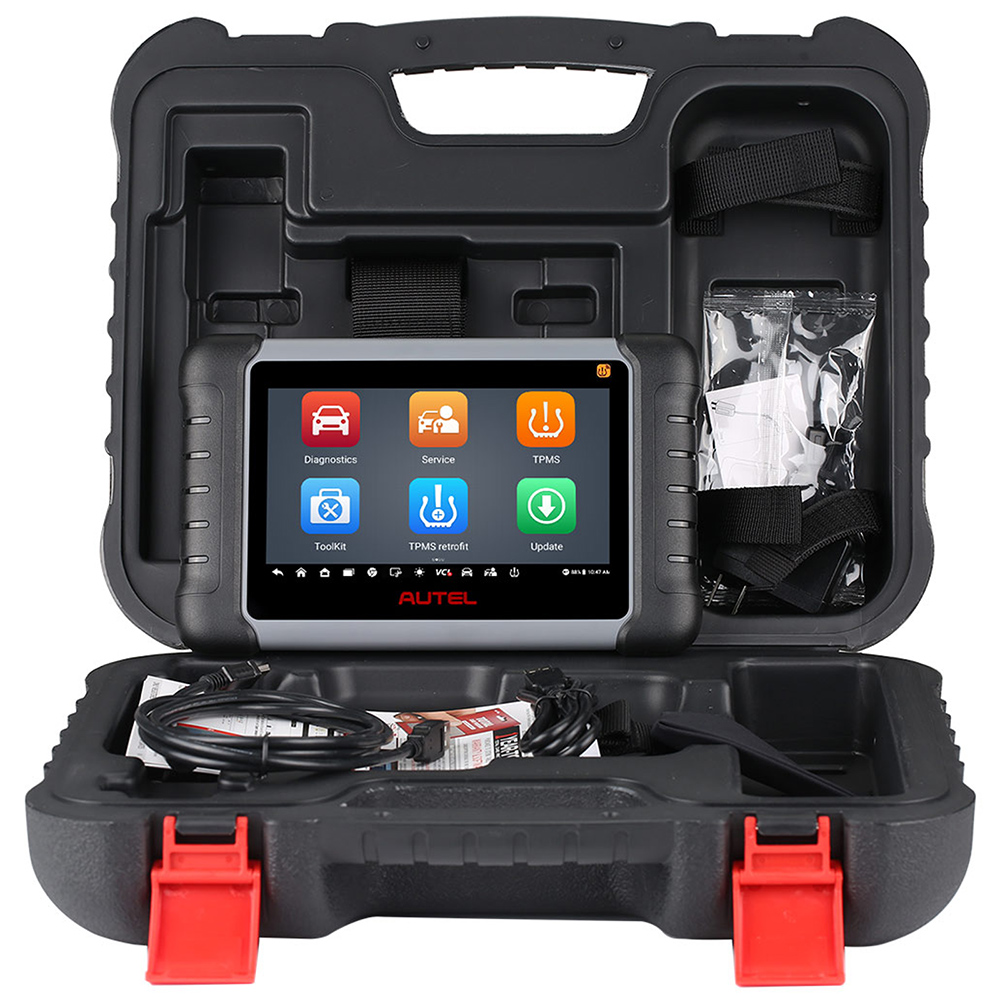

Packing List:

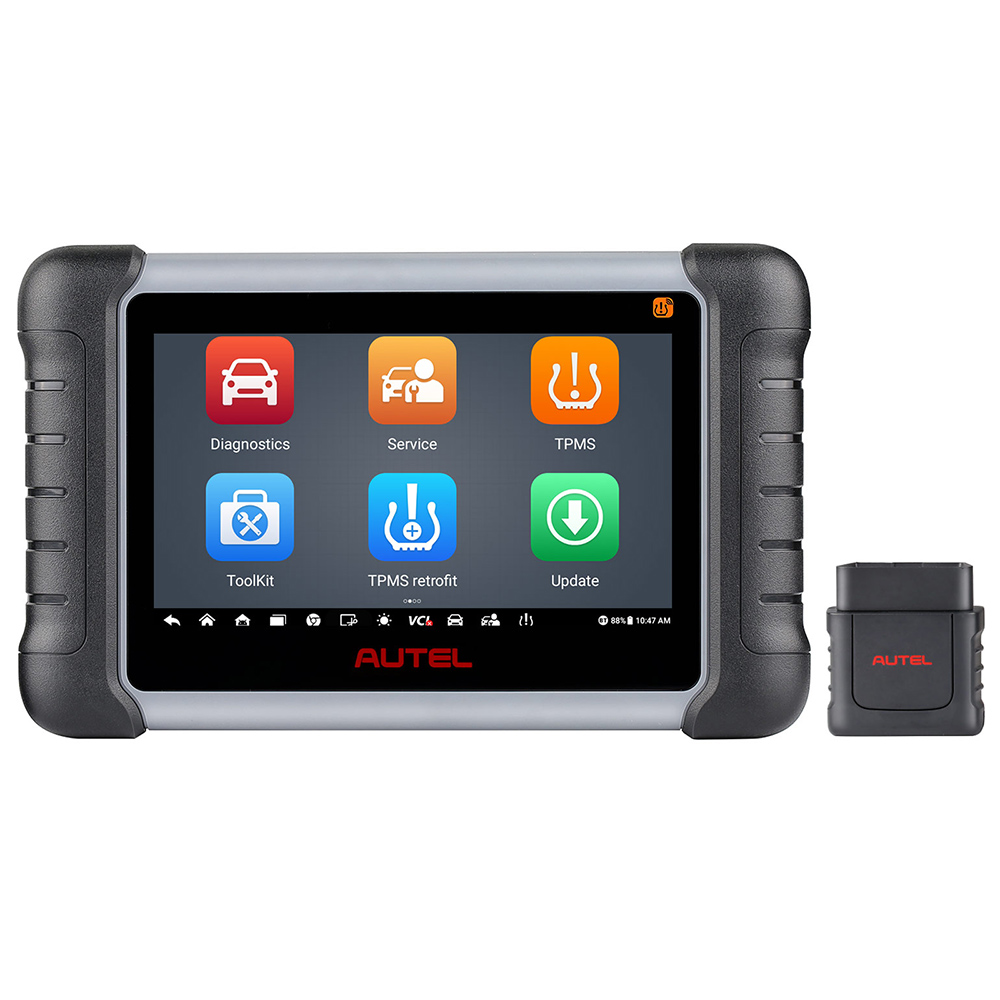

Autel MaxiPRO MP808Z-TS Tablet Scanner

Autel MaxiVCI Mini

USB Cable

USB Cable for Charging

Power Adapter

Quick Start Guide

Quick Reference Guide
Packing List

Plastic Toolbox
