Name: Launch X431 X-PROG3 PC Adaptor
Description:
Launch X431 IMMO Programmer GIII X-Prog 3 PC Adaptor.
Features:
1. Used in conjunction with X-PROG3 anti lift matching programmer.
2. 2D menu, clear and easy to choose.
3. Powerful search function.

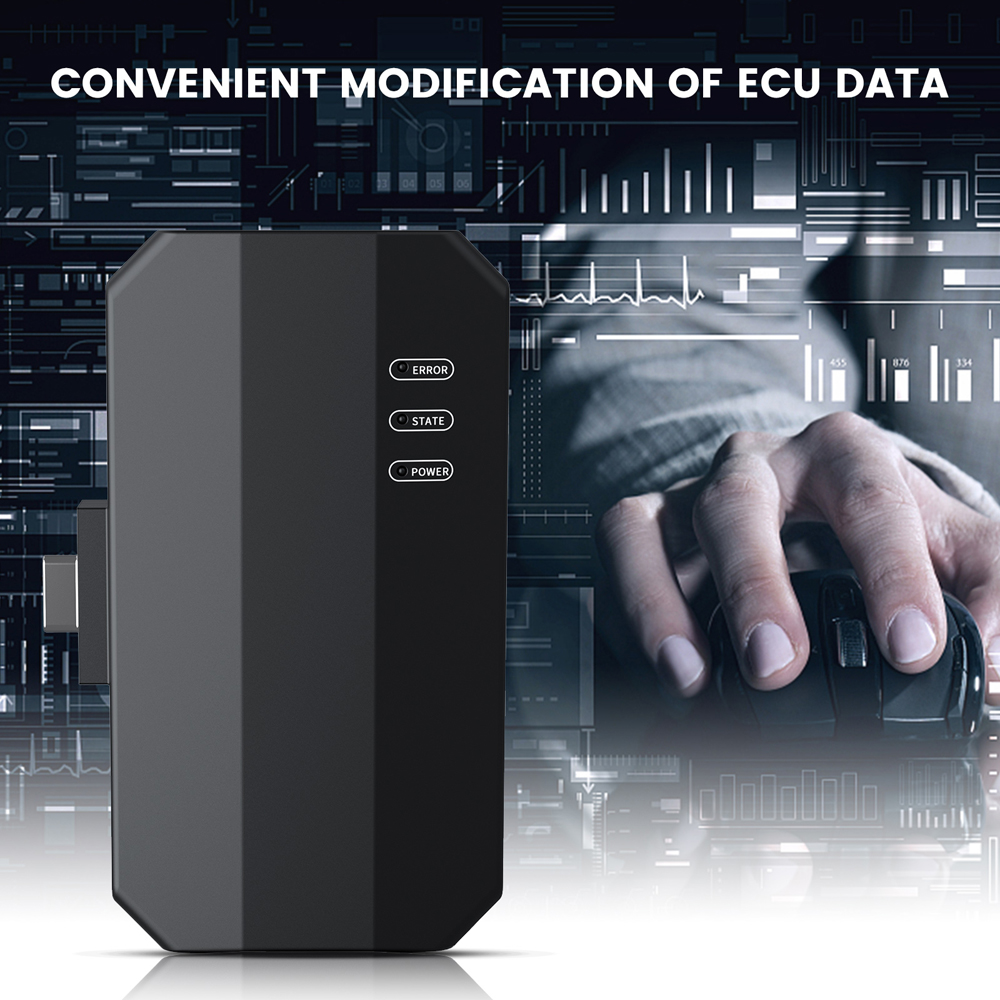

4. Convenient modification of ECU data.

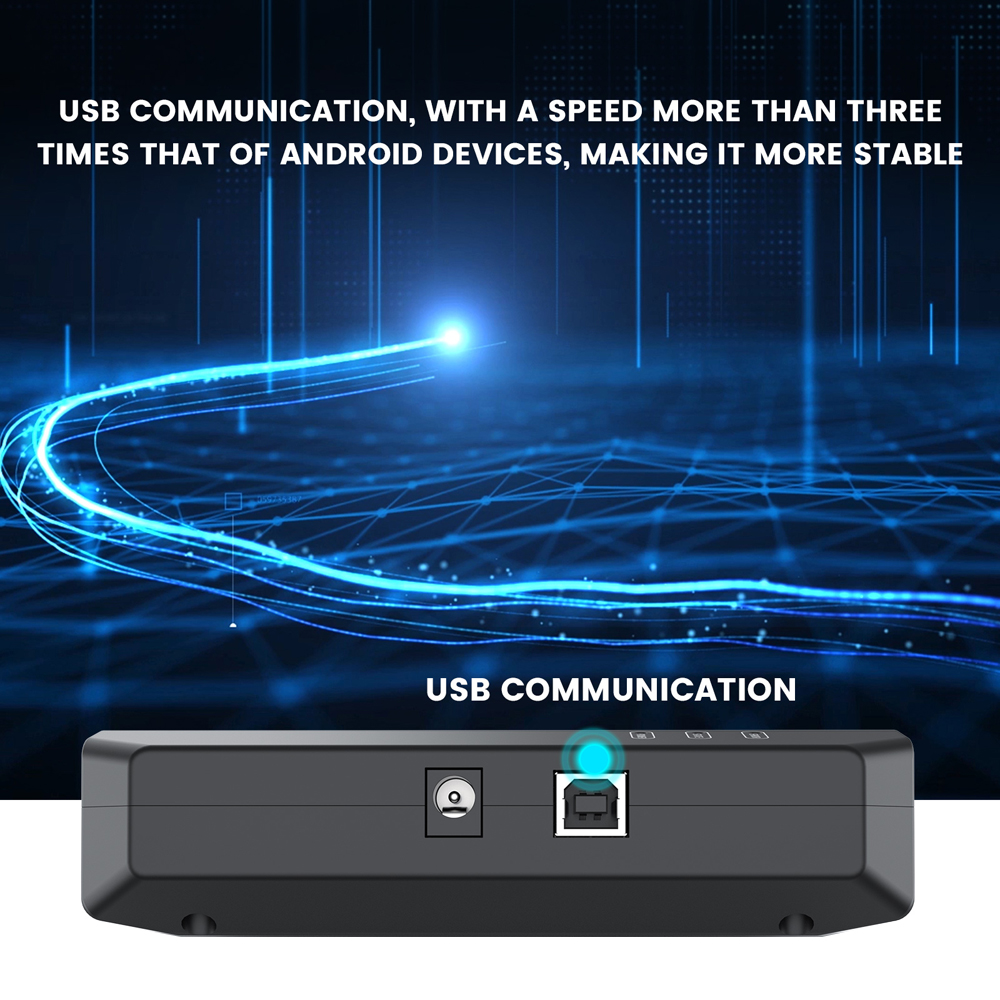

5. USB communication, with a speed more than 3 times that of Android devices, making it more stable.
6. Easy to copy data.
7. Support engine data validation function.
Operation Instructions:
1. Connect the X-PROG3 PC Adaptor to the computer using USB cable, and then connect the X-PROG3 PC Adapter to G3.
2. Click to enter the software (Software cannot be entered without connecting the X-PROG3 PC Adapter and G3.). The Serial Number will be automatically recognized from X-PROG3 PC Adaptor. Fill in the Activation Code (Get it from password envelope of the X-PROG3 PC Adapter package).

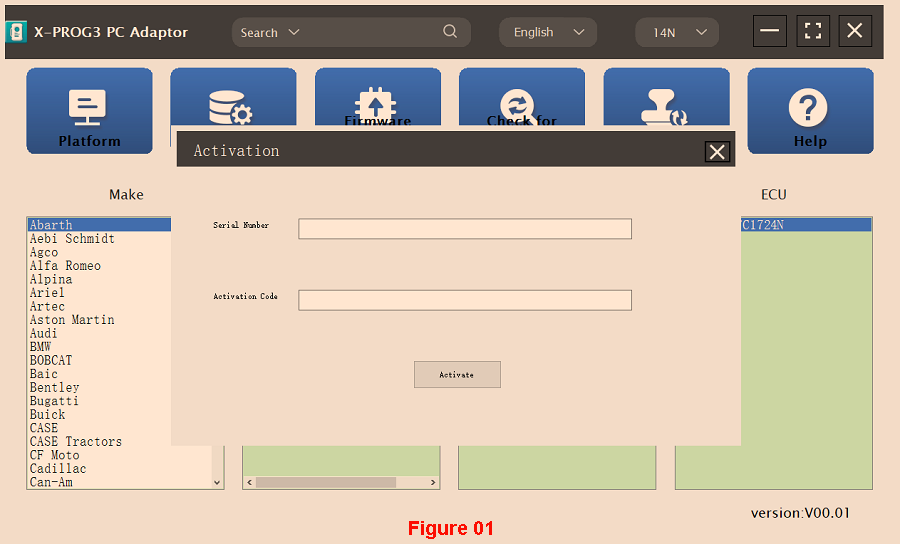

3. Click [Activation] button as shown in Figure 1.
I. ECU Data Reading/Writing
1. Obtain the related ECU.

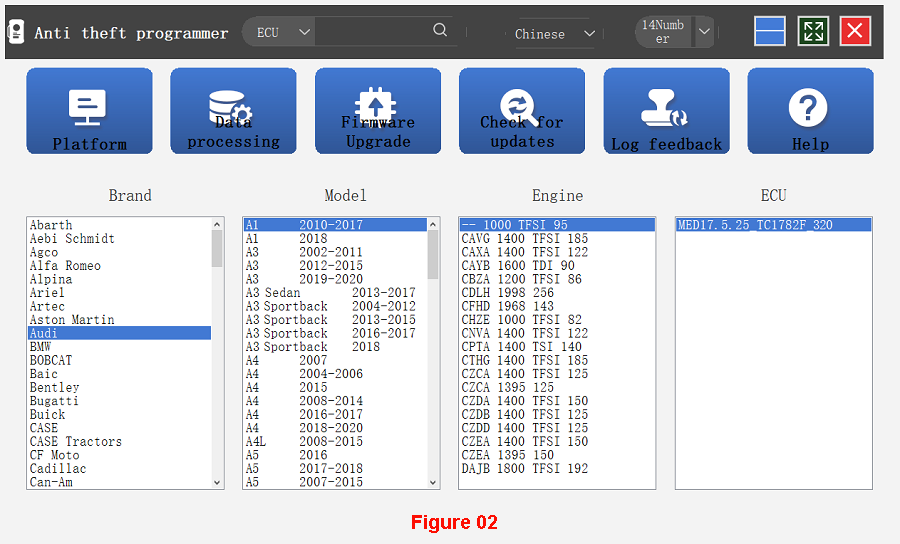

Method 1: Obtain the desired ECU type through menu Brand > Model > Engine > ECU, as shown in Figure 2.

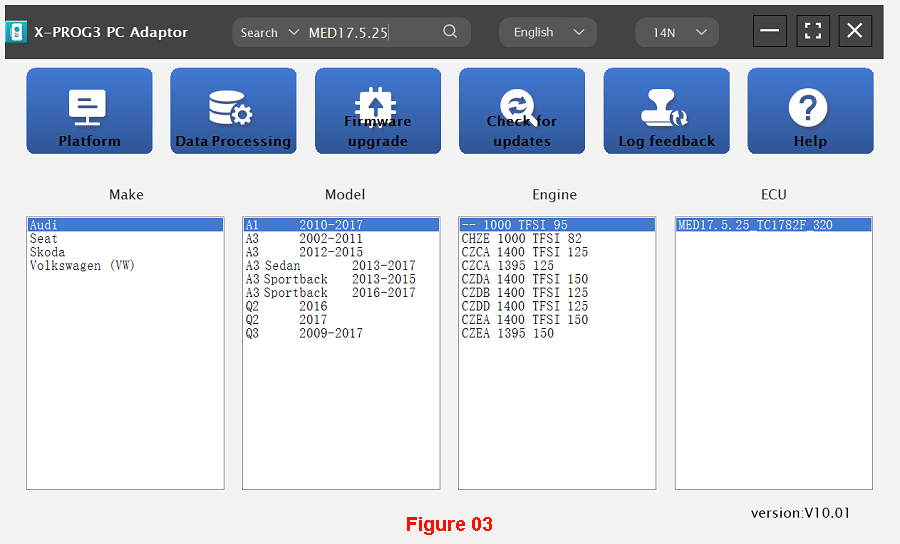

Method 2: Query the desired ECU by entering keywords in the search box. The search categories include brand, Bosch number and ECU type. For example, search for the MED17.5.25 engine by ECU type, as shown in Figure 3.

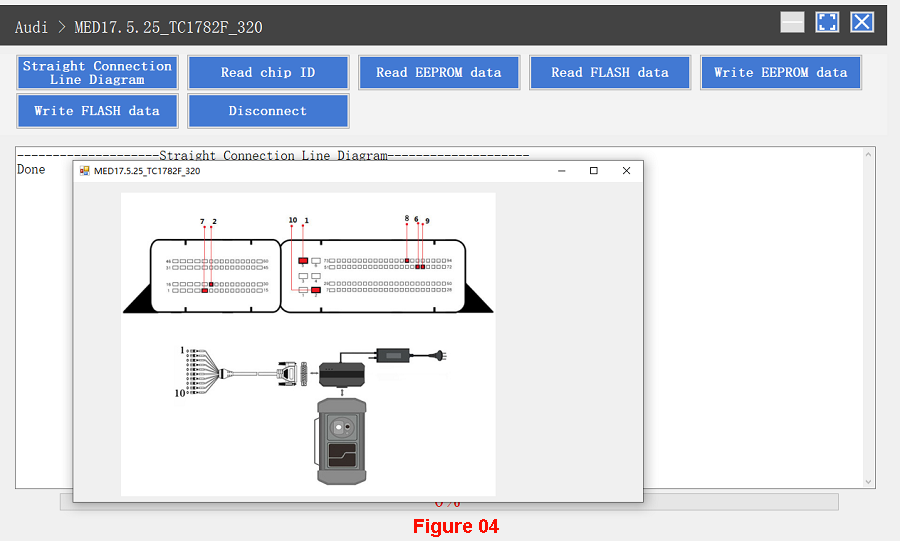

2. Click [Straight Connection Line Diagram] to obtain the ECU connection diagram, as shown in Figure 4.

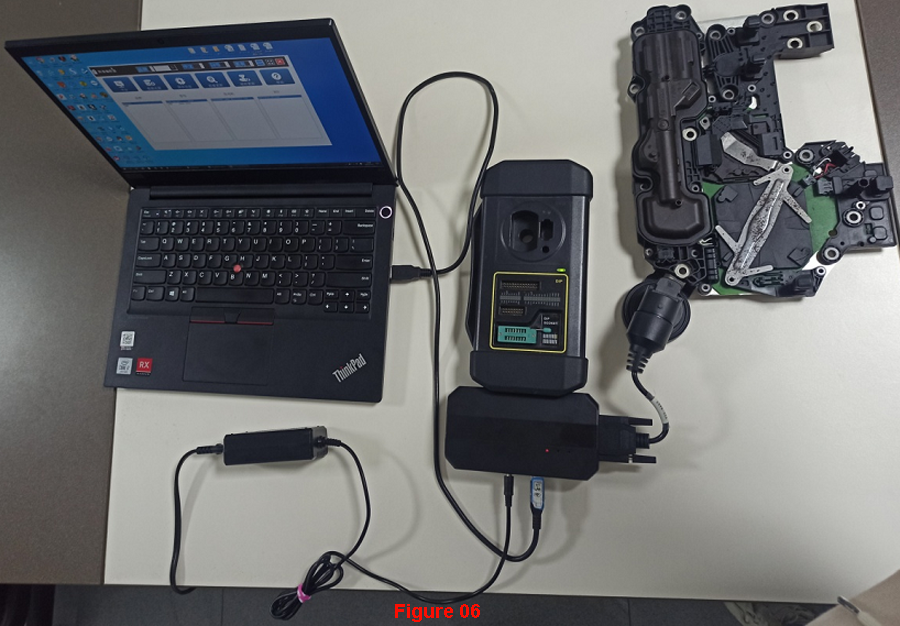

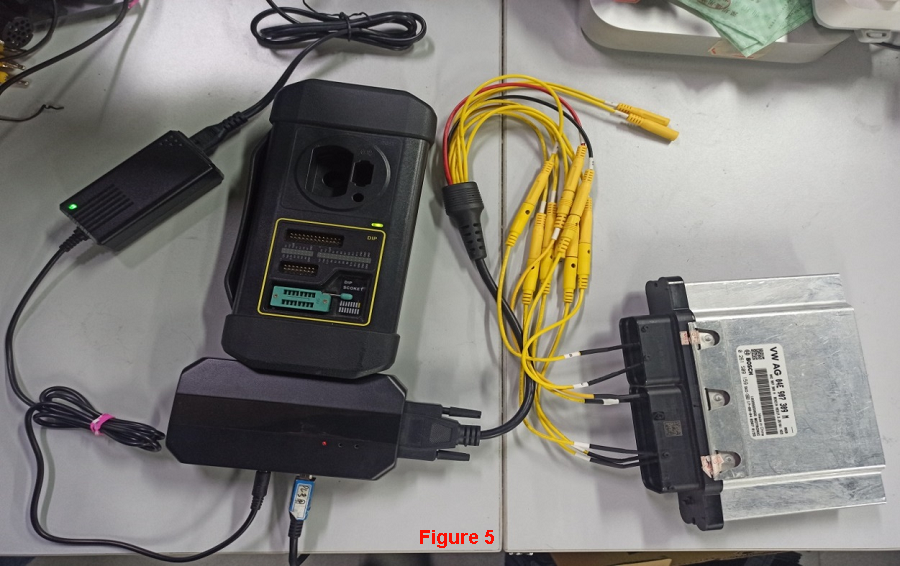

3. Connect the ECU and devices according to the information provided in the connection diagram. The physical connection diagram of MED17.5.25 (using the BENCH mode line) is shown in Figure 5, and the physical connection diagram using the gearbox adapter is shown in Figure 6.

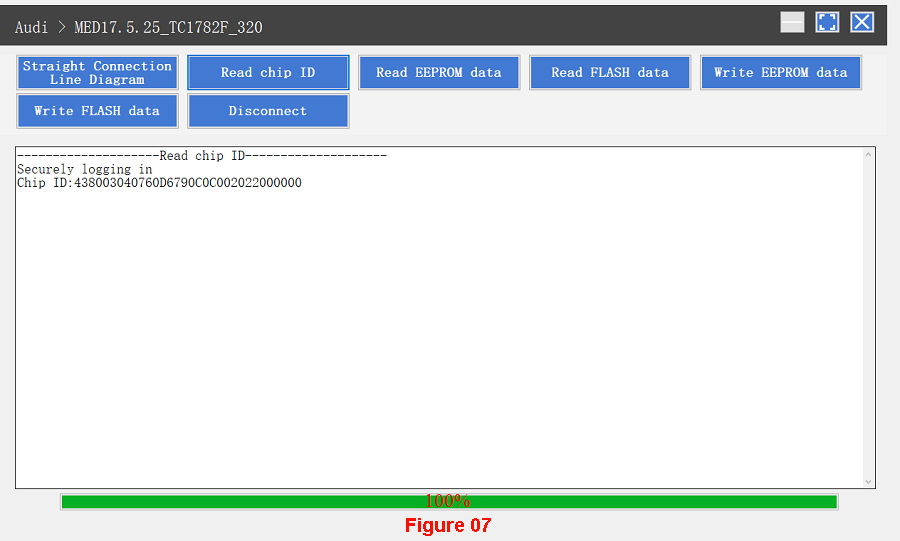

4. Read the chip ID, as shown in Figure 7.

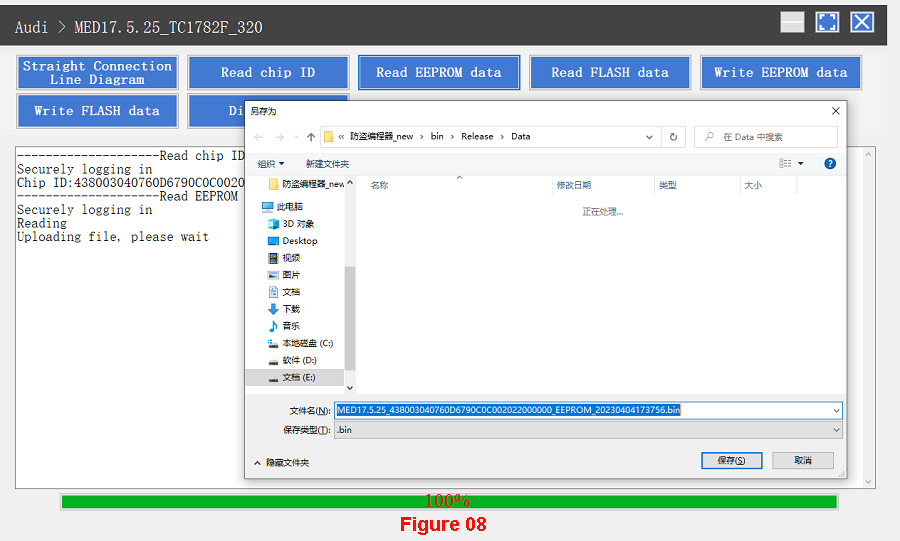

5. Back up the EEPROM data and save it, as shown in Figure 8 (Figure shows the save page of the read data.).

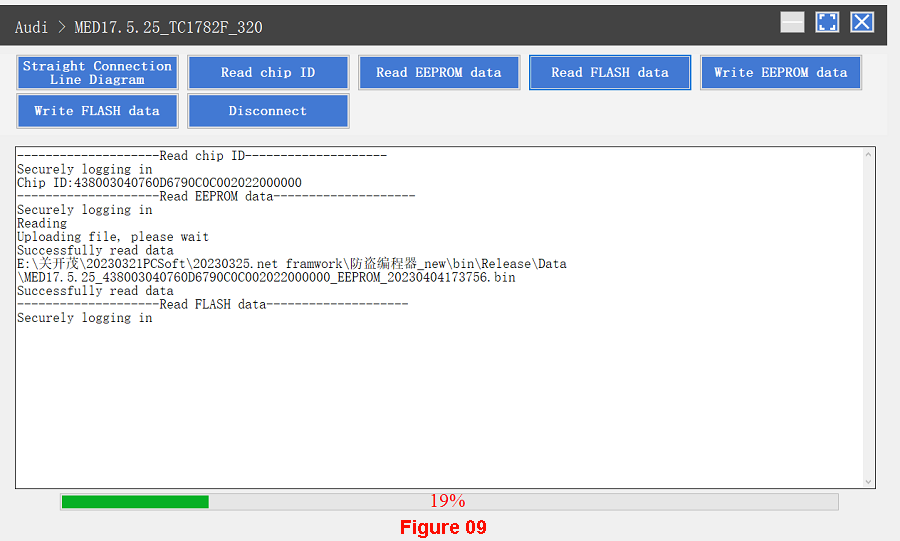

6. Back up the FLASH data and save it, as shown in Figure 9 (Figure shows the process of reading FLASH data.).

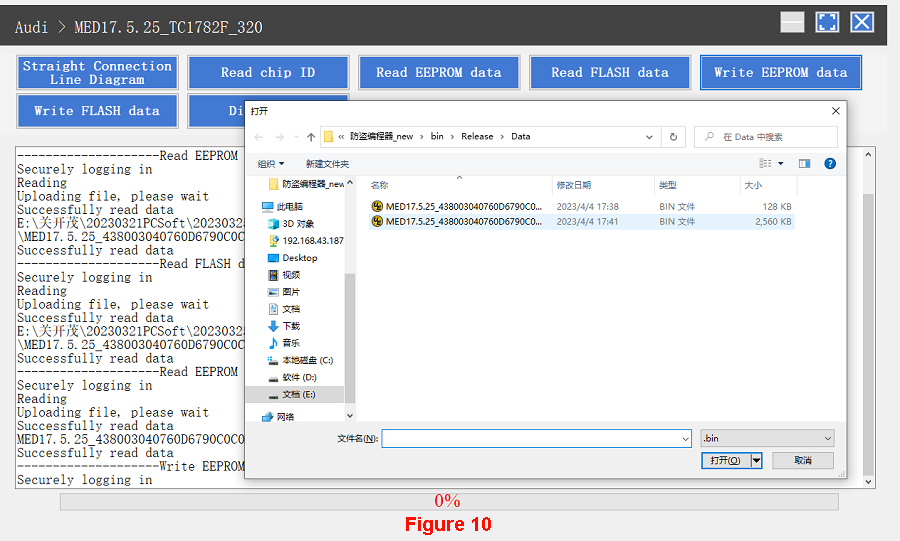

7. Restore EEPROM/FLASH data, as shown in Figure 10 (Figure shows the file selection page.).
II. Data Processing

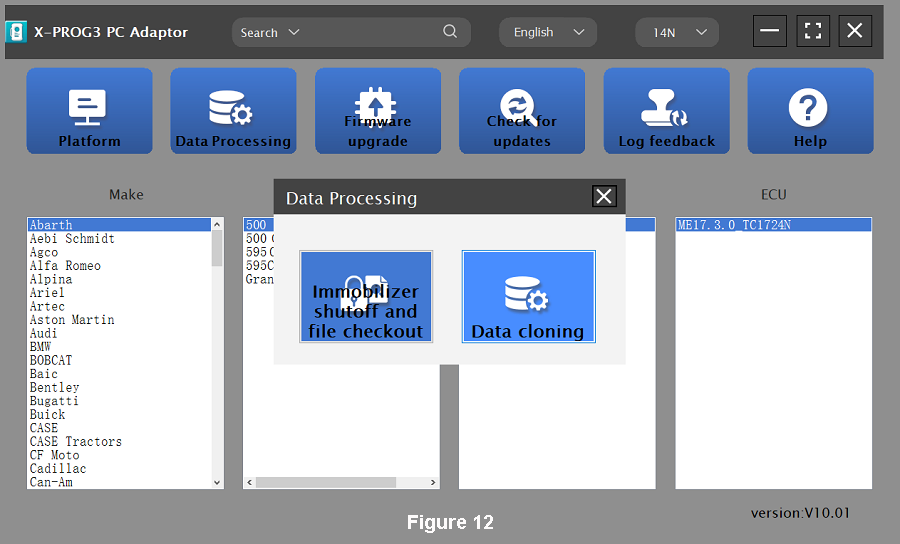

1. Click the [Data Processing] button on the main page, as shown in Figure 11, and select [Immobilizer Shutoff and File Checkout] [Data Cloning] process Volkswagen series and Porsche engine data, as shown in Figure 12.

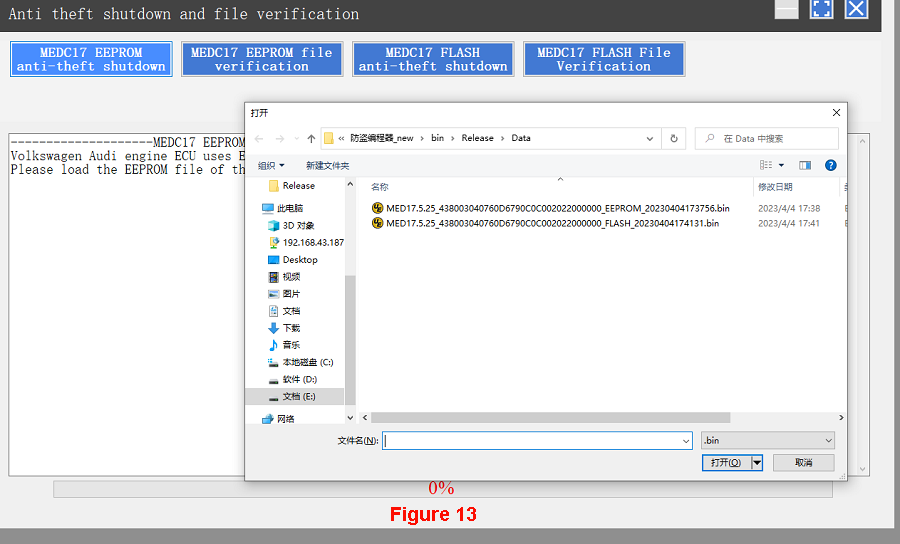

2. File verification and anti-theft shutdown (Process: select file > connect network to obtain > save file), as shown in Figure 13.
Optional Adapters:
X-PROG3 Adapter Cable 1 (DQ200XX)
X-PROG3 Adapter Cable 2 (VL381)
X-PROG3 Adapter Cable 3 (DQ380)
X-PROG3 Adapter Cable 4 (DQ250)
X-PROG3 Adapter Cable 5 (DL501)
X-PROG3 Adapter Cable 6 (DL382)
X-PROG3 Adapter Cable 7 (VGS-NAG3)
X-PROG3 Adapter Cable 8 (VGS2-FDCT/VGS-FDCT)
X-PROG3 Adapter Cable 9 (VGS3-NAG2)
X-PROG3 Adapter Cable 10 (8HP_V1(BMW/LR)/8HP_V2/8HP_V3)
X-PROG3 Adapter Cable 11 (MPS6)
X-PROG3 Adapter Cable 12 (DPS6)
X-PROG3 Adapter Cable Main Line (ML)
 |
