Name: Launch X431 XPROG 3 Immobilizer & Key Programmer for X431 V X431 V+ X431 PAD V X431 PAD VII
Description:

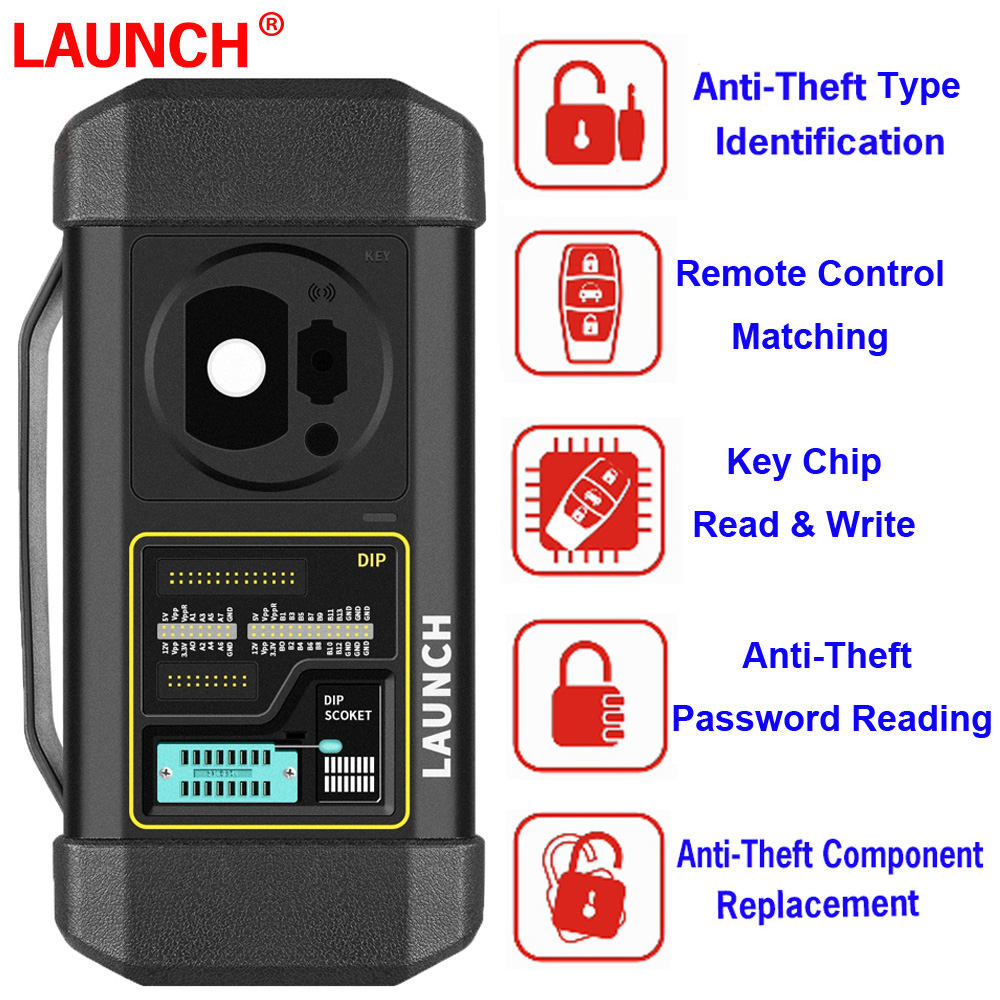

Launch X-PROG 3 Immobilizer & Key Programmer is a powerful chip reading device that can read / write keys to the vehicle. It is compatible with X-431 series diagnostic scanners. Launch X-PROG3 enables Anti-theft Type Identification, Remote Control Matching, Key Chip Reading & Matching, Anti-theft Password Reading and Anti-theft Component Replacement.
Highlights:
1. All-in-one key programmer. Integrates multiple function models.
2. Reads & writes most engine / gearbox ECUs without disassembling the shell.
3. Launch X431 XPROG3 is compatible with multiple X-431 Series diagnostic tablet: X-431 V, X-431 V+, X-431 PAD V, X-431 PAD VII…
4. Supports VW / Audi MQB platform engine ECU replacement or cloning (Read engine ECU data directly from the key.).
5. Works with reprogramming device to backup / restore programming data (For Bosch / Siemens engine ECU).
6. Enables reading / writing EEPROM, onboard MCU, and BMW CAS4+ / FEM chips, Mercedes-Benz infrared keys, generating special keys, reading BMW engine INS code.
Advantages:
1. Supports VW / Audi MQB platform engine ECU replacement or cloning (Read engine ECU data directly from the key.).
2. Supports VW / Audi MQB platform gearbox ECU replacement or cloning.
3. Supports ECU replacement for the fifth-generation of Audi (0AW/0B5) gearbox.
4. Supports reading, writing & cloning the ECU for the fourth-generation of VW UDS engine.
5. Supports BMW E chassis 8HP gearbox ECU reprogramming to empty.
6. Works with reprogramming device to backup/restore programming data (For Bosch/Siemens engine ECU.).
7. Supported Systems: Automatic Transmission, Instrument System, CAS, Body System, Lock System, etc.
Core Functions:
1. Integrated the functions of key matching/copy, anti-theft IC reading & writing, and ECU reading & writing, etc.
2. Supports common ECU / MCU /EEPROM major manufacturers, with over 1200 product models, and constantly updating.
3. Supports ECU replacement for all lost without disassembly for VW / Audi non-35XX instrument (it can be read directly through independent harness without removing the IC).
4. Supports ECU replacement for the fourth-generation of VW / Audi engine;
5. Supports ECU replacement for the fifth-generation of VW / Audi Bosch and Siemens engines.
6. Supports the all lost and replacement for the fourth generation of AUDI EZS, comfortable ECU, and KESSY IC.
7. Supports the BMW F and G chassis 8HP gearbox ECU reprogramming to empty.
8. Supports BMW CAS4 / CAS4+ module replacement.
9. Supports the ECU cloning and replacement for BMW Siemens engines.
10. Erase the password for Mercedes-Benz engine and gearbox within 3S.
11. Add the function of calculating the password for the Mercedes-Benz key within 1 minute.
Supported Cars:
VW, Audi, Skoda, SEAT, BMW, Mercedes-Benz, Toyota…
Compatible Launch Products:
X-431 V, X-431 V+, X-431 PRO V4.0, X-431 PRO GT, X-431 PRO 3 V4.0, X-431 PRO 5, X431-PAD II AE, X-431 PAD III V2.0, X-431 PAD V, X-431 PAD VII, X431-Throttle, X431-Throttle III, X431-Torque, X431-Torque III, X431-Turbo
Specifications:
Interface: DB15 / DB26
Input Power: DC12V
Working Current: maximum 500mA
Power Consumption: 5W
Storage Temperature: -20 to 70 degree centigrade
Working Temperature: 0 to 50 degree centigrade

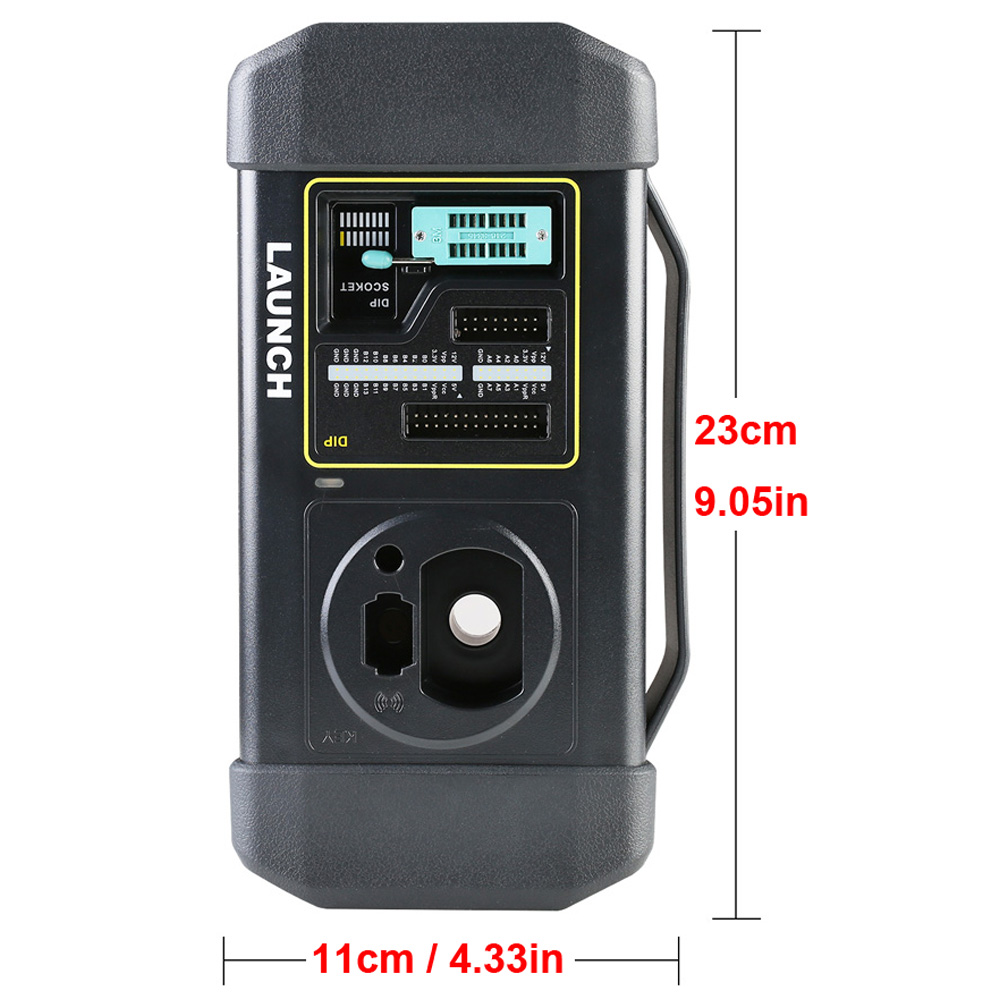

Size: 228*120mm

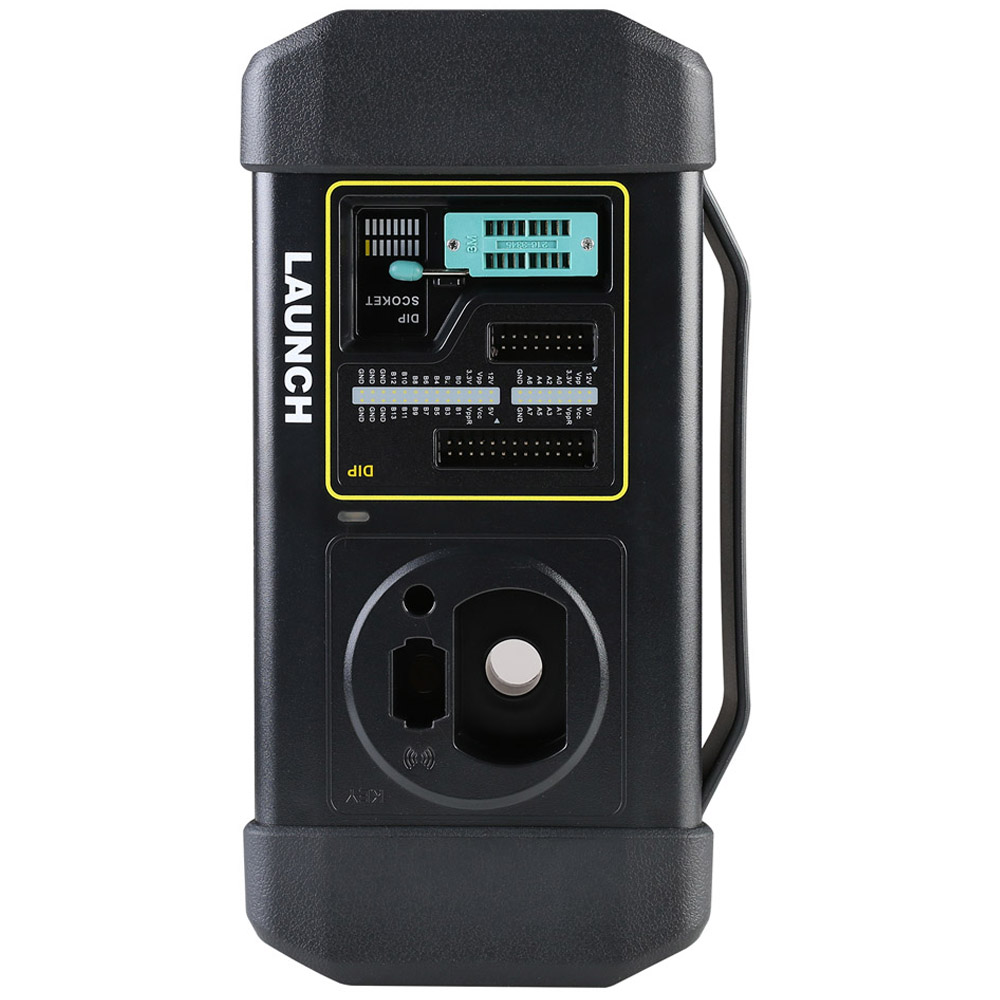

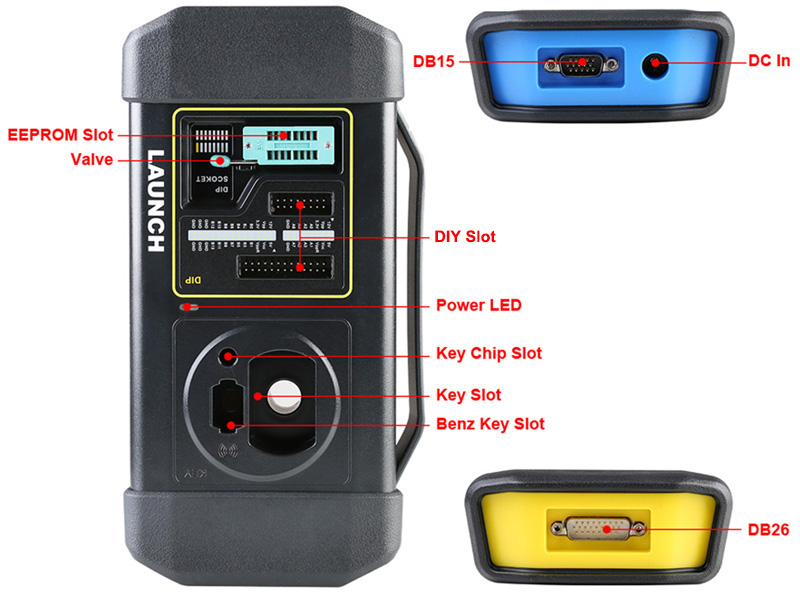

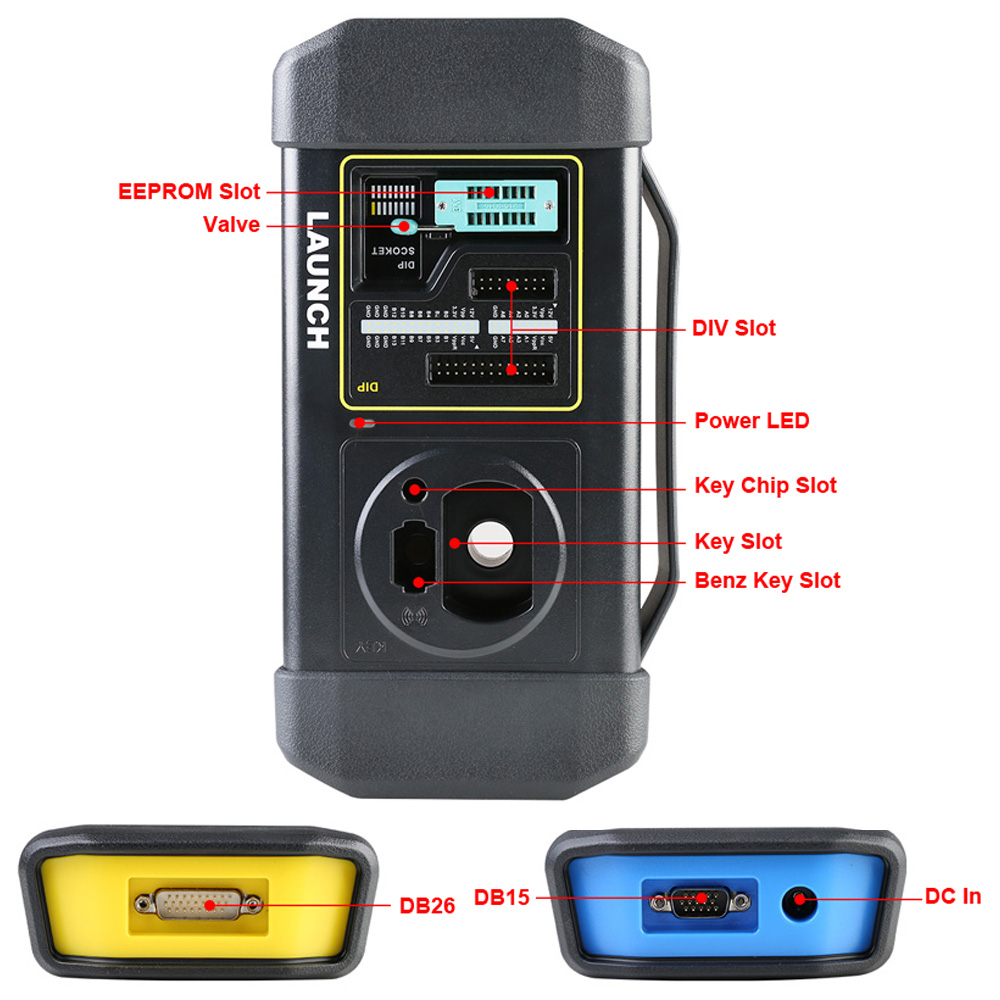

Key Slot: used to place the car key to perform the key matching function
Benz Key Slot: used to place the MB infrared key to perform the key matching function
Key Chip Hole: used to place the key chip to perform the key matching function
Power LED: power supply indicator
DIY Slot: used to connect the anti-theft ECU pin through the cable to read and write data
EEPROM Slot: used to install chip burning socket to read and write EEPROM or MCU data
DC In: used to connect to the DC 12V power supply
DB15: used to connect to the main harness
DB26 Port: used to connect to each anti-theft harness
Supported List:
Supported ECU / MCU (over 1000 kinds and updating...):
Atmel
Fujitsu
Infineon
MC68HC05
MC68HC08
MC68HC11
MC68HC12
MediaTek
MicroChip
Nordic
NSC
Philips
Renesas M16
Renesas M32
Renesas M32R
Renesas R32C
Renesas R8C
Renesas V850 SPI
Renesas V850 UART
Samsung
SiLabs
ST
Supported EEPROM (over 1000 kinds and updating...)：
4Wire
Adesto
AKM
Altera
Amic
Atmel
BOSCH
Catalyst
Chingis
Dallas/Maxim
EON
ESMT
EXEL
Fairchild
Ford
Fujitsu
GI
GigaDevice
Grundig
HOLTEK
Hynix
I2C
ITT
KHIC
Macronix
MicroChip
MicroWire
Micron
Mitsubishi
Motorola
NEC
NSC
Numonyx
OKI
ON
PCT
Pioneer
Philips
PMC
Ramtron
Rohm
Samsung
Seiko
Semi
Siemens
Sony
Spansion
SPI
SST
ST
Toshiba
Winbond
Xicor
xUSSR
YMC
|
