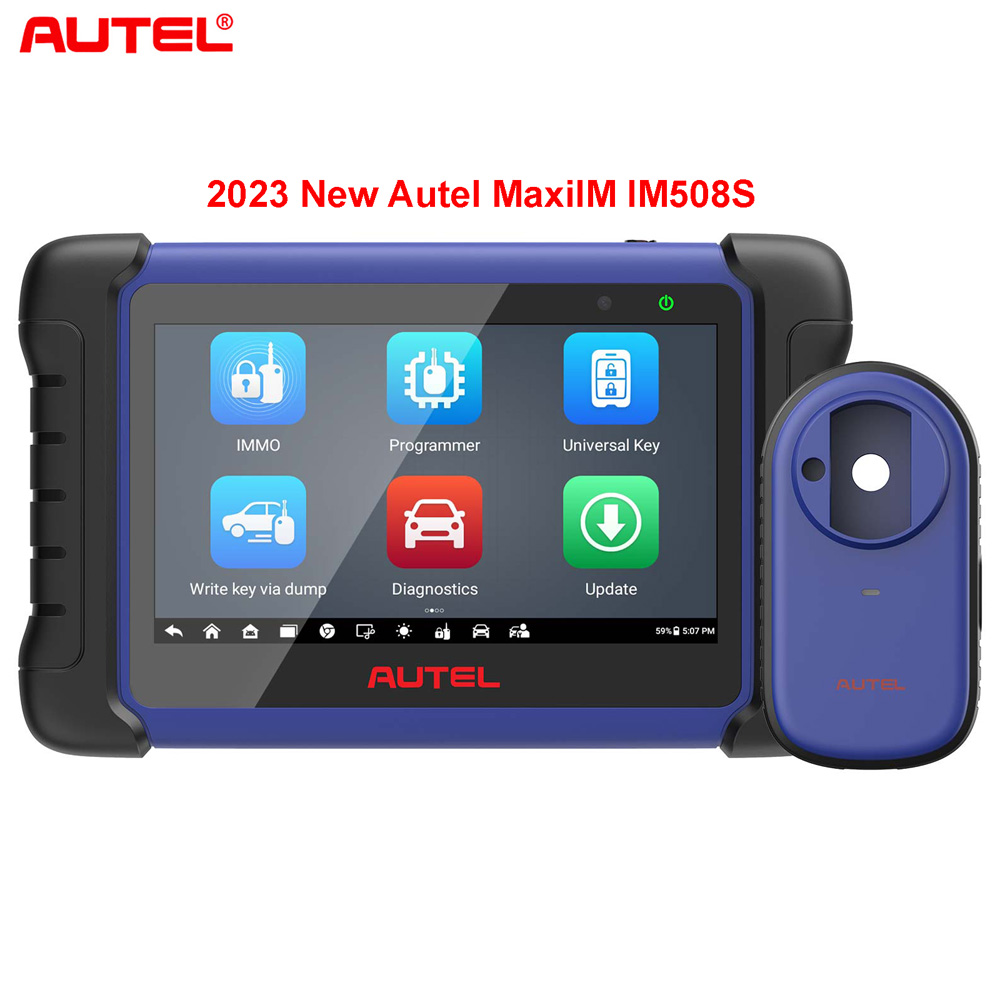

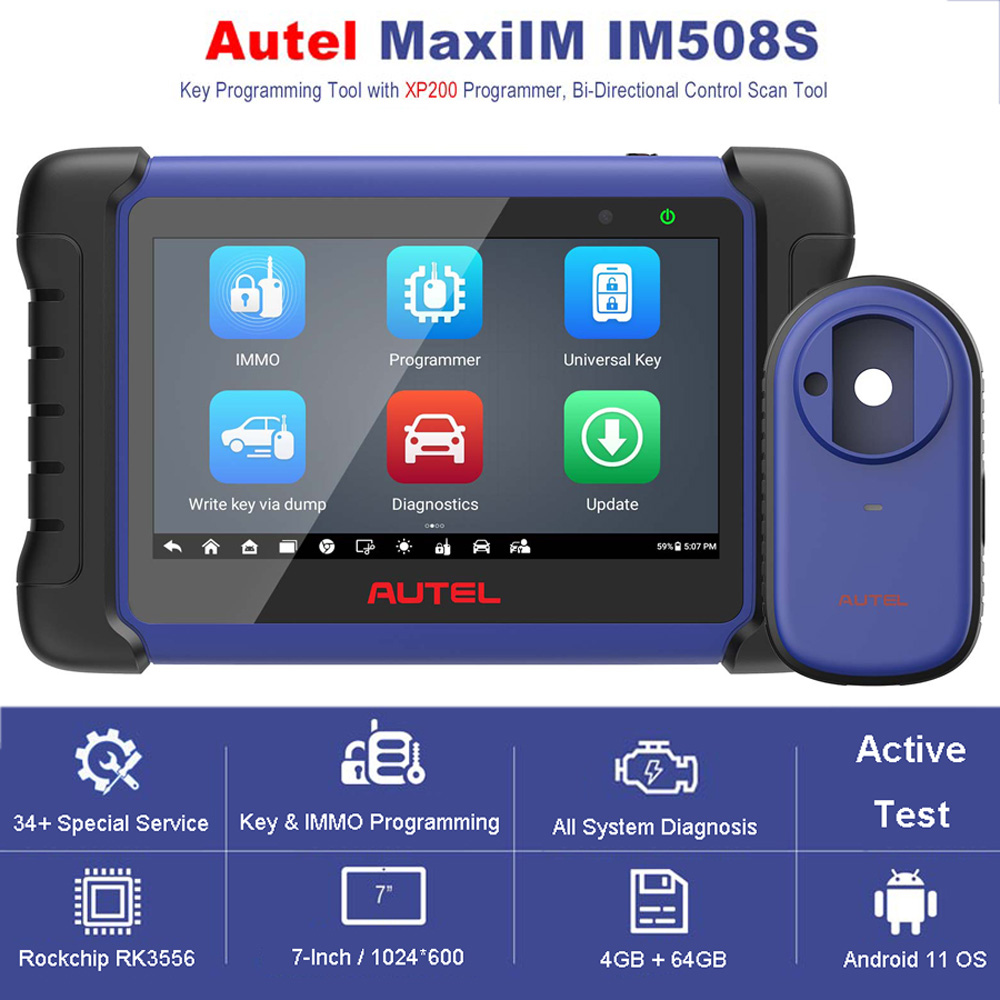

Name: Autel MaxiIM IM508S Key Programmer
Description:
Autel MaxiIM IM508S Automotive Key Programmning Tool comes with the XP200 Key Programmer. Autel IM508S is capable of providing extraordinary service functions for the immobilizer system. Autel IM508S is also with the ability to quickly read & clear DTCs for all available modules of the majority of the makes and models on the market.
Autel MaxiIM IM508S diagnostic level is same as Autel MX808 / MK808BT. Besides, IM508S is a diagnostic tool provides with you superior special functions, including Oil Reset, EPB (Electronic Parking Brake), SAS (Steering Angle Sensor), BMS (Battery Management System), DPF (Diesel Particulate Filter), IMMO.
Software Update: 1 year free update online
Features:
Advanced Key Programming
PIN / CS Reading (Full Lost)
Key Generation
Key Programming
Command Introduction
Backup / Repair IMMO Data
IMMO ECU Reset / Adaptation
IMMO ECU Regeneration / Coding
BMW FEM / BDC Key
Programming and ECU Adaptation
VW / Audi MQB Key Learning, 48 Transponder (96-bit) Add Key, All Key Lost, A6 All Keys Lost and More
Newly Added Features:
For Fiat:
1. Adds Key Learning (Bypass PIN) Function for Argo (2017-2020), Cronos (2017-2020), Toro (2016-2020), Mobi (2016-2019) and New Fiorino (2008-2019)
2. Adds Key Learning for Blade Key Function for Awventura (2014-2018).
3. Adds Key Learning for Blade Key Function for 500x (2018-2020), Eaea (2018-2020) and Tipo(2018-2020)
For BMW:
1. Supports New Software Version (swfl_00002419_085_010_080) for Key Learning Function for FEM/BDC Immobilizer System.
2. Adds 196 Software Versions. Supports Read ISN (OBD Mode) Function for B48/B58 Engine.
Functions List:
All Systems Diagnostics
AutoVIN / AutoScan
Read / Erase Codes
View / Record / Playback Live Data
View Freeze Frame Data
Shop and Data Manager Applications
Key Read / Write
EEPROM / MCU Read / Write
Read PIN / CS (All Key Lost)
Key Generation
Key Learning
Remote Learning
Backup / Restore IMMO Data
IMMO ECU Reset / Adaptation
IMMO ECU Refresh / Coding
BMW FEM / BDC Key Learning and ECU Adaptation
VW / Audi MQB Key Learning, 48 Transponder (96-bit) Add Key, All Key Lost, A6 All Keys Lost and More
Functions:
1. IMMO & Key Fob Programming for DIYers and Locksmiths
If you want to do something for IMMO systems or car keys, Autel IM508S scanner with XP200 Key Programmer can help you with the following: Read & Write to Immobilizer/Engine/EEPROM/MCU; Reset/Code/Backup IMMO ECU; Read PIN (Add Key/All Key Lost); Key Generation/Key Learning/Remote Learning, etc. Smart Mode will provide you with guided and automatic key learning functions, step by step, save you much trouble!
Note: Functions above vary by cars.

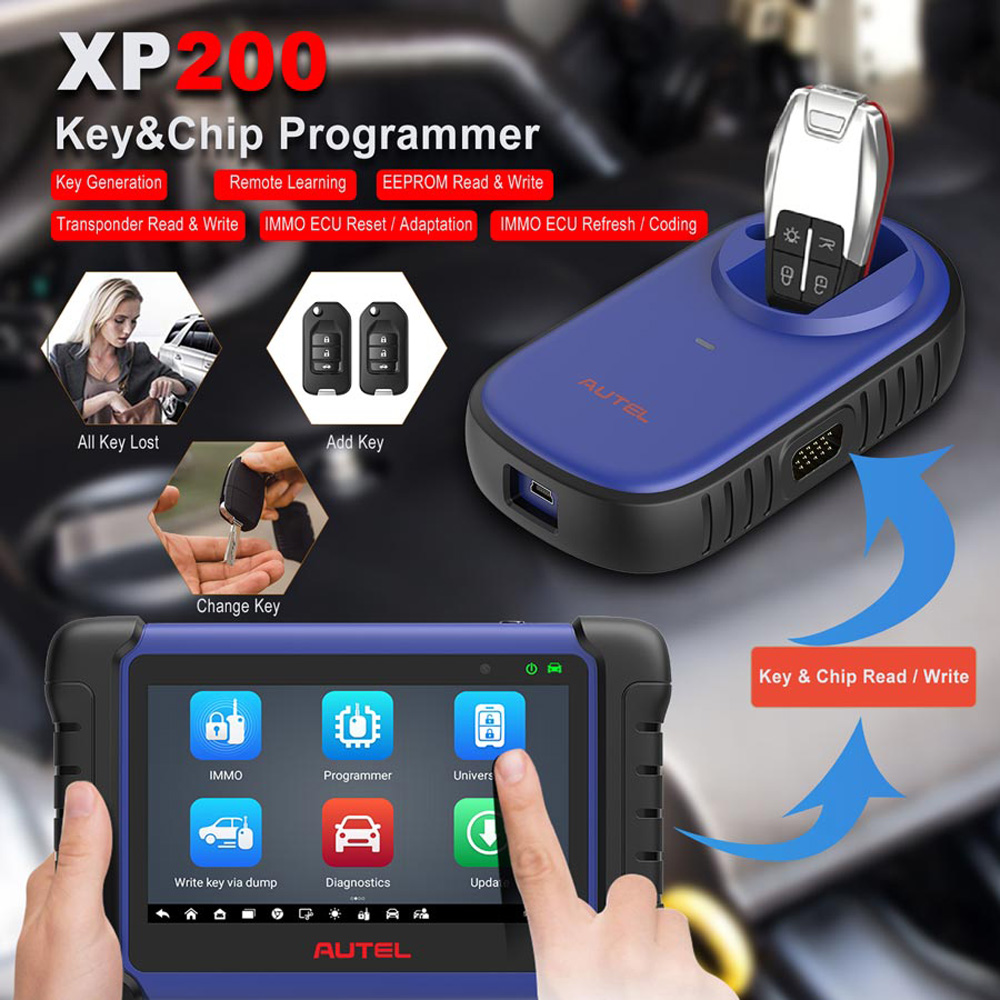

Autel XP200 is specially designed to read Volkswagen vehicle key chip data, Clone and Generate Exclusive Keys, Read/Write Onboard EEPROM Data, Read/Write Freescale 9S12 MCUs. By working with diagnostic tool and PC that are both loaded with programmer software, XP200 can read/write key chip data quickly and accurately.
IMMO:
The IMMO application requires a data link to the IMMO electronic control system of the test vehicle for diagnosis via OBD II connection.
The application retrieves vehicle IMMO information and performs IMMO related functions, including Key Learning, Remote Control Learning, Remote Control Add, etc.
IMMO & Key Programming :
1). Read PIN/CS (AII key Lost)
2). Key Generation
3). Key Learning/Remote Learning
4). Backup/Restore IMMO Data
5). IMMO ECU Reset/Adaptation, Refresh/Coding
6). BMW FEM/BDC Key Learning and ECU Adaptation
7). VW / Audi MQB Key Programming, 48 Transponder (96-bit) Key Splicing, Full Lost, A6 Full Lost and More
Advanced Key Programming:
Autel MaxiIM IM508S Car Key Programming Tool comes with comprehensive IMMO functions, including: Read PIN/CS(All Key Lost), Key Generation, Key Learning, Remote Learning on various makes, Benz FEM/BDC Key Learning/ECU Adaptation, BMW CAS3/2 Key Learning, VW/Audi/Skoda/Seat IMMO III/IV/V Add Key, All Key Lost, IMMO ECU Reset/Adaptation/Refresh/Coding, IMMO Data Backup/Restore.
* When connected to Autel XP400 Pro Key Programmer, IM508s will be able to support Benz 3rd Generation IMMO, BMW CAS4 Key Learning and VW/Audi MQB(VDD & JCI) Add Key, IMMO V A4/A5/Q5 2015+ Key Learning.
* When it is connected to Autel XP400 Pro, IM508S Key Programming Scan Tool can further extend its programming capability to the top level. Autel has offered to cover IMMO ECU Read & Write, MC9S12 Encryption Chip Read & Write, IC Card Read & Write, Mercedes Infrared Key Read & Write, Remote Frequency Detect and it will support PC connection.
Smart Mode & Expert Mode
IM508s comes with comprehensive IMMO functions that provides Smart Mode and Expert Mode to guide both professional technicians and home mechanics performing IMMO related functions, including Key Learning, Remote Control Learning, Remote Control Add, All Key Lost, etc.
* Smart Mode:
Guided and automated key learning for home mechanics.(Accesses to a function menu where each function is configured as a smart guide system.)
* Expert Mode:
Advanced key learning for professionals (Accesses to a function menu where each function is separated from each other.)
2. EEPROM / MCU Read & Write:
EEPROM and MCU are the anti-theft chips that store the anti-theft data of the vehicles. Autel IM508S Key Programming tool can read EEPROM/MCU data or write the anti-theft data to the EEPROM/MCU. EEPROM/MCU Read & EEPROM/ MCU Write are only available for the high-end key programming tools.
1) VW/Audi - Pioneering Smart Mode & Advanced Mode
* Pioneering Smart Mode & Super Mode - Auto detect IMMO types & read IMMO data, auto select Key Learning process.
* VAG 4th Gen. CAN IMMO via OBD - Convenient and fast to get the data in 3 minutes.
* Add MQB Blade & All Key Lost via OBD - Convenient and fast to get the data in 3 minutes.
2) BMW - Pioneering Smart Mode
* FEM/BDC IMMO System - Pioneering smart mode automatically saves data and prevents car being locked.
* FEM/BDC IMMO System - ECU programming and fixing.
* New B48/B58 Engine – Read ISN via OBD (Chassis F)
* Supports Read/Write ISN for most engines when used with Autel GBOX2 Benz % BWW Adapter.
3) Volvo – Semi-Smart Key All Key Lost via OBD
* OBD Connection
* Prevent car being locked, and resume learning after the learning process is interrupted
4) Ford/Mazda – All-Model Key Learning (Bypass PIN Code)
* Add Key/All Key Lost via OBD
* Bypass PIN Code
5) Chrysler – Key Learning (Bypass PIN Code)
* Add Key/ All Key Lost via OBD
* Bypass PIN Code
3. Bi-Directional Control/ Active Test
What would you do if the wipers stopped working? Just replace one or spend a lot money to fix it? Do not be in a hurry to dismantle your cars! Autel Key Programming Tool IM508S can perform real active tests that can send commands to the vehicle ECU to drive the actuators to work, like ABS, window, door, solenoids, valves, wipers, headlamp, etc, helping you quickly find out bad parts and pinpoint faulty issues.
Note: NOT universal. Please check compatibility.
4. OE-Level Diagnostic Capability Same as Autel MaxiCOM MK808
Autel IM508S Scanner is equipped with the same diagnostic capability as Autel MaxiCOM MK808. Autel IM508S can scan all available car systems on 80+ US, EU and Asian car makes to Read & Clear DTCs, View Live Data, Freeze Frame Data, and ECU Info, perform Active Tests and it is compatible with Autel MaxiVideo MV108(not included). With just a few simple clicks, you can quickly locate the issues to win more time and money.
5. 34 Kinds of Maintenance Services
Oil reset, EPB, TPMS, BMS, Brake Bleed, Aftertreatment, Injector, SAS, Suspension, Throttle, WIN DR ROOF, Seats, Odometer, Language Change, Headlamp, CHG Tire Size, TEC Learn, ABSSRS, Cylinder, VGT Learn, Speed & PTO, Clutch, Trans Adaptation, Airbag Reset, A/F Setting, Automatic Start/Stop, Electronic Water Pump Start, EGR, FRM Reset, Transport Mode, HV Battery, ACC, A/C, Rain/Light Sensor...
How much did you spend on maintaining your car? In fact, experience tells us that just a small repair service may cost a lot of money. So Autel IM508S scanner are actively reducing the unnecessary expense by integrating 34+ reset services, meeting many daily service needs, such as Oil/EPB/SAS/DPF/BMS/ABS Bleed/Injector, etc.
Note: Functions vary by vehicle model. Please send VIN to us to check compatibility before order.
EEPROM Read/Write Supported Types:
ATMEL
For AT24C01, AT24C02, AT24C04, AT24C08, AT24C16, AT24C32, AT24C64, AT24C128, AT24C256, AT24C512, AT24C1024, AT24C128_1.8 AT24C256_1.8, AT24C512_1.8, AT24C01A, AT25010, AT25020, AT25040, AT25080, AT25160, AT25320, AT25640, AT25128, AT25256 AT25512, AT25010_1.8, AT25020_1.8, AT25080_1.8, AT25320_1.8, AT25640_1.8, AT25128_1.8, AT25256_1.8, AT59C11, AT59C22 AT93C46A, AT59C13, AT93C46, AT93C46R, AT93C56, AT93C57, AT93C66, AT93C76, AT93C86
For CATALYST
CAT25C01, CAT25C02, CAT25C04, CAT25C08, CAT25C16, CAT25C32, CAT25C64, CAT25C128, CAT25C256
For FAIRCHILD
NM24C16U, NM24C16UT, NM24C17U, NM24C17UT, FM93CS46T
For MICROCHIP
85C72, 85C82, 85C92, 25xx080, 25xx160, 25xx320, 25xx640, 25xx040_TSSOP, 25xx320_TSSOP, 25xx640_TSSOP, 93C06, 25xx040 93C46X, 93C46A, 93C46, 93C46AX, 93C46BX_93C46CX, 93C56A, 93C56, 93C66A, 93C66, 93C76A, 93C76, 93C86A, 93C86
For NXP
PCF8582C, PCF8594C, PCF8598C
For NATIONAL
NM93C13, NM93C14, NM93CS06, NM93C14TM8, NM93CS46, NM93CS56, NM93CS66
For OKI
MSM16911
For SONY
CXK1011, CXK1012, CXK1013
For Seiko
S_24S45, S_24H30, S_24H30_SOP8, S_24H45, S_24H45_SOP8, S_24S30
For ST
M24C01, M24C02, M24C04, M24C08, M24C16, M24C32, M24C64, ST24x01/ ST25x01, ST24x02/ST25x02, ST24x04/ST25x04, ST24x08/ST25x08, ST24x16, ST25x16, AT25040_1.8, AT25160_1.8, M95010, M95020, M95160, M95040, M95080, M35080, M95320, M95640, M95256, M95128, M95512, M93C46, M93C56, M93C66, M93C76, M93C86, M93S46, M93S56, M93S66
TOSHIBA
TC89101, TC89102, TC89121, TC89122
For TMC
TMC93LC46, TMC93LC56, TMC93LC57, TMC93LC66, TMC93LC86
For XICOR
X5043, X5045, X25043, X25045, X24C44
For 9S12 Read/Write Supported Types
FREESCALE
MC9S12DG128
Supported Protocols:
ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898 (High-Speed, Middle-Speed, Low-Speed and Single-Wire CAN, Fault-Tolerant CAN), SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6
Specifications:
Operating System: Android 11
Processor: Rockchip RK3566 Quad-Core Processor 4*1.8GHz (A55)
RAM: 4GB
Memory: 64GB
Display: 7-inch capacitive touchscreen with 1024*600 resolution
Connectivity: Mini USB 2.0 / USB2.0 / Wi-Fi / MicroSD card slot(supports up to 64GB)
Sensors: ambient light sensor for brightness auto changing
Power and Battery: 3.7V/5000mAh lithium-polymer battery charges via 5V DC power supply
Tested Battery Life: around 4.5 hours of continuous use
Battery Charging Input: 5V/1.5A
Power Consumption: 500mA (LCD on with default brightness, Wi-Fi on) @ 3.7V
Operating Temperature: 0 to 50 degree centigrade
Storage Temperature: -20 to 60 degree centigrade
Operating Humidity: 5%-95% non-condensing
Net Weight: 885g

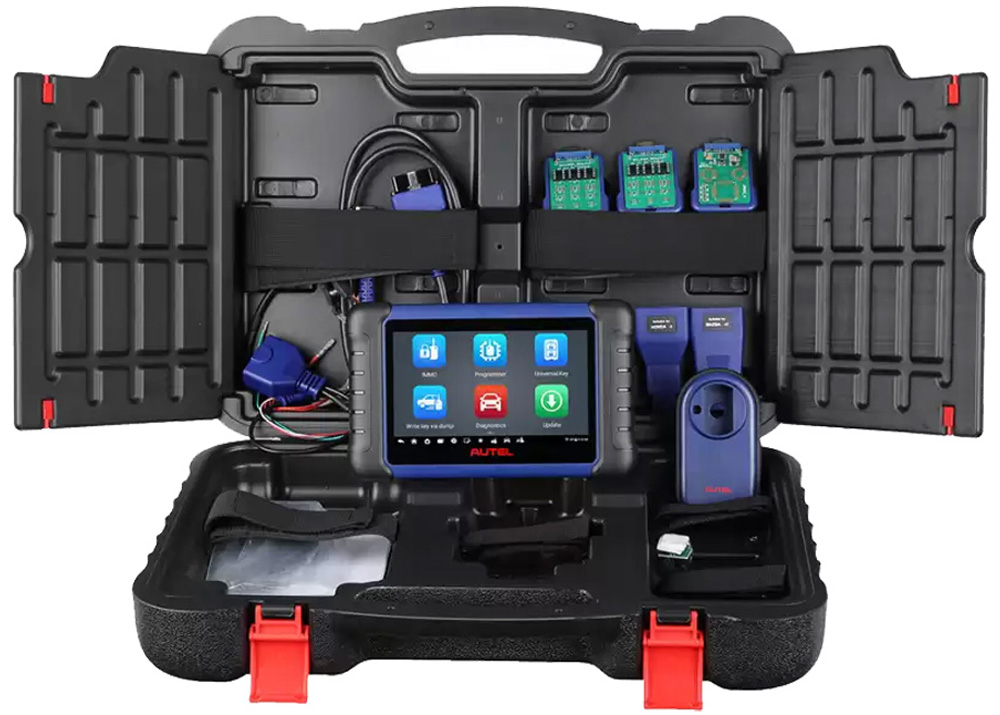

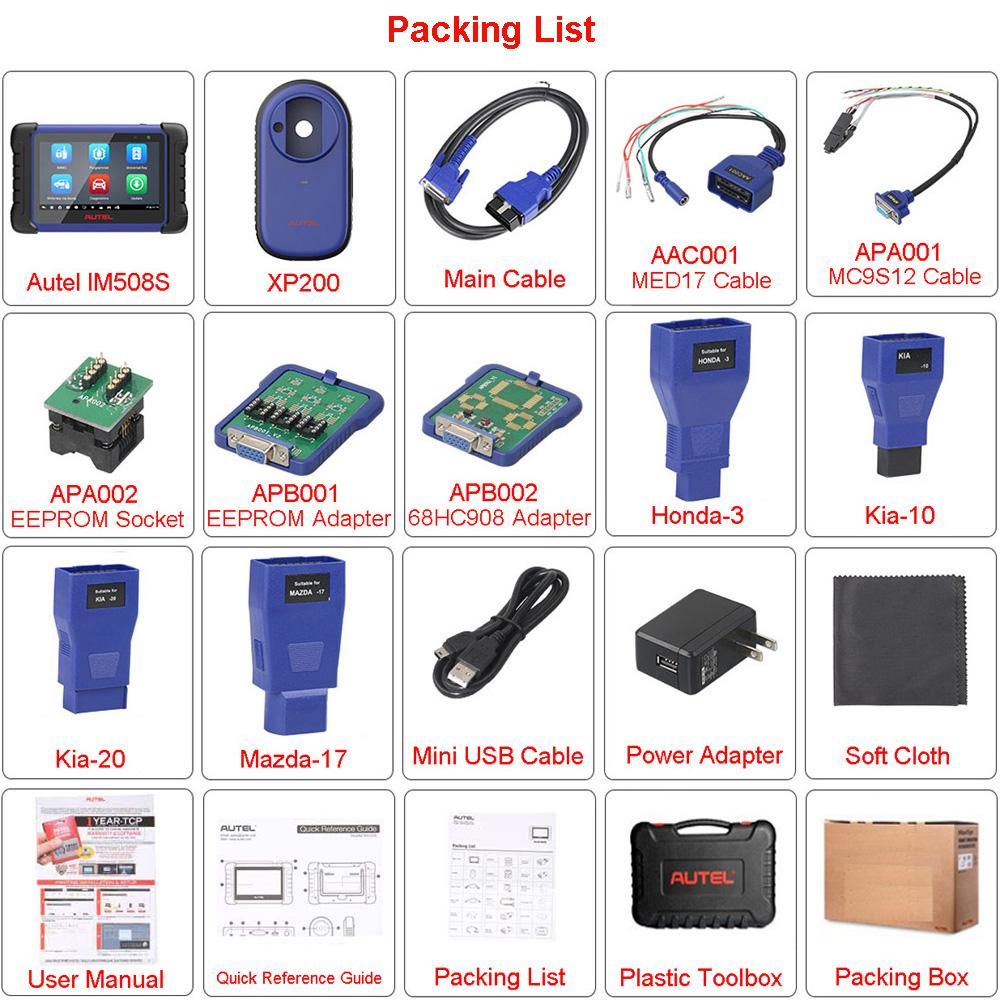

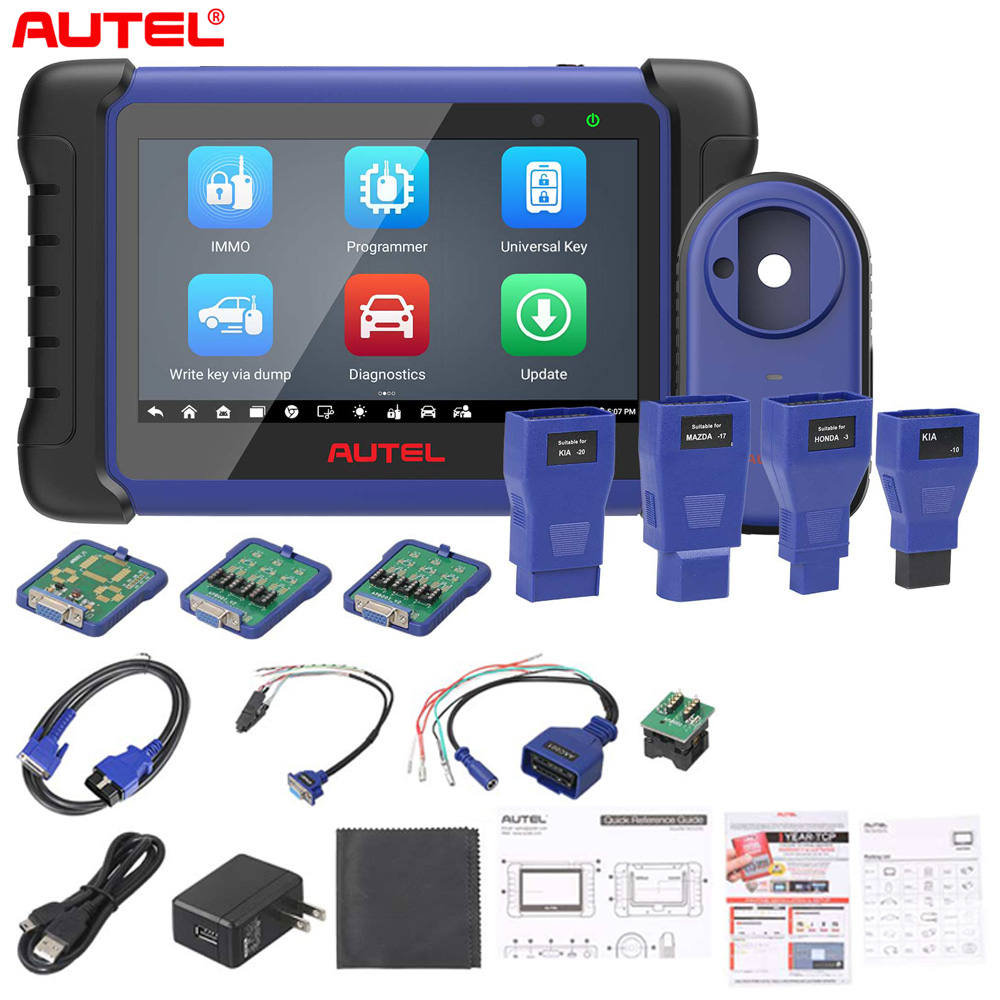

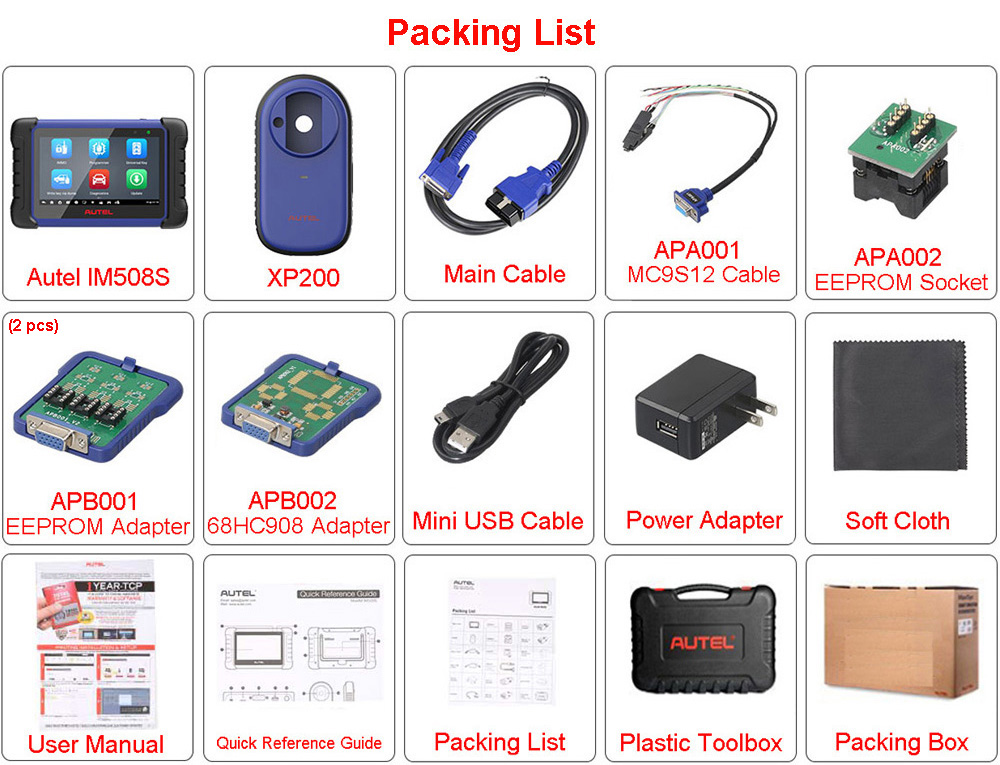

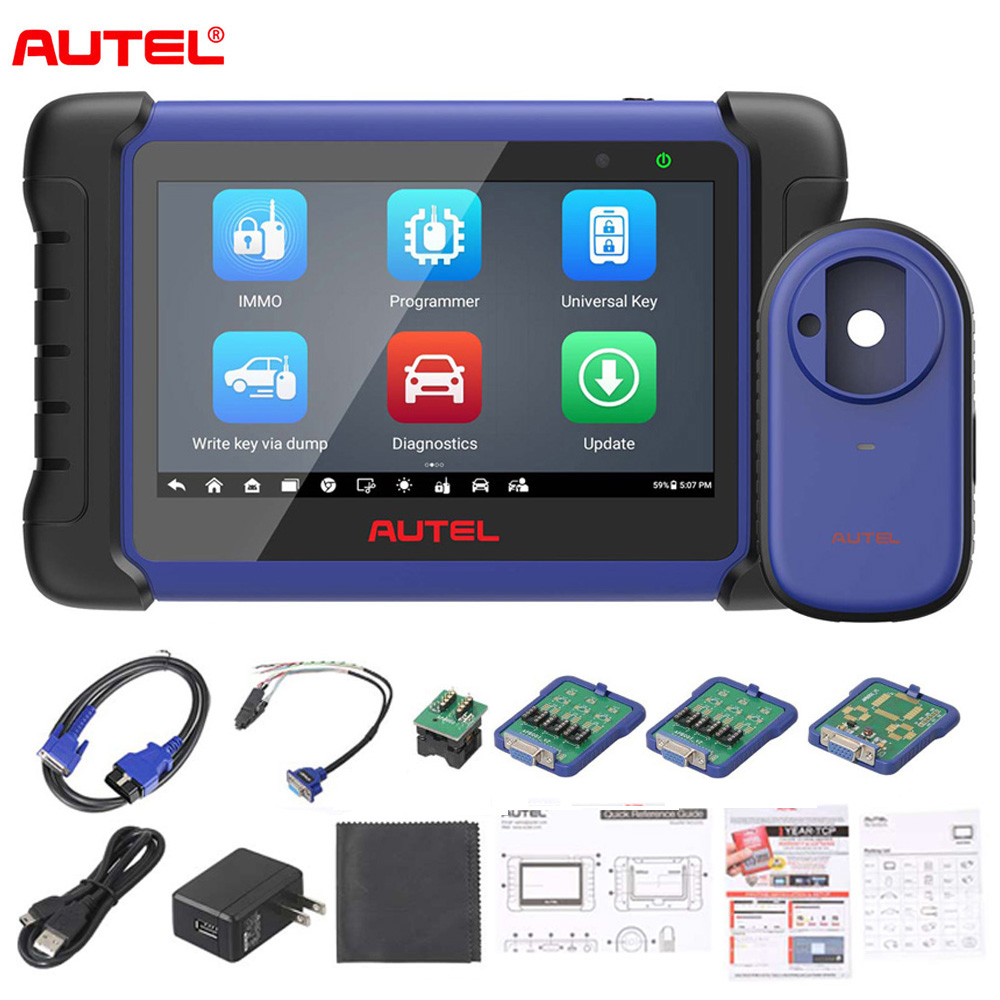

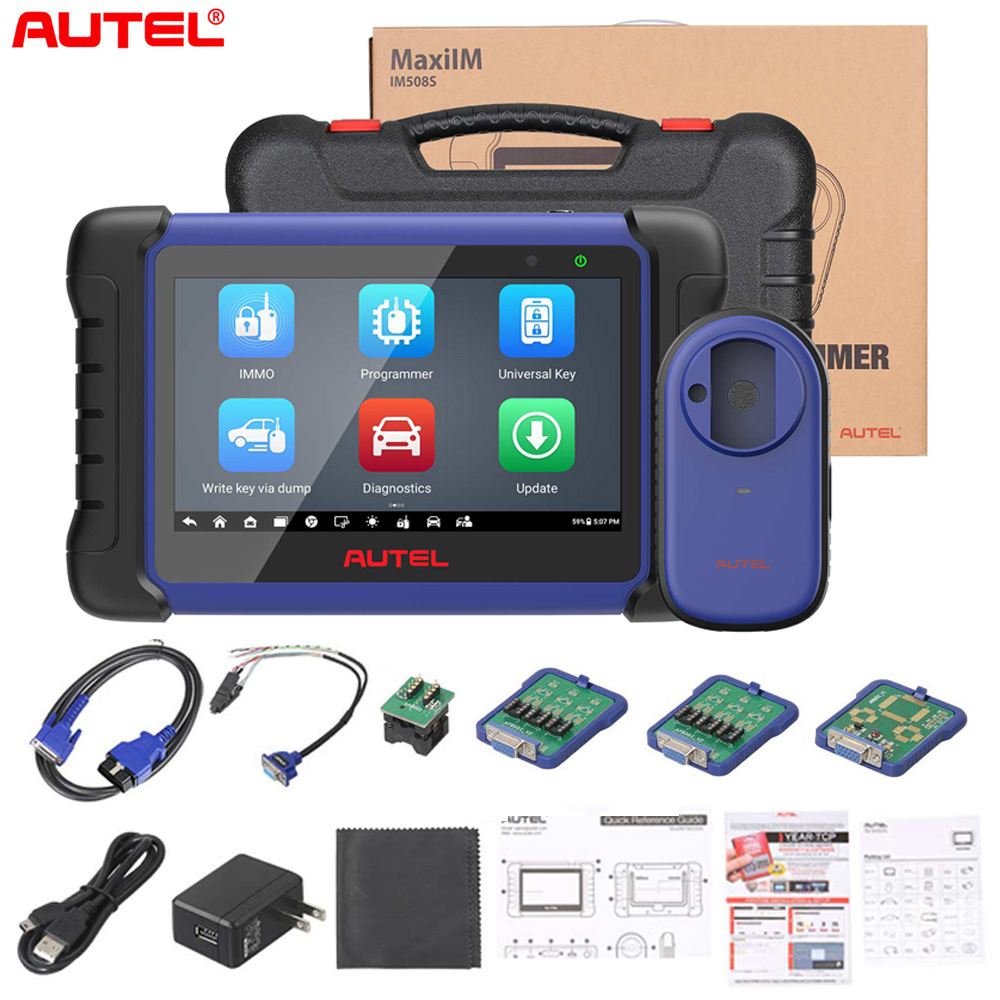

Packing List:
Autel MaxiIM IM508S Tablet PC
XP200 Key Programmer
Main Cable
Mini USB Cable
USB External Power Adapter
AAC001 – MED17 Cable
APA001 (EEPROM Clamp Integrated MC9S12 Cable)
APA002 (EEPROM Socket)
APB001 (EEPROM Adapter)
APB002 (68HC908 Adapter)
Honda-3 Adapter
Kia-10 Adapter
Kia-20 Adapter
Mazda-17 Adapter
User Manual
Quick Reference Guide
Packing List
Plastic Toolbox
Packing Box
|
