Name: Autel MaxiFlash XLink J2534 Tool Remote Expert ECU Programmer
Description:
Autel MaxiFlash XLink, J2534 Reprogramming Tool, Expert-Driven Remote Diagnostic Tool, supports DoIP/CAN/CAN FD/D-PDU/J2534/RP1210, works with Autel MaxiSys Ultra / MS919 / MS909 / PC / Mobile Phone.

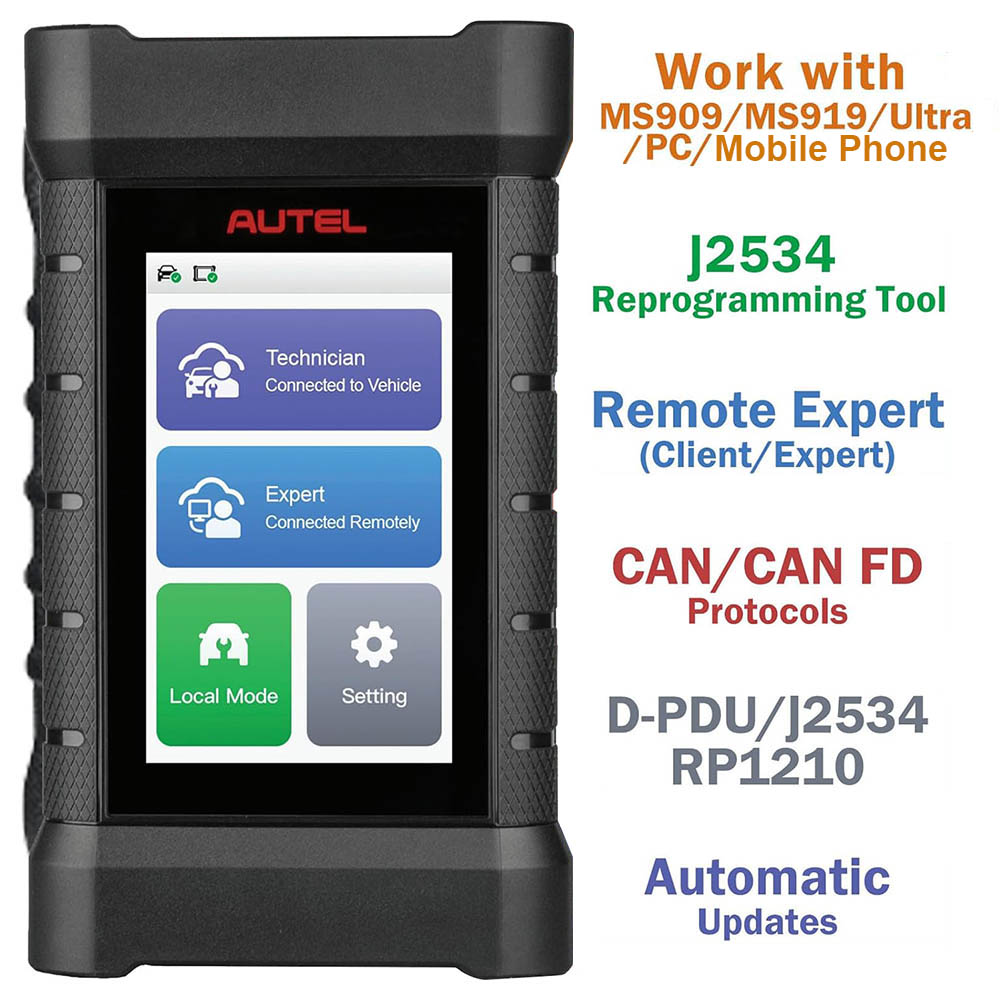

Autel MaxiFlash XLink is an enhanced VCI compatible with Autel MaxiSys tablet scanners. It is a J2534 Pass-Thru Programmer capable of module programming when used with a Windows PC and OE subscriptions, and a standalone vehicle communication and programming device for use with the Autel Remote Expert platform.
Autel MaxiFlash XLink is a powerful expert-driven remote diagnostics solution and is ideal for repairs and module programming. Equipped with a 4-inch touchscreen, Autel XLink enables remote programming and local diagnostics.
Features:
1. Remote Expert-Ready Standalone Device: Connect with experienced programmers, diagnosticians and system expert.
2. Enhanced Vehicle Communication Interface for quicker communication and systems access.
3. J2534-PassThru Programmer to update modules with OE software.
4. Supports latest vehicle communications protocols.
5. Enables onsite and remote module programming.

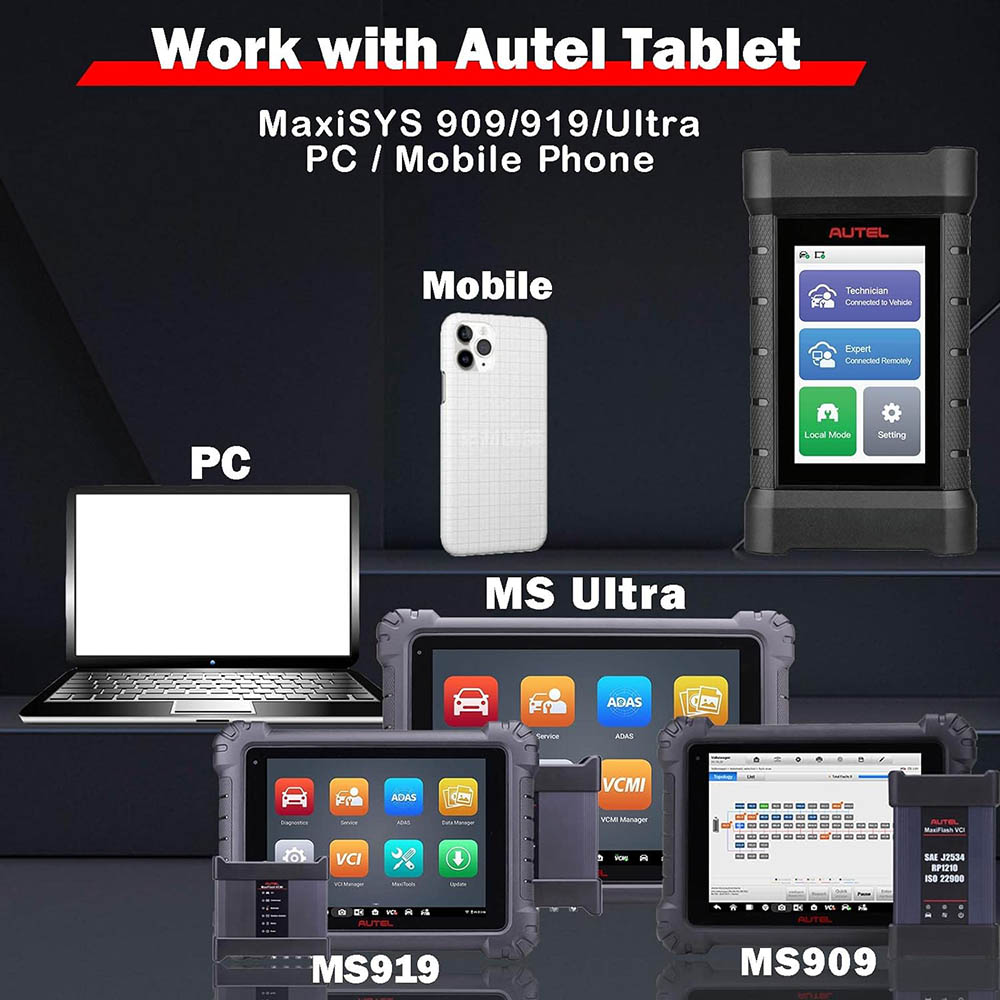

6. Compatible with Autel MaxiSys Ultra / MS919 / MS909.
7. Hard-wire and Wi-Fi network communication options.
8. Update via Internet connection, no tablet connection needed.
9. Server and point-to-point dual-channel communication.

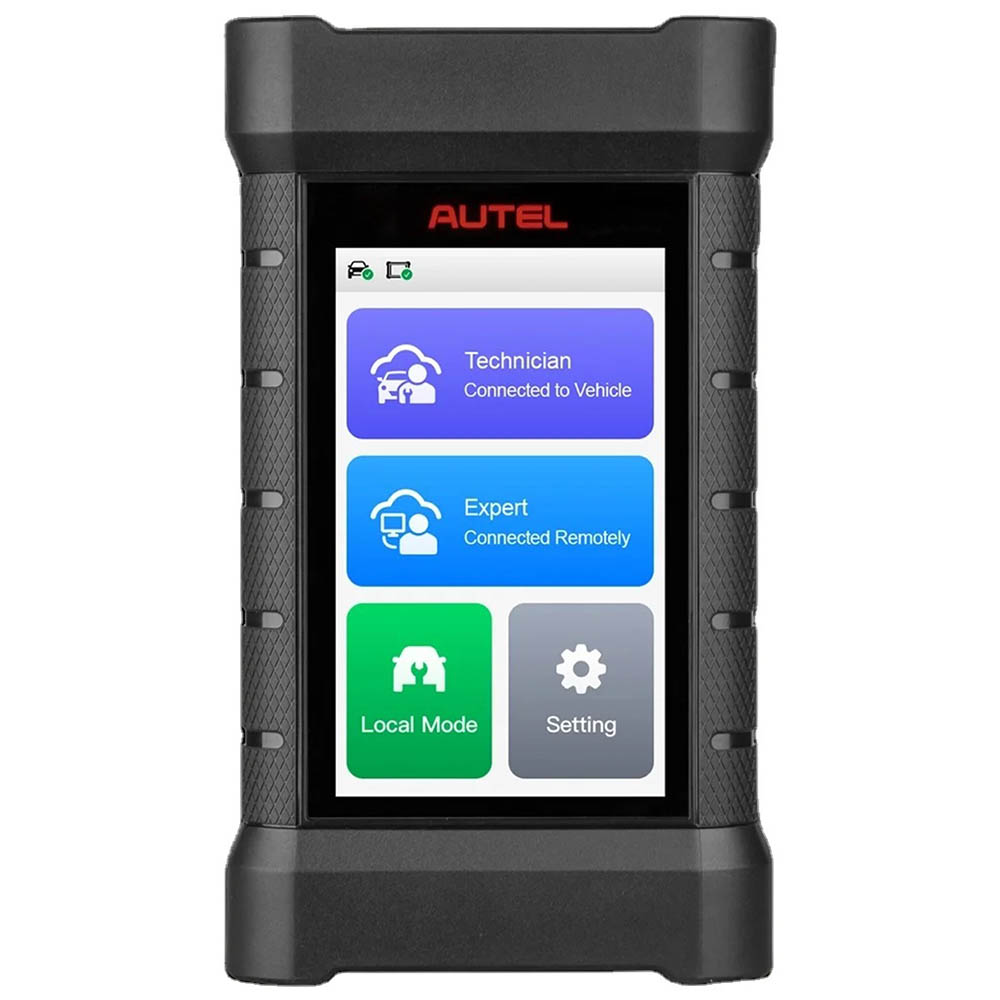

10. Equipped with a 4-inch LCD touchscreen for easy operation.
11. Automatic software updates for uninterrupted use and support.

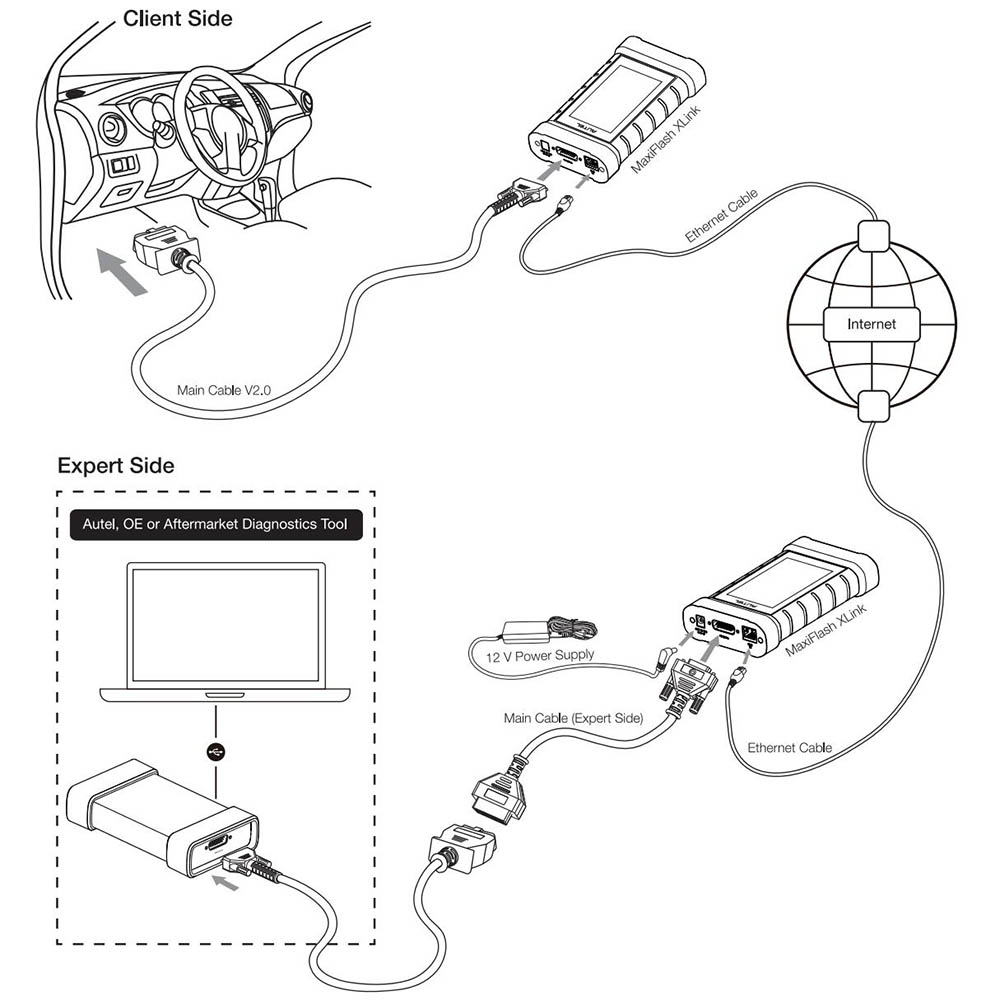

12. Can be used for both client-side (technician or vehicle) and expert-side (programmer with OE software or diagnostician) to provide remote programming and diagnostics.

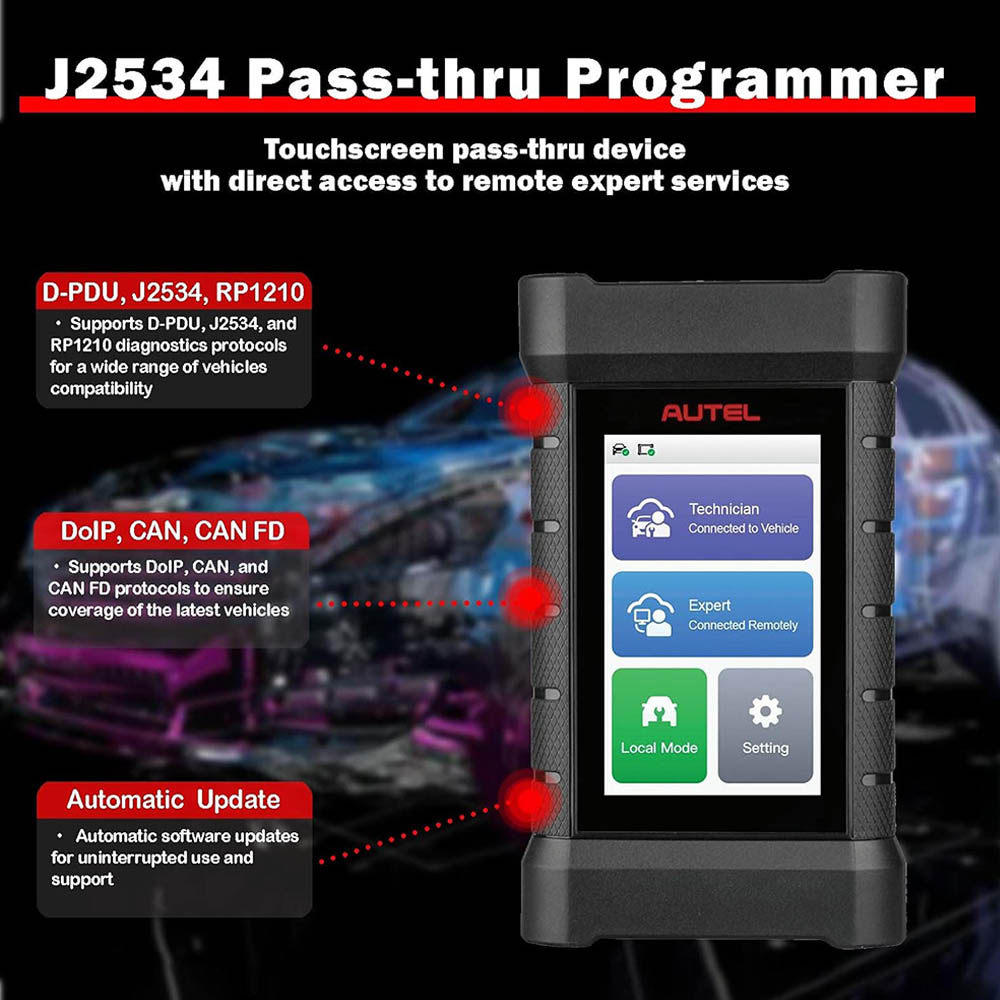

13. Supports D-PDU, J2534, and RP1210 diagnostics protocols for a wide range of vehicles compatibility.
14. Supports DoIP, CAN, and CAN FD protocols to ensure coverage of the latest vehicles.
15. Server and point-to-point dual-channel connection ensures smooth remote-service performance.
16. Supports remote programming on more than 41 US, Asian, and European vehicle brands.
Functions:

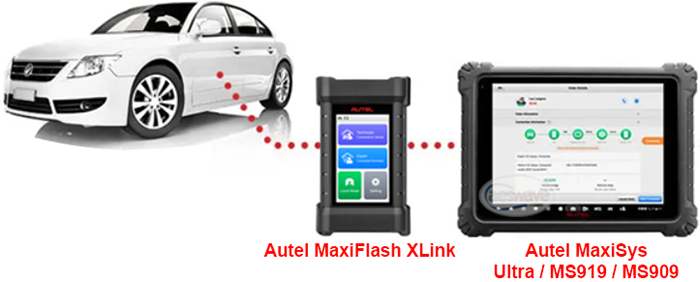

1. Enhanced Multi-Protocol VCI
Pair with Autel MaxiSys tablet scanner(MaxiSys MS909, MS919, Ultra) to perform Advanced Diagnostics with Multiple Communication Protocols Including CAN, CAN FD & DoIP. Updates via Wi-Fi. It will not add Mercedes and BMW coding to tablets that do not already include that feature. (i.e.: Using this with an MS906 Pro will not gain programming through the tablet.)

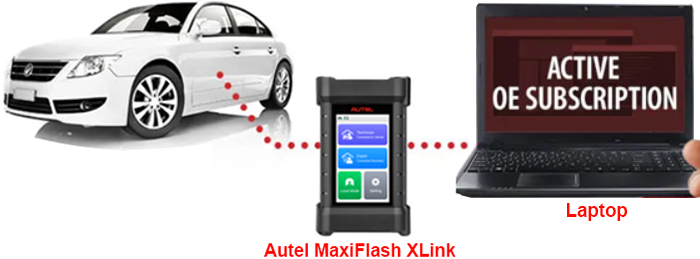

2. J2534 Pass-Thru Programmer
1). Perform Module Programming with on most US, Asian, European vehicles.
2). Supports CAN FD/DoIP protocols.

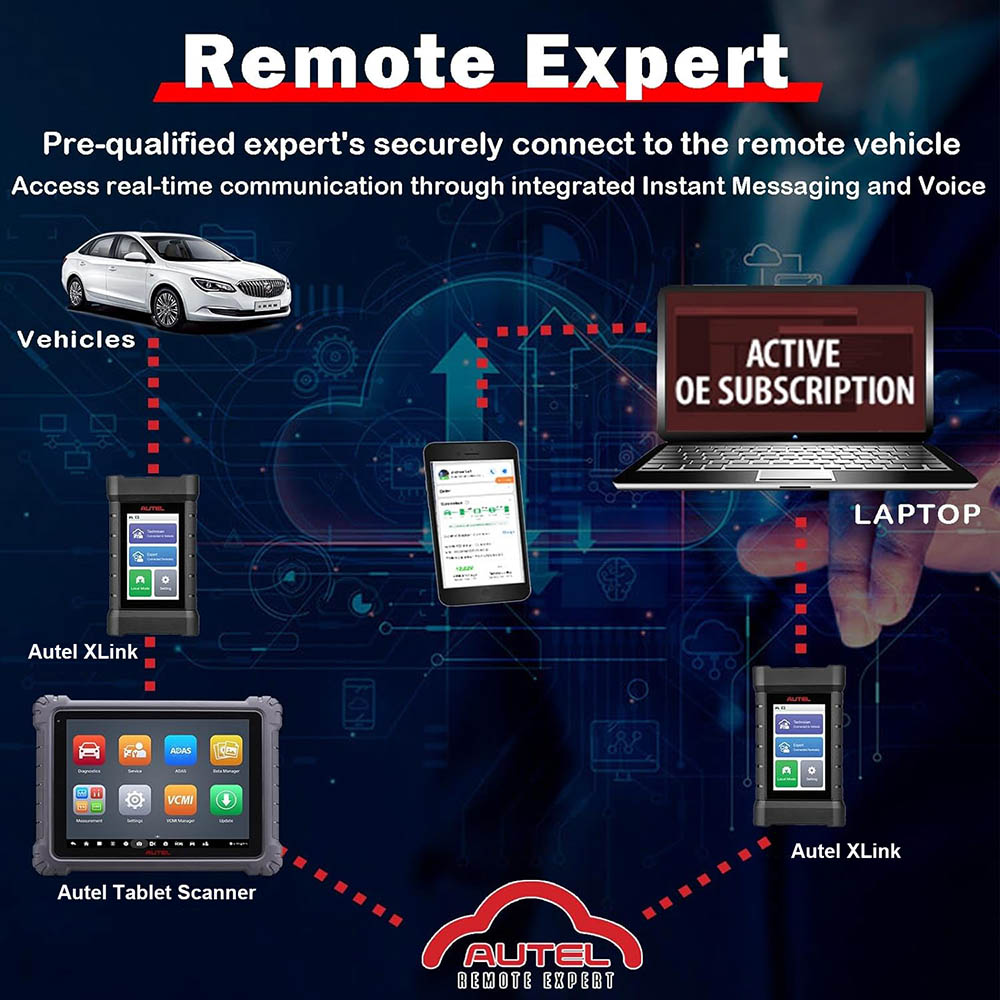

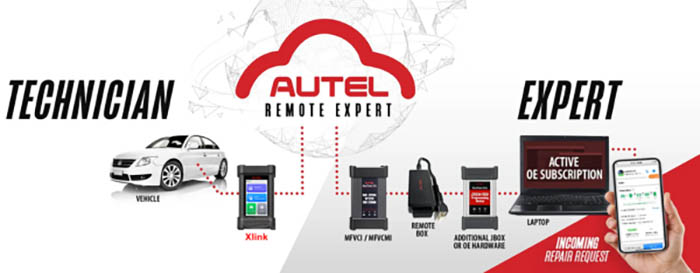

3. Remote Expert - Ready Device
1). Connect with Autel Remote Expert module programmers, automotive diagnosticians, and system experts for tasks requiring OE data, software, or tools.
2). Post orders to the Remote Expert platform via the Autel MaxiFix mobile apps (iOS, Android).
3). Connect the Autel Link to the vehicle and use the MaxiFix app to post, monitor and pay for the session.
Specifications:
Display: 4.0-inch TFT screen with 480*800 resolution
RAM: 4GB
Storage: 32GB
Communication Method: Ethernet
Power Consumption: <5W
Operating Voltage: DC 9V to 36V power provided via OBD (technician-side) / DC 9V to 15V power provided via adapter (expert-side)
Operating Temperature: -10 to 50 degree centigrade
Storage Temperature: -20 to 60 degree centigrade
Packing List:
Autel MaxiFlash XLink ECU Programmer
Main Cable V2.0
Main Cable(Expert Side)
Power Adapter
Ethernet Cable
Quick Reference Guide
Packing List
Packing Box
|
