  OBDSOS PRODUCTS Car Universal Diagnostic Tool Launch X431 Scanner

Product ID SP183-B
Product Name LAUNCH X431 5C WiFi Bluetooth Table Diagnostic Tool
Product Price USD700
Actual Weight (Kg)
Volumetric Weight (Kg) 1.5
Package Size (cm) 36*28*7
Related Download
Order Quantity:
No Stock



Related Products
Description

Name: LAUNCH X431 5C WiFi/Bluetooth Table Diagnostic Tool

Description:

1. Supports Multi-languages: English, German, French, Italian, Spanish, Portuguese, Polish, Russian, Japanese, Traditional Chinese.
2. Supports WiFi/Bluetooth connection.
3. Dealer Code: 86A or 86K
4. Support update online free of charge for one year.
5. One click update: You do not have to download software to memory card anymore, can do one click update directly through your machine.
6. X431 5C has print function, can work together with Mini Printer for X431 V/V+

LAUNCH X431 5C with Bluetooth/WiFi based on Android system, is a new car malfunction diagnostic device developed by LAUNCH Tech for internet application. X-431 5C completely substitutes X431 IV and X431 Diagun III. It passes on LAUNCH advantages in car fault diagnostic technology, such as vast car model coverage, powerful test function, special function and accurate test data, etc., X-431 5C achieves the full car model and full system fault diagnosis through the Bluetooth communication between DBSCar connector and intelligent mobile terminal.

X431 5C-series product have so many advantages such as widely coverage at vehicle model, powerful test function, more special function, more accurate test data etc.

Full system diagnosis. With special function such as BMW idle study, BMW injection rate adjustment, BMW battery replacement, Nissan matching key. In addition to supporting Benz, BMW, Ford, and other mainstream model, also support IRKIA, PERODUA, Proton, TATA, Maruti, Lancia and other domestic model from all over the world.

Features:


Panel PC: High configuration of hardware, fast running speed
Capacitive Screen: Multi-touch capacitive screen, more smooth operation
Wireless Diagnosis: Wireless communication between intelligent mobile terminal and DBSCar connector via Bluetooth
Portable: Reasonable PDA design, small size for easy carry
Optimized Interface: Brand new operation interface design, interface more friendly and operation much easier
WiFi Communication: Support WiFi network
Android System: Users can install any Android software
Numerous Additional Functions: photo, video, multimedia, other software application etc..

Main Unit Parameters:

Android OS, prevailing panel PC configuration
CPU: Dual core 1GHz
Polymer Lithium-ion Battery: 3000mA
Extended Memory Card: support 32G Micro SD (TF) card
Storage Capacity: 2GB
Internal Memory: 512MB
Screen Size: 7.0 inch
Screen Resolution: 1024 * 600
Touch Screen: Multi-touch capacitive screen
Cameras: 2 mega pixel rear and 0.3 mega pixel front
Wireless Communication: WiFi; Bluetooth
Working Temperature: -10 - 55 degree centigrade
Storage Temperature: -20 - 70 degree centigrade

DBSCar Connector Parameters:

Working Voltage: 9 to 15V
Average Working Current: about 35mA
Standby Current: about 25mA
Working Temperature: -20 to 55 degree centigrade
Storage temperature: -30 to 70 degree centigrade
Storage Humidity: <80%
Working Humidity: <60%
Net Weight: about 26g
Bluetooth Distance: 10M (without obstacle)

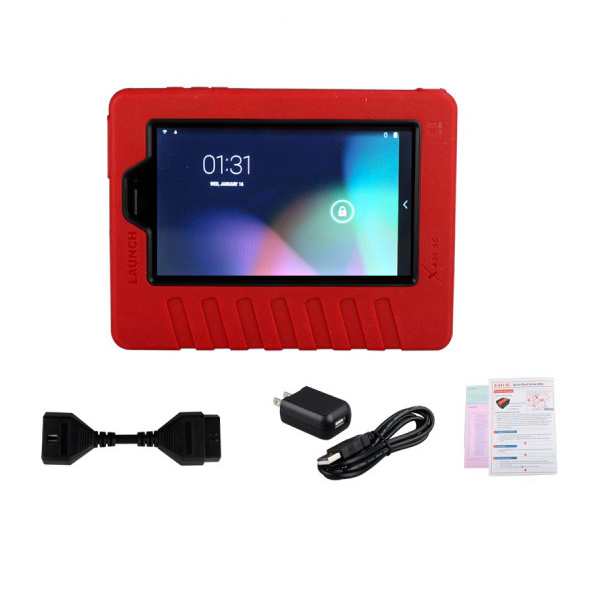

Set Includes:

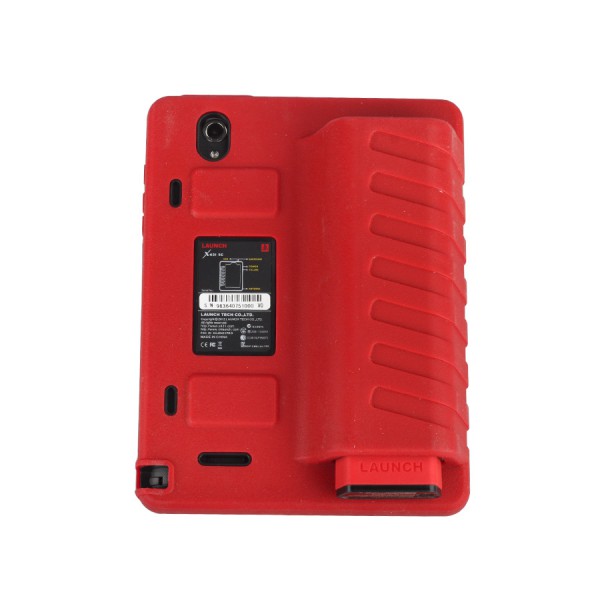

Launch X431 5C Tablet
DBScar Bluetooth Adapter

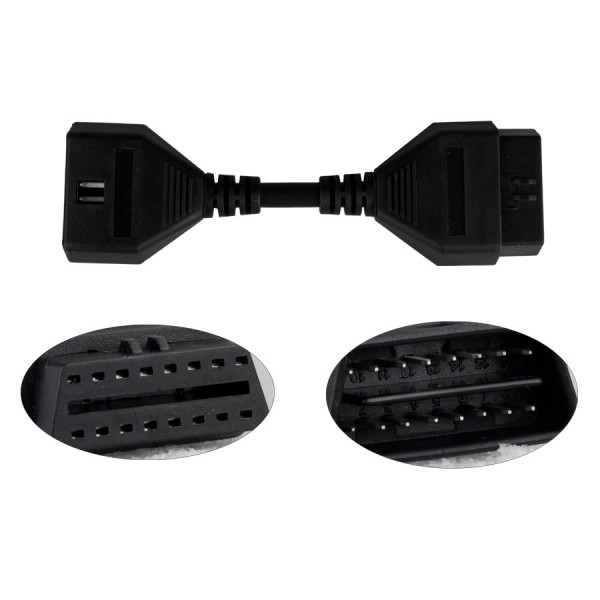

OBD cable
USB cable
AC adapter
Password envelope
Carrying case

Notice:

1. LAUNCH X-431 5C WiFi/Bluetooth Table Diagnostic Tool has same function as Launch X-431 V, but it does not contain OBD1 connectors. Whole set device is lighter, easy to carry.

2. When you receive the device, please tell us product Serial Number, Country and Software Language you want, we will get you authorization first, after that, you can log on Launch DBSCar Website to register CC account and download software you want.
