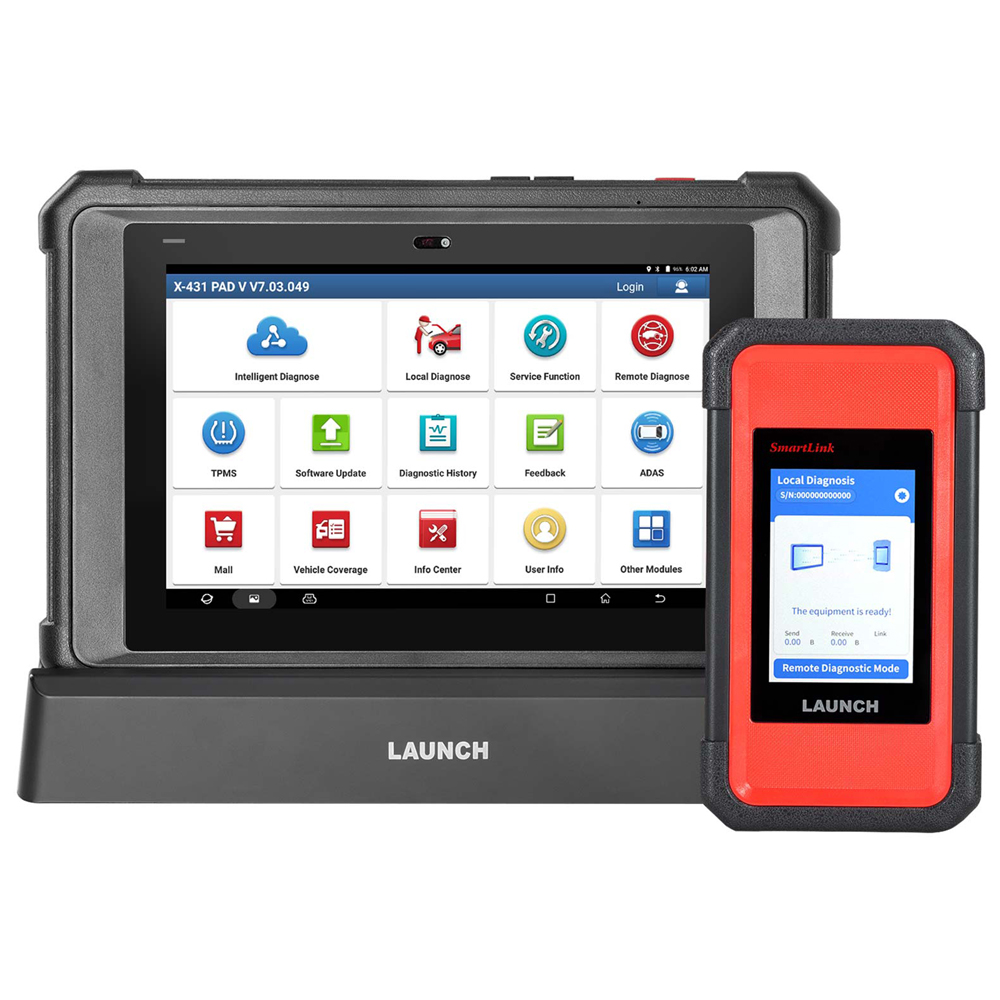

Name: Launch X431 Pad V Elite



Description:



Launch X431 Pad V Elite comes with the all-in-one features, Perform ECU Reprogramming, Full Services Functions, Bi-Directional Control, ADAS Calibration Function, TPMS Service, and it is compatible with many extended modules functions. New Smartlink C VCI powers technicians a new diagnostic level without the limitation of diagnostic functions, tools, and vehicle types.



Supported Languages:



English, French, German, Spanish, Portuguese, Russian, Italian, Turkish, Greek, Arabic, Polish, Dutch, Hungarian, Finnish, Czech, Danish, Persian, Romanian, Serbian, Swedish, Japanese, Korean, Chinese Simplified, Chinese Traditional



Software Update: 2 years free update online



Versions:



Global Version: for global market except EU and UK

EU Version: for EU/UK market



Highlights:



1. ECU/ECM Online Programming & Reprogramming for 30+ global car brands.



2. The Advantages of Dealership-level ECU Programming & Coding Functions: Backup/Recover ECU Data; Upgrade ECU, Manual & Automatic Options; Aftermarket Installation; Modification/Changeover



3. Online Programming + J2534 Reprogramming via Launch X431 SmartLink C.



Note:



1). Please contact us to get the "X431 Pad V online programming activation method" & the instruction on how to use VPN to bypass IP restrictions to gain access to this feature for more models.



2). Contact us to get the J2534 operation manual.



4. Topology Mapping



5. Supports gasoline cars and diesel heavy-duty trucks with Launch SmarLink C (need to purchase truck software.)



6. Support EV Diagnostics: Electric Vehicle HV System & Battery Pack Diagnostic, Repair and Maintain Battery Packs(Need additional purchase.).



7. Support almost all automotive communication protocols CAN/CANFD/DoIP and automotive communication standards J2534/D-PDU/RP1210. Support 200+ global brands car makes till 2024, Compatible with BMW, Benz, VW, Audi, GM, Ford, Chrysler, Toyota, Nissan, Honda, Land Rover etc. Full system vehicle coverage for U.S., Asian and European markets over 200 global brands.



8. 2 Years Free Update Online: 2 years free update with high update frequency, new features/cars released monthly, one-touch update via WiFi to enjoy more functions, get wider available vehicle coverage, add more languages, and improve the performance. Competitors have no software maintenance for a long time, vehicles model / functions update less support less.



9. X431 Remote Diagnose: If you need any remote help, give your mechanic access to the remote expert. Simply offer him the access code and he can perform one-for-one remote diagnose using any web browser (platform: remotediag.x431.com), or via an X431 scanner. Unlike using the Team Viewer, this has not just realized the reality that a mechanic can diagnose an abnormal vehicle that is even thousands of miles away, yet faster, simpler, more stable, and subscription-free. Or, you can send us the detailed diagnostic report for better understanding your current issues at hand. We’ll be in touch to offer help at 24 hours / 7 days.



10. Extended Module: Compatible with Launch Oscilloscope, X-PROG 3, TSGUN Wand, RF-Sensor, BST360 Battery Tester, VSP600 Videoscope, ADAS, 24V Heavy Duty Software, Wi-Fi Printer, EV Diagnostic Kit for New Energy Vehicle, Multimeter, Ignition Analysis etc.



11.  New Function: ODO Check and Reset MSVIN

ODO Check: Read the mileage information stored in each module.



Reset MSVIN: Read the VIN information of each module and cooperate to check whether the vehicle has been changed in mileage or replaced.



Functions:



1. ECU Online Program + ECU Coding + J2534 Program (No IP Limit)

With Launch SmartLink C, Launch X431 Pad V automotive scanner can compliant to D-PDU, SAE J2534 & RP1210 to update OEM software, replace the existing software / firmware in ECU, fix ECU parameter loss, programming new ECU and fixing software-controlled drivability issues and emission issues. It can do ECU programming for 30+ car brands including for Benz, BMW, Porsche, Audi, VW, Seat, Skoda, Land Rover, Ford, Renault, Hyundai, Kia, MG, Subaru and more.



When you need to do online programming?



1). Unprogrammed blank module / control module not coded.

2). The module data record is lost and the control unit is damaged.

3). Fuel quality defective firmware upgrade.

4). Software upgrade/part number upgrade.



Launch X431 Pad V is an excellent and cost-effective programming tool. It has many functions that other scanner do not have.



1). Support for programming backup/recovery (used with x431 G3).

2). Part number upgrade

3). Automatic identification of part numbers

4). Backup and recovery functions.

5). Supports manual programming for Volkswagen/Audi/Benz.

6). Audi Fule Quality Defect firmware upgrade.

7). Online code setting.

8). Online matching and calibration.

9). Online parametric configuration functions.



How to unlock the Online Programming function?



1). You can downloads the latest version of software from the online server database through Internet access (This procedure is done automatically when the scan tool is connected to the Internet, so there is no need to check for software updates yourself.), and reprograms the newest version into the vehicle ECU.



2. Click Local Diagnose menu > Choose Porsche model > Find the online function > No online programming function on the menu > Go back to the main menu > Click other Modules > Click the Built-in APPs above > Click files > Click lnternal Storge > Click cnLaunch folder > Click X-431 Pad V folder > Click assets folder > Drop down to find the StdCfg.ini file > Click on the “ES Note Editor” file manager > Drop down > Find OnlineFlash and Flash > Select the Edit option in the upper right corner>Start to change data > Change OnlineFlash=0 to OnlineFlash=1 > Change Flash=0 to Flash=1 > Save it after modification. > Go back to the diagnostic menu to get the online programming function.



Why is the Launch X431 Pad V more powerful than other J2534 tool?



1). The X431 Pad V online programming does not require expensive online accounts, just connect to WIFI, saving maintenance costs. J2534 programming tool needs to download OEM software and login account (annual subscription is required).



2). SmartLink C adapter adopts dual WIFI communication to improve programming speed, thereby reducing the possibility of programming errors



3). When using J2534 tool, in addition to the connector, it is also necessary to consider issues such as adapting the computer, installation costs, and complete functions, which is not cost-effective.



What is Programming Function ? What different is Online Programming and Offline/J2534 Programming ?



Programming Function is to finish program / rewrite / code/ match new ECU after new module replacement.



1). Program the new adaptive data to the on-board modules;

2). Replace the existing software/firmware in the ECUs;

3). Match the component control modules after repair or replacement;

4). Flash the hidden functions and enhance the vehicle performance.



Online Programming is download the original data from automaker service directly. It ensures the correctness and latest version of the data you get, improves the success rate of programming.



Offline/J2534 Programming means you already have the data , just write it to you ECU directly(If you do not have the data, you can not do programming function.).



Launch X431 Pad V supports Online Programming + Offline/J2534 Programming. It is more powerful and cost-effective than other J2534 tool:



1). Launch X-431 Pad V Online Programming does not require an expensive online account, just connect to WIFI, saving maintenance costs.



2). Smartbox adopts dual WIFI communication to improve programming speed, thereby reducing the possibility of programming errors.



3). When using J2534 tool, in addition to the connector, it is also necessary to consider issues such as adapting the computer, installation costs, and complete functions, which is not cost-effective.



Works with the OEM diagnostic software installed on PC to perform the J2534 reprogramming.



Supported Protocols:



Supported Cars:



Toyota, Lexus, Thain, Honda, Acura, Volvo, Volkswagen, Audi, Seat, Skoda, Bentley, Lamborghini, BMW, GM, Opel, Saab, Chevrolet, Cadillac, Ford, Chrysler, Subaru, Mercedes, Land Rover, Jaguar, ect.



Compared with the programming products supported in the market, Launch X431 Pad V supports more models and more comprehensive functions.



1). Support 30+ car brands covering European cars, American cars, Asian cars and Chinese cars ,and keep increasing.



2). Functions:  Online Coding, Online Programming, Online Parametric Configuration, Online Matching and Calibration, Fuel Quality Defect Firmware Upgrade and more.



3). Applicable cars for Online Programming: Mercedes Benz, Porsche, FAW Volkswagen, Kia, BMW, Nissan, Skoda, Mazda ,VW, Beijing Hyundai, Seat, Fiat, Audi, SAIC Rongwei, Renault, China GM, SAIC MG, GAC Motor, Ford, Shanghai Volkswagen , Hyundai...



Vehicle Programming Benefits:



1). For Great Wall: Support Great Wall, Haval (ECM/AT #), WEY, Oula



2). For Volkswagen / Audi: Online Programming (support for programming and resurrection), firmware upgrade for fuel quality defects, online parametric configuration, part number upgrade, support for manual programming (More online codes, more online parametric configurations, more online matching and calibration.).



3). For Benz: Manual control unit programming; clone. For models before 2013, it had initialization startup (programming, code setting, anti-theft, initialization). For 2013+ models, the engine module and transmission module can be cloned.



4). For BMW: The code setting data is up to March 22nd., and it supports modification. Flash Hidden Functions has function help and expert mode.



5). for Ford: Since 2018, all models and functions of Ford original factory have been online.



Basic Function: after 2018 years, X-431 is offline

Special Function: after 2018 years, X-431 will be online



The original manufacturers of Chrysler and Fiat have gradually put all models and functions online since 2018. X-431 all functions online.



What situation needs to perform programming ?



1). Programming new ECUs:

Replace new ECU(Determine if programming or coding is required based on fault code prompts). It can read and back up the original ECU data of the vehicle. (Note: The newly purchased spare part numbers need to be equal to the original ones.)



2). Reprogramming Second-Hand ECUs:

Clear second-hand ECU data for reprogramming(If the second-hand has the anti-theft data, it needs to be used with Launch X-PROG3 to clear anti-theft data first, and then match it with the original anti-theft data before reprogramming.).



3). Update ECU:

Some of the ECU has bugs so it will cause some faults that are difficult to repair. (For BMW 2889 DME intake valve, carbon deposition, and some of F serious machine oil lamps can not be zero.)



4). Fixing Lost Data of ECU:

When the software in the ECU corrupts the program due to battery or grounding issues(hardware is normal), re-programming can rectify it back to normal operation.



5). Reprogramming on Failed Programming ECU:

If the programming fails but the hardware did not damage, Launch X431 Pad V can reprogram the module in Manual Mode which is compatible with VW/Audi/Ben/BMW. And it supports Programming Backup/Restoration that is applied to match anti-theft data for Mercedes-Benz engine modules and transmission modules, which requires purchasing X-431 PROG3 additionally (If the programming fails, ECU will not communicate and you will not be able to access the system ).



Note: Programming is no IP Limit except Spain and Portugal.

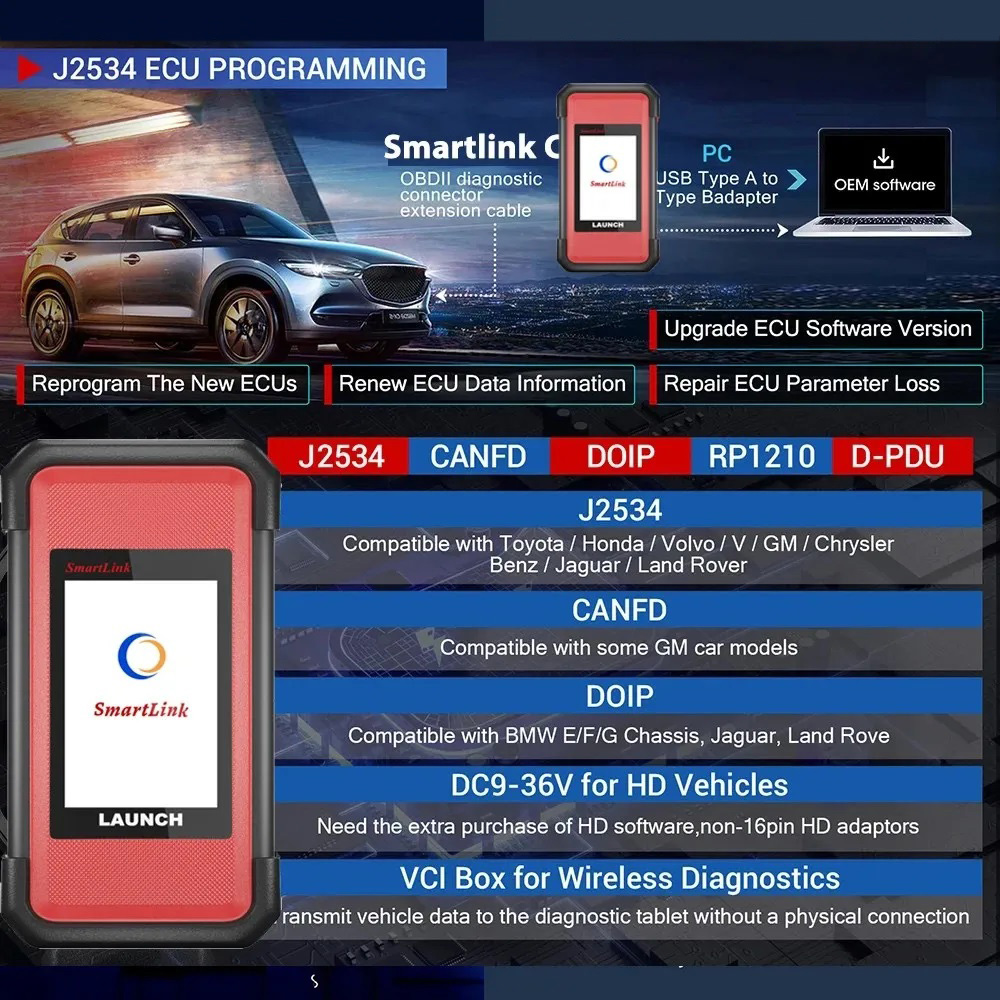

2. Support DolP, CAN FD and Other Protocols with SmartLink C

It is compatible with CAN-FD protocol and supports the latest GM vehicles manufactured after 2020. Adopts advanced CRC algorithms to accommodate more data from 8 to 64 bytes in the CAN frame, which runs faster than other products and reduces the risk of undetected errors to greatly enhance the user experience.



Supports Chevrolet Onix 2020-2021 year

Supports Chevrolet Tracker 2020 year

Supports Chevrolet Suburban 2021 year

Supports Chevrolet Tahoe 2021 year

Supports Buick

Supports Cadillac Escalade 2021 year

Supports Cadillac Escalade 2021 year

Supports GMC Yukon 2021 year

Supports GMC Yukon XL 2021 year

Supports Holden

Supports DAEWOO

Supports Alpheon

Supports Ravon

Supports Pontiac

Supports Saturn

Supports Hummer



DoIP

With Diagnostics over DoIP, diagnostics introduced over UDS are used over TCP/IP and Ethernet. This enables much higher data rates than with CAN. save both in terms of time and expenses in the case of complex diagnostic tasks and flash applications. Compatible with BMW (F & G chassis), 2018+ Volvo models, 2017+ Land Rover & Jaguar models.



3. Deep Diagnosis: Access to ALL Systems to Perform Comprehensive Scanning on ECUs

Engines / Auto Transmission / Airbags / Immobilizer / Key Coding / ABS/Cruise Control / Instruments / Self Leveling Suspension systems /Seats / Doors / Gateway / Steering Angle / Air Suspension / Body Systems / Electronic Power Steering & Motor Assisted / Power Steering / Tyre Pressure / Rain Sensors / 4WD System Stabilizer/Intelligent Parking Assist, etc.

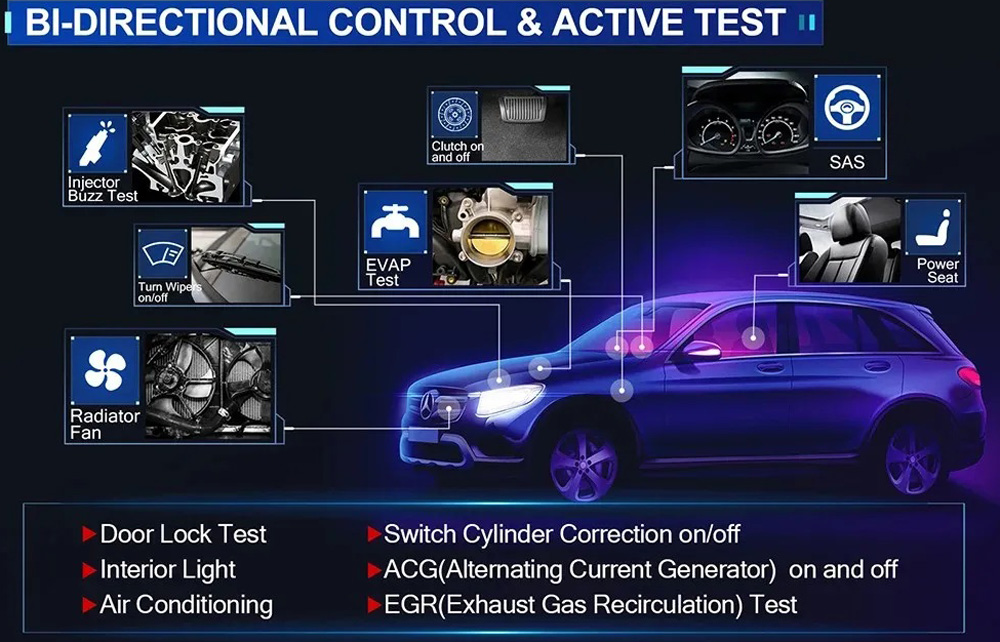

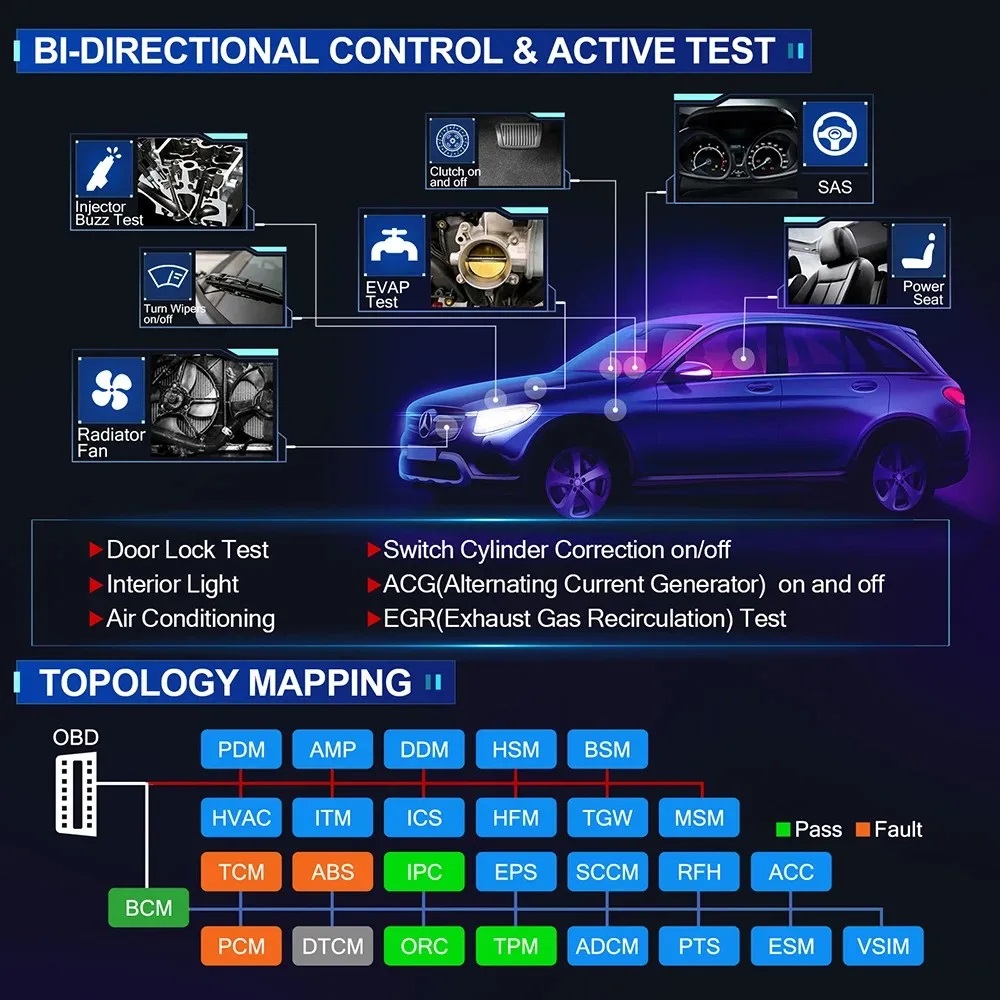

4. Full OE-Level Bi-Directional Control Scan(Active Test):

Enables you to transmit control commands to operate the vehicle systems, without using the vehicles controls, to verify system input and output such as: Turn On The Radiator Fan / Turn On Interior & Exterior Lights / Turn On Sound Horn / Modulate The Throttle / Open & Close Windows / Operate Mirrors / Test Door Lock Actuators / Injector Test / Turn Off ACC Lane Keeping Assist System (LKAS) / Turn On/Off Front and Rear Side ACM Solenoid / Turning The Fuel Pump On and Off / Cycling the A/C / Clutch On and Off / Left Clutch Electromagnetic Coil Test / Acceleration Device Test / Oil Pressure Control Test / Dynamic Camera Aiming / Vehicle Level Position Calibration / Brake Vacuum Pump / Inlet And Outlet Valve Tests / Open Brakes Tests / Parking Brake Motors / Wheel Speed Sensor Supply / Parking Brake Tests / Suspension Level Control Calibration(Rodeo Test)...



5. 60+ Hot Reset Services

1). Oil Reset Service

Reset the oil service for the engine oil life system, which calculates an optimal oil life change interval depending on the vehicle driving conditions and weather events.It needs to be performed in the following cases:



A. If the service lamp is on, run car diagnostics first for troubleshooting. After that, reset the driving mileage or driving time, so as to turn off the service lamp and enable a new driving cycle.



B. If the service lamp is not on, but you have changed the engine oil or electric appliances that monitor oil life, you need to reset the service lamp.



2). Electronic Parking Brake Reset

Reset the brake pad after replacing the brake pad. It needs to be performed in the following cases:



A. The brake Pad and brake Pad wear sensor are replaced.

B. The brake pad indicator lamp is on.

C. The brake pad sensor circuit is short, which is recovered.

D. The servo motor is replaced.



3). Steering Angle Calibration

Reset the steering angle, after replacing the steering angle position sensor, replacing steering mechanical parts (such as steering gearbox, steering column, end tie rod, steering knuckle), performing four-wheel alignment, or recovering car body.



4). ABS Bleeding

Perform various bi-directional tests to check the operating conditions of Anti-Lock Braking System (ABS). It needs to be performed in the following cases:



A. When the ABS contains air.

B. When the ABS computer, ABS pump, brake master cylinder, brake cylinder, brake line, or brake fluid is replaced.



5). Tire Pressure Monitor System Reset

Quickly look up the tire sensor IDs from the vehicle ECU, reset tire pressure and turn off the tire pressure MIL. It needs to be performed in the following cases:



A. Tire pressure is too low.

B. Tire leaks.

C. Tire pressure monitoring device is replaced or installed.

D. Tire is replaced,

E. Tire pressure sensor is damaged.

F. Tire is replaced for the car with tire pressure monitoring function.



6). Gear Learning

Perform tooth learning for the car, to turn off the MIL. It needs to be performed in the following cases:



A. After the engine ECU, crankshaft position sensor, or crankshaft flywheel is replaced.

B. The DTC 'tooth not learned' is present.



7). Injector Coding

Write injector actual code or rewrite code in the ECU to the injector code of the corresponding cylinder, so as to more accurately control or correct cylinder injection quantity. It needs to be performed after the ECU or injector is replaced.



8). Battery Maintenance System Reset

Perform a resetting operation on the monitoring unit of vehicle battery, in which the original low battery fault information will be cleared and battery matching will be done. It needs to be performed in the following cases:



A. The main battery is replaced.

B. The battery monitoring sensor is replaced.



9). Diesel Particulate Filter (DPF) Regeneration

Clear PM (Particulate Matter) from the DPF filter through continuous combustion oxidation mode (such as high temperature heating combustion, fuel additive or catalyst reduce PM ignition combustion) to stabilize the filter performance. It needs to be performed in the following cases:



A. The exhaust back pressure sensor is replaced.

B. The PM trap is removed or replaced.

C. The fuel additive nozzle is removed or replaced.

D. The catalytic oxidizer is removed or replaced.

E. The DPF regeneration MIL is on and maintenance is performed.

F. The DPF regeneration control module is replaced.



10). Electronic Throttle Position Reset

Make initial settings to throttle actuators and returns the learned values stored on ECU to the default state. Doing so can accurately control the actions of regulating throttle (or idle engine) to adjust the amount of air intake.



11). EGR Adaption

Learn the EGR (Exhaust Gas Recirculation) valve after it is cleaned or replaced.



12). Gearbox Matching

This function can complete the self-learning of the gearbox and improve the shift quality. It needs to be performed in the following cases: When the gearbox is disassembled or repaired.



13). AdBlue Reset (Diesel Engine Exhaust Gas Filter)

After the diesel exhaust treatment fluid (car urea) is replaced or filled up, urea reset operation is required.



14). Transport Mode

To lower vehicle power consumption, user may perform the following operations: limit vehicle speed, not wake up the network for door open and disable remote key, etc. In this case, deactivating transport mode is needed to recover vehicle being normal.



15). Windows Calibration

Perform door window matching to recover the ECU initial memory, and recover the automatic ascending and descending function of power window.



More Functions:

Stop/Start Reset, Seat Calibration, Transport Mode, Windows Calibration, AC System Relearn/Initialization, High Voltage Battery Diagnosis, GPF Regeneration, Reset Fuel Alcohol Level, Reset Fuel Trim, VGT Reset, Reset Fuel Trim, EGR Valve Learn, Crankshaft Position Variation Learn, Clutch Pedal Position Learn, Idle Learn, Fuel Economy Test, Fuel Alcohol Composition Reset, CBS Reset UDS...



Notice:



1. All functions are depending on the specific car models, not universal for all cars.



2. New Added 6 Reset Functions on 2023-11: ECU Reser ,FRM Reset, Clutch Reset, Gate Reset, Turbo Reset, RI Sensor Reset

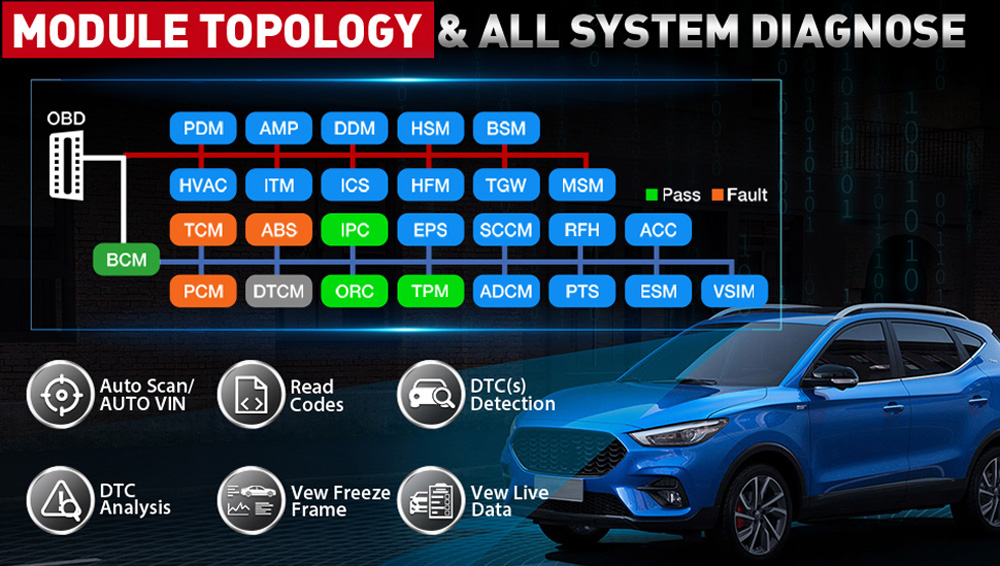

6. Network Structure Topology Module(OEM Topology Mapping, Streamline Repair Analysis)

1). With Topological Diagram Function, it can displays the entire system through the Topology Map to glance all the modules with trouble code, which is easy to locate faults and causes. Up to 5 ways of DTC display: Easy view of all systems.



2). Topology, list, separately click into the control unit, intelligent diagnostics details, vehicle diagnosis report, among which Topology is the newest and innovative configuration.



3). Color-Coded Topology displays all system status in one page and structure of communication between modules. Communication between modules and status can be spotted in a glance and you can locate faults more intuitively to solve problems quickly! Overall, the "Topology Mapping" function on the Launch X431 can be an extremely useful tool for mechanics, DIY enthusiasts and anyone else who needs to diagnose and repair vehicle faults.



Note: Topology is not universal to all vehicles models.



7. Online Parameterization / Flash Hidden Functions(It has Function Help and Expert Mode which can guide the operation efficiently)

1). Activate High-Level Functions: Customizing The Interior Lights; Automatic Door Locking At A Particular Speed; Activating Adaptive Headlights; Changing The Brightness Of The Dashboard; Reversing The Tilt Mirrors, etc.



2). Disable Annoying Functions: Deactivating The Auto Start-Stop; Injector Buzz Sounds; Locking Seat Belt Warning Sounds; Changing The Chimes; Automatic Door Locking At A Particular Speed; Mirror Auto Folding And Unfolding, etc.



8. Guided Function for VAG Vehicles

Launch X431 Pad V car scan tool provides step-by-step repair guidance for technicians.the function of guiding the use of the product to prevent the car setting caused by wrong operation. Compatible with VAG series vehicles(Volkswagen / Audi / Skoda / Seat, etc.).



9. AutoAuth for FCA SGW

You will have access to the security gateway module on 2017 and newer Fiat / Chrysler / Dodge / Jeep vehicles(2017 - 2022), so that the diagnostic tool can clear codes, run bi-directional active tests, actuations, relearns or even IMMO key programming (pulls PIN & write), ADAS calibration assistance etc.



North American Registration/Login Address: https://webapp.autoauth.com/

Europe Registration/Login Address: https://www.technicalinformation.fiat.com



(Note: FCA account needs to be purchased.)



10. IMMO Keys

With the IMMO Keys function, Launch X431 Pad V can add new keys, disable/clear information of the lost vehicle keys, and program the replacement key fob for most Asian and American vehicles, which come with low-grade anti-theft systems.



Note: This function varies on the car model and the year.



11. PMI(Programmable Module Installation)



Support PMI function, compatible with Ford / Lincoln / Mazda etc. This function is used when you need to replace a module (replace ECU) or initialize a module. No need to use the J2534 or pay a subscription.



12. Work With X431 X-PROG3 for Anti-Theft Matching / Anti-Theft Programming

1. Fast and accurate reading and writing of data.

2. Powerful functions, supporting Mercedes-Benz infrared key reading/writing, BMW engine ISN code reading, engine reading in BENCH mode, etc.



Functions:

1). Read BMW engine ISN code.

2). Read/write BMW CAS4+ and FEM chips.

3). Read/write Audi fifth-generation steering column chips

4). Read/write EEPROM.

5). Read/write MCU.

6). VW Fourth-generation Dump Mode All Keys Lost.

7). Read engine in BENCH mode.

8) Read gearbox data.

More features are constantly updated...



13. Work for Both 12V Cars and 24V Trucks (Optional)

If you need to diagnose 24V heavy duty truck, please contact us for buying truck software. We will help you authorize heavy duty truck software and send the Non-16-pin connector kit to you and then you can diagnose 24V trucks without HD Module.



14. Fault Guidance Function

Unlike other scanning tools, Launch X-431 Pad V scanner has a unique fault guidance feature. It is designed to help diagnose and troubleshoot vehicle faults more efficiently and accurately by providing detailed information about common faults, including potential causes, symptoms, and possible fixes.



With this feature, when a fault code is detected, the device will search its database for information related to that code and provide a detailed report to the user. This report may include information about similar faults that have been reported on the same vehicle model or make, as well as any known fixes or workarounds. In addition to providing useful information about vehicle faults, it can also help users to save time and reduce the need for trial-and-error methods, by providing clear instructions for troubleshooting and repairing vehicle faults.



15. Pre-Scan and Post-Scan (A Truly Practical Function for Car Workshops)

Step 1). Auto Scan Vehicle: Auto VIN function can automatically identify the vehicle and all equipped systems, codes and code details will be listed.



Step 2). Print Pre-SCAN Report with customized with shop and vehicle information.



Step 3). Repair Vehicle: Creates efficient repair plan from the start.



Step 4). Auto Scan Repaired Vehicle: Ensures no new faults were created during repair and no DTCs are present at completion.



Step 5). Print Post-Scan Report: Proves all DTCs on Pre-Scan report are fixed.



16. PIN Detection Function

Pin Detection can be used to detect the voltage of the vehicle OBD-II diagnostic socket pins and the supported protocol types to help technicians judge the OBD-II diagnostic interface. If the detection result does not match the actual vehicle configuration,the corresponding pin may be faulty.



17. Car Configuration Modification

To improve car performance and enhance your experience as a driver or owner, you can change or add the functions by changing or adding certain modules that your car does not have, such as adding a satellite navigation system, courtesy lamps, car phone, parking sensors, atmosphere lights, etc. Compatible with Volkswagen, Audi, BMW, etc.



18. Help Features

1). Remote Diagnose:

Support online real-time communication and remote diagnostic service through text, picture, and file between device and device, and between device and remote desktop, with low network bandwidth and system resources occupancy.



2). Diagnostic Feedback:

For model software and function errors met during the use, please submit the feedback immediately. Launch will response as soon as possible.



3). Diagnostic Report:

View comprehensive diagnostic report, remote diagnostic report, and data stream playback.



4). Abundant Maintenance Data

Abundant data are available. It helps repair professionals diagnose and repair vehicles efficiently, accurately and profitable.



5). Support data flow waveform display, DTC Lookup, ect.



Optional Add-On Modules:



Launch HD3 Heavy Duty Module: Truck Software License and Adapters for 24V trucks.

EV Diagnostic Kit: Perform battery pack analysis.

X-PROG & X-PROG3 Immobilizer: For locksmith level key programming & IMMO service.

O2-2 ScopeBox Oscilloscope: Quickly acquire the circuit signal, and slowly display the waveform to observe and analyze.

S2-2 Sensorbox: To simulate vehicle sensor faults.

VSP-600 VideoScope: For up-close visual inspections in confined areas.

X431 TSGUN: Activate all sensors, relearn & program LAUNCH sensors.

BST360 Bluetooth Battery Tester: Get a thorough test of the vehicle battery.

Wi-Fi Printer: Print out diagnostic data & reports.

IMMO Software Package: Advanced IMMO key programming function as Launch X431 IMMO Plus / Launch X431 IMMO Elite.

X431 ADAS Mobile/PRO: When the adaptive cruise control module (ACCM), radar sensor or front bumper has been replaced or does not meet the maintenance calibration requirements, you need to perform "radar calibration" on your vehicle.

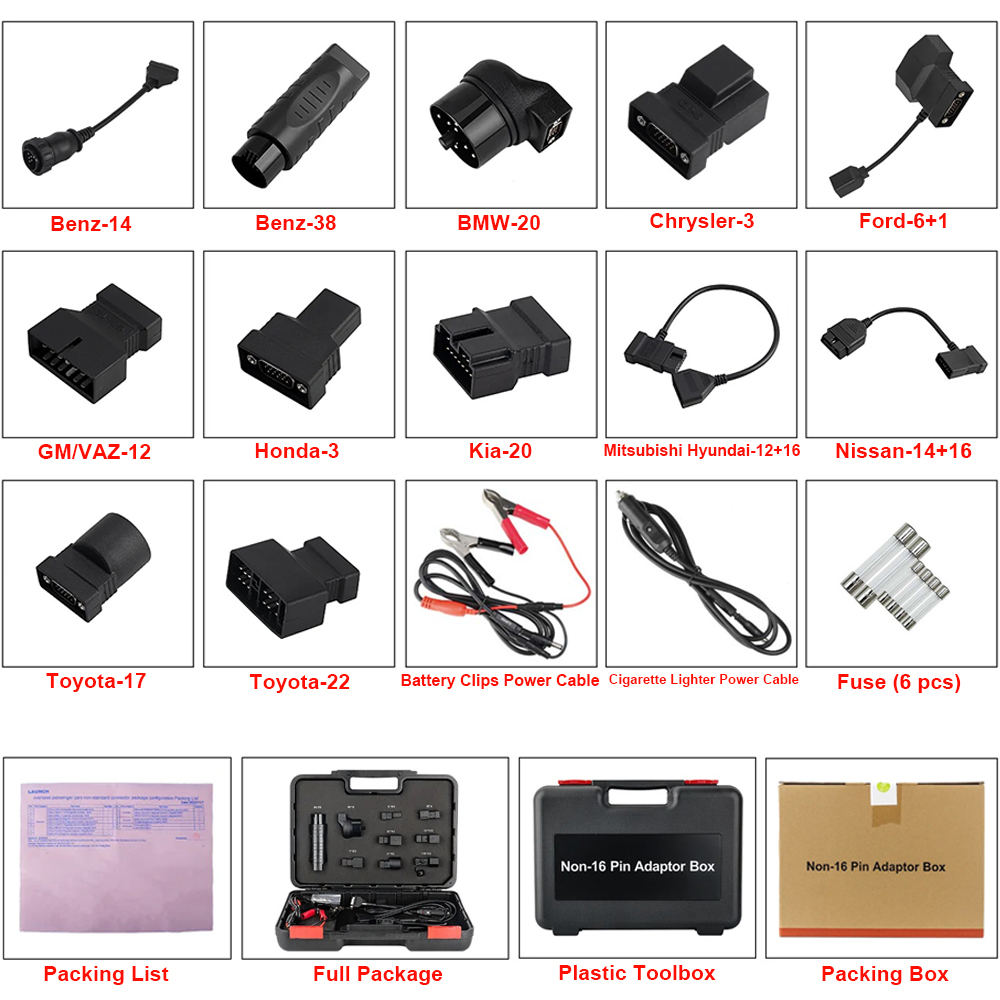

Full Kit OBD-I & OBD-II Connectors and Cables:



16 pcs OBD-I Connectors:

Benz-38

BMW-20

Chrysler-6

Daewoo-12

Ford-6+1

Geely-22

GM/Vaz-12

Honda-3

Kia-20

Mazda-17

Nissan-14+16

Ssang Yong-20

Subaru-9

Toyota-17

Toyota-22

Universal-3



13 pcs Cables:

Audi-4

Benz-14

Daihatsu-4

Fiat-3

GAZ

Mitsubishi Hyundai-12+16

Nissan-14+16

Ssang Yong-14

Suzuki-3

OBD2-16 Extension Cable

OBD-I Adapter

Power Cable Clamps

Gigabit Networks Cable



Attention: Hainan Mazda-17+2 Connector is removed because it only works in China.



Supported Cars:



China:

Beijing Automobile, BAIC Magic Speed, Dongfeng Fengshen, GAC Trumpchi, GAC Mitsubishi, Haima, Mustang, China GM, Beijing Jeep, Beijing Hyundai, BYD, Changan Suzuki, Dandong Shuguang, Dongfeng Fengxing, Hainan Mazda, Geely, JAC , Jiangnan Alto, Lifan Motors, Nanjing Iveco, Chery, Qingling, Shanghai Volkswagen, FAW-Volkswagen, Zhengzhou Nissan, Zhidou, Zotye, ZTE, etc.



Asia:

Honda, Acura, Toyota, Lexus, Mazda, Nissan, Infiniti, Hyundai, Kia, Ssangyong, Daewoo, Isuzu, Daihatsu, Suzuki, Mitsubishi, Subaru, etc.



America:

Chrysler, Dodge, Jeep, American Ford, Lincoln, GM, Buick, Cadillac, Chevrolet, etc.



Europe:

Aston Martin, BMW, Rolls Royce, Mercedes-Benz, Maybach, Peugeot, Volkswagen, Bentley, Bugatti, Ferrari, Fiat, Abbas, Lancia, Romeo, Renault, Maserati, Lamborghini, Citroen, Audi , Porsche, Volvo, Land Rover, Jaguar, Rover, Opel, Skoda, SEAT, Mini, Saab, etc.

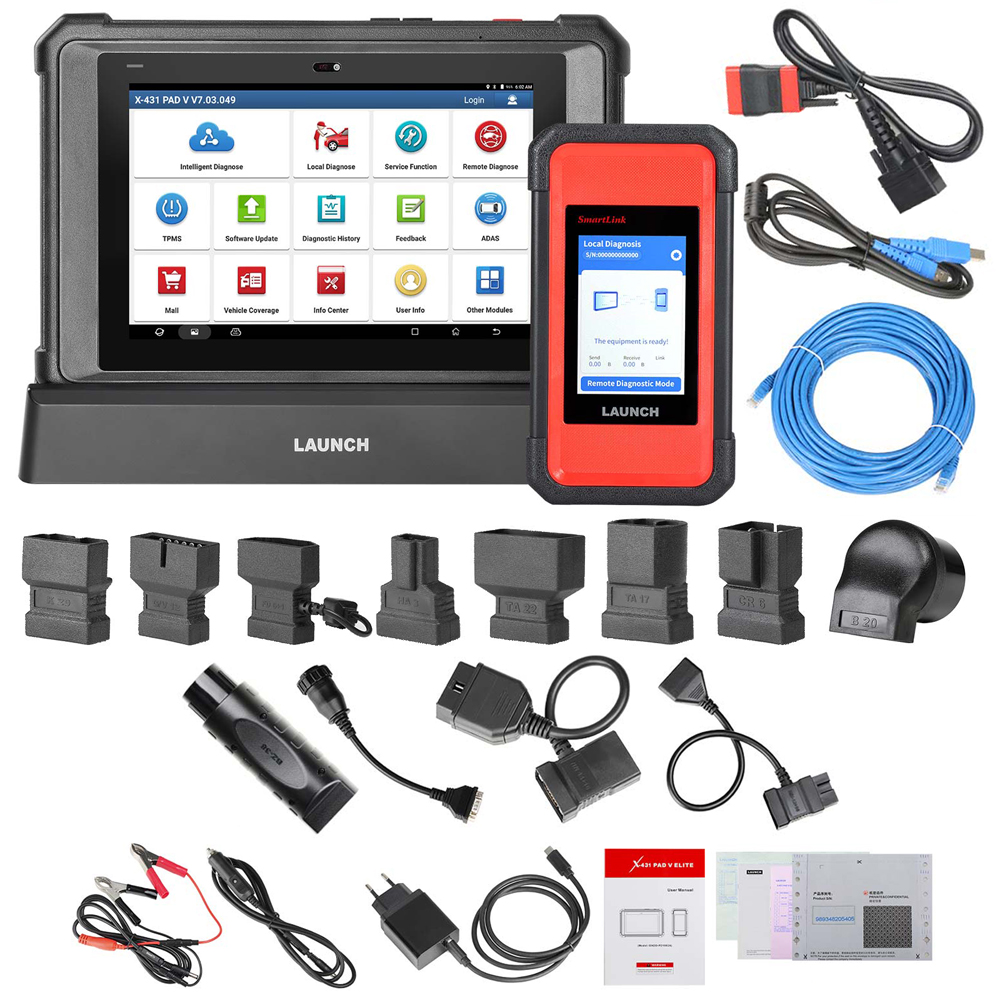

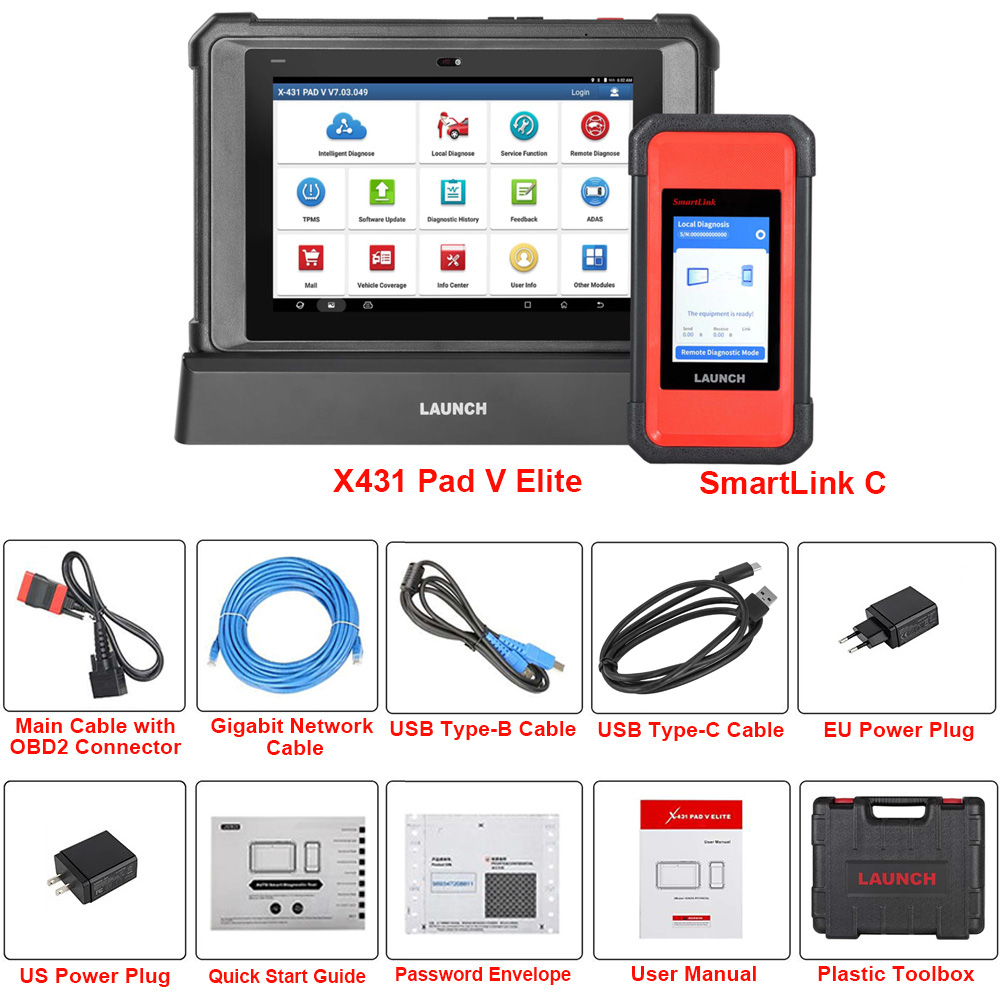

Packing List:



Launch X-431 Pad V Elite Tablet Scanner

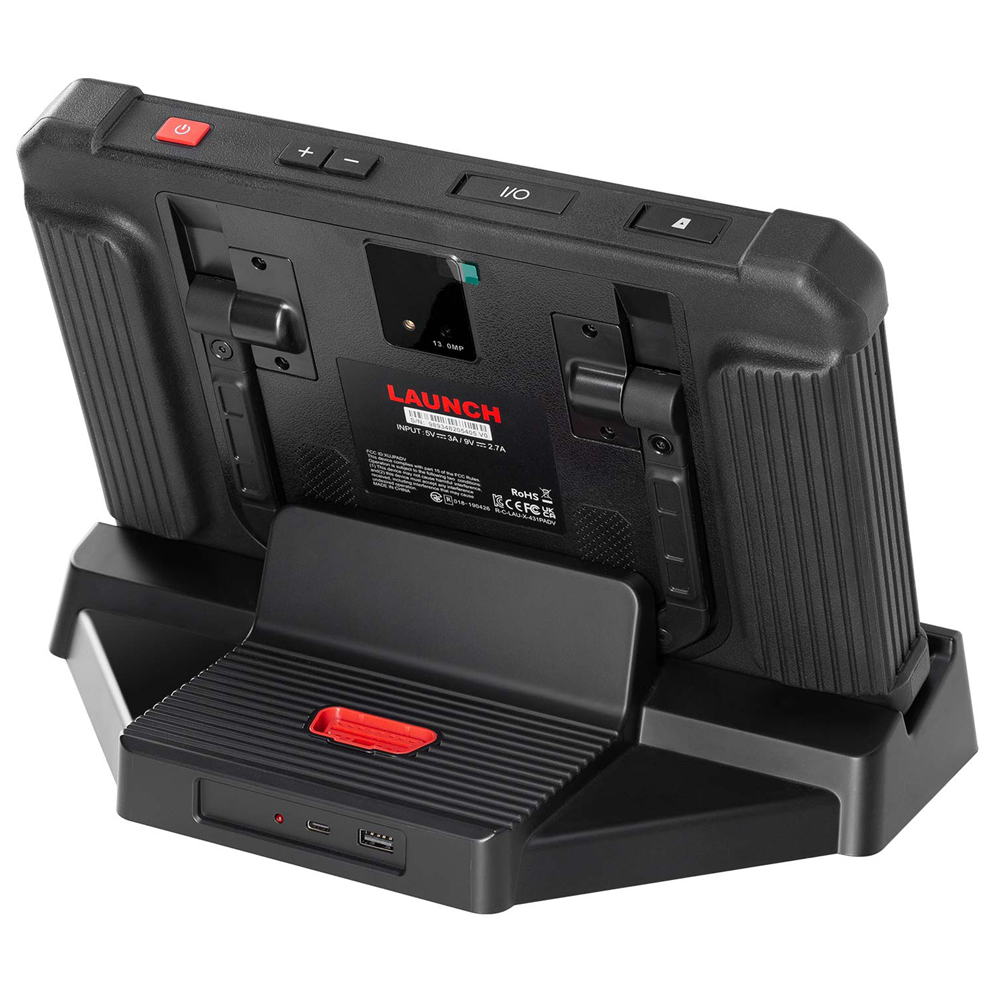

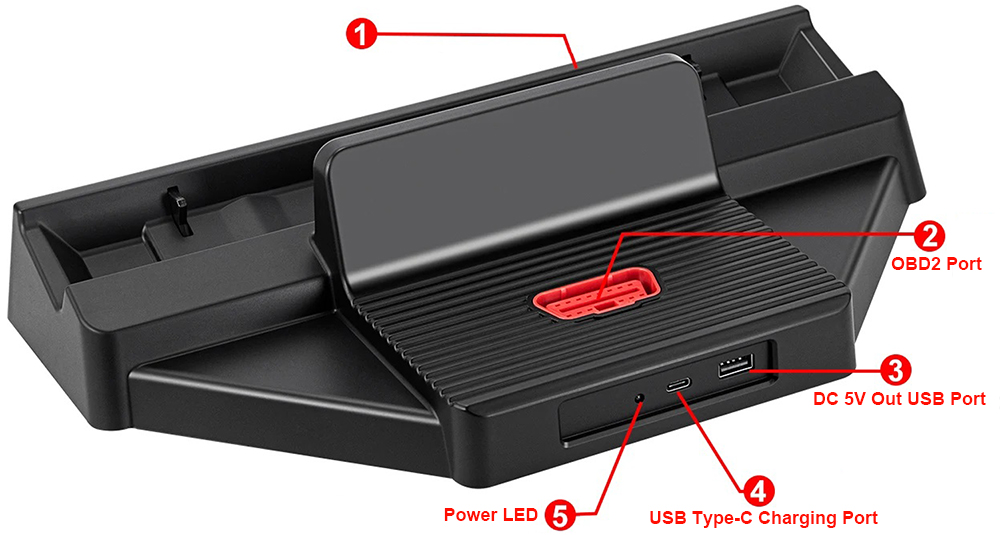

Charging Dock for X431 Pad V Elite

SmartLink C Diagnostic Connector

Diagnostic Connector Kit (16 Connectors + 13 Cables)

Diagnostic Cable

A6 Network Cable

USB Type-B cable

Type-C Cable (2 pcs)

Power Plug EU

Power Plug US

User Manual

Password Envelope

Packing List

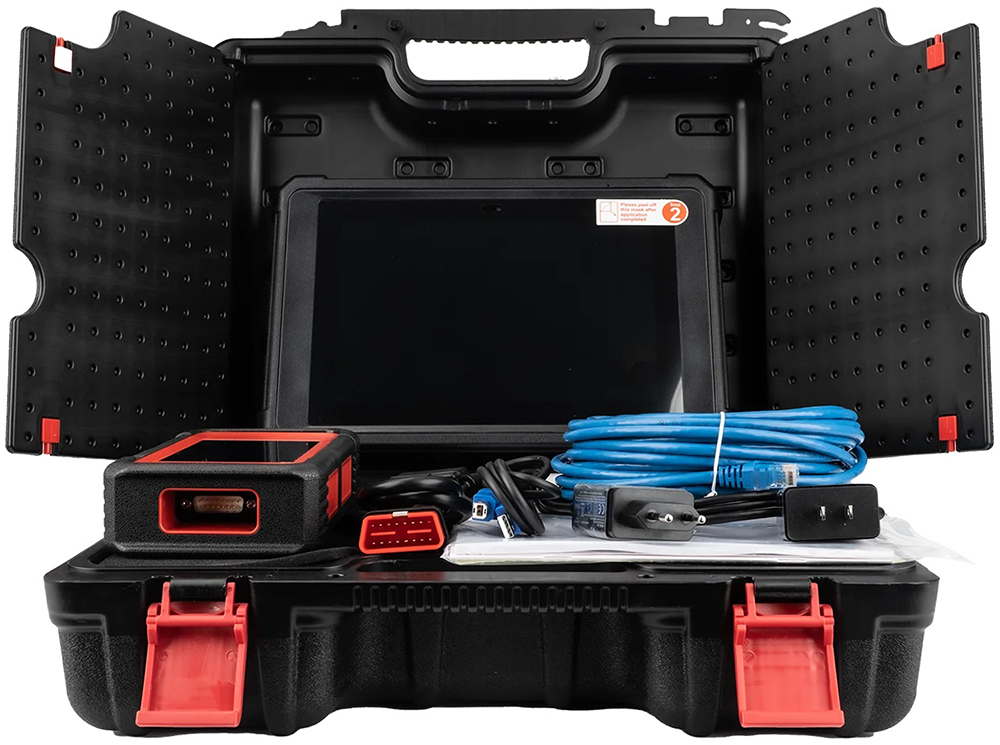

Plastic Toolbox

Packing Box
