  OBDSOS PRODUCTS Car Universal Diagnostic Tool Launch X431 Scanner

Product ID SP371
Product Name Launch X431 PAD VII with 32 Service Functions
Product Price USD4200
Actual Weight (Kg) 14.5
Volumetric Weight (Kg) 13.5
Package Size (cm) 68*20*48
Related Download

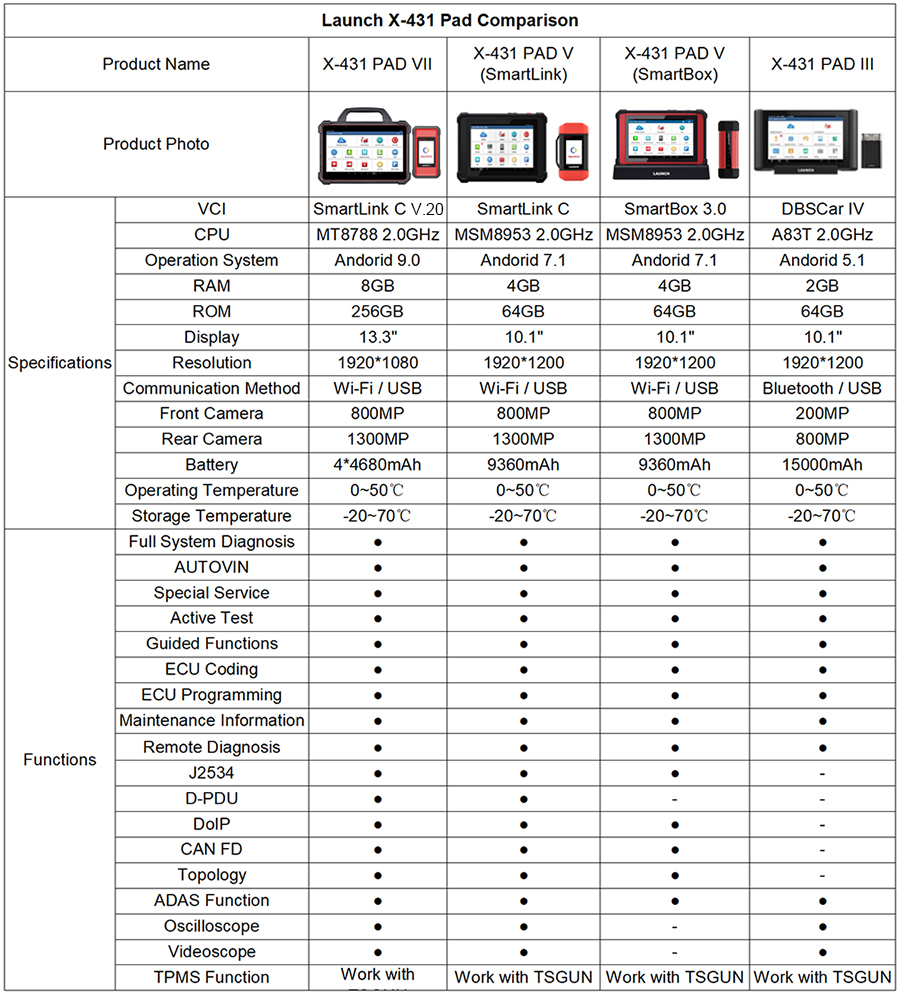

  Launch X431 Pad Comparison.pdf
Order Quantity:
In Stock



Frequently Buy Together +
Description

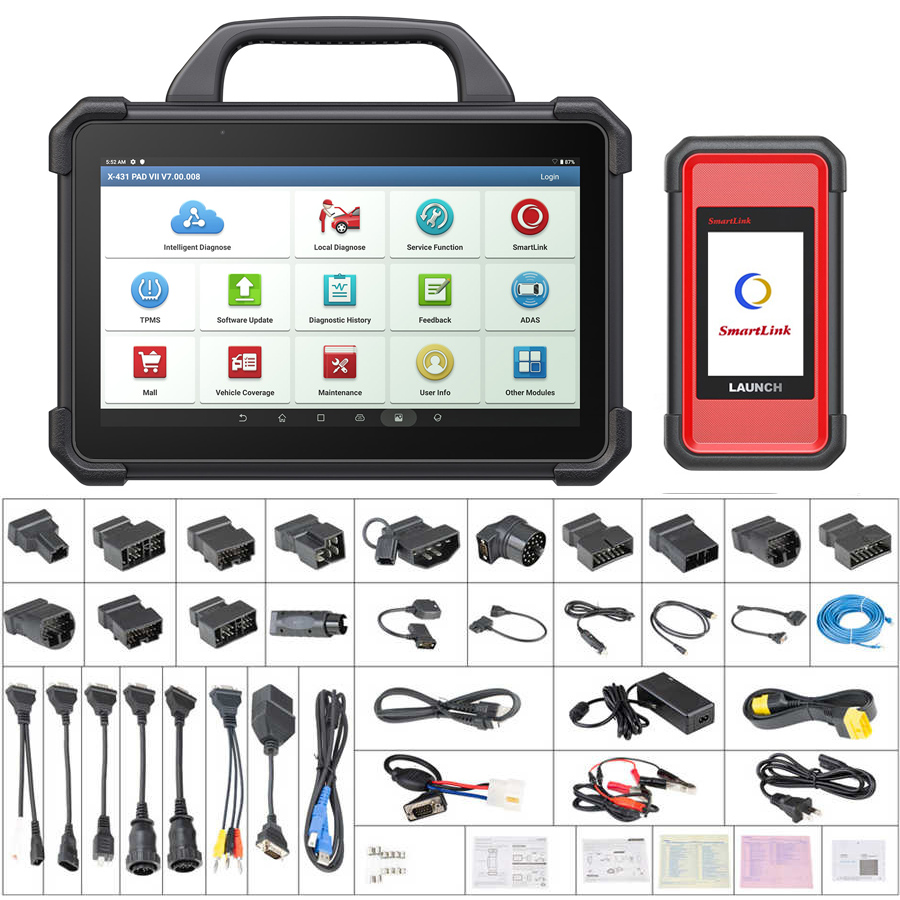

Name: Launch X431 PAD VII with 32 Service Functions

Description:

Launch X431 PAD 7 with ADAS Calibration and 32 Services Function supports Online Coding and Programming.

Launch X-431 PAD VII is an unexpected high-end diagnostic tool from Launch. It comes with the ADAS Calibration Function, 32 Service Functions, TPMS Service and 8 Extended Modules Functions. New SmartLink C VCI powers technician a new diagnostic level without the limitation of diagnostic functions, tools and vehicle types.

Launch X-431 PAD VII supports Online Programming till year 2020: BMW, Mercedes, VW, Audi, Seat, Skoda, Porsche, Nissan, Infiniti, Subaru. (Can not perform in United States, Canada and Spain)

Supported Languages: English, French, German, Spanish, Portuguese, Russian, Italian, Polish, Dutch, Swedish, Japanese, Korean, Chinese

Features:

1. Full system vehicle coverage for U.S., Asian and European markets over 110 brands, which is continually updated

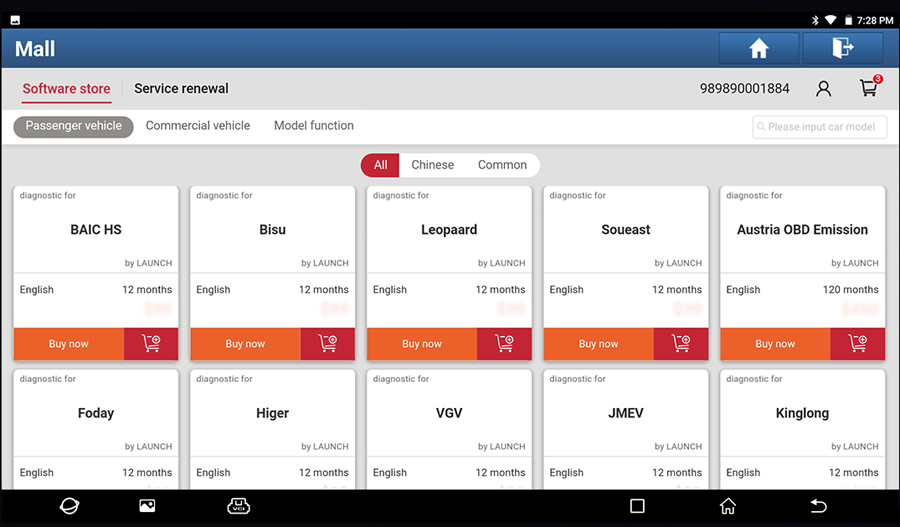

2. Upgrade and expand the X-431 PAD VII with more software and service via the new module 'MALL' as demanded
3. Real-time voltage display helps technician to monitor the voltage condition of vehicle during the diagnosis

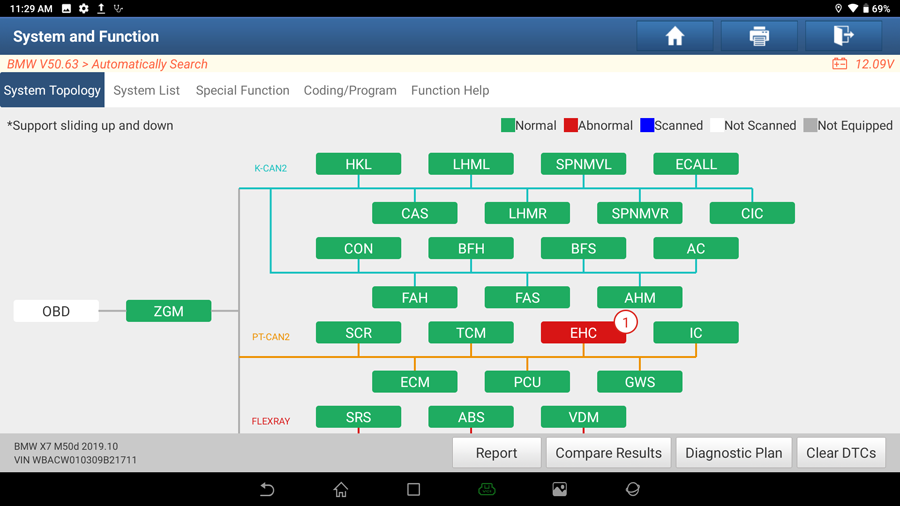

4. Topology mapping gives a visual checking on DTCs and all systems communication status
5. Support automotive communication protocols CAN / CAN FD / DoIP and automotive communication standards J2534/D-PDU/RP1210
6. Auto-detects the communications protocol of the vehicle and assist to check automotive OBDII port pin damaged or not
7. Intelligent diagnostic enable identify VIN automatically and access system quickly
8. Guided function for VW and AUDI
9. Optional ADAS calibration function increases more revenue
10. Advanced coding and programming function
11. An extended solution to support TPMS service
12. 2.4GHz & 5GHz dual band communication ensures quick and stable connection
13. Empower technician to diagnose light, medium & heavy duty vehicles with SmarLink C
14. The basic functions include read & clear DTC, remote diagnosis, Bi-directional control, live data graph, wireless software update etc.
15. Build-in repair information and training video modules help to track and fix issue fast.

Functions:

1. Check the DTCs and all systems communication status visually by topology module mapping function.
2. Auto-detects the communications protocol of the vehicle uses, assist to check OBDII connector pin damaged or not.
3. Check the DTCs and all systems communication status visually by topology module mapping function.
4. Powerful diagnostic functions (intelligent diagnosis, remote diagnosis, read DTC, clear DTC, read data stream, actuation test), accurate diagnostic data, and abundant special functions.
5. Display I/M Readiness Status.
6. Read data stream: Support diverse data stream display modes and user-defined standard data stream.
7. Local diagnose: When the intelligent diagnosis is not available in an environment without network, choose traditional diagnosis. Select the vehicle make and model manually to perform the vehicle detection.

Powerful Special Functions:

1. Component Replacement, Cylinder Compression Test, Injector Cut Out Test, DPF Regeneration

2. Communicates with ABS & Transmissions from Bendix, Wabco and Allison Tech to Tech remote communication function.

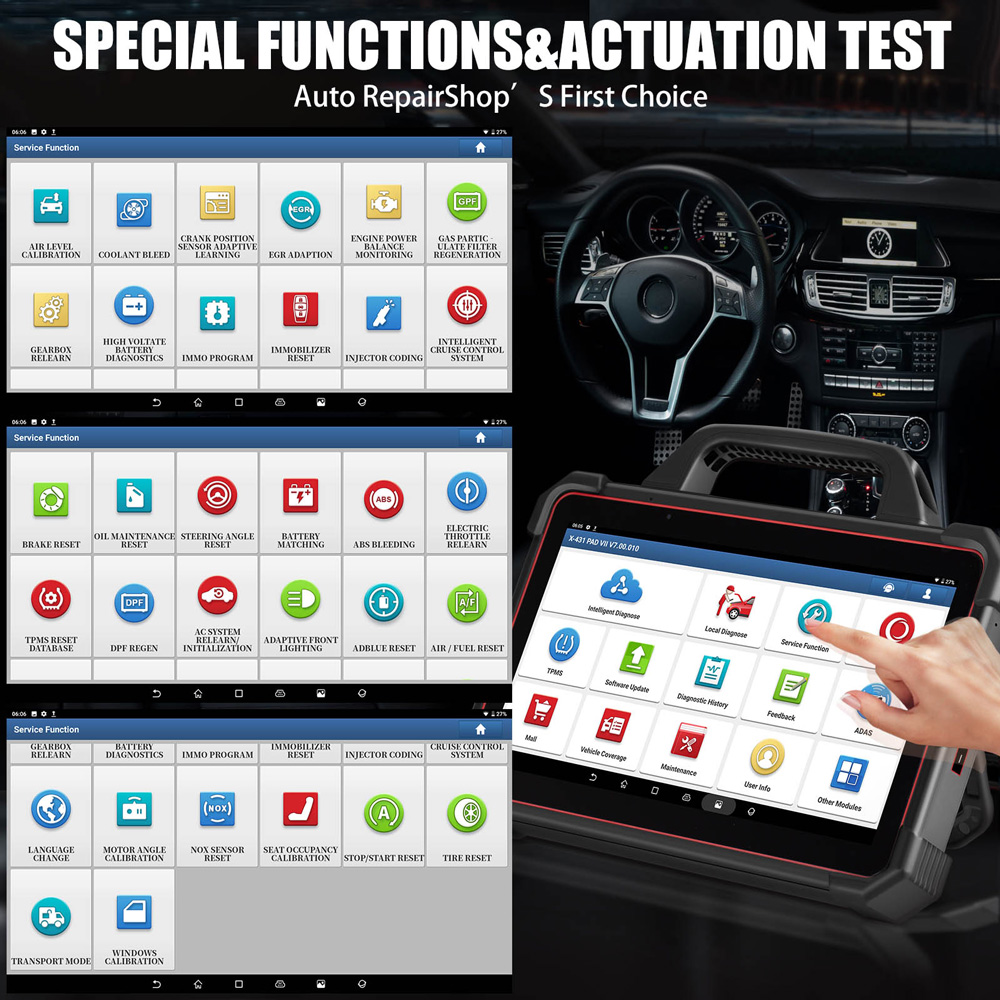

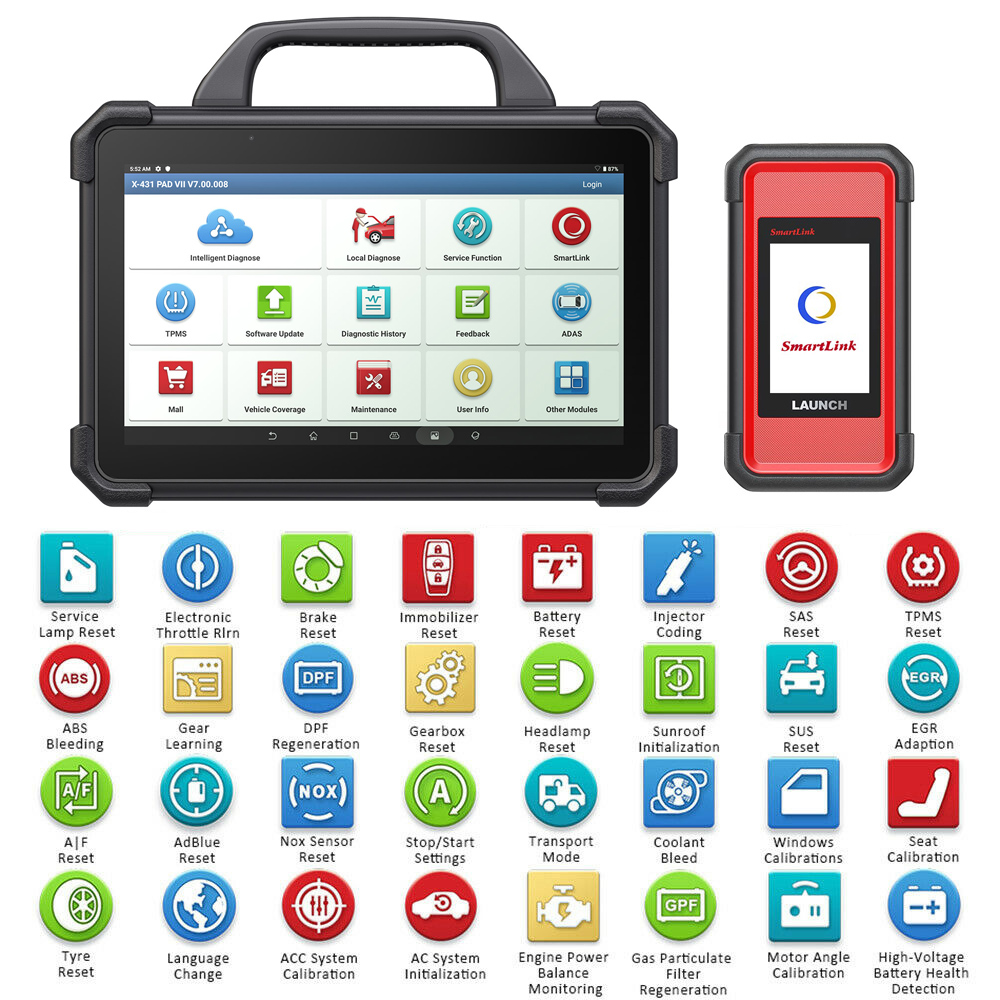

32 Service Functions:

Service Lamp Reset
Electronic Throttle
Brake Reset
Immobilizer Reset
Battery Reset
Injector Coding
SAS Reset
TPMS Reset
ABS Bleeding
Gear Learning
DPF Regeneration
Gearbox Reset
Headlamp Reset
Sunroof Initialization
SUS Reset
EGR Adaption
A/F Reset
AdBlue Reset
Nox Sensor Reset
Stop/Start settings
Transport Mode
Coolant Bleed
Windows Calibrations
Seat Calibrations
Tyre Reset
Language Change

J2534 ECU Programming:

X431 Pad 7 comes with SmartLink C VCI box as a pass-thru tool to connect with OEM software for effective J2534 ECU programming, to replace the existing software / firmware in the ECU, program new ECUs, and fix software-controlled driving performance and emission issues. Available for VAG Group Vehicles, Benz, BMW, and Porsche etc, without use of very expensive factory automotive scan tools.

ECU Programming & Coding:

X431 Pad VII comes with SmartLink C VCI box as a pass-thru tool to connect with OEM software for effective J2534 ECU programming, to replace the existing software/firmware in the ECU, program new ECUs, and fix software-controlled driving performance and emission issues. ECU Coding for Component Matching after replacement, or reflashing modules to active features / deactivate hidden features, without use of very expensive factory automotive scan tools.

60+ Special Maintenance Services:

VAG Guided Functions
Skip the Security Access Code & Channel Number to perform matching, calibration and basic settings for VW / Audi / Skoda / Seat.

Component Matching
Rematch ECU (control module unit) after the replacement for VW / Audi / Skoda / Seat / BMW / Chrysler / GM / Ford / Opel / Mazda / Fiat / Honda / Nissan / Hyundai / Kia / Subaru etc.

Power Balance
Identify the less productive cylinder for Chrysler / GM / Ford.

Programmable Module Installation (PMI)
Ensure the correct software / calibration and configuration data are loaded onto the new module after replacement for Ford / Mazda.

Personalization
Compatible with BMW / Porsche / Toyota / Subaru.

Online Calibration
For some car systems’ calibration. Compatible with VW / Audi / Skoda / Seat.

Online Account Login Service
Access to the login codes for coding, matching, and basic settings of all available systems.

Online Parameterization

And many more are coming soon; expanding regularly.

Support Latest Protocols:

To diagnose the complex issues for passenger cars and even trucks, SmartLink C VCI Box is developed as a smart solution to support wide array of diagnostic protocols (J2534 / RP1210 / D-PDU - for passenger cars and commercial vehicles; CAN/DoIP/CAN FD - the latest protocols), covering U.S., Asian and European markets over 110 brands, and is continually updated. You may go to the “MALL” menu to make in-app purchase of HD vehicle software.

OE-Level Diagnostic Tool:

35+ Reset & Relearn Services (Oil Reset, Injector Coding …) for necessary repairs and adjustments in workshop; 60+ Advanced Special Functions (PMI, Power Balance, Online Calibration, Online Account Login Service …) for complete diagnostics to help grow customer base. Meanwhile, 8 extended modules include Videoscope, Oscilloscope, SensorBox, TPMS Tool, Key Immobilizer and Battery Tester. This pro-level diagnostic scanner has everything to meet your various diagnostic needs and scenarios. **See details on page.

User-Oriented Diagnostic Scanner:

1. Factory-level All System Diagnostics: In-depth inspection of all accessible car modules as ECM, transmission, ABS, airbag, EVAP, TPMS, BMS, etc. to troubleshoot complex manufacturer-specific issues.

2. Topology Mapping: Check DTCs and all systems communication status visually.

3. Merged 4-in-1 Live Data Graph: Effortlessly detect problems during a test drive.

4. Auto-detects the communications protocol; check OBD-II connector pin damaged or not.

Great Combination:

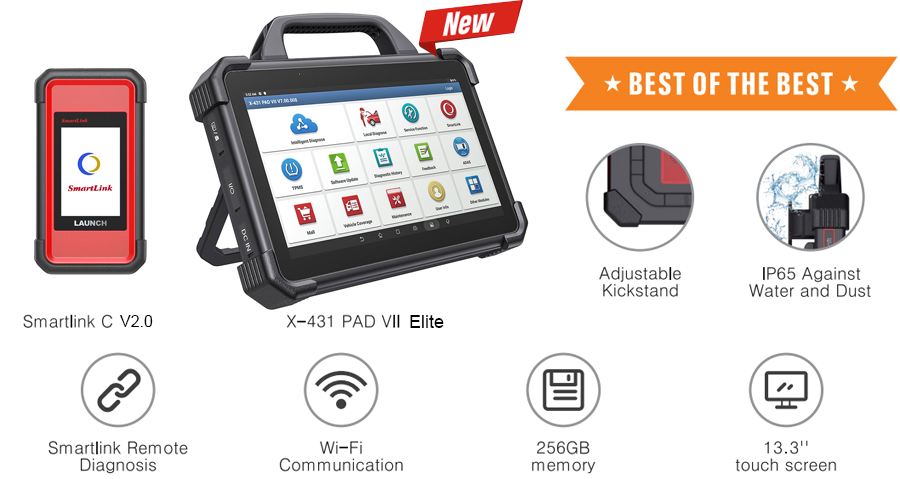

Based on Android 9.0 O.S, powered by fast 2.0GHz octa-core optimized chipset, with visually stunning 13.3 inch 1920*1080 touchscreen, 2.4/5GHz dual Wi-Fi connection, 8GB RAM + 256GB ROM. 9360mAh battery (20+ hours continuous work), AutoVIN & AutoSCAN (2006+), one-touch free software upgrade, massive built-in repair materials, etc., this newest diagnostic tool of LAUNCH X431 line makes your intelligent diagnosis faster than ever.

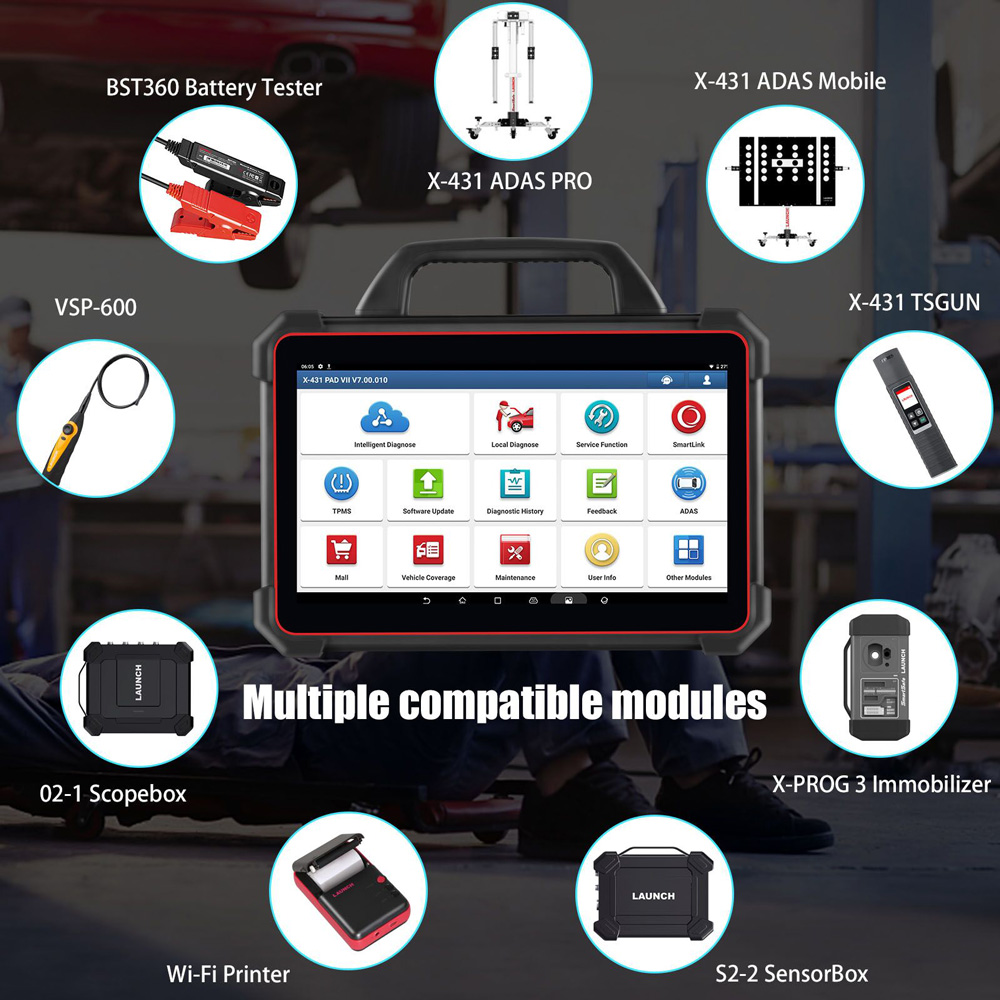

8 Extended Modules Design to Expand Your BusinessHorizons:

VSP-600 VideoScope: For up-close visual inspections in confined areas.

X-PROG & X-PROG3 Immobilizer: For locksmith level key programming & IMMO service.

S2-2 SensorBox: Diagnose and simulate vehicle sensor faults quickly.

O2-1 ScopeBox Oscilloscope: Quickly acquire the circuit signal, and slowly display the waveform to observe and analyze.

Wi-Fi Printer: Print out diagnostic data & reports.

X431 TSGUN: Activate all sensors, relearn & program LAUNCH sensors.

BTS360 Bluetooth Battery Tester: Get a thorough test of the vehicle battery.

Smartlink C VCI:

Smartlink C is a new generation intelligent diagnostic box with Linux system independently developed by Launch, which supports multiple communication modes (USB, BT, WIFI) and multiple diagnostic protocols. It can be used alone as a remote diagnosis box for SmartLink remote diagnosis, or as a pass-thru tool to connect with OEM software.

1. Support D-PDU / J2534 / RP1210 diagnostic standard, and cover passenger cars and commercial vehicles at the same time
2. Support the latest diagnosis protocol of CAN/DOIP / CAN FD
3. Support 2.4G/5G dual band
4. Support online upgrade

In the SmartLink ecology system, if a technician (SmartLink C) does not have time to puzzle through a touch vehicle problem, he can seek a trusted second opinion or additional expertise on various vehicle issues from remote master technicians or repair shops (SmartLink B). SmartLink B enables the shop owner to greatly increase customer's retention and boost shop revenue by providing the professional technical assistance service.

Supported Vehicles:

Passenger Cars:

1. Australian: AUST Holden, AUST Ford

2. Asian: Toyota Lexus, Honda/Acura, Mazda, Subaru, Nissan Infiniti, Mitsubishi, Hyundai, Isuzu, Daihatsu, KIA, Daewoo, Suzuki, Proton, Tata, Mahindra, Ssangyong, Perodua, Maruti

3. European: Audi, Mercedes Maybach, BMW MINI Rolls Royce, VW Bentley Bugatti, Opel Vauxhall, Peugeot, Citroen, Volvo, Sprinter, Renault Dacia, Fiat Romeo Abarth Lancia, Rover, Land Rover, Saab, Seat, Skoda, Smart, Maserati, Ferrari, Arston Martin, Porsche, Jaguar

4. USA: USA Ford/Lincoln, GM, Buick, Cadillac, Chevrolet, Chrysler, Dodge, Jeep

5. Chinese: Changcheng (Great Wall), Geely, Qirui_TY(Cherry), Futian, Changan, Changhe, Haifei...

Heavy Duty Trucks (Optional):

Nissan (Diesel)
Mitsubishi (Diesel)
USA Ford Diesel, Kenworth
Astra, Benz Heavy Duty, Bosch Diesel, China Heavy Duty, Cummins Heavy Duty, DAF, Delphi Diesel
Denso Diesel, FAW Liberation, Foton Auman, FUSO, Hino, Hyundai Heavy Duty, Isuzu Heavy Duty
Iveco Heavy Duty, JAC Heavy Duty, Mack , MAN , OBD Heavy Duty, Scania, Shangchai Diesel, Volvo Heavy Duty
WP Diesel, Airbus, Allison Transmission Box, Ashok Rejlander, Bendix ABS, Caterpillar Heavy Duty
Chai Heavy Vehicle, Chaoyang Diesel, Construction Machinery, CREDO Heavy Vechicle, Detroit Engine
Dongfeng Commercial Vehicle, Dongfeng Yufeng, Doosan Engine, Freightliner Heavy Duty Truck
Full Diesel Diagnosis Software, Haldex ABS Heavy Duty, HD_ABS System, HD_GoldenDragon, HD_International
HD_Kinglong, HD_Maxxforce, HD_Tata, HD_Western_Star, Heavy Truck Presentation Software
IRISBUS HD, IRIZAR HD, NEOPLAN HD, Peter HD, Renault HD, SETRA HD, Stannic Bavin, Sterling HD
Sunlong Bus, Sunwin Bus, UD Trucks 2F Nissan Diesel, WABCO ABS, Yang Chai Engine

Specifications:

Launch X431 PAD VII:

Operation System: Android 9.0
CPU: 2.0GHz; octa-core
RAM: 8GB
Storage: 256GB
Display: 13.3 inch capacitive screen with 1920*1080 resolution
Connectivity: Bluetooth / Wi-Fi
Camera: front 8MP / Rear 13MP
Interface: DC in / micro USB / USB 2.0 type A / RJ45 / HDMI
Power Consumption: ≤ 2W
Test Voltage: DC 9V to 18V
Working Temperature: 0 to 50 degree centigrade
Dimensions(W*H*D): 353*236*71mm

SmartLink:

Display: 3.5 inch touch screen with 320*480 resolution
RAM: 256M
Storage: 8GB
Diagnostic Communication: WiFi / Bluetooth / USB
204*110*45mm
