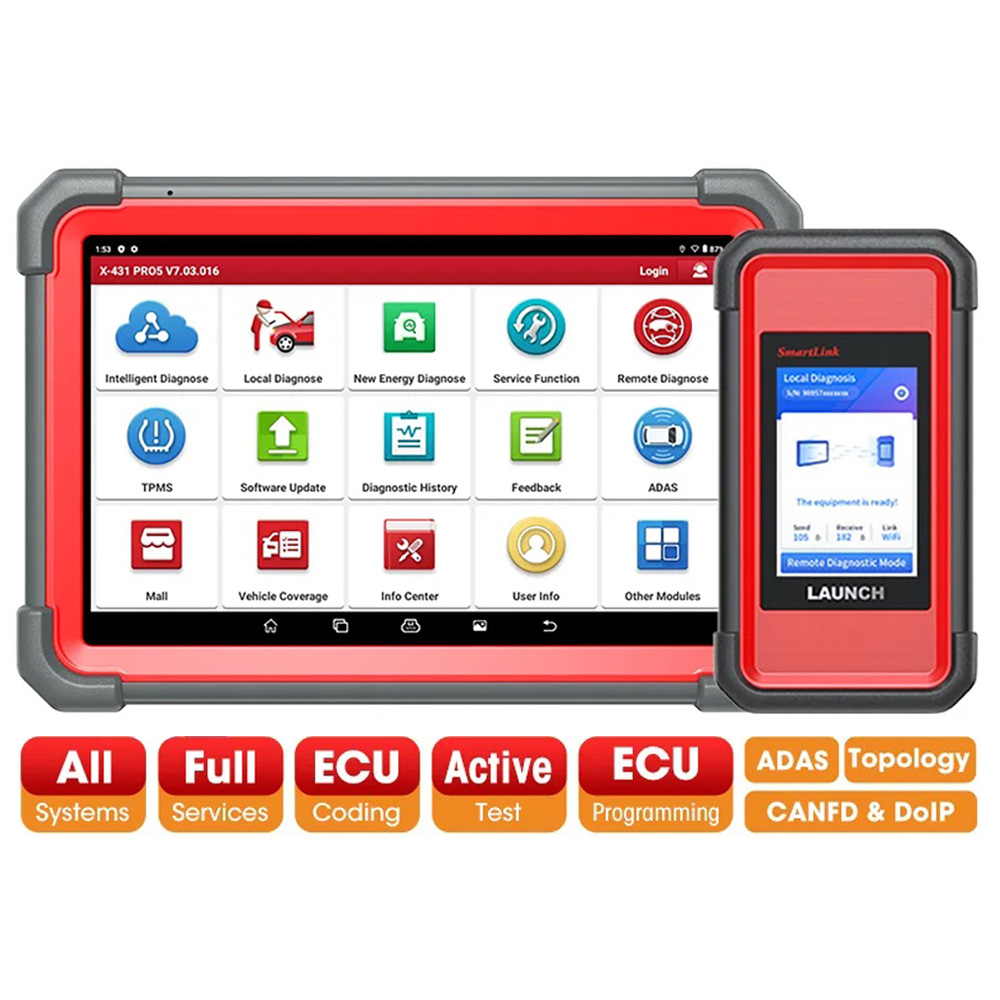

Name: 2024 New Launch X431 PRO5 with Smartlink Supports CAN FD DoIP
Description:
Launch X-431 PRO5 opens the era of innovative dual diagnostic modes (local diagnosis and SmartLink remote diagnosis).
Version: global version without IP limit
Software Update: 2 years free update online
Supported Languages:
English, French, German, Spanish, Portuguese, Italian, Russian, Arabic, Turkish, Polish, Romanian, Dutch, Czech, Danish, Greek, Persian, Finnish, Hungarian, Swedish, Serbian, Croatian, Japanese, Korean, Chinese Simplified, Chinese Traditional
Highlights:
1. It is upgraded version of Launch X431 V+/Pros Mini/PRO3/TURBO/Throttle...
2. New version X431 PRO5 comes with SmartLink C 2.0. SmartLink C VCI replaces the Smartbox 3.0. and supports super-remote service(Requires additional purchase of remote service.).
3. OE-Level Car Coverage: 100+ car brands, 20,000+ models from the US, European, and Asian car markets; still expanding.
4. Intelligent Diagnoses: AutoVIN & AutoScan powers all-systems DTC scans that clock in at an average of < 3 minutes.
5. Full Bi-Directional Active Test
6. FCA AutoAuth Access: Bypass SGM in FCA vehicles seamlessly and within seconds; works on 2017 and later Chrysler, Dodge, Jeep, Alfa Romeo, Fiat, etc. (*Need AutoAuth subscriptions.)
7. VAG Guided Function: Skip the routine procedure of entering the security access code & channel number for VW, Audi, Skoda, Seat vehicles.
8. Add-On Modules to Expand Features: ADAS Calibration Toolkit; VSP-600 VideoScope; X431 TPMS TSGUN; BST360 Bluetooth Battery Tester; X-PROG & X-PROG3 Immobilizer.
9. Non-16-Pin Connectors & Cables Kit: Enable to work on various vehicles across the world.
Notice: Does NOT support the online programming in Spain, Portugal and Canada.
Functions:
1. Advanced All Systems Diagnose:
Launch X431 PRO5 diagnostic scanner can establish a data link to all systems and subsystems of the vehicle being serviced to:
1). Retrieve ECU information including unit type, version numbers, and other specifications, etc.
2). Read & erase DTCs to locate problem areas and clear the codes.
3). View Live Data of each parameter item.
4). This comprehensive scanning process is able to locate the faulty systems and retrieve the DTCs related easily. So you can work on all parts of the vehicle systems to enhance performance, save energy, reduce emissions, and everything else.
![](/ckfinder/userfiles/images/Launch%20X431%20PRO5%20Intelligent%20Diagnosis.jpg)
2. ECU Coding
From manufacturer-specific reprogramming to full diagnostic capability, this Launch diagnostic scanner also has the magic power “ECU Coding” to keep you on the cutting edge:
1).You can match, relearn, and code the newly installed ECU module after making repairs or replacements.
2). You can change the market-specific settings to activate higher-level car functions and disable unneeded features, breaking limitations.
![](/ckfinder/userfiles/images/Launch%20X431%20PRO5%20ECU%20Coding.jpg)
3. J2534 ECU Programming
Serve as J2534-Compliant VCI - compatible with Toyota, Honda, Volvo, VW, GM, Chrysler, Benz, Jaguar, Land Rover; offering cost-effective access to data and OE programming downloads from vehicle manufacturers.
What can J2534 Reprogramming Tool do?
1). Operate OEM programming without using the OEM tools.
2). Replace ECUs: Program blank ECUs (Program data to a new module.)
3). Write-in Data: Refresh used ECUs (Reprogram existing data to the used module.)
4). Repair missing ECU information (Repair ECU with data loss.).
5) Upgrade ECU software version.
6) Compatible with BMW, Benz, Chrysler, Ford, Land Rover, Volvo, Honda, VW, Nissan, Toyota, etc.
![](/ckfinder/userfiles/images/Launch%20X431%20PRO5%20ECU%20Programming.jpg)
4. 50+ Hot Reset Maintenance Services
You can easily choose multiple commonly-used service functions, follow their clear and precise instructions to complete complex projects much faster, including but not limited to the following:
1). Oil Maintenance Light Reset: Reset the oil service lamp; re-calculate the optimal oil life change interval.
2). Steering Angle Reset: Reset the steering angle to zero to keep the car running straight.
3). Injector Coding: Write the new injector code into the system to correct cylinder injection quantity.
4). Electronic Parking Brake Reset: Help to replace and reset the brake pad.
5). ABS Bleeding: Help to exhaust the air in ABS system in an easy way.
6). Throttle Matching: Initialize the throttle actuators to the default state.
7). Battery Matching: Register the battery after replacement.
8). DPF Regeneration: Help to remove the particulate matter to keep the trap stable.
9). Anti-theft Matching (IMMO Service): Disable lost keys to prevent the car from being stolen, and add new keys. *Limited in default; can be fully upgraded with X-PROG & X-PROG3.
10). Tire Pressure Reset: Reset the tire pressure.
11). Suspension Level Calibration: Adjust the vehicle body height sensor for level calibration.
12). Headlight Matching: Initialize the adaptive headlamp system.
13). Gearbox Matching: Help to complete the gearbox self-learning to improve gear shifting quality.
14). Sunroof Initialization: Initialize the sunroof when to be locked off, or closed.
15). Tooth Learning: Help to finish tooth learning after changing crankshaft in the car engine.
Newly added Maintenance Service:
1). Component Matching: Compatible with Volkswagen / Skoda / Seat / BMW / GM / Ford / Opel / Mazda / Fiat / Honda / Nissan / Hyundai / Kia / Subaru etc.
2). Online Coding: Compatible with Volkswagen / Audi / Benz / BMW / Seat / Porsche etc.
3). Online Account Login Service: Compatible with Volkswagen / Audi / Skoda / Seat etc.
4). Online Calibration: Compatible with Volkswagen / Audi / Skoda / Seat etc.
5). Online Parameterization: Compatible with Volkswagen / Audi / Skoda / Seat etc.
6). Anti-theft IMMO Serivce: Compatible with Volkswagen / Audi / Skoda / Seat etc.
7). Guided Functions: Compatible with Volkswagen / Audi / Skoda / Seat etc.
8). Power Balance: Compatible with Chrysler / GM / Ford etc.
9). Programmable Module Installation: Compatible with Ford / Mazda etc.
10). Flash Hidden Functions: Compatible with BMW / Porsche / Toyota / Subaru etc.
11). Cylinder Balance Test/Cylinder Leakage Test/Cylinder Pressure Variations
And many more with expanding. Function menus vary by manufacturer, year, and model.
![](/ckfinder/userfiles/images/Launch%20X431%20PRO5%20Reset%20Service.jpg)
5. Active Test
With Active Test, you can output the command into the ECU in order to turn on/off actuators, to find faults in the subsystems of your car effortlessly, without using the vehicle’s control. For example: using the diagnostic tool to command the fuel pump on. If the fuel pressure gauge shows proper fuel pressure, you’d know the fuel pump circuit and pump are functioning properly. The process just takes < 5 minutes. If test manually? Three times as long!
Turn On The Radiator Fan
Modulate The Throttle
Open/Close Windows
Operate Mirrors
Turn On/Off The Lights
Turn On/Off The Sound Horn
Test Door Lock
…

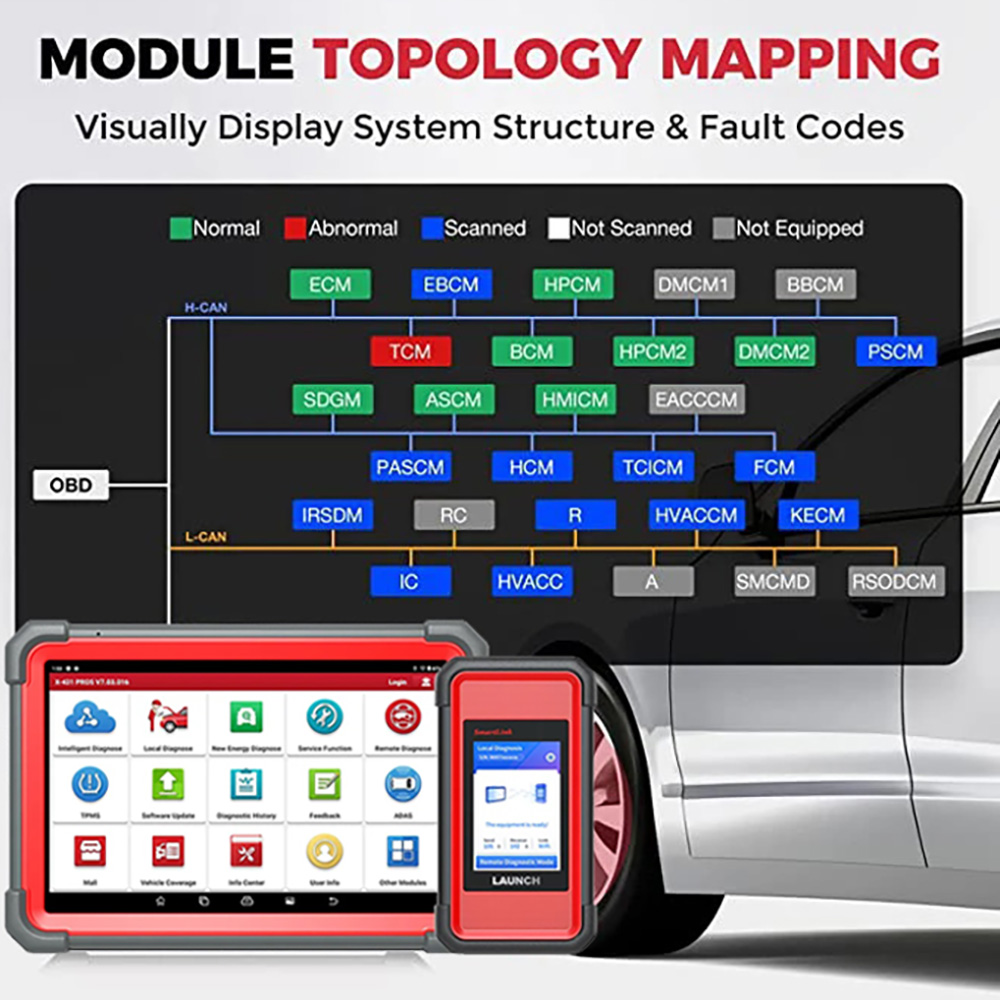

6. Topology Module Mapping Support
The Smart Topology Module Mapping in this diagnostic tool allows you to directly view the color-coded topology display for all communication structures between vehicle modules, and click to check the fault code, saving the hassle of toggling menus back and forth to find what you want.
![](/ckfinder/userfiles/images/Launch%20X431%20PRO5%20Topology.jpg)
7. Live Data Stream
See what your car is doing in real time; get car performance, sensor data and more at one glance! This diagnostic scanner presents the live data stream in 3 modes:
1). Numbers and Lists (default);
2). Wave Patterns (max. 12 channels in one screen);
3). Merged Graph (max. 4 data can be merged) for you to quickly identify if the data are in normal conditions, ranges or not.
8. Guided Functions
Guiding you to be an expert in automotive diagnostic. It is compatible with Volkswagen / Audi / Skoda / Seat, etc.
9. TPMS Programming
Activate All Sensors, TPMS Relearn, Program
10. AutoVIN
Launch X-431 PRO 5 intelligent scanner will automatically identify the make, model, and manufacture year in one touch; help you match the right software so the diagnosis will be carried out fast and efficiently. You will also enjoy how smart it would be to record the test results as Inspection Report, being done by itself, letting you maintain vehicle health logs and share the information easily.
11. Remote Diagnosis
Users can carry out the remote diagnosis to ask for the remote control from other Launch diagnostic tools which are equipped with the remote diagnosis module as well, or from a PC client technician. This has realized the reality that a mechanic can diagnose an abnormal vehicle, which is even thousands of miles away.
12. Health Report Generate and Share
With Launch X431 Pro 5, you can generate a full system Diagnostic Report by one-click. The reports can be E-mailed to the office or directly to your customer. You can also print out the vehicle health report card.
13. Print Diagnostic Result
You can share car diagnostic data via E-mail, then print it via PC or optional WiFi, and you can order Launch x431 Mini WiFi Printer for one-key printing.
Wide Car Coverage:
Launch X431 PRO 5 automotive scanner covers 100+ makes and 10000+ vehicle models all over the world. Suiting for 99% of Asian, American, European vehicles (1996- 2022). This bi-directional scanner allows you to view a list of all models that can be tested with this X431 PRO5.
Europe:
EOBD2, DEMO, LAND ROVER, VOLVO, VW, SMART, SKODA, SEAT, SAAB, RENAULT, PORSCHE, PEUGEOT, OPEL, MASERATI, BMW, ROVER, SPRINTER, FIAT, FERRARI, CITROEN, BENZ, AUDI, DR, GAZ, IVECO, etc.
Asia:
DAEWOO, TOYOTA, SUZUKI, SUBARU, SSANGYONG, TATA, PROTON, PERODUA, NISSAN, MITSUBISHI, MAZDA, MARUTI, MAHINDRA, KIA, ISUZU, HYUNDAI, HONDA,
DAIHATSU, IKCO, MALAYSIA PERODUA, MALAYSIA PROTON, MVM, SAIPA, VAZ, etc.
America:
GM, FORD, CHRYSLER, etc.
Australia:
AUST FORD, AUST HOLDEN, etc.
Brazil:
BRAZIL FIAT, BRAZIL GM, etc.

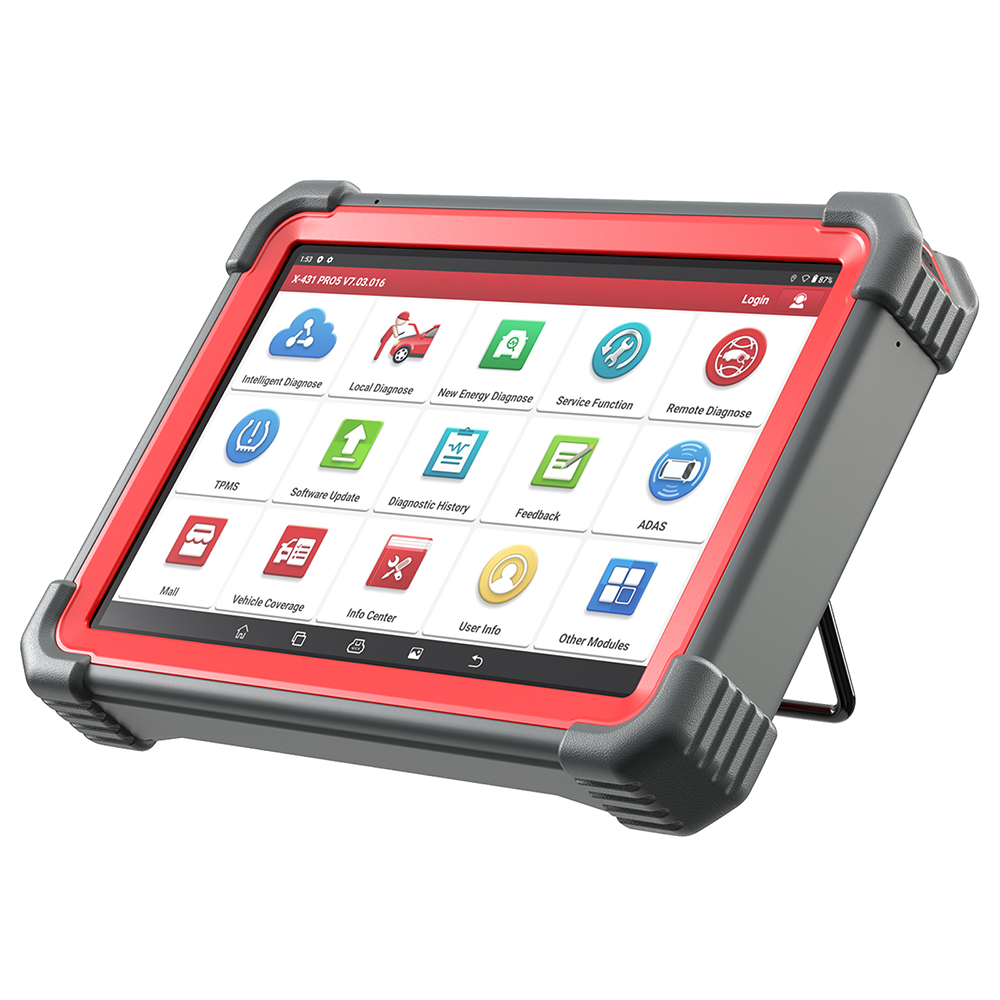

Specifications:
CPU: 2.0GHz 8-core processor
OS: Android 10.0
Display: 10.1-Inch FHD IPS touch screen with 1280*800 resolution
RAM: 4GB
Storage: 64GB
Camera: 800 megapixels rear
WI-FI: 2.4GHz / 5GHz
Battery: 6300mAh / 3.8V
Operating Voltage: 9V~36V
Working Temperature: 0℃~50℃
Storage Temperature: -20℃~70℃
Dimension: 274*190.5*39.5mm

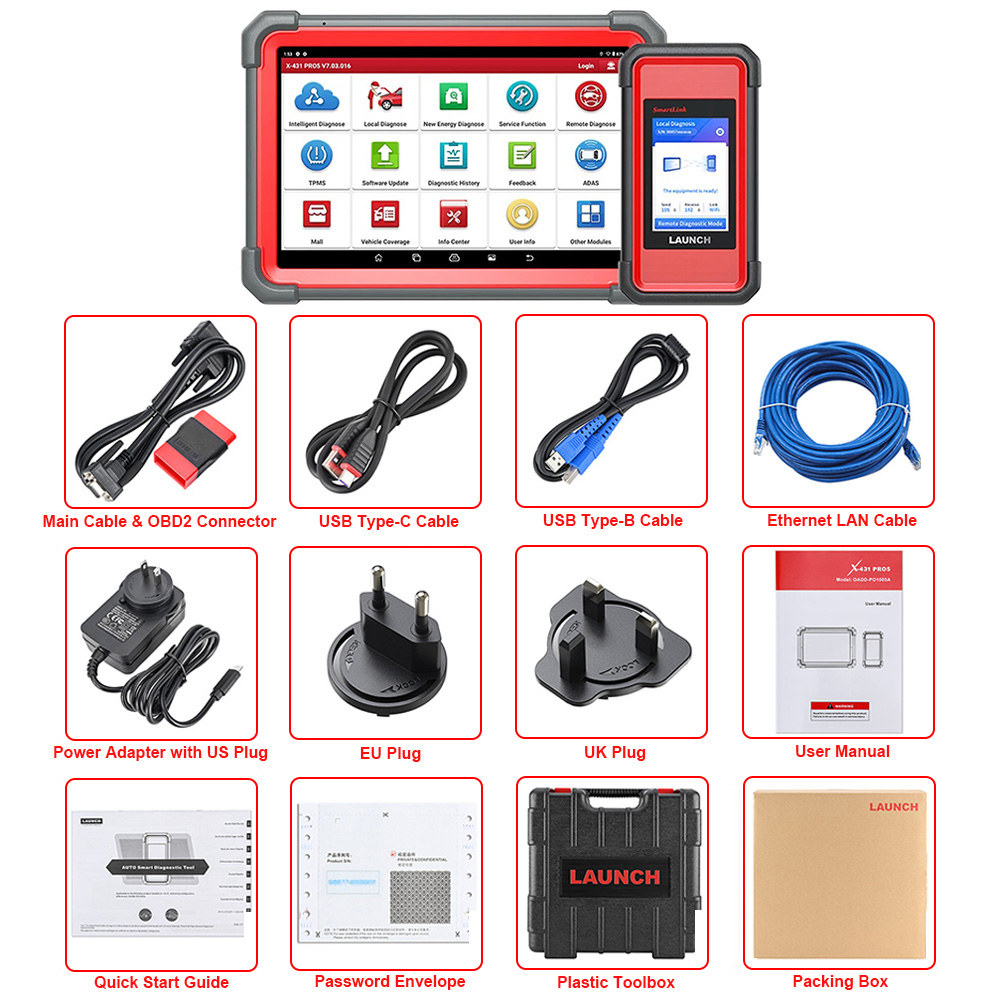

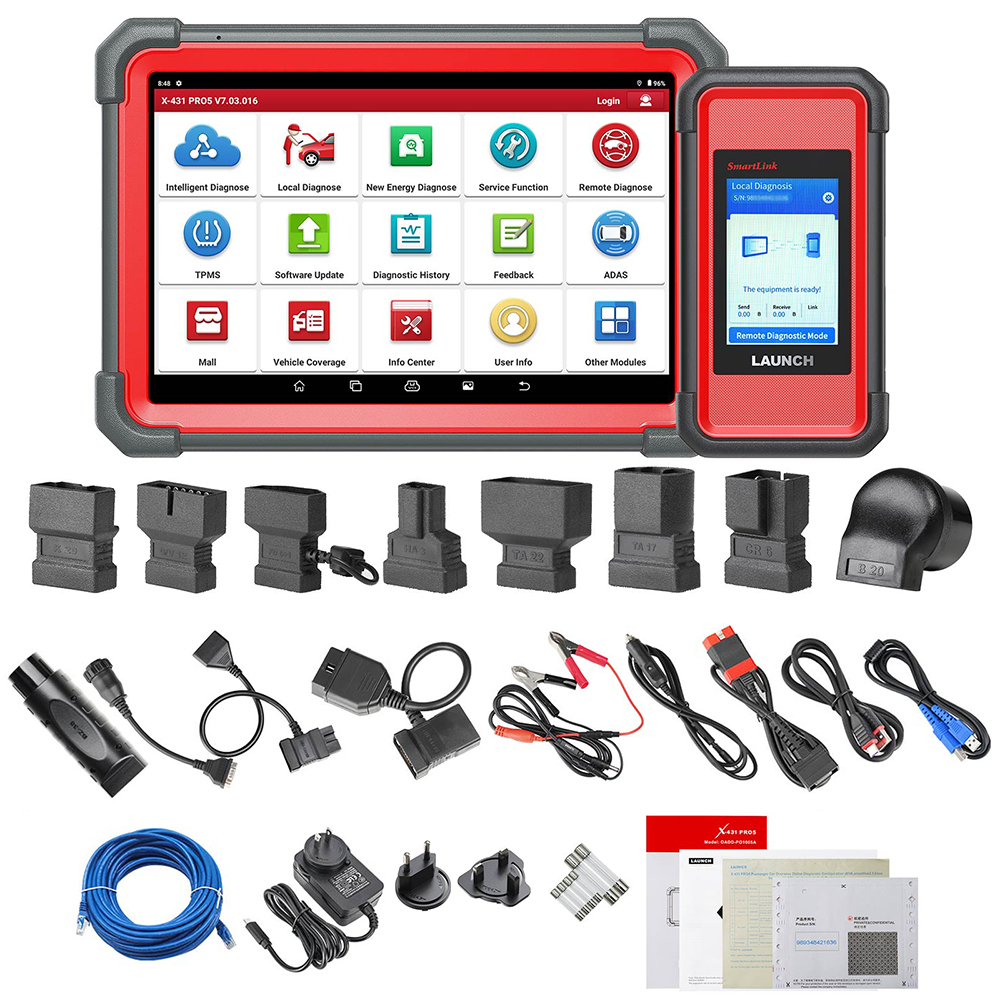

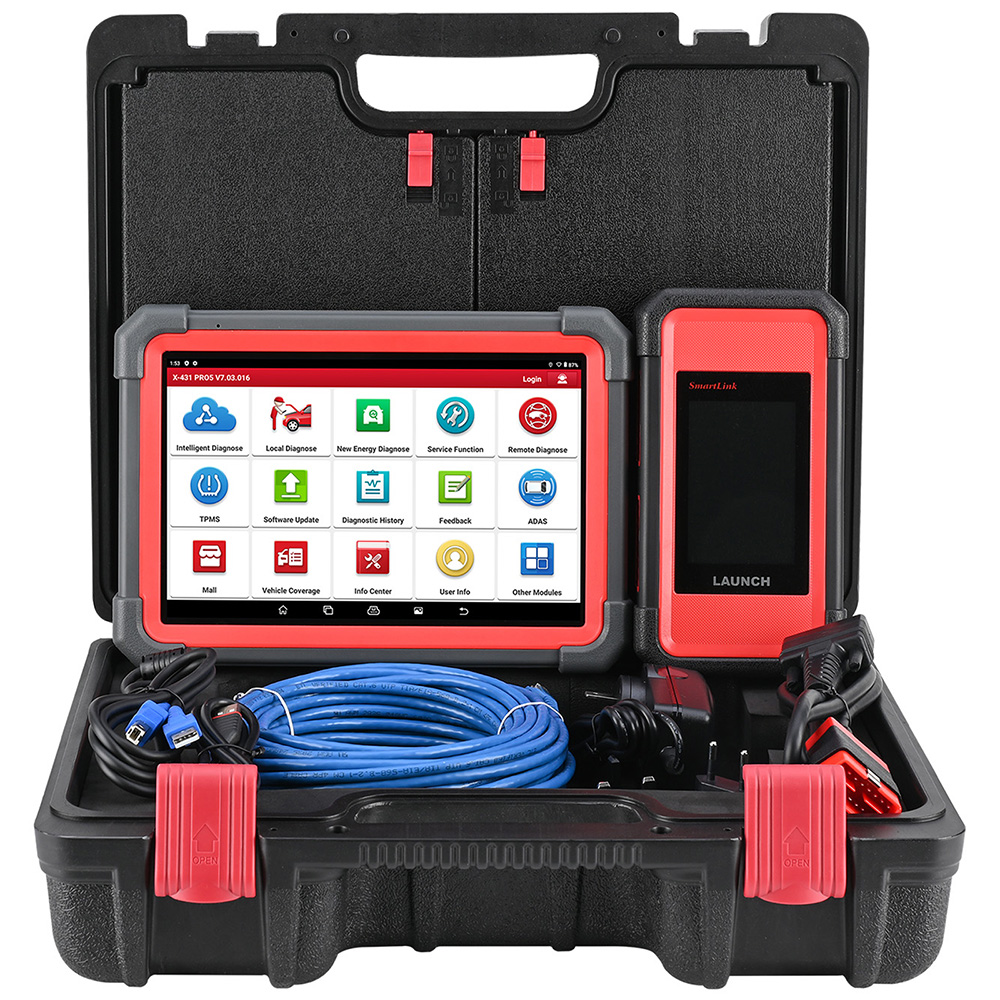

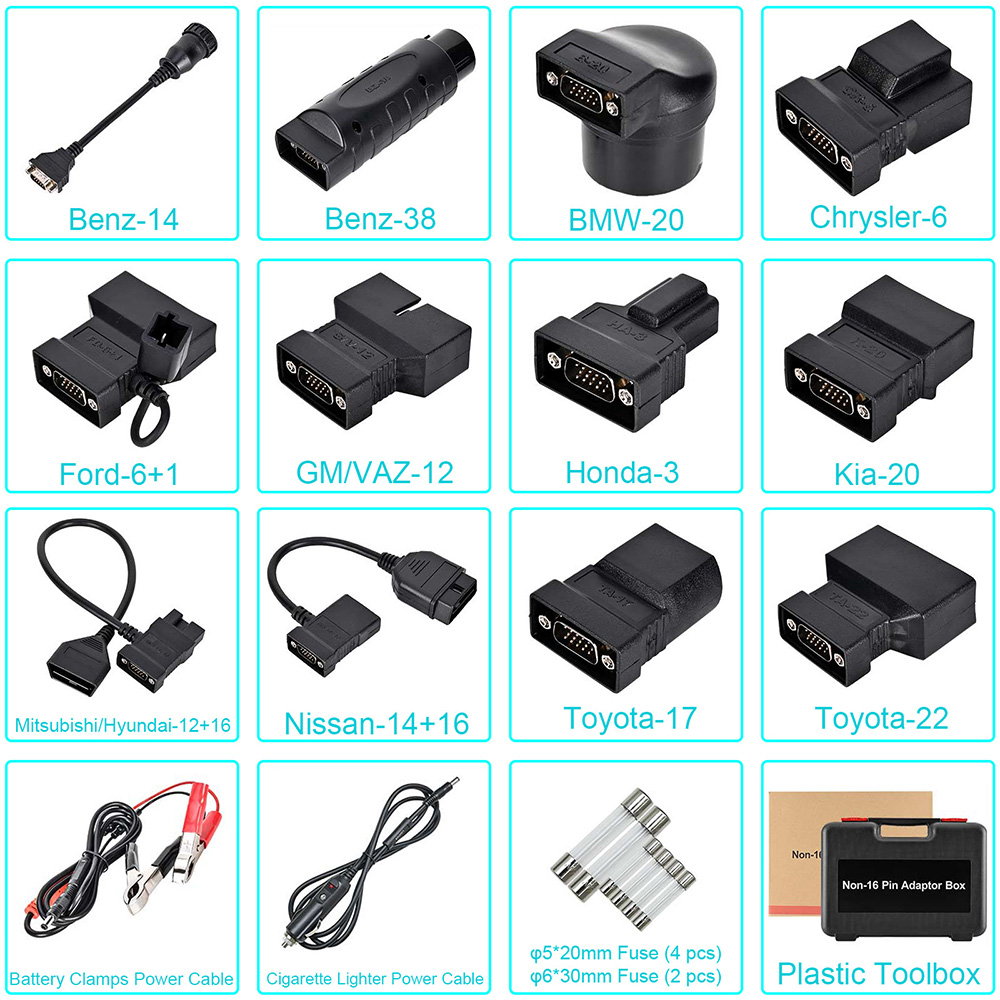

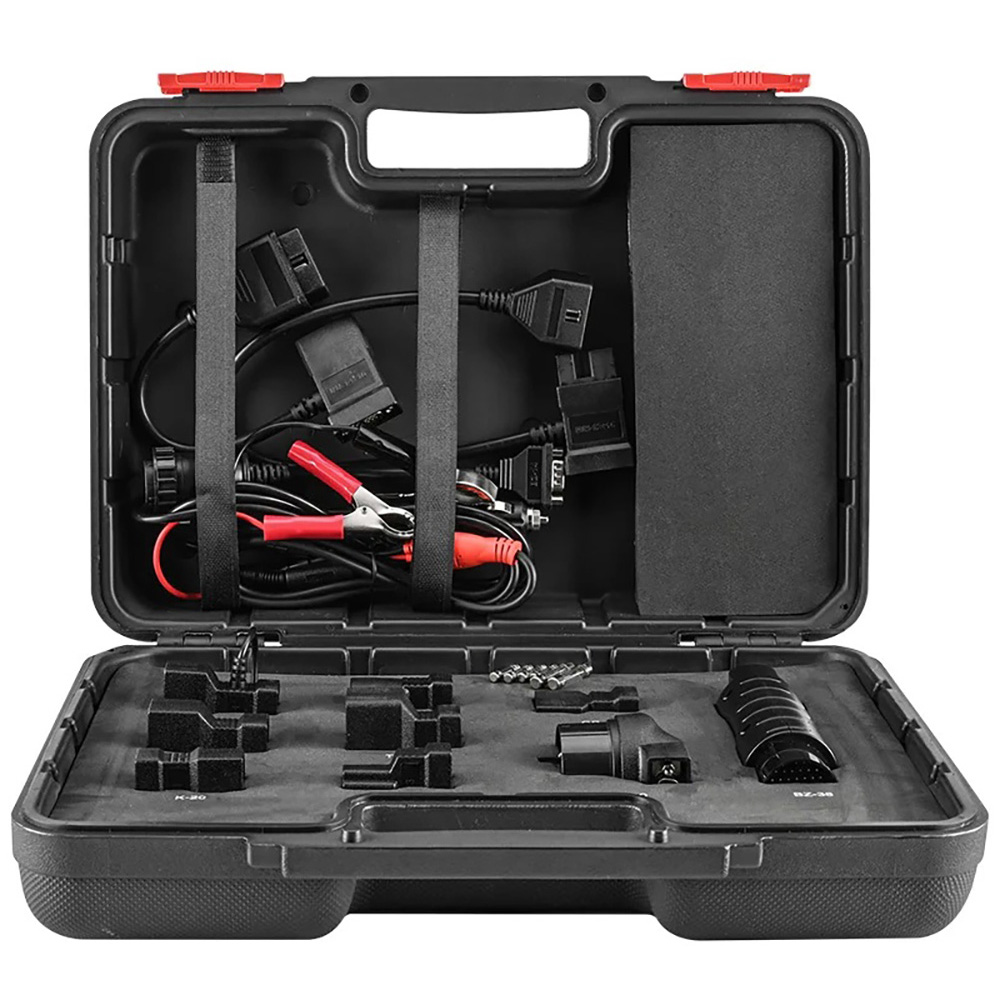

Packing List:
Launch X-431 PRO5
Launch SmartLink C V2.0
Main Cable
OBD2 Adapter
Benz-14 Adapter
Benz-38 Adapter
BMW-20 Adapter
Chrysler-6 Adapter
Ford-6+1 Adapter
GM/VAZ-12 Adapter
Honda-3 Adapter
Kia-20 Adapter
Mitsubishi/Hyundai-12+16 Adapter
Nissan-14+16 Adapter
Toyota-17 Adapter
Toyota-22 Adapter
Battery Clamps Power Cable
Cigarette Lighter Power Cable
USB Type-C cable
USB Type-B cable
Ethernet LAN Cable
Power Adapter
EU Plug
US Plug
UK Plug
φ5*20mm Fuse (4 pcs)
φ6*30mm Fuse (2 pcs)
User Manual
Quick Start Guide
Password Envelope
Plastic Toolbox (2 pcs)
|
