Description:

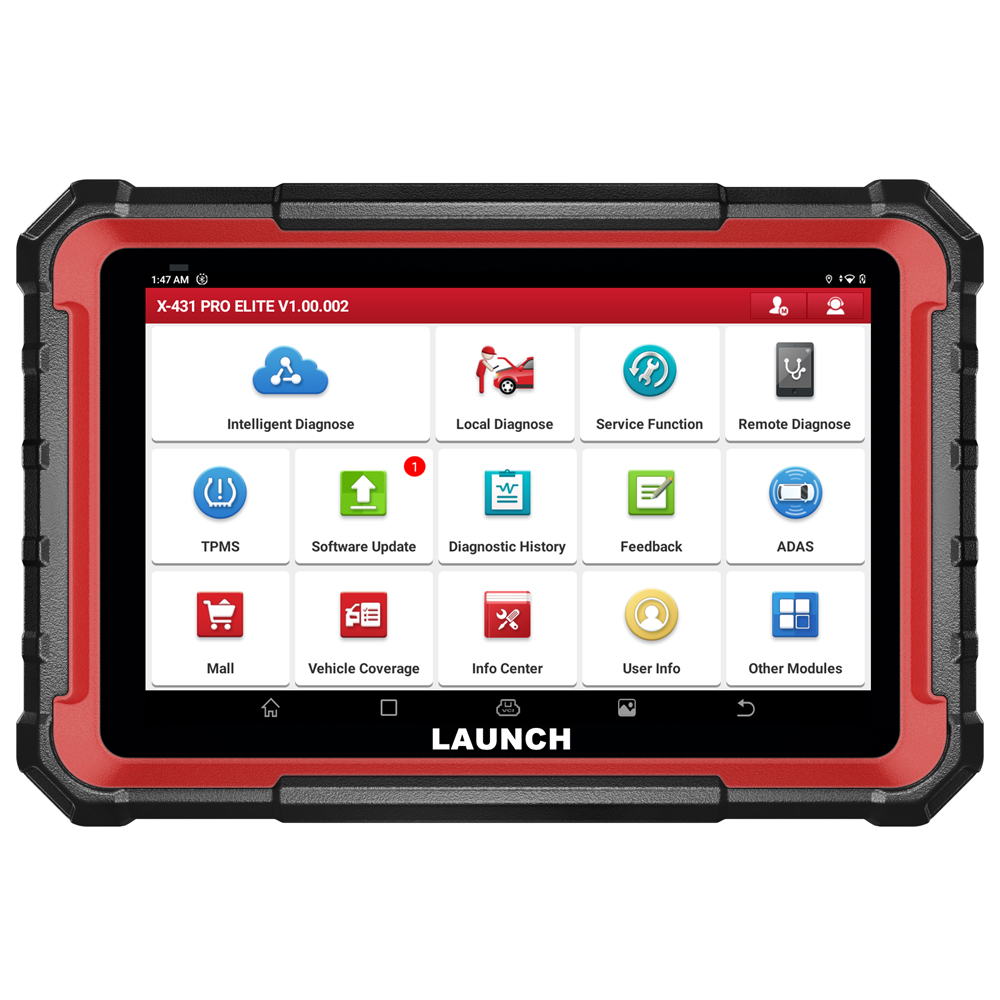

Launch X431 PRO Elite is a All System Car Diagnostic Scanner supports CAN FD / DoIP / FCA AutoAuth new protocols, 31+ Reset Service, ECU Coding, Active Test, Bi-Directional Control. Launch X-431 PRO Elite 2 is compatible with various Launch expansion modules for more advanced functions.



2 Version: global version without limit & EU version for Europe



Software Update: 2 years free update online



Supported Language:



English, French, German, Spanish, Portuguese, Italian, Russian, Turkish, Dutch, Arabic, Greek, Hungarian, Danish, Polish, Persian, Romanian, Serbian, Finnish, Swedish, Czech, Japanese, Korean, Chinese Simplified, Chinese Traditional



Features:



1. Supports CAN FD / DoIP / FCA AutoAuth new protocols.

2. 6000mAh large capacity battery, long endurance, faster, more stable, and long-lasting operation.

3. OE-level professional car full system diagnosis

4. Full Bi-Directional Control ( Active Test )

5. Supports Guide Function for VW Audi.

6. Supports 31+ Reset Service and keep increasing.

7. Support Auto VIN Scan + Intelligent Diagnostics + Remote Diagnostics + Diagnostic Feedback

8. Compatible with Launch X-PROG 3 to perform IMMO programming.

9. Compatible with X431 TSGUN and RF-Sensor to to Activate, Program, Learn, Detect Tire Pressure.

10. Compatible with Launch BST360, VSP100, ADAS, WiFi Printer, etc.

11. Supports common Special Functions of most models, such as Maintenance Light Reset, Throttle Valve Matching, Steering Angle Reset, Brake Pad Reset, Tire Pressure Reset, ABS Exhaust, Battery Matching, Gear Information Learning, Fuel Injector Coding, DPF Regeneration, IMMO Special Function such as Matching and IMMO Programming.



Functions:



1. Supports CAN FD / DoIP / FCA AutoAuth new protocols. Supports GM after 2020 and other new cars!

1). CAN FD :

It is the only product in this price range that is compatible with CAN-FD protocol and supports the latest GM vehicles manufactured after 2020. Adopts advanced CRC algorithms to accommodate more data from 8 to 64 bytes in the CAN frame, which runs faster than other products and reduces the risk of undetected errors to greatly enhance the user experience.



Supports Chevrolet Onix 2020 - 2021

Supports Chevrolet Tracker 2020

Supports Chevrolet Suburban 2021

Supports Chevrolet Tahoe 2021

Supports Buick

Supports Cadillac Escalade 2021

Supports Cadillac Escalade 2021

Supports GMC Yukon 2021

Supports GMC Yukon XL 2021

Supports Holden

Supports DAEWOO

Supports Alpheon

Supports Ravon

Supports Pontiac

Supports Saturn

Supports Hummer



2). DoIP

With Diagnostics over DoIP, diagnostics introduced over UDS are used over TCP/IP and Ethernet. This enables much higher data rates than with CAN. That makes Launch Launch X-431 Pro Elite save both in terms of time and expenses in the case of complex diagnostic tasks and flash applications. Compatible with BMW (F & G chassis), Volvo models (2018+), Land Rover & Jaguar models (2017+).



3). FCA/SGW AutoAuth :

Supports 2017 and later Chrysler / Dodge / Alfa Romeo / Jeep / Fiat vehicles .



Note : This function needs to have the account on FCA website.



2. ECU Online Coding

Why does the car not work normally after replacing ECUs / module?



When an ECU / module is damaged, you have to replace a new one. After replacing the ECU/module, you have to follow the strict procedures of the manufacturer to match, learn, code, or even program it before it functions normally. Otherwise, the car cannot start or some parts cannot work normally.



What can Launch X431 PRO ELITE Scanner do?



Featuring ECU/Module replacement functions, Launch X431 PRO ELITE Bi-directional Scanner can help you initialize, match, relearn, or code the newly replaced ECU/module to get it back on track.



1). Same as other Launch X431 high-end OE-level scan tool , Launch X431 PRO ELITE has the capability of ECU Coding to change preprogrammed options in the software, helping you customize your car faster as needed.



2). Optimally code your car by changing some settings to fit your needs, such as setting alarms, doors locking, etc.



3). Access the ECU to make full use of the hidden features or disable the car’s annoying functions, like activating the auto side mirrors folding function, disabling the automatic engine Start-Stop function, etc.



4). Provide excellent solutions for issues of Drivability, Power Loss, Fuel Efficiency, etc. to improve the car performance.



5). Reprogram the adaptive data for certain components after repairs or replacements.



Notice:



1). ECU Online Coding is available for BMW, VW, Porsche, Renault, etc.



2). ECU Coding changes preprogrammed options which depend on the type and number of electronic features already built in. Thus, ECU Coding is not universally compatible and varies for different vehicles.



3. Active Test & Bi-Directional Control

Bi-Directional Control capability and is capable of performing Active Tests to access vehicle-specific subsystems and component tests. The tester outputs commands to the ECU to drive the actuators in order to determine the integrity of the system or parts by reading the ECU data, or by monitoring the operation of the actuators. For example, X431 Pro Elite has the ability to actuate relays, injectors, coils, or perform system tests, etc. Also it will actuate solenoids valve and actuators for active testing to identify the error easily moreover. The bidirectional functions are quite extensive. Even open an EGR valve and seeing the difference in idle response and oxygen sensor voltage.



Note:



Active Tests are NOT universal for all vehicles, check compatibility with VIN number before purchase. Active Tests vary depending on the manufacturer, year, model, and only the available tests display in the menu.



4. Supports Guided Function for Volkswagen/Audi

1). Service Regeneration, Particle Filter(DPF)

2). Adapt Injector Correction Value

3). Reset Engine Control Adaptation Values

4). Throttle Learning

5). Fill Coolant Circuit

6). Adapt Values, SCR System

7). Activating/Deactivating Cruise Control System

8). Basic Setting of Transmission

9.) Basic Setting of Sensors (-G85/-G200/-G201/-G251)

10). Basic Setting/Bleeding Brake System

11). Initial A/C Compressor Run-In

12). Adaptation Automatic Locking at 15KM/h

13). Distance Control System Calibration

14). Deactivate or Activate Airbags and Belt Tensioners

15). Adaptation Menu Key Multifunction Steering Wheel

16). Adapting Service Intervals

17). Service Interval Display, Resetting

18). Transport Mode, Switching Off/On

19). Level Control System Basic Settings

20). Brake Pad Change

21). Headlight Beam Adjustment

22). Battery Adaptation

23). Rear View Camera System Calibration

24). Driver Assistance Systems Front Sensor System Calibration, etc.



5. Full System Diagnosis

Full Systems of the car mainly including Drive System, Chassis System, Body System, Electrical system:



1). PCM(Drive System): Engine, Transmission, Transfer Case, Electrical Machine Electronics, Fuel Pump, Gear...



2). Chassis System: Accumulator Management Electronics, Steering, Integrated Chassis Management, Tyre Pressure Control, Active Cruise Control, Braking System, Suspension, TPMS...



3). BCM(Body System): SRS Airbag, Camera, Audio Radio, Gateway, Cluster Dashboard, Rain Sensors, Charging Interface Module, Parking Assistance, Power Control Unit, Touch Box, Light, Battery Charging System, Head up Display, Wipe Control System, Roof, Seat & Door Motor System, Immobilizer, ABS ESP System, Air Condition, Electric Windows, Telephone...



4). Electrical System: Centralized Control System for Engine and Power Transmission, Chassis Integrated Control and Safety System, Intelligent Body Electronic System, Communication and Information / Entertainment System...



Diagnosis Function Details:



1). Read Fault Codes: Read and Decode the DTCs to identify where the fault location is.

2). Clear Fault Codes: Erase the DTCs to turn off the MIL after repairs.

3). Retrieve ECU Information: Allows you to retrieve vehicle information.

4). Graph Live Data Stream: View the dynamic data stream to determine vehicle condition.

5). ECU Coding: Match, Learn, Code the new ECU. Customize your car, unfold the hidden features, or disable the annoying functions; Reprograms the adaptive data for certain components after repairs.

6). Active Test (Bi-Directionnal Control): Actuate solenoids and actuators for active testing, send commands to systems/components to test their working status, without using the vehicle controls.



With the Diagnose Function, you can Enhance Performance, Save Energy, Reduce Emissions and more as following:



1). For Engine: Detect common issues as Poor Lubrication, Failing Oil Pump, Oil Deposits and Debris, Inadequate Fuel and Air Compression, Leaking Engine Coolant, Blocked Engine Radiators, Prolonged Engine Detonation, Damaged Oxygen Sensors, Aged Spark Plugs, etc.



2). For SRS: Pinpoint the trouble area as: a bad seat belt, a corroded crash sensor, or some water intrusion in a connector, etc.



3). For ABS: Diagnose Blown Sensor Fuse, Low Brake Fluids, Faulty Sensor, etc.



4). For Transmission: Avoid Grinding or Shaking Sensation in Gear, Whining, Humming or Clunking Noises, Burning Smells, Gears Slipping, Low or Leaking Transmission Fluid, etc.



5). For TPMS: Verify problems of Low Tire Pressure, Faulty in Tire Pressure Monitor Control Module, Unknown Tire Sensor, Failure to Identify Tire Sensor, etc.



6. Supports 31+ Special Reset Service Functions

1). Oil Reset Service

Oil Reset Service enables you to reset the oil service for the engine oil life system,which calculates an optimal oil life change interval depending on the vehicle driving conditions and weather events.



lt needs to be performed in the following cases:



a. If the service lamp is on, run car diagnostics first for troubleshooting. After that, reset the driving mileage or driving time, so as to turn off the service lamp and enable a new driving cycle.



b. If the service lamp is not on, but you have changed the engine oil or electric appliances that monitor oil life, you need to reset the service lamp.



2). (Electronic Parking Brake) EPB Reset



EPB Reset enables you to reset the brake pad after replacing the brake pad.lt needs to be performed in the following cases:



a.The brake pad and brake pad wear sensor are replaced.

b.The brake pad indicator lamp is on.

c.The brake pad sensor circuit is short, which is recovered.

d.The servo motor is replaced.



3). Steering Angle Calibration

Steering Angle Calibration enables you to reset the steering angle, after replacing the steering angle position sensor, replacing steering mechanical parts (such as steering gearbox, steering column, end tie rod, steering knuckle), performing four-wheel alignment, or recovering car body.



To reset the steering angle, first find the relative zero point position for the car to drive in straight line. Taking this position as reference, the ECU can calculate the accurate angle for left and right steering.



4). ABS Bleeding



ABS Bleeding allows you to perform various Bi-Directional Tests to check the operating conditions of Anti-Lock Braking System(ABS).



lt needs to be performed in the following cases:



a. When the ABS contains air.

b. When the ABS Computer, ABS Pump, Brake Master Cylinder, Brake Cylinder, Brake Line, Brake Fluid is replaced.



5). Gear Learning

Gear Learning enables you to perform tooth learning for the car, to turn off the MIL.



lt needs to be performed in the following cases:



a. After the Engine ECU, Crankshaft Position Sensor, Crankshaft Flywheel is replaced.

b. The 'tooth not learned' DTC is present.



6). IMMO Service

IMMO Service enables you to perform the anti-theft key matching function, so that the immobilizer control system on the car identifies and authorizes remote control keys to normally use the car.



It needs to be performed when the Ignition Switch Key, Ignition Switch, Combined Instrument Panel, ECU, BCM, Remote Control Battery is replaced.



7). Injector Coding

Injector Coding enables you to write injector actual code or rewrite code in the ECU to the injector code of the corresponding cylinder, so as to more accurately control or correct cylinder injection quantity.



It needs to be performed after the ECU or injector is replaced.



8). Battery Maintenance System Reset

Battery Maintenance System Reset enables you to perform a resetting operation on the monitoring unit of vehicle battery, in which the original low battery fault information will be cleared and battery matching will be done.



lt needs to be performed in the following cases:



a. The main battery is replaced.

b. The battery monitoring sensor is replaced.



9). Diesel Particulate Filter (DPF) Regeneration

DPF Regeneration enables you to clear PM(Particulate Matter) from the DPF filter through continuous combustion oxidation mode (such as high temperature heating combustion, fuel additive or catalyst reduce PM ignition combustion) to stabilize the filter performance.



It needs to be performed in the following cases:



a. The Exhaust Back Pressure Sensor is replaced.

b. The PM Trap is removed or replaced.

c. The Fuel Additive Nozzle is removed or replaced.

d. The Catalytic Oxidizer is removed or replaced.

e. The DPF Regeneration MlL is on and maintenance is performed.

f. The DPF Regeneration Control Module is replaced.



10). Electronic Throttle Position Reset

ETP Reset enables you to make initial settings to throttle actuators and returns the learned values stored on ECU to the default state. Doing so can accurately control the actions of regulating throttle (or idle engine) to adjust the amount of air intake.



11). Gearbox Matching

Gearbox Matching enables you to complete the gearbox self-learning to improve gear shifting quality.



It needs to be performed when the gearbox is disassembled or repaired.



12). AFS (Adaptive Front-Lighting System) Reset

AFS Reset enables you to initialize the adaptive headlamp system.



13). Sunroof Initialization

Sunroof Initialization enables you to set the sunroof lock off, closed when it rains, sliding / tilting sunroof memory function, temperature threshold outside the car, etc.



14). Suspension Calibration

Suspension Calibration enables you to adjust the height of the body.



It needs to be performed in the following cases:



a. When replacing the body height sensor, or control module in the air suspension system.

b. When the vehicle height is incorrect.



15). EGR Adaption

EGR Adaption is used to learn the EGR(Exhaust Gas Recirculation) Valve after it is cleaned or replaced.



16). Seats Calibration

Seats Calibration is applied to match the seats with memory function that are replaced and repaired.



17). Tyre Reset

Tyre Reset is used to set the size parameters of the modified or replaced tire.



18). Coolant Bleed

Coolant Bleed is used to activate the electronic water pump before venting the cooling system.



19). AdBlue Reset (Diesel Engine Exhaust Gas Filter)

Urea Reset operation is required after the Diesel Exhaust Treatment Fluid (car urea) is replaced or filled up.



20). NOx Sensor Reset

NOx Sensor is a sensor used to detect the content of nitrogen oxides (NOx) in engine exhaust. lf the NOx fault is re-initialized and the NOx catalytic converter is replaced, it is necessary to reset the catalytic converter learned value stored in the engine ECU.



21). AC System Initialization

AC System Releam/Initialization must be performed when the vehicle AC ECU or actuator is replaced or the ECU memory is lost.



22). High Voltage Battery Detection

High Voltage Battery Detection is used for high voltage battery diagnosis and status information detection.



23). Windows Calibration

Windows Calibration is used to perform door window matching to recover the EC U initial memory, and recover the automatic ascending and descending function of power window.



24). Language Change

Language Change is used to change system language of vehicle center console.



25). AF Reset

AF Reset is applied to set or learn Air/Fuel Rate parameters.



26). Transport Mode

To lower vehicle power consumption, user may perform the following operations: limit vehicle speed, not wake up the network for door open and disable remote key etc. In this case, deactivating transport mode is needed to recover vehicle being normal.



27). Stop/Start Reset

Stop/Start Reset is used to open or close the automatic Start/Stop function via setting the hidden function in ECU (The precondition is vehicle equipped with hidden function and hardware support).



28). Intelligent Cruise Control System Reset

Intelligent Cruise Control System Reset is used to matching the Intelligent Cruise Control Module after it is replaced or repaired.



29). Engine Power Balance Monitoring

Engine Power Balance Monitoring is used to monitor crankshaft acceleration in the power stroke of each cylinder, to determine the relative power provided by each cylinder.



30). Gas Particulate Filter (GPF) Regeneration

GPF Regeneration is used to perform the GPF replacement or regeneration after the fuel consumption is increased and engine output power is reduced resulting from a long time service of the GPF.



31). Motor Angle Calibration

Motor Angle Calibration is used to perform the motor angle calibration when the rotor position detected by the motor angle position sensor is different from theactual rotor field position.



Note: Reset Function varies depends on exact car model.



7. More Advanced Function

1). Auto VIN Scan

2). 8-in-1 Live Data Stream

3). DTC Look up

4). Remote Diagnose Function

5). Diagnostic Report

6). Diagnostic Report Print & Share

7). Online Repair Sources

8). MALL Function: User can subscribe the new vehicles directly.


Compatible Launch Modules:



1). X431 ADAS Mobile/PRO:

When the adaptive cruise control module (ACCM), radar sensor or front bumper has been replaced or does not meet the maintenance calibration requirements, you need to perform "radar calibration" on your vehicle.



2). Launch VSP600 Videoscop:

It helps technicians to check issues on unreachable area in a vehicle. With 6 levels light strength, technicians can easily adjust the brightness according to the environment. It will work with Launch X-431 scanners or any Android device and streams live video on it. Technicians can view, record and save images and videos.

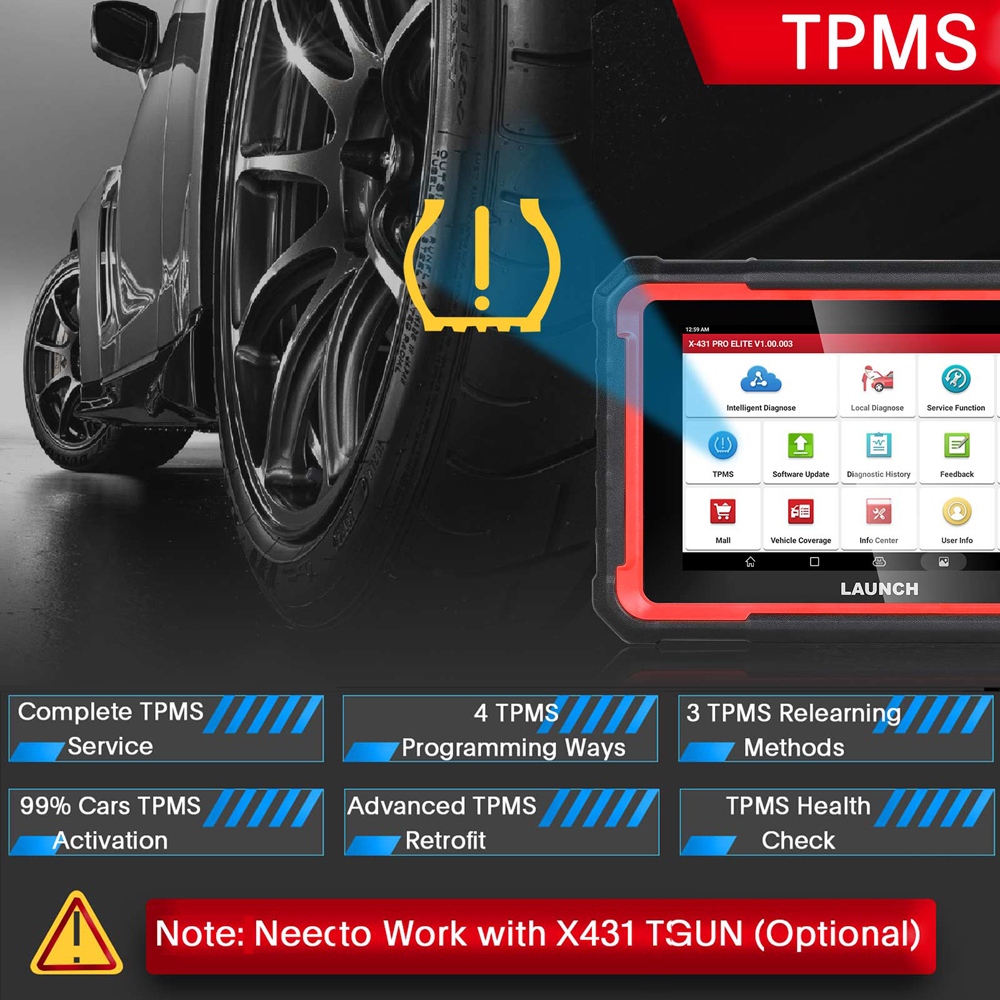

3). Launch X431 TSGUN:

It is a professional tire pressure diagnostic tool that integrates TPMS sensor activation, reading, learning and programming. It activates reading tire pressure information by receiving signals at low or high frequencies. Check for abnormal conditions in time to prevent tire pressure problems.



4). Launch X-PROG3 Immobilizer:

It will turn this X431 diagnostic scanner into a capable IMMO service tool, providing fast, easy, and intuitive key programming for VAG group vehicles with 2/3/3.5 gen. IMMO, and most Asian cars with low-level anti-theft systems; also supports completed IMMO & Key Programming(read / write 1200+ EEPROM and MCU chips, etc.) for VW/Audi/Skoda/Seat models manufactured after 2008 with 4/5/5.5/6 gen. IMMO system.



5). X431 Printer:

For printing out diagnostic data / reports.



6). O2-1 ScopeBox Oscilloscope:

To quickly acquire the circuit signal, and slowly display the waveform for better data analysis.



7). Launch BTS-360 Bluetooth Battery Tester

With Launch BST360 automotive battery tester, we can check the overall health of the battery. It works for all 6V and 12V lead-acid batteries include regular flooded, AGM flat plate, AGM spiral, GEL, and EFB batteries with the test range (100-2000 CCA).



It is compatible with cars, motorcycles, trucks, RVs, ATVs, SUVs, boats, yachts, mowers, and even golf carts.



Supports Cars:



America:

BUICK, CADILLAC, CHEVROLET, CHRYSLER, DODGE, FIAT(BRAZIL) FORD, FORD(AUSTRALIA), GM, JEEP, LINCOLI, GM(BRAZIL)



Europe:

ABARTH, ALFA ROMEO, AUDI, BENTLEY, BMW, BUGATTI, CITROEN, DACIA, EUROFORD, FERRARI, FIAT, GAZ, OPEL(SOUTHAFRICA), IVECO, JAGUAR, LAMBORGHINI, LANCIA, LANDROVE, MASERATI, MAYBACH, MERCEDES, MINI, OPEL, PEUGEOT, PORSCHE, RENAULT, ROLLSROYCE, ROVER, SAAB, SEAT, SKODA, SMART, SPRINTER, VAUXHALL, VAZ, VOLVO, VW , ASTONMARTIN, UAZ



Asia:

ACURA, DAEWOO, DAIHATSU, HOLDEN(AUSTRALIA), HONDA, HYUNDAI, INFINITI, ISUZU, KIA, LEXUS, LUXGEN, MAHINDRA, MAHINDRA(INDIAN), MARUTI, MARUTI(INDIAN), MAZDA, MITSUBISHI, NISSAN, GTR(NISSAN), PERODUA, PERODUA(MALAYSIA), PROTON, PROTON(MALAYSIA), SAMSUNG, SAIPA, SSANGYONG, SUBARU, SUZUKI, TATA, TATA(INDIAN ), TOYOTA, UNITED PAKISTAN



China:

BRILLIANCE, BYD, CHANGAN, CHANGHE, CHBUICK, CHERY, CHANGHE, SUZUKI, DFCIROEN, ECUAID, FAW(TIANJIN), FOTON, GONOW, GWM, HAFEI, HAIMA, JAC, JAC REFINE, JMC, JOYLONG, LIFAN, MG(SAIC), QOROS, MAXUS, SGM, SGMW, XINKAI, POLARSUN, ZX AUTO ZOTYE, SENOUA(BAIC)

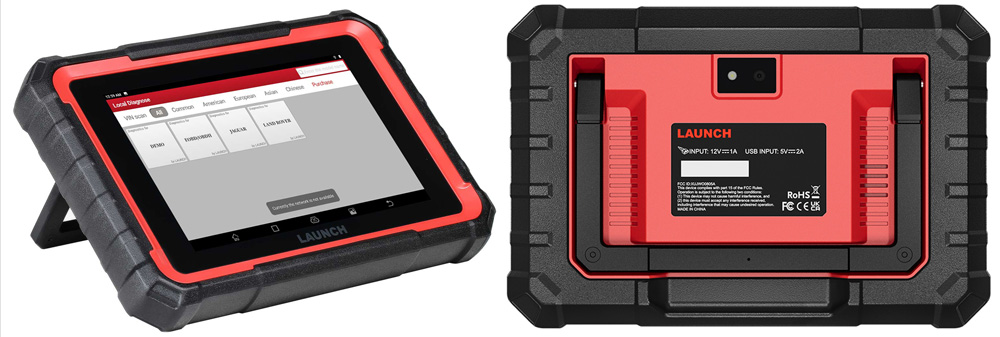

Specifications:



Operating System: Android 10.0

Display: 8-inch LCD with 1280*800 resolution

Processor: 2.0GHz, quad-core

RAM: 4GB

Storage: 64GB

Camera: 8 megapixel rear

WiFi: 5GHz/2.4GHz

Battery: 6000mAh/7.6V

Working Temperature: 0 to 50 degree centigrade

Storage Temperature: -20 to 70 degree centigrade

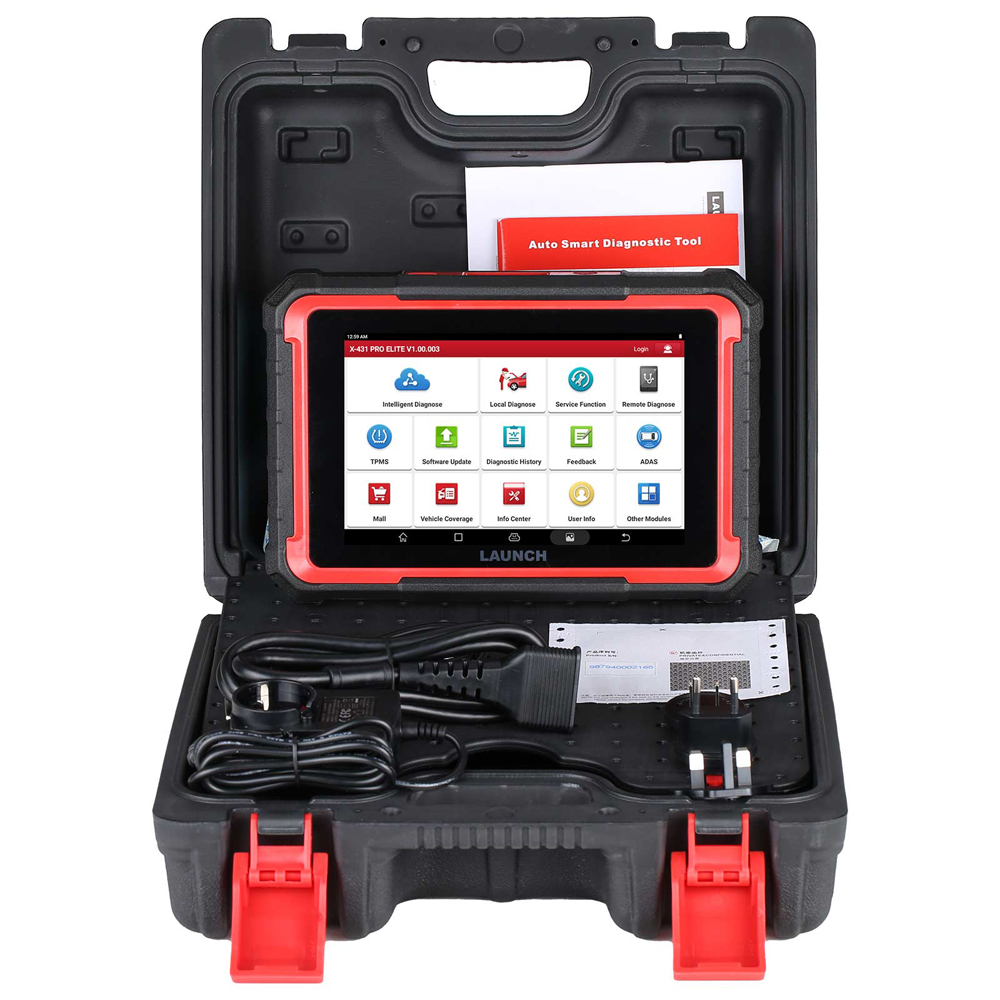

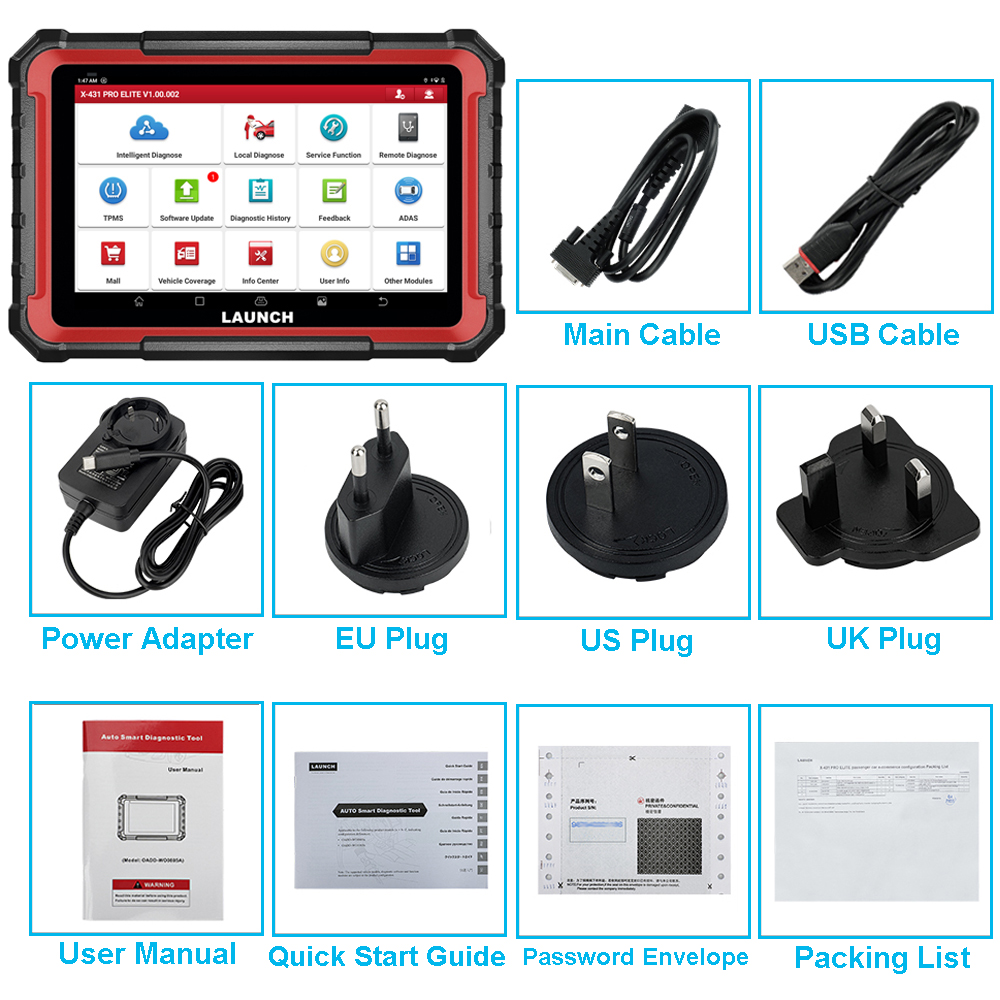

Packing List:



Launch X431 PRO Elite Scanner

OBD2 Diagnostic Cable

USB Type-C Cable

Power Supply Adapter
Power Plug EU

Power Plug US

Power Plug UK

User Manual

Quick Start Guide

Password Envelope

Packing List

Plastic Toolbox

Packing Box
