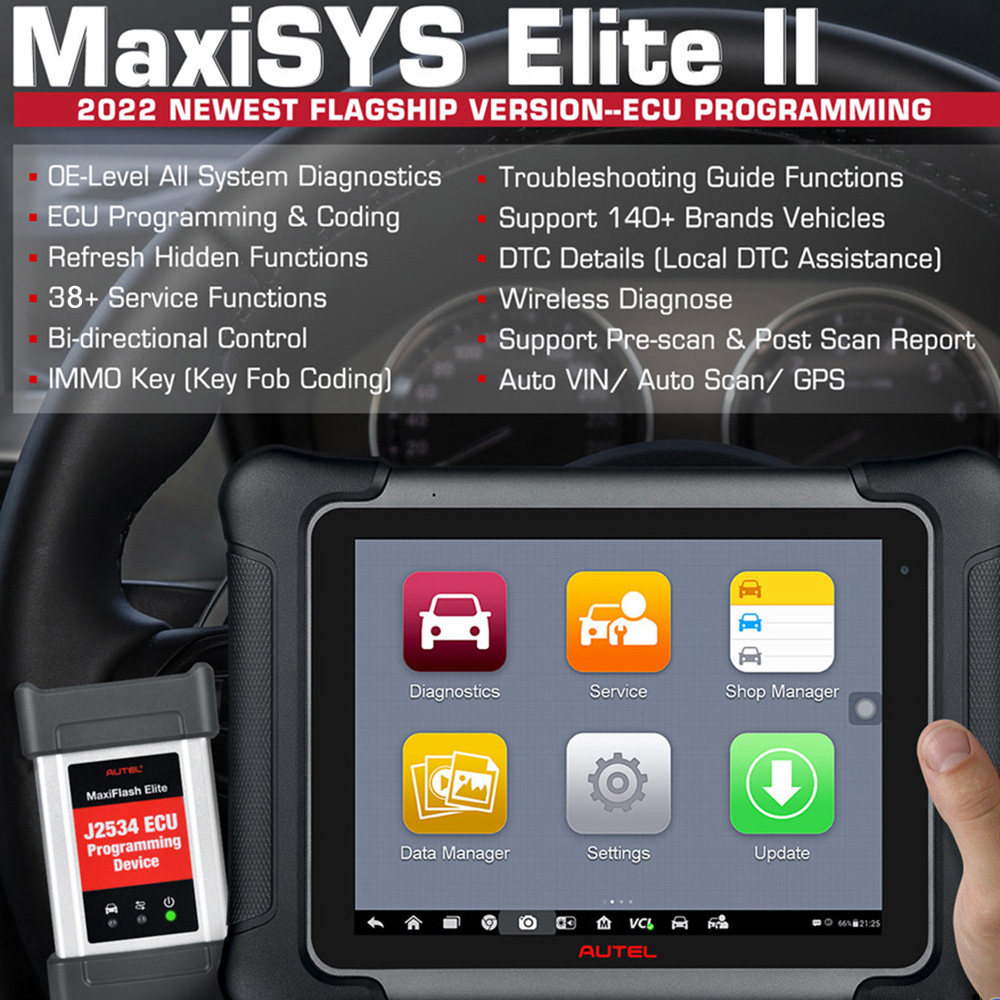

Name: Autel MaxiSys Elite II with J2534 Programming
Description:
Autel MaxiSys Elite II is the latest version of the Autel MaxiSys Elite series. It is the upgraded from Autel Maxisys Elite.
Autel MaxiSys Elite II has improve hardware and software. Same hardware as Autel MaxiSys MS909 + Elite II software. Adds more expansion functions, such as ADAS, Oscilloscope, GPS, MaxiFix Cloud Service.
Version: global version without IP blocking problem
Supported Languages: English, French, German, Spanish, Portuguese, Italian, Russian, Dutch, Swedish, Polish, Japanese, Korean
Software Update: 1 year free update online
Features:
1. Guide Functions: Guide mechanics to repair vehicles one by one.
2. Support Pre-Scan and Post-Scan Report: Printer report for customers who needs.
3. High configuration tablet feature, hardware is exactly same as Autel MaxiSys MS909.
4. Upgrade Premium Hardware: Android 7.0, Octa-core Processor (2.3GHz Quad-core + 1.7GHz Quad-core), 4GB RAM,128GB Memory, 9.7 inch BOE)
5. Extended Function:
1). Work with Autel BT506, enables technicians to view the health status of vehicle battery and electrical system.
2). Work with Autel MV108 / MV105 allowing you to examine difficult-to-reach areas normally hidden from sight. It is capable of recording digital still images and videos, which offers you an economical solution to inspect machinery, facilities, and infrastructure safely and quickly.
6. Newly add "Intelligent Diagnostics" function: (update on 2022.06.01)
A.Technical Service Bulletin (OEM Information)
B.DTC Analysis
C.Repair Assist
D.Repair Tips
E.Relevant Cases

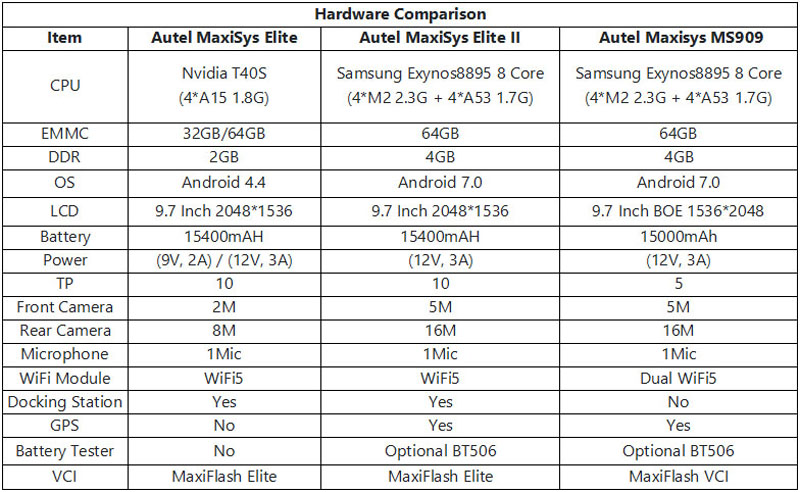

What Is New in Autel MaxiySys Elite II?
A. Hardware and software platform upgrade, a new operating experience.
1. Samsung Exynos8895 8 core hardware platform.
2. Equipped 5M/16M camera.
3. Equipped 4G/128G super memory.
4. Equipped 15400mAh battery.
B. Support more expansion functions, easy to manage various repair scenarios.
1. Battery detection (BT506).
2. Support ADAS calibration, Oscilloscope, GPS.
C. Support MaxiFix cloud service, efficiency enhancement at your fingertips.
1. Support Remote expert service, RealFix, SMS.
2. Device management/report management, data on the cloud without fear of loss.
What Makes Autel Maxisys Elite II "Elite"?
1. Full System Diagnosis & Full OBD-II functions
Using the additional OEM software,Autel Maxisys Elite II can be used as a Pass-Thru diagnostics tool as well, which allows users to read and clear Diagnostic Trouble Codes (DTCs) and data log PIDS, collect sensor data and log generic OBDII data, etc.
Similar to many Autel scan tools, Autel Maxisys Elite II can perform all the OBD II test modes. These include the latest powertrain diagnostic data, freeze frame data, emission diagnostic trouble codes, emissions diagnostic data, oxygen sensor monitoring test results, onboard monitoring tests, VIN, and many more.
2. 38+ Advanced Functions & Online Programming
Autel Maxisys Elite II diagnostic scanner comes with 25+ service functions, such as ABS Brake Bleeding(also for VAG cars), SRS Reset, SAS Calibration, Oil Reset, EPB, BMS, Injector Coding, DPF, Throttle Body, etc. to meet your various needs. Online Programming is available on Autel Maxisys Elite II.
3. Extensive Vehicle Coverage & Extra Vehicle Adapter
Autel Maxisys Elite II is one of the most extensive diagnostic scan tools with complete system coverage for more than 80 US domestic, European, and Asian vehicle makes and models.
Even though it is an OBD2 scanner, it also works on some OBD-I vehicles. Some of the famous car brands that this scan tool is compatible with include GM, Ford, Chrysler, Audi, Toyota, Nissan, Honda, BMW, Benz, Chevrolet, etc.
Functions:
All System Diagnosis:
1. I/M Readiness, O2 Sensor Monitor, On-Board Monitor, Vehicle Information and Vehicle Status;
2. Retrieve and display ECU information of tested control unit, including unit type, version numbers and other specifications;
3. Read all kinds of DTCs from vehicle’s control systems to locate problem areas and offer possible solutions;
4. Erase the codes easily after DTCs retrieving and certain repairs have been carried out;
5. Live data of each parameter item displayed in analog, text, waveform graph, digital, or full screen display modes;
6. Active test used to access vehicle-specific subsystem and component tests.
Special Functions:
1. Oil Reset Service: To reset the Engine Oil Life system, which calculates an optimal oil life change interval depend on the vehicle driving conditions and climate. The Oil Life Reminder must be reset every time the oil is changed, so the system can calculate when the next oil change is required.
2. Tire Pressure Monitor System (TPMS) Service: Allows you to look up the tire sensor IDs from the vehicles ECU, as well as to perform TPMS programming and reset procedures after tire sensors are replaced.
3. Electric Parking Brake (EPB) Service: Deactivating and activating the brake control system, assisting with brake fluid control, opening and closing brake pads, and setting brakes after disc or pad replacement, etc.
4. ABS/SRS Services: To perform various bi-directional tests to check the operating conditions of both the Anti-lock Braking System and the Supplemental Restraint System, such as Automated Bleeding, Pump Motor Test, and checking Module information, etc.
5. Steering Angle Sensor (SAS) Service: Allows you to perform calibration for the Steering Angle Sensor, which permanently stores the current steering wheel position as the straight-ahead position in the steering angle sensor EEPROM. On successful completion of the calibration, the steering angle sensor fault memory is automatically cleared.
6. Diesel Particulate Filter Service (DPF): Designed to perform the regeneration procedure which is the DPF cleaning operation to clear the blockage through continuous burning of the particulate matter captured in the DPF filter. If the DPF light on the vehicle comes on and you successfully complete a DPF regeneration cycle, you will notice that the DPF light will automatically turn off.
J2534 ECU Programming:

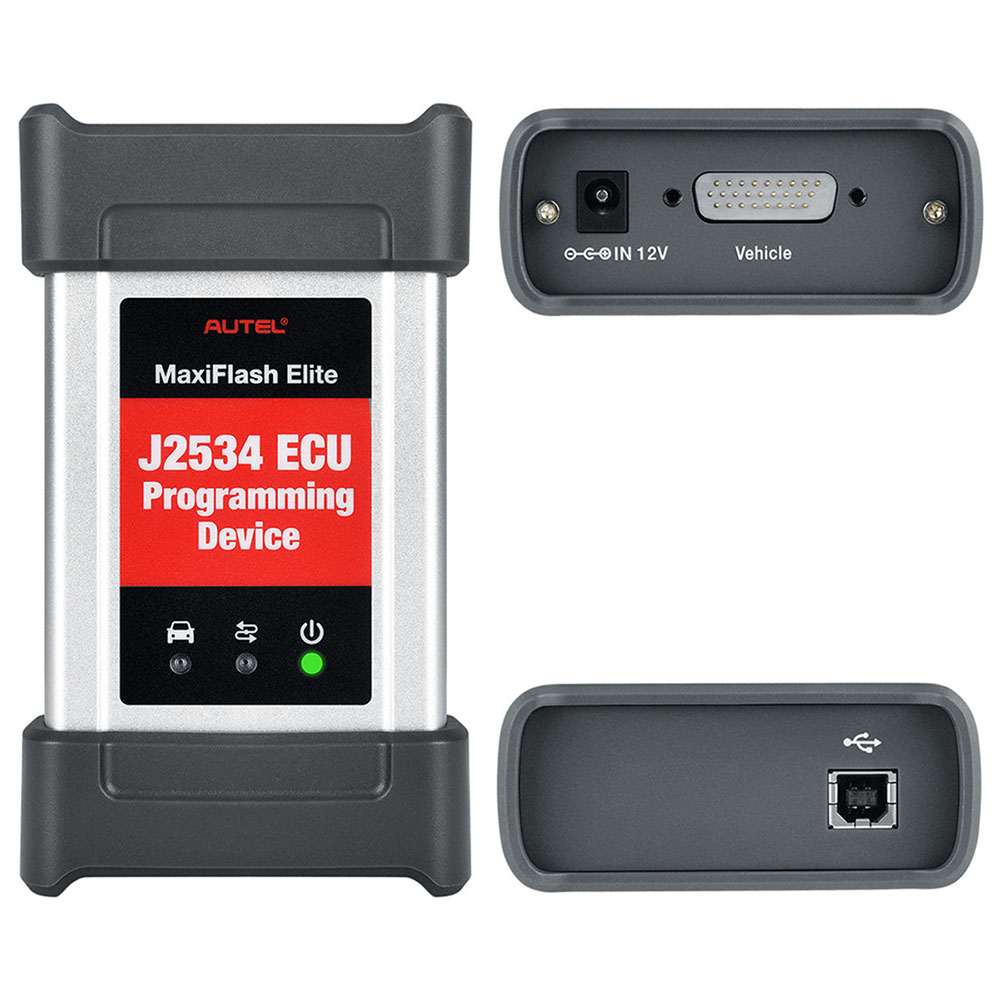

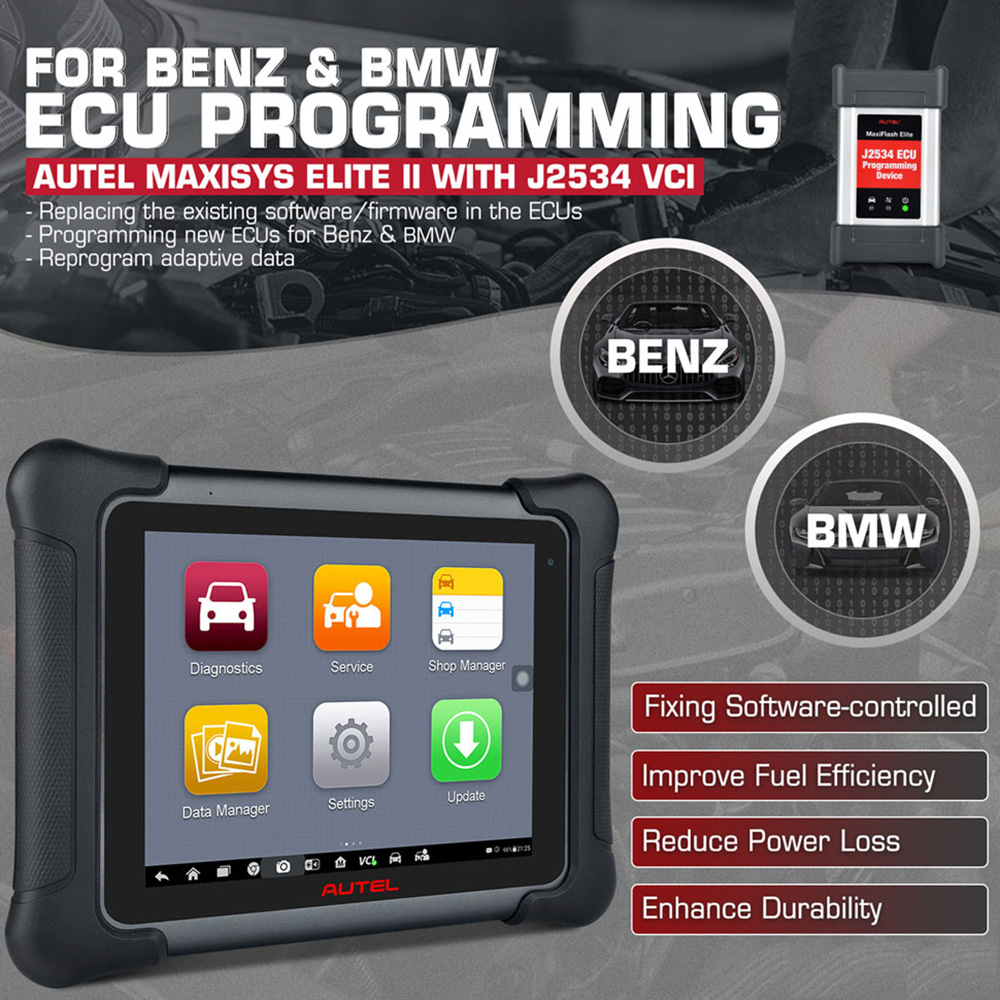

Autel MaxiSys Elite II comes with Autel MaxiFlash Elite J2534 ECU programming device that helps Benz/BMW users replace the existing software/firmware in the ECU, program new ECUs and fix software-controlled driving performance and emission issues.
J2534 ECU programming tool (also used as a VCI box) is a SAE J2534-1 & -2 compliant pass thru reprogramming interface device.
Using the updated OEM software, it is capable of helping BMW and Benz users replace the existing software/firmware in the Electronic Control Units (ECU), program new ECUs and fix software-controlled drivability issues and emission issues.
It supports Bluetooth and USB communications and can transmit vehicle data to the Autel MaxiSys tablet with a physical connection.
ECU Coding:
ECU Coding function is used to re-flash the vehicle control modules, it allows you to update the computer software on the vehicle to the latest version, as well as to reprogram adaptive data for certain components, providing ways for the issues of Drivability, Fuel Efficiency, Power Loss, Fault Codes, Durability of Mechanical Parts.
Bi-Directional Control:
The diagnostic tool supports bi-direction control to check the vehicle operating conditions. The bi-directional control of the ECM in Component Test enables the MK908P to transmit control commands to operate the vehicle systems.
Newly Added Functions, Wide Compatibility:
New extended functions have been added in Autel Elite II, like Guided Functions for Audi/VW, Online Parameterization, MaxiFix Cloud Service, Component Matching, Battery Test for Volkswagen, Audi, Benz, BMW, Nissan, Honda, Hyundai, etc. Covering 99% vehicles including Tesla, Mclaren, Lamborghini, Ferrari, Benz, BMW, Nissan, Ford, etc.
Remote Tech Support:
When you have any problems or questions when using the device, you can upload the data log directly on the device so that the engineer can solve your problem faster.
Autel Elite II supports remote technical support, you only need to provide the Team viewer ID, you can directly communicate with the engineer, which greatly improves the efficiency of problem solving.
Supported Cars:
Audi, Benz, BMW, Dacia, EU Ford, AU Ford, Ford, Holden, Land Rover, Mini, Opel, Peugeot, Renault, Seat, Skoda, VW, Volvo, Smart, Jaguar, Benz Sprinter, SAAB, Fiat, Abarth, Lacia, Alfa Romeo, Vauxhall, Maybach, Bentley, Bugatti, Porsche,GM, Chrysler, Ford, Suzuki, Kia, Daweoo, Isuzu, Toyota, Subaru, Scion, Nissan, Mitsubishi, Lexus, Infiniti, Hyundai, Honda, Accura, Mazda
Supported Protocols:
ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L lins, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed/Middlespeed/Lowspeed/Singlewire CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708V
