Description:



Launch ADAS Software Activation Card activates ADAS Static Calibration function for any Launch X-431 Pro and Pad series scanner. This activation is enabling your diagnostic tool to perform calibration functions using any Launch ADAS PRO and Mobile equipment.



Compatible X431 Scanners:



Launch X431 PAD VII

Launch X431 PAD V

Launch X431 Pro5

Launch X431 Pro3S+

Launch X431 Pro Elite,

Launch X431 Pro3 APEX

Launch X431 Pros V5.0



Notice:



1. No need to ship anything. It is online License Authorization only. No refund once activated.



2. Please provide the serial number to confirm if we can provide the service before purchase. Kindly note that we can not update devices bought from overseas distributors.



Functions:



The LAUNCH ADAS Software Activation Card is also compatible with other competitor ADAS devices. It enables calibration functions on other ADAS targets equipment.



All Launch X-431 PRO and PAD series scanner already come with ADAS Dynamic Calibration functions capabilities that can be performed without targets.



Buy the Launch ADAS Software Activation Card and upgrade professional calibration services by adding the ADAS Static Calibration function to your scanner.



Difference Between Static and Dynamic ADAS Calibration:



Dynamic ADAS Calibration

It is also known as mobile ADAS calibration, use a hand-held device that is connected to the vehicle systems. The vehicle is then driven a predetermined distance at a predetermined speed in ideal weather conditions. In order for the system to adjust to normal road conditions, the vehicle manufacturer will establish the distance and speed.



Static ADAS Calibration

It takes place in a parked vehicle; no driving is required. Instead of utilizing a handheld device, everything is done in a specialized workshop with a variety of very sensitive equipment that is used to test each module or feature and then restore it to its original state.



There is a difference between Static and Dynamic ADAS calibration. The procedure to utilize, as well as precise parameters to use during testing and calibration, will be specified by your car manufacturer. It's not something you should attempt on your own; it should only be done by qualified specialists with the appropriate equipment. Unfortunately, it extends the time it takes to do activities like windscreen replacement, with calibration lasting anything from 30 minutes to more than 3 hours. However, the advantages in terms of increased safety for you and other road users are well worth the extra time.



How to Activate ADAS Software on Launch X431 Scanners?



Take Launch X431 PAD VII for example:

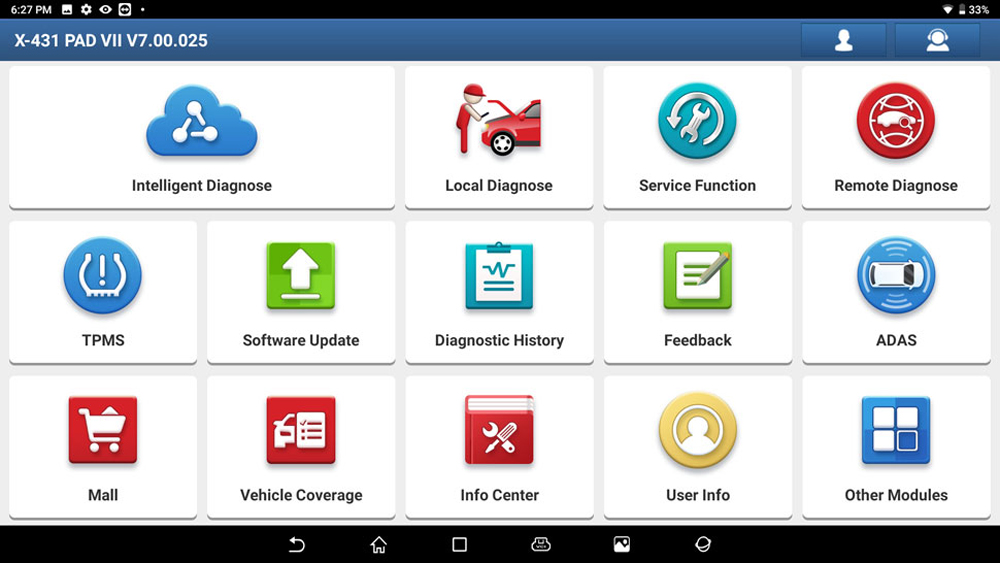

1. Tap ADAS menu.

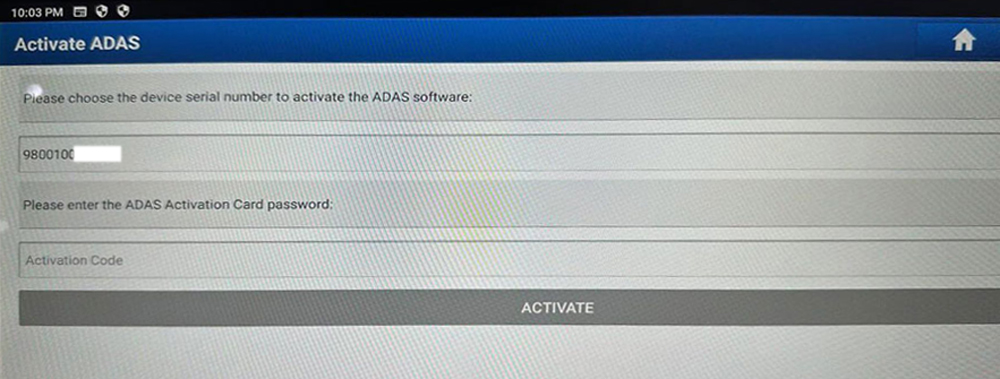

2. Choose the scanner serial number and enter the ADAS Activation Card Password.

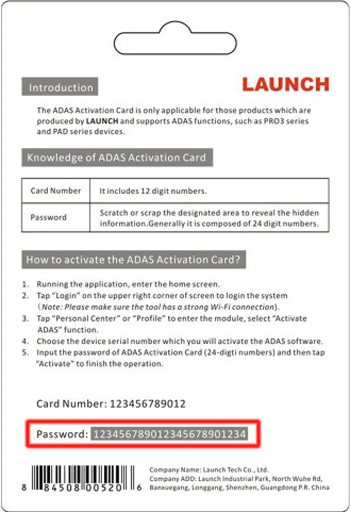

3. ADAS Activation Card Password can be found on the back of the Activation Card.
