Name: Launch SmartLink B V2.0 Remote Diagnostic Device
Description:
Launch SmartLink Remote Diagnostics System is a newly developed powerful service system dedicated to remote vehicle diagnosis and service. In this system, SmartLink B (Business), as a SmartLink Service Provider, can accept remote repair orders issued by SmartLink C users via SmartLink Service Platform. The SmartLink B applies to vehicles that comply with CAN / DoIP/ CAN FD / J2534 diagnostic protocol standard.
SmartLink B system consists of the following two parts:
SmartLink Service Platform – For binding the SmartLink B dongles and accepting the remote repair orders.
SmartLink B Dongle – Works with the compatible diagnostic tool to perform diagnosis of the vehicle connected to the SmartLink C dongle.
Launch X431 SmartLink B Service Platform:
SmartLink Platform is used to pair the connection between SmartLink C and SmartLink B operated via the Internet browser.
SmartLink C user can post the remote diagnosis request on this platform. SmartLink B user can see the requests from their clients and accept the request to do the remote diagnosis.
Features:
1. Compatible with Launch scanners, OE tools or any other diagnostic tools.
2. SmartLink can be used not only remote diagnosis but also local diagnosis by working with Launch intelligent diagnostic scanners.
3. Support more advanced protocols like J2534, DoIP, CAN FD, CAN 2.0, RP1210, D-PDU...
4. Publish request and accept offer from Launch Super Remote Diagnosis Reservation Platform.
Launch X431 SmartLink B Management Modes:
The service provider can select 1 of the 2 Management Modes:
1. The service provider manages the SmartLink C account status of the customer.
The service provider can activate the SmartLink C under his own account and manage the SmartLink C (post remote diagnosis request, license renewal) for the customer.
The customer doesn’t need to do anything on the platform, he just needs to contact the service provider and connect the SmartLink C hardware to the vehicle.
2. The customer manages the SmartLink C account status himself.
The customer can register his own user account on the SRDs platform and manage the SmartLink C (post remote diagnosis request, license renewal) himself.
The service provider can “Pre-bind” the customer’s SmartLink C, after “Pre-bind”, the customer’s request can only be seen by this service provider. No worry about other provider taking the customer.
Note: Each SmartLink can be activated in only one account.
Specifications:

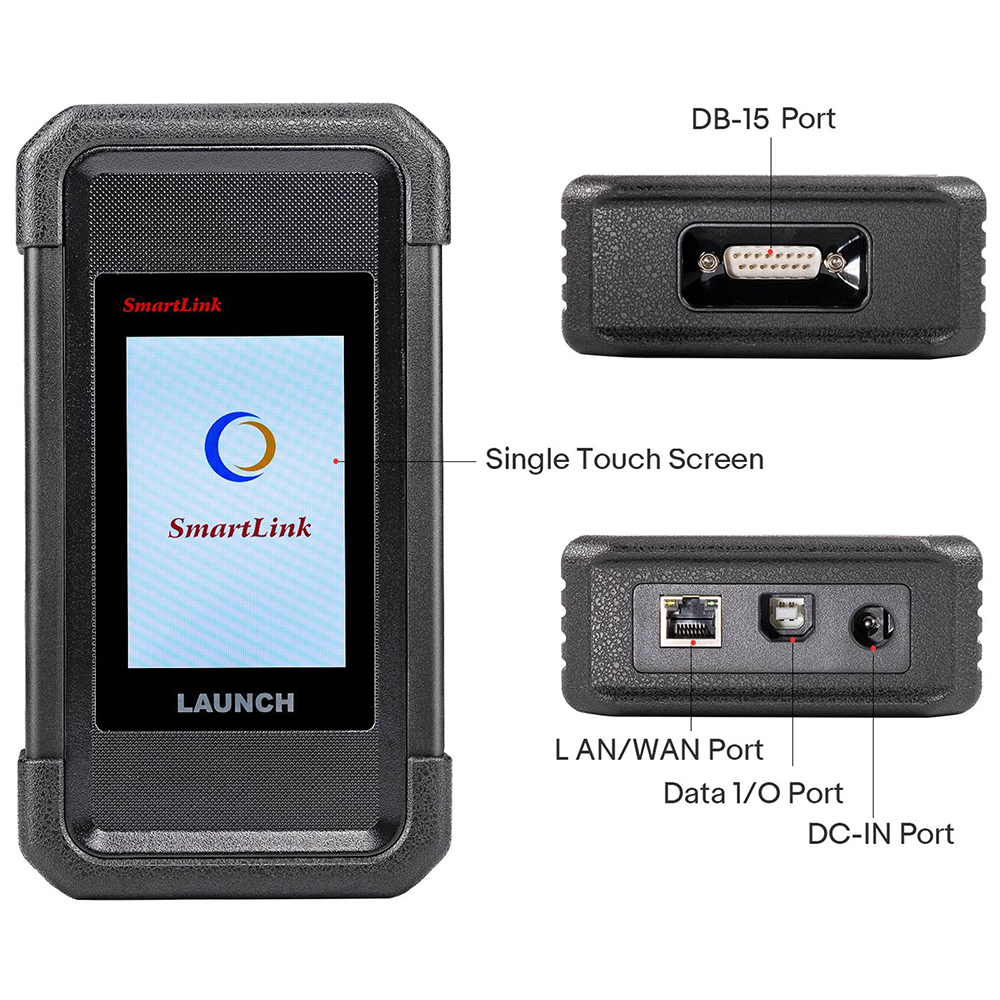

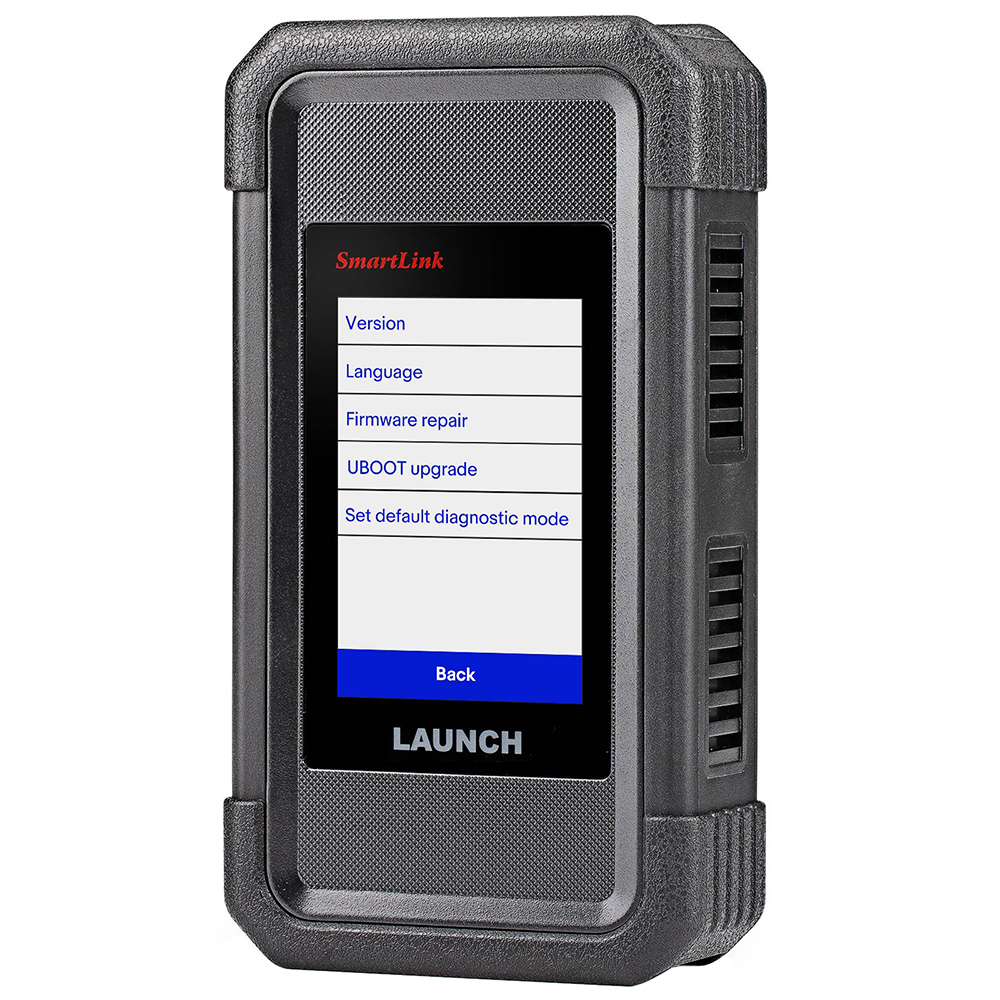

Display: 3.97-inch single-touch screen with 320*480 resolution
RAM: 256M
Storage: 8GB
Remote Diagnostic Mode: Ethernet
Wi-Fi: 2.4G & 5G dual band
USB: USB 2.0 Type-B
Power Consumption: <6W

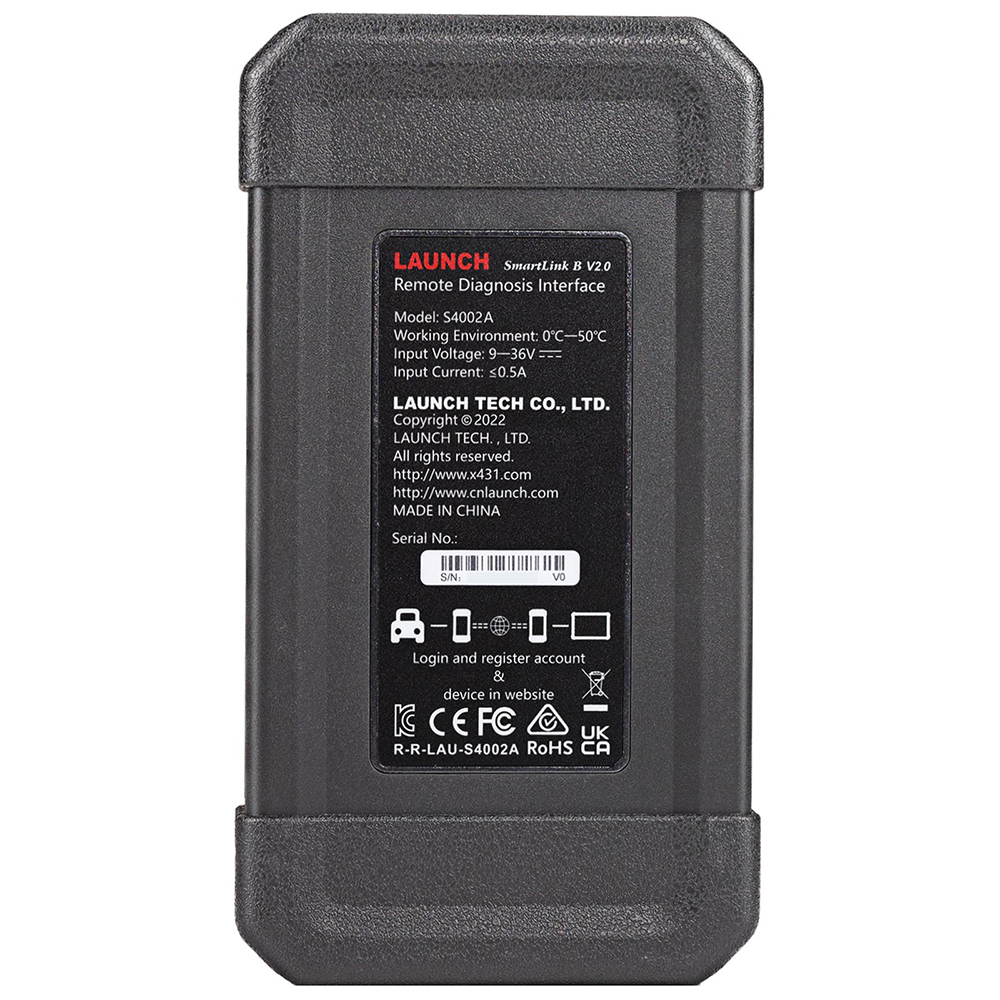

Working Voltage: DC 9V~36V
Working Temperature: -10℃ ~ 50℃

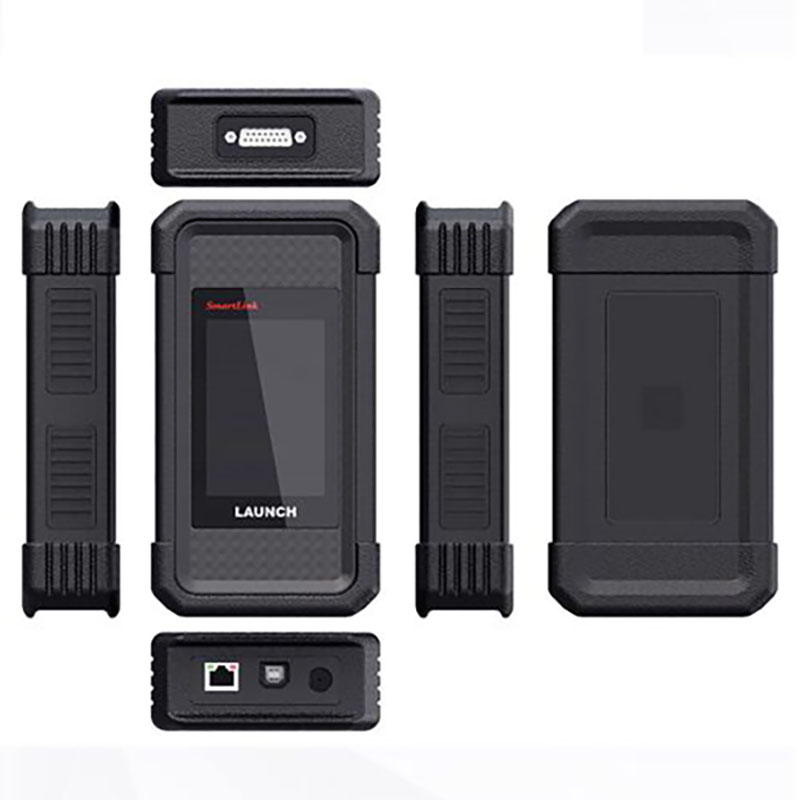

Dimension(L*W*H): 204*110*45mm

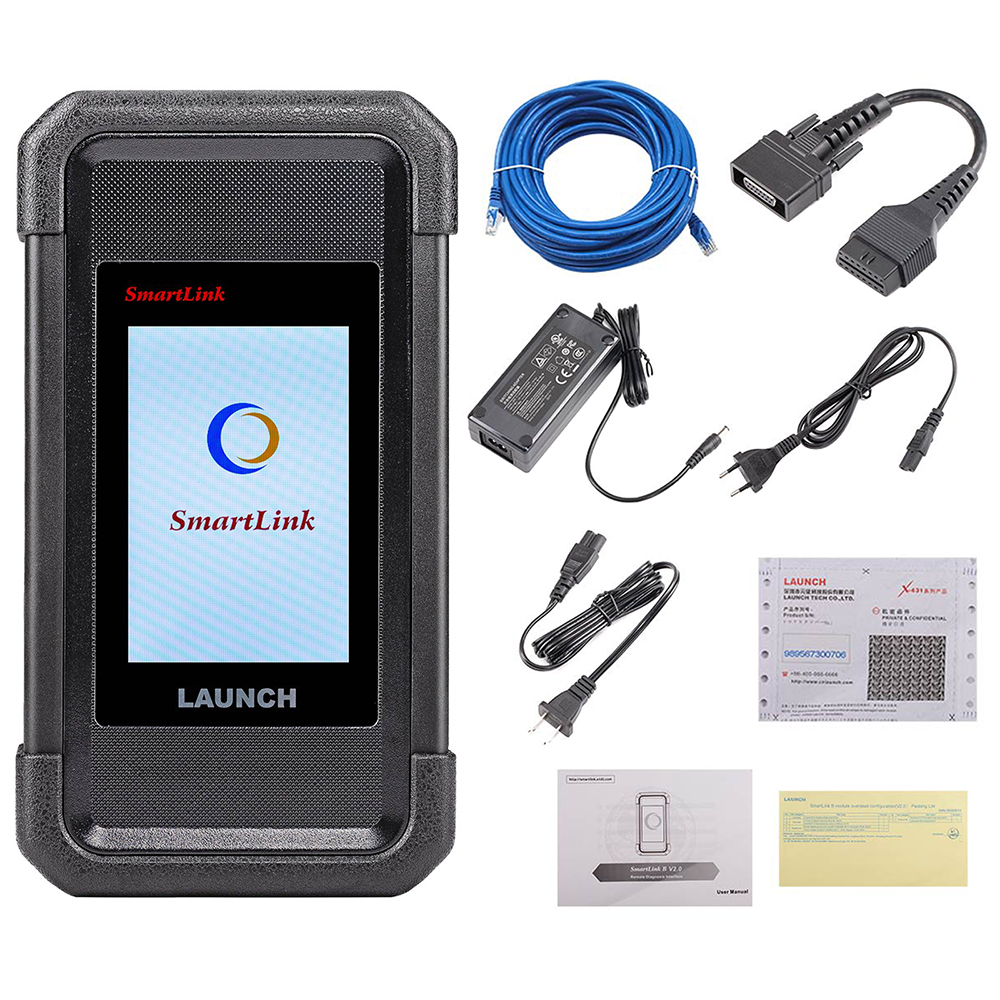

Packing List:
SmartLink B Dongle: for SmartLink Service Subscriber
OBD-II Extension Cable: connects the dongle to the vehicle’s DLC port
CAT-6 Crossover Cable: connects the dongle to the network modem
Data Cable: connects the dongle to the PC via the data cable when works as a J2534 PassThru device

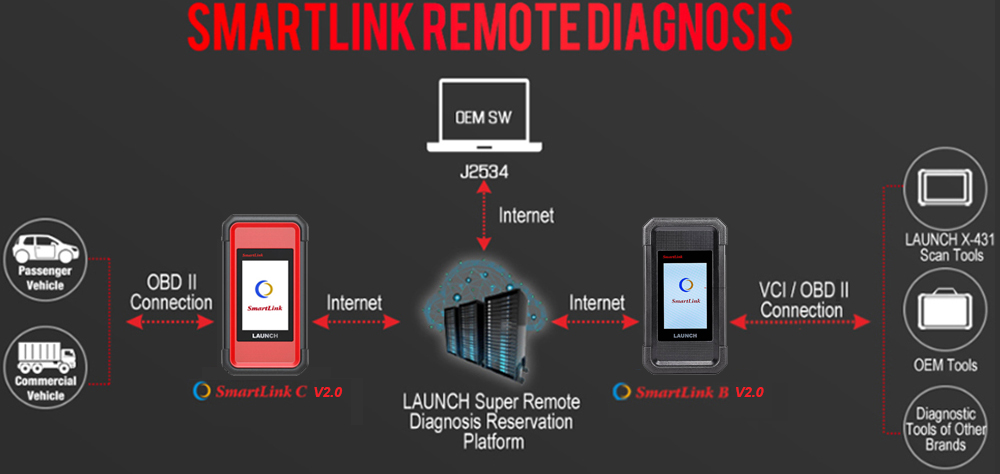

![](/ckfinder/userfiles/images/SmartLink%20Remote%20Diagnosis.jpg)
|
