Name: Autel MaxiScope MP408 4 Channel Automotive Oscilloscope
Description:

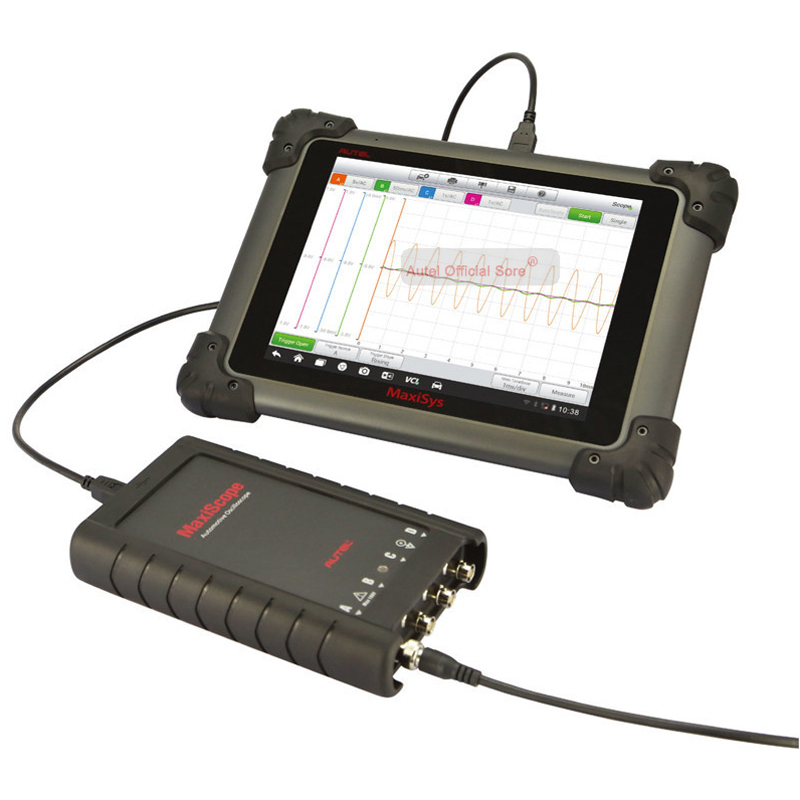

The Autel MaxiScope MP408 is a PC based 4-channel automotive oscilloscope. It works with your PC or Autel MaxiSys Tablet, which turns into a powerful diagnostic tool, providing you an insight to the inner workings of a vehicle electronic circuits.
Featuring the user-friendly UI design combined with the unrivalled hardware specifications, the MP408 system is able to measure and test virtually all the electrical and electronic components and circuits in any modern vehicles.
Power for the MaxiScope MP408 Module comes directly from the USB port of the connected PC, making the system very versatile and portable to use.
Feature and Functions:
Features one-click auto setup of voltage scale and time base
Works on all brandss and models of modern vehicles
Compatible with LIN, CAN and FlexRay data BUS standards
Reads and displays electrical signals in high resolution waveforms
Allows manual editing of measurement parameter display
Records and plays back waveform data
Features color coded 4-channel control panel
Intuitive UI design features easy trigger point adjustment and real time scale info display
Direct power supply through USB connection
Free online software update through the Internet
Portable design with strong housing and protective rubber boot
Specifications:
Vertical Resolution: 12 bits
Channels: 4
Bandwidth: 20MHz
Accuracy: 1%
Sensitivity: 10mV/div to 20V/div
PC Interface: USB 2.0
Power Requirements: power from USB port
Input Ranges (Full Scale): ±v50mV to ±100V in 11 ranges
Input Impedance: 1MΩ in parallel with 22pF
Input Type: single-ended, BNC connector
Input Coupling: software selectable AC/DC
Overload Protection: ±200V on single input
Buffer Memory: 32M samples shared among active channels
Waveform Buffer: up to 1000 waveforms
Timebase Ranges: 100ns/div to 1000s/div
Operating Temperature: 0 to 50 degree centigrade (15 to 40 for quoted accuracy)
Storage Temperature: -20 to 60 degree centigrade
Storage Humidity: 5% to 95%RH; non-condensing
Maximum Sampling Rate (Single Shot):
-1 or 2 channels in use: 80MS/s
-3 or 4 channels in use: 20MS/s

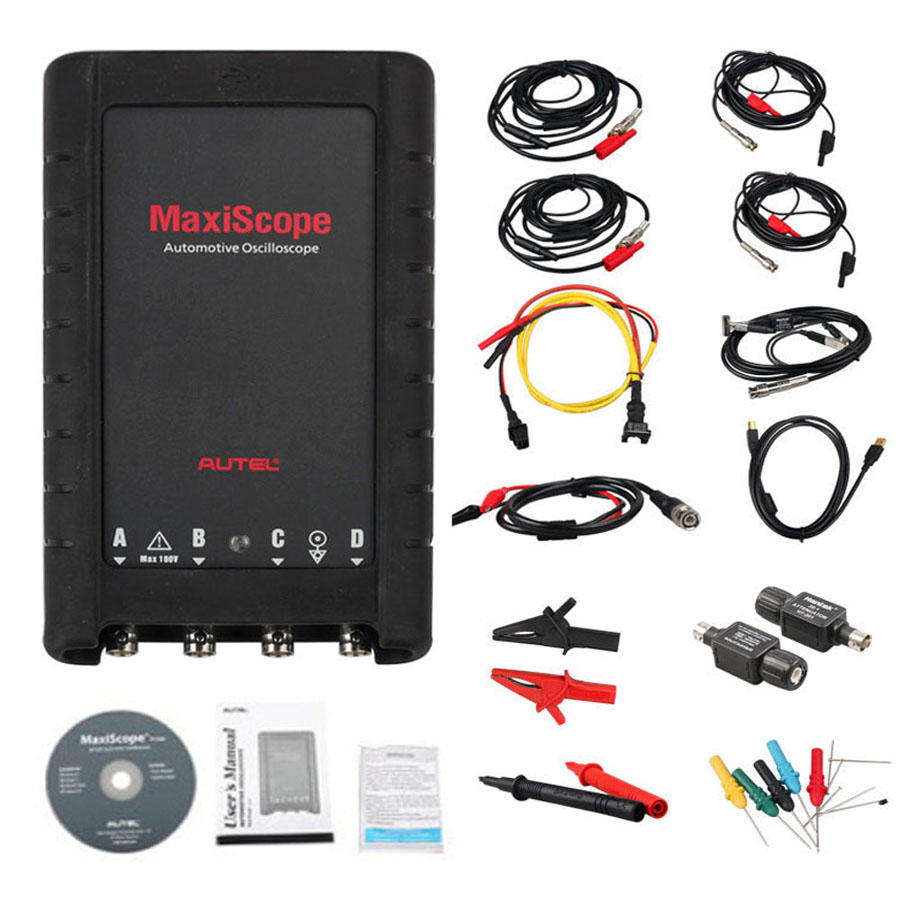

Packing List:

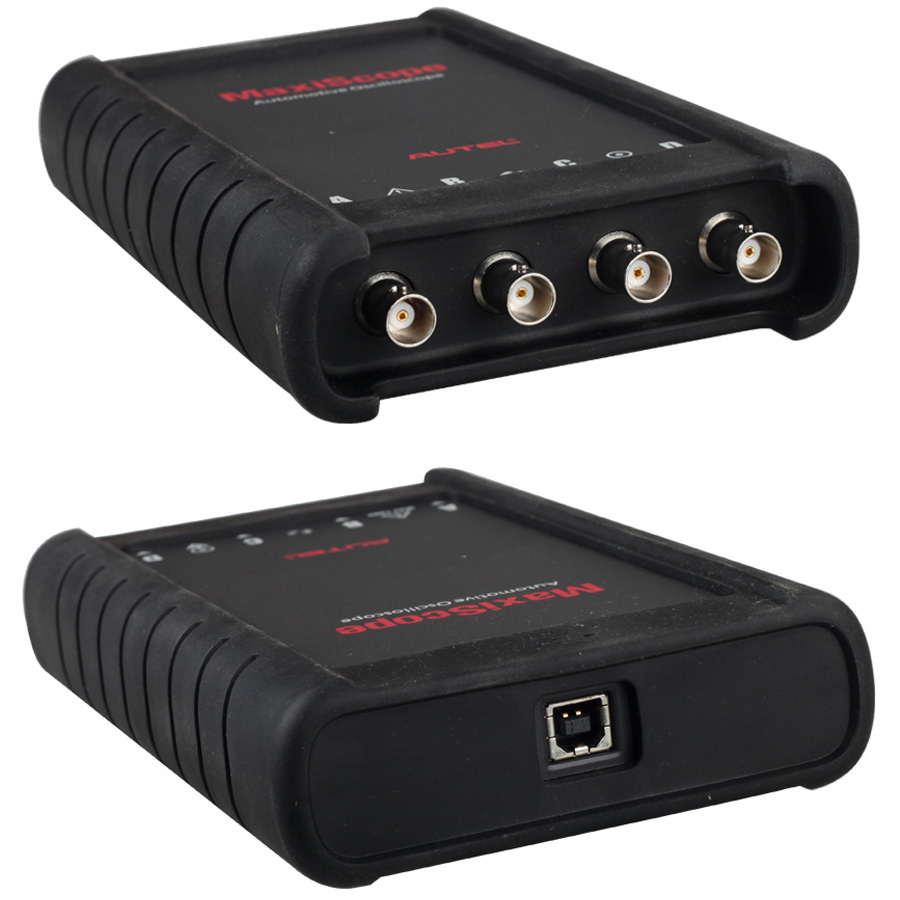

Autel MaxiScope MP408
1.5M USB Cable

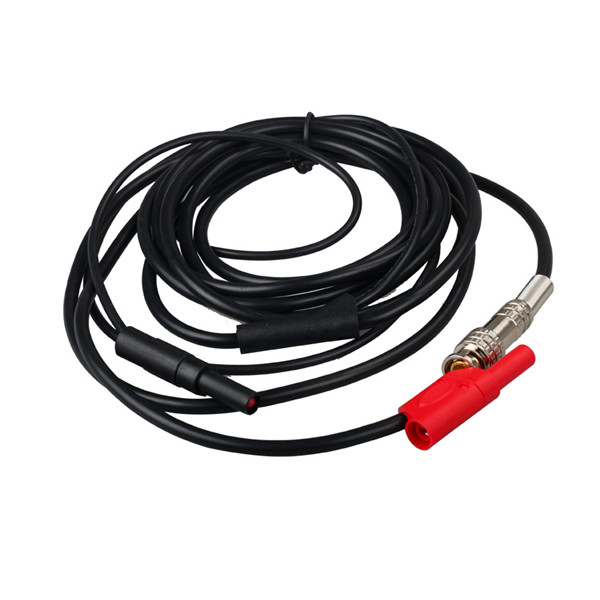

3M (10ft) Screened Test Leads (4 pcs)

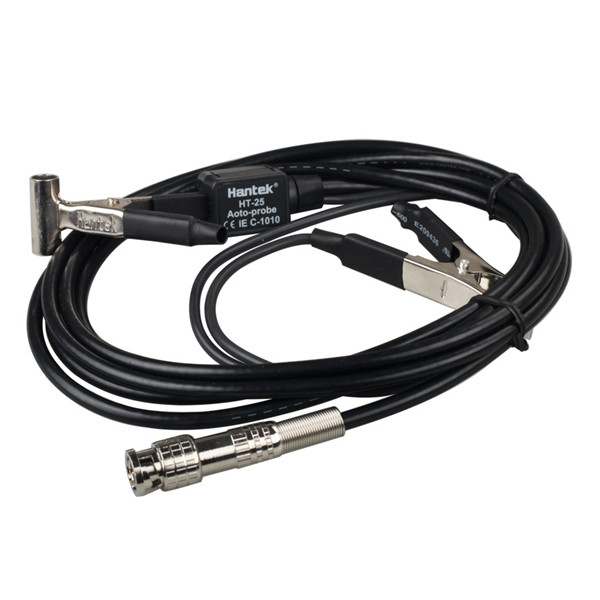

Secondary Ignition Pickup

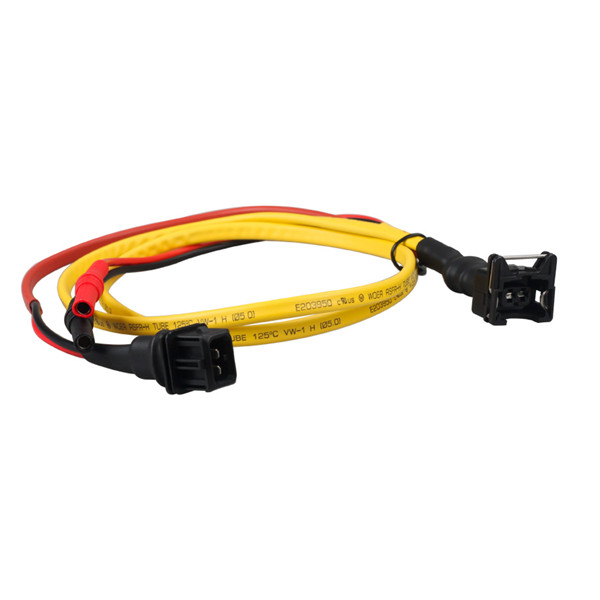

2-Pin Breakout Lead

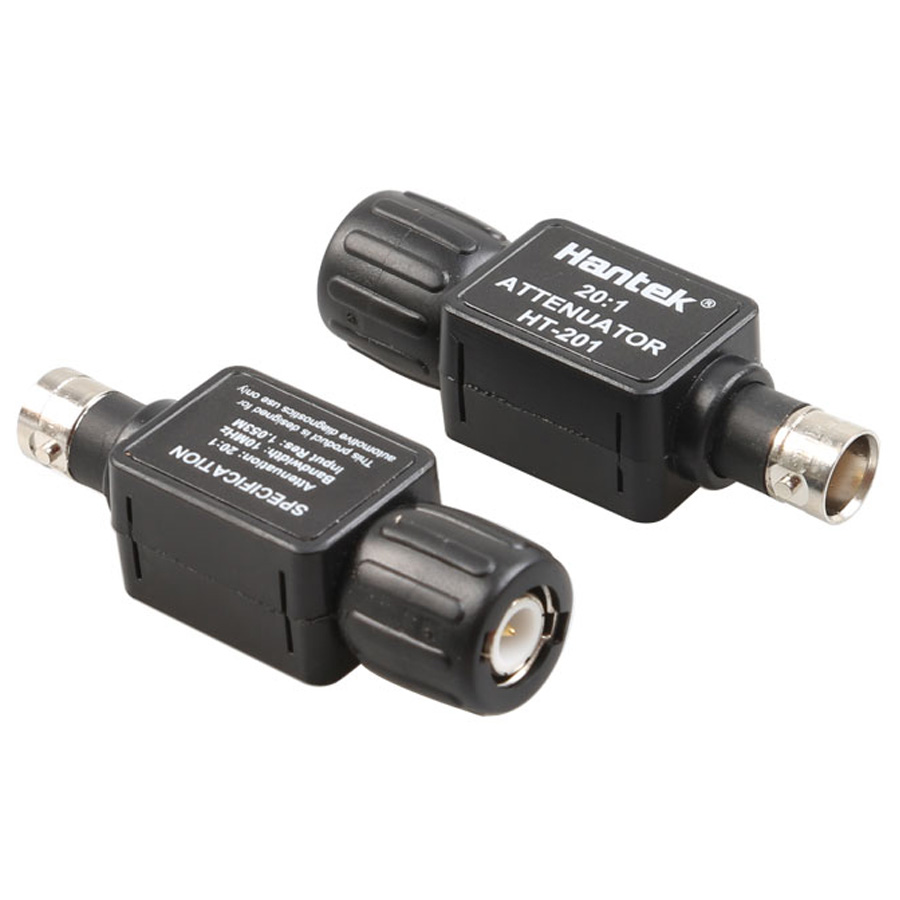

Attenuators 20:1 (2 pcs)

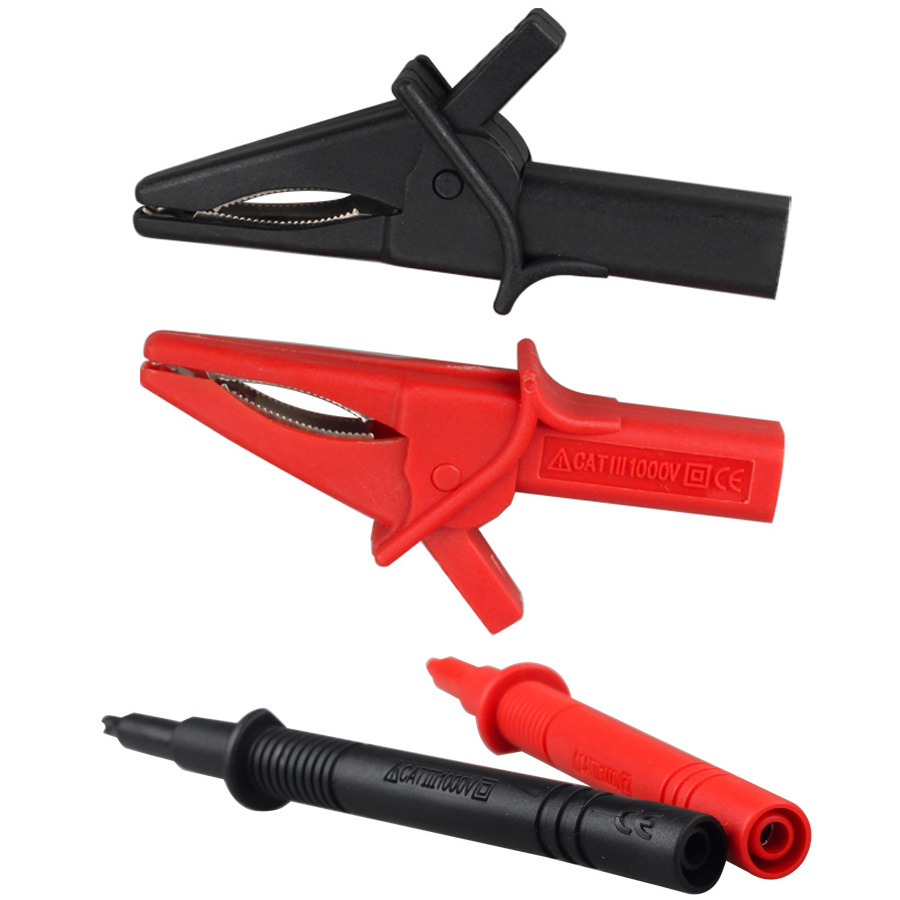

Large Crocodile Clip Set
Small Crocodile Clip Set

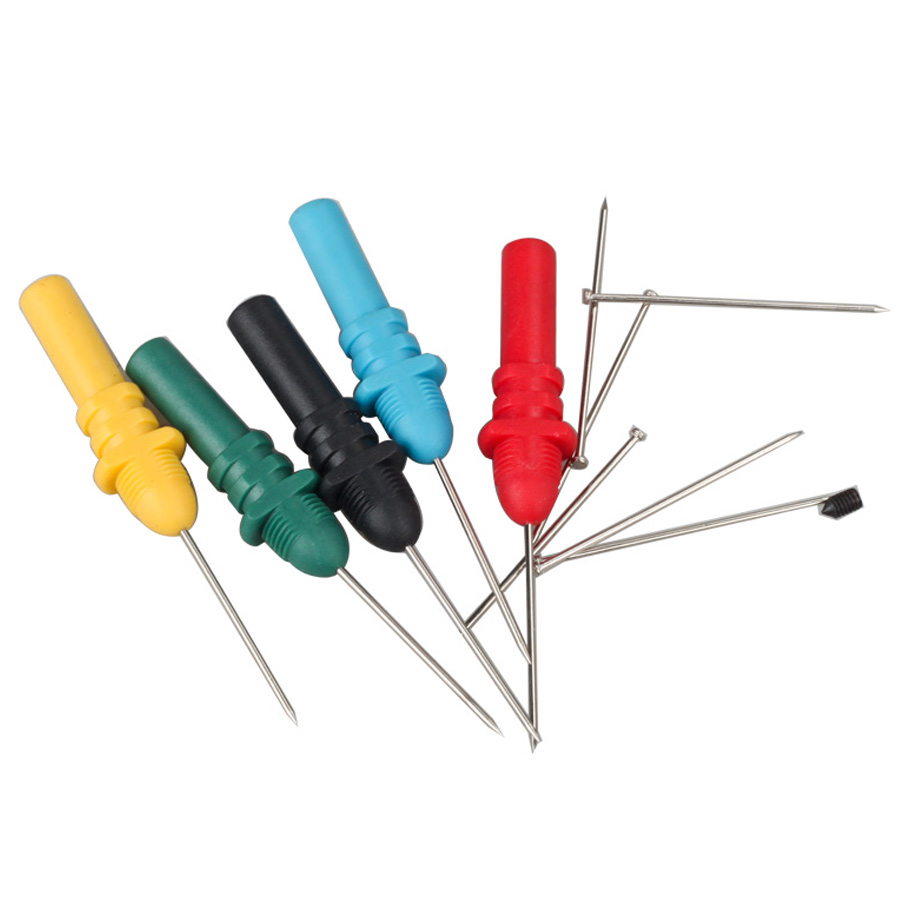

Acupuncture Probe Set
Multimeter Probes
CD
Manual
Carrying Case
|
