Hantek 6074BE 4 Channel USB Digital Oscilloscopes

Name: Hantek 6074BE 4 Channel USB Digital Oscilloscopes

Description:

Hantek 6074BE is a portable oscilloscope with 4 channels 70MHz bandwidth automotive oscilloscope.

Features:

1. Standard equipped over 80 types of automotive measurement function (Ignition Action / Sensor / BUS Diagnosis / Performer / Start & Charge);

2. USB 2.0 interface plug and play, and no need extra power supply;

3. Support tablet PC; Support Windows10 / 8 / 7 etc.

4. Free software upgrading constantly, higher cost performance;

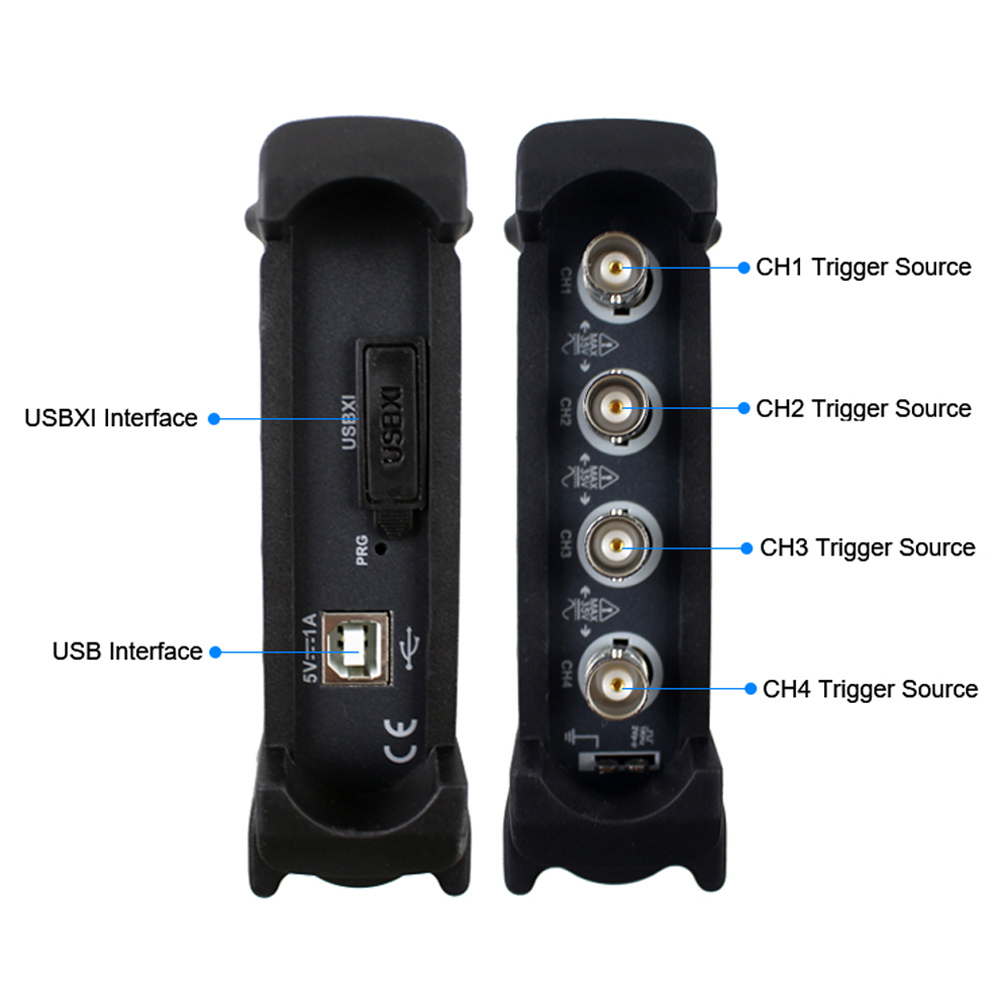

5. Support USBXI, easy to operate.

6. 4 isolated channels oscilloscope, 1GSa/s real time sampling rate.

7. 2mV-10V/DIV high input sensitivity and large input range.

8. 70MHz high bandwidth, small size, easy for carrying.

9. Dynamic cursor tracking, waveform record and replay function.

Functions:

1. Standard equipped over 80 types of automotive measurement function;

First Diagnosis: Intake Manifold Vacuum Ignition, Petrol Fumes Adjusting Valve Vacuum Ignition, Idle Exhaust Ignition, Starting Exhaust Ignition;

Ignition: primary and secondary;

Sensor: Air Flow Meter, Camshaft, Crankshaft, Distributor, Lambda Sensor, Throttle Position;

BUS Diagnosis: CAN BUS data examine, CAN BUS signal integrity, CAN BUS LH long time acquisition, LIN BUS;

Performer: Petrol / Diesel

Start and Charging Circuits: charging circuits; current and voltage detecting

2. Fit for the portable computers, table PC, and suitable for wild mobile use and business trip use.

3. USB 2.0 interface plug and play. No need extra power supply;

4. Powerful function, more than 20 kinds of automatic measurement function, PASS / FAIL Check Function. Abundant Trigger Function, Dynamic Cursor Tracking, Waveform Record and Replay Function.

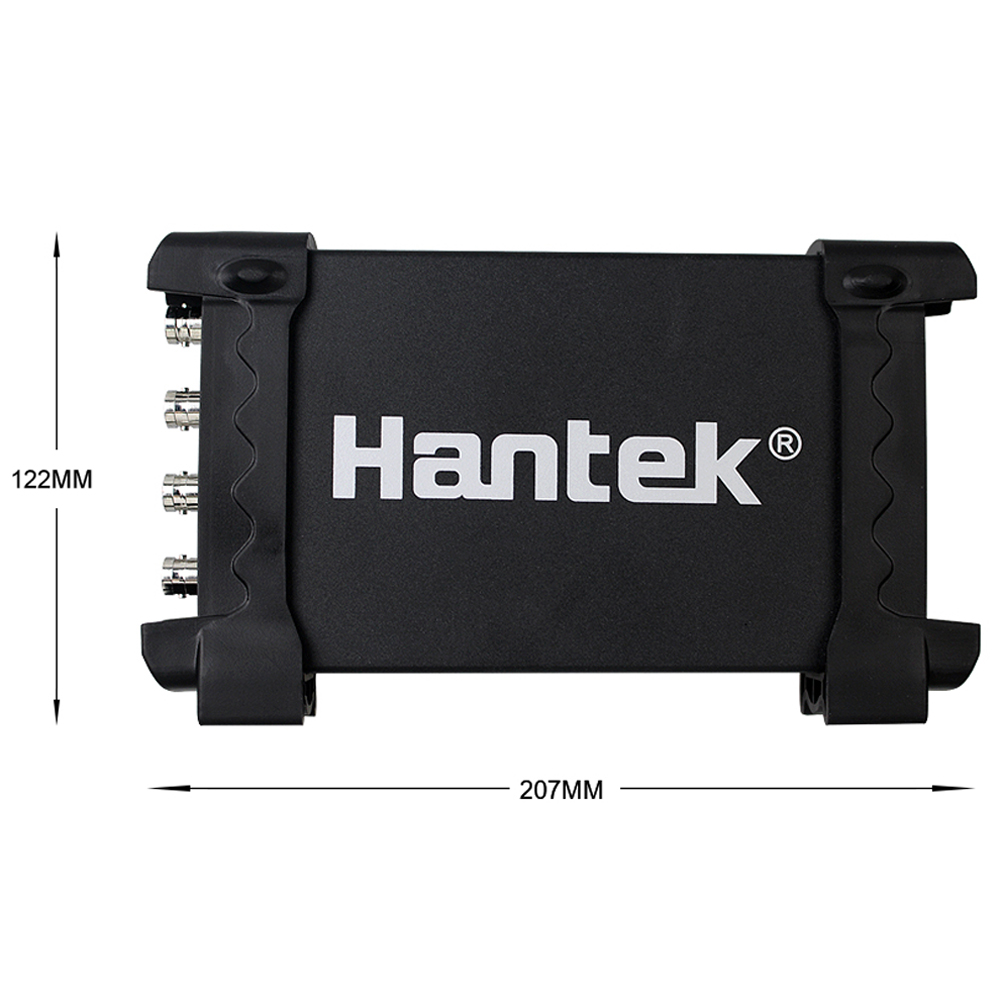

5. Nice industrial design with small size which is easy for carrying. The outer case is made by the same material with iPad - anodised aluminium. beautiful appearance with great heat resistance and abrasive resistance. The hardness of aluminum alloy surface is greatly improved.

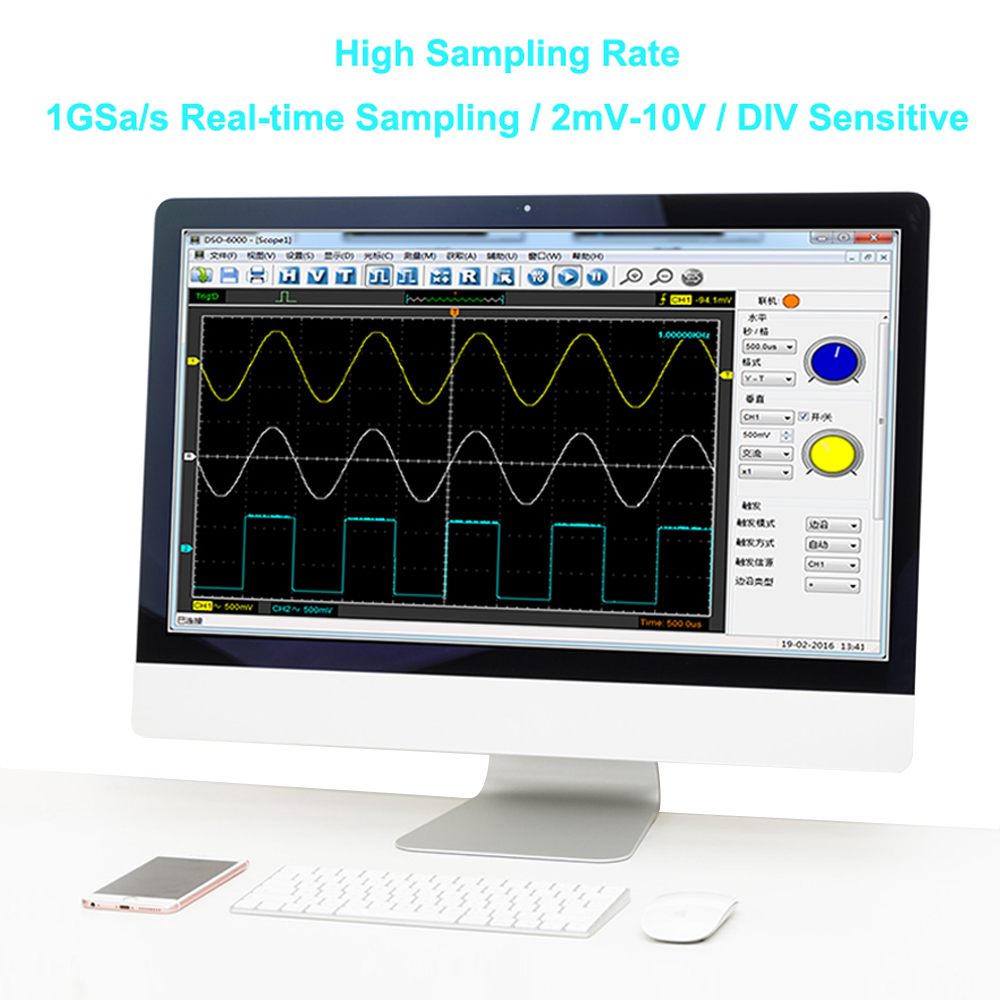

6. 4 isolated channels oscilloscope, 1GSa/s real time sampling rate, 2mV-10V/DIV high input sensitivity and large input range, 70MHz high bandwidth.

7. The waveform data could be saved in Excel, BMP, JPG.

8. Waveform averaging, afterglow, lightness adjusting, reverse, +, -, x , ÷, X-Y display.

9. FFT spectrum analyzer.

10. One computer could connect with multiple oscilloscopes, expand the channel number easily.

11. Provide secondary development library DLL; Provide Labview\VB\VC\QT developing example.
