Name: UNI-T Digital Storage Oscilloscope
Description:
UNI-T Handheld Digital Storage Oscilloscopes achieve the ease of use, excellent technical indicators and a number of functional perfect combination, which helps users quickly complete the test.
Scale and position knobs provide intuitive operation, and conform to the using habits of traditional instruments. Users do not have to spend a lot of time learning and being familiar with operations of the handheld digital storage oscilloscope.
It is suitable for field testing and analyzing time based voltage signals in mobile environments.

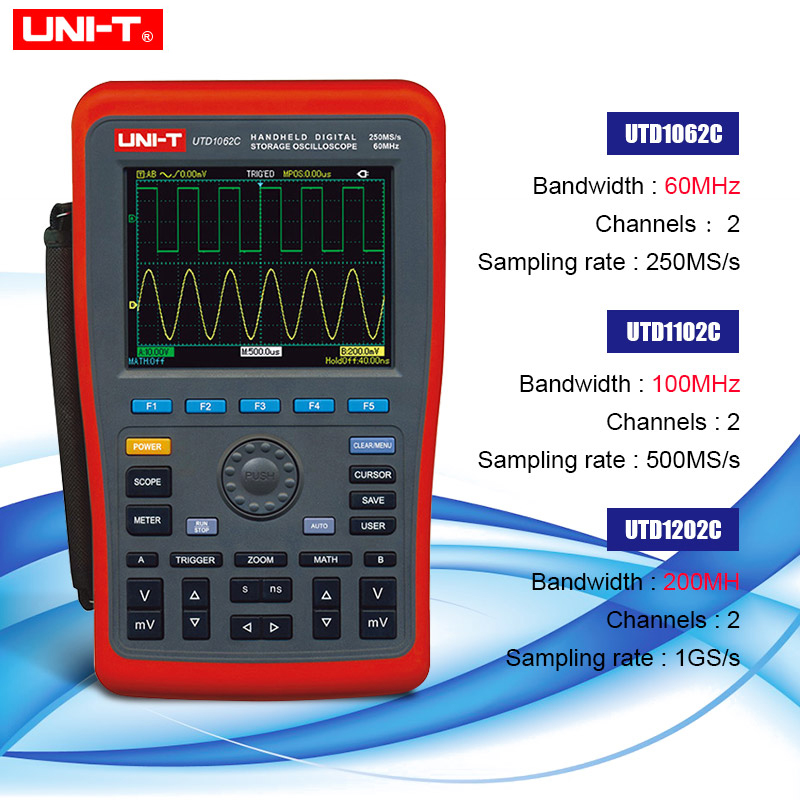

3 Models:

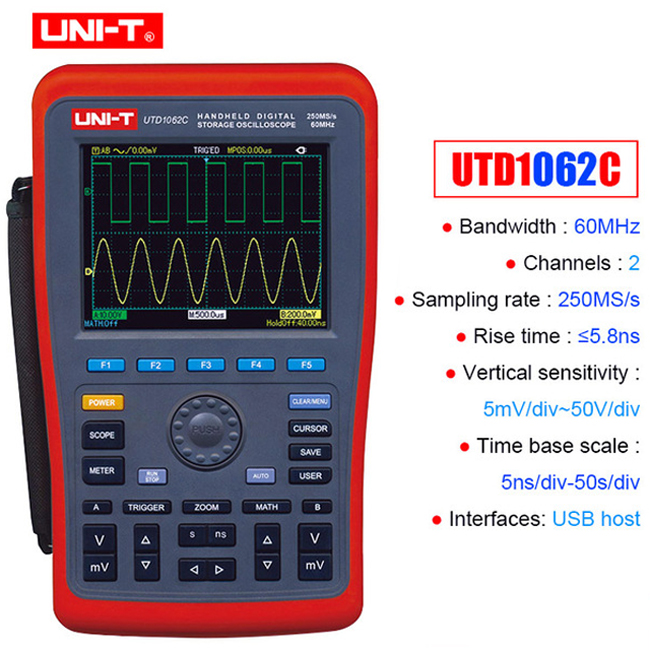

UNI-T UTD1062C Handheld Digital Storage Oscilloscope
Channels: 2
Band Width: 60MHz
Sampling Rate: 250MS/s

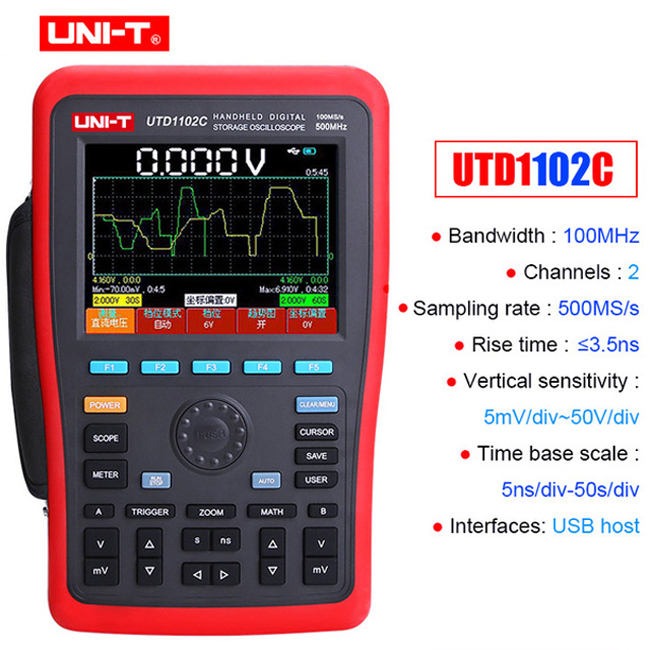

UNI-T UTD1102C Handheld Digital Storage Oscilloscope
Channels: 2
Band Width: 100MHz
Sampling Rate: 500MS/s

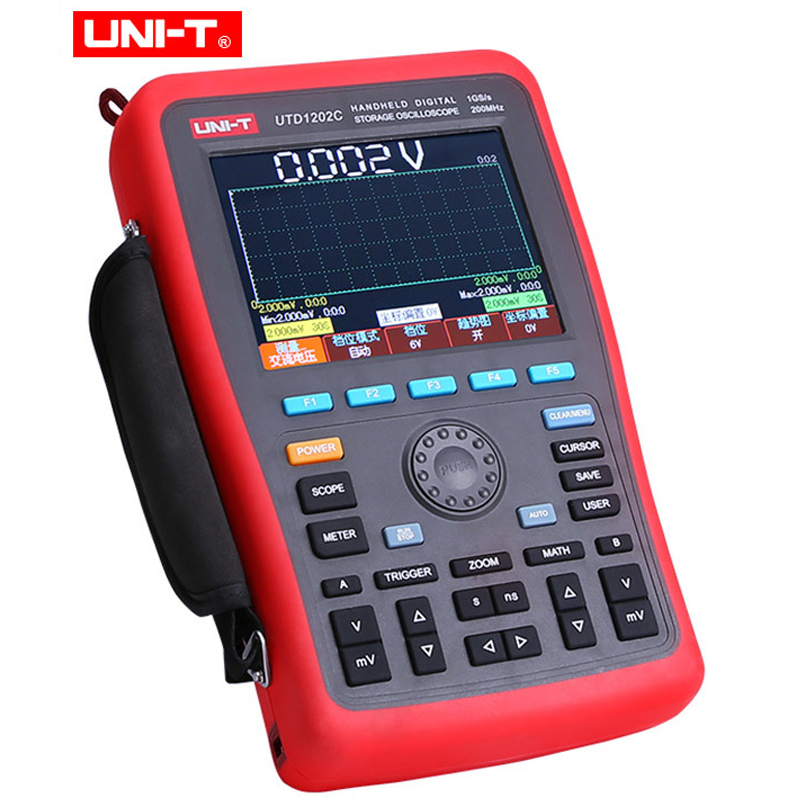

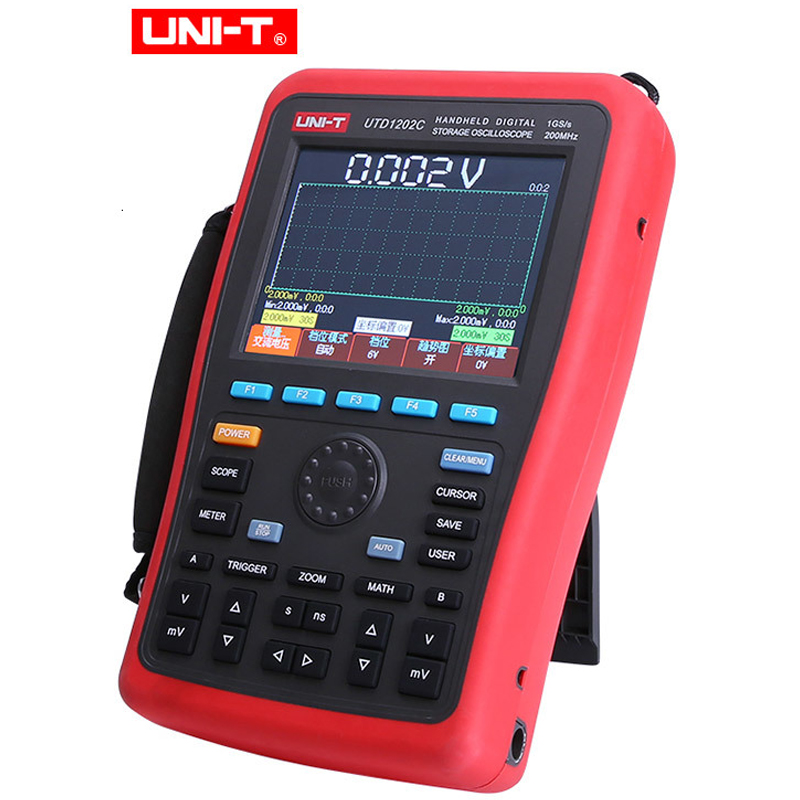

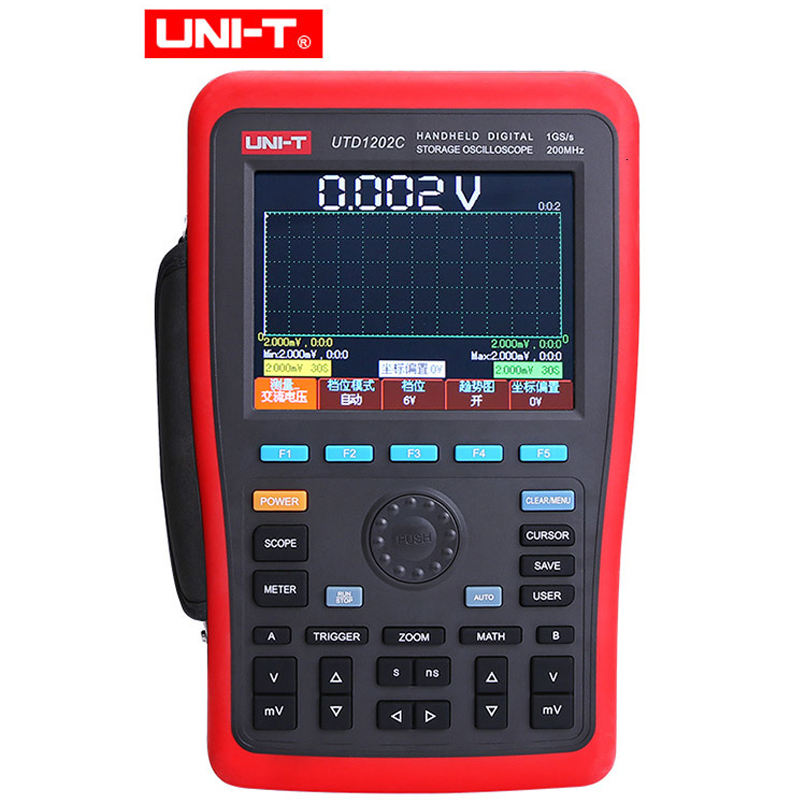

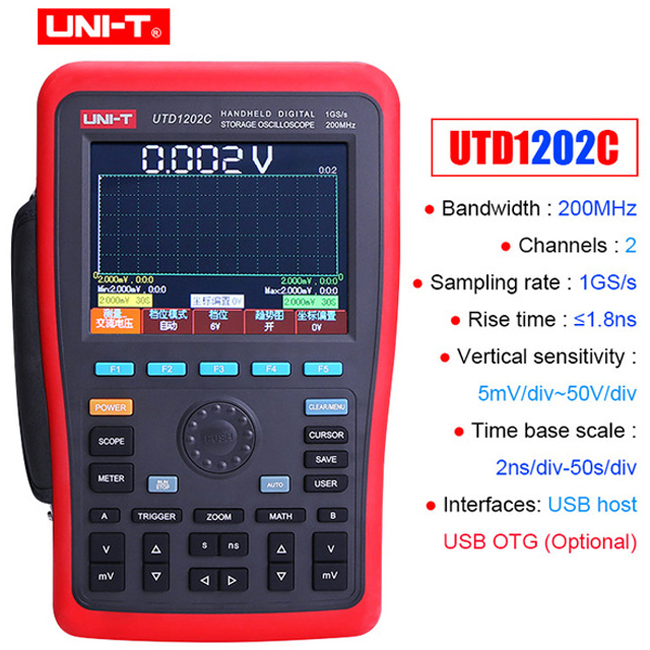

UNI-T UTD1202C Handheld Digital Storage Oscilloscope
Channels: 2
Band Width: 200MHz
Sampling Rate: 1GS/s
Features:
1. Automatic waveform and status configuration
2. Storage of waveforms, setups and interfaces; waveforms and setups reproduction
3. Print screen function
4. Fine window extension; precise analysis of waveform details and overview
5. Unique waveform recording, storage and replay function
6. HD color 5.7 inches LCD panel at 320*240 pixels aspect ratio
7. Multiple waveform mathematics functions (including add, subtract, multiply and divide)
8. Multimeter function
9. USB drive system software upgrade

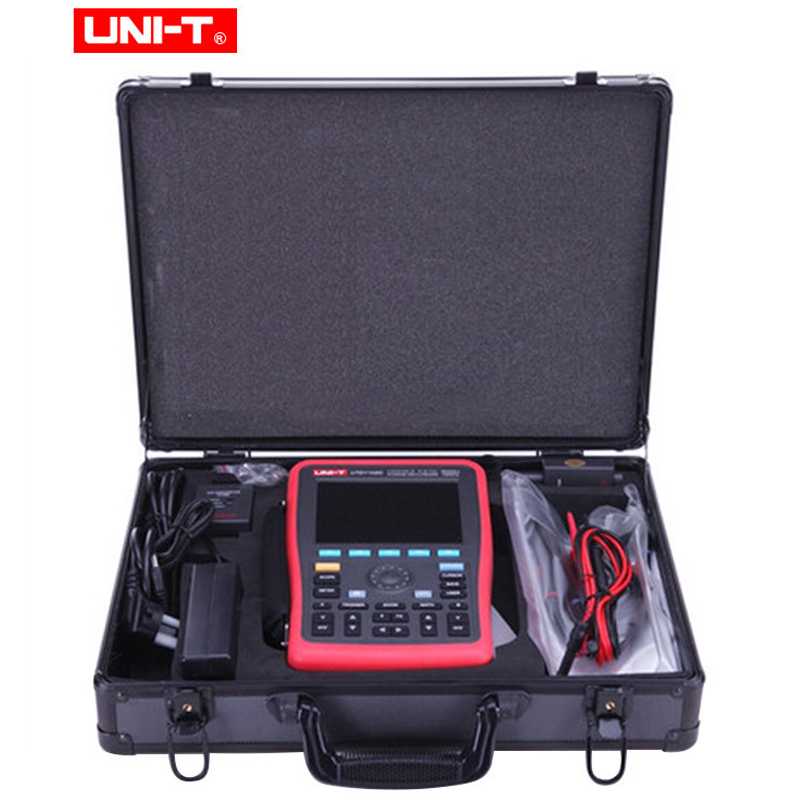

Packing List:
UNIT-T Digital Storage Oscilloscope
Probe*2 (1x, 10x switchable)
Current Voltage Converter,
Power Cable
Adapter,
Test Leads,
PC Software CD
Carrying Bag
Packing Box
 |
