Description:

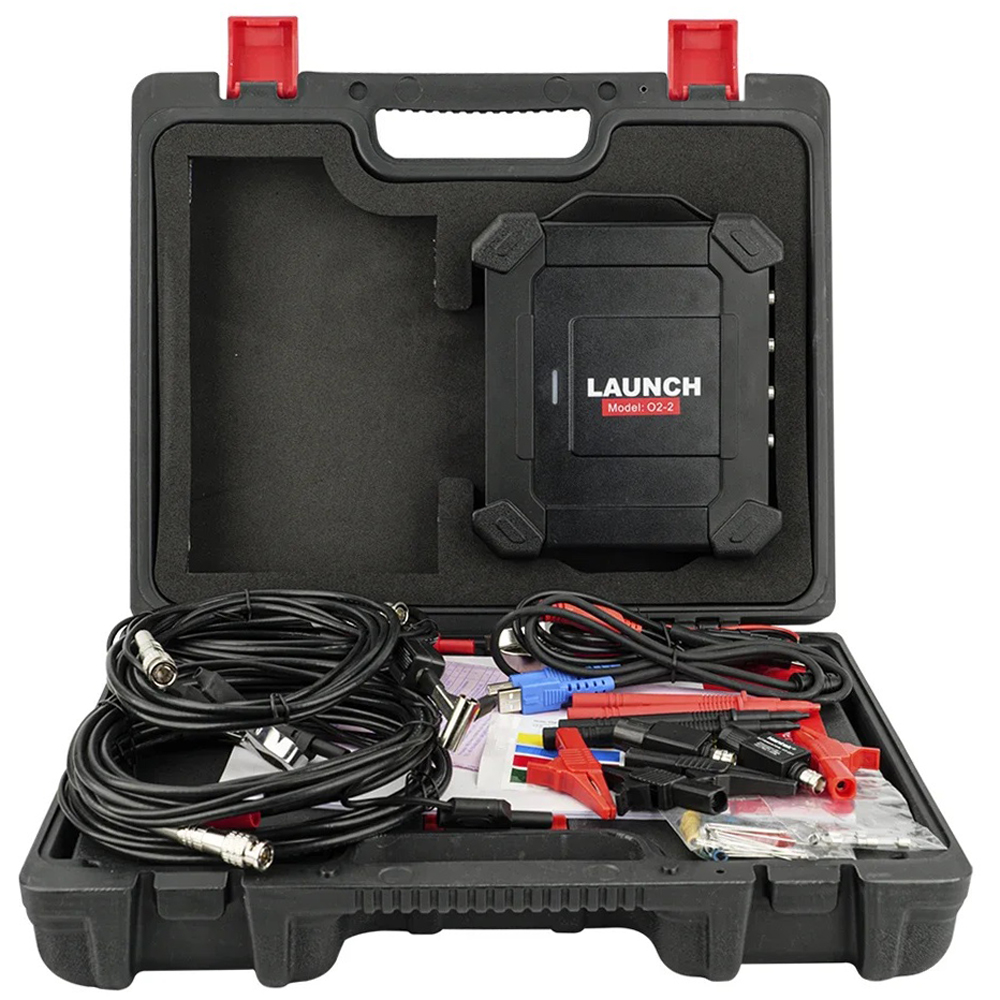

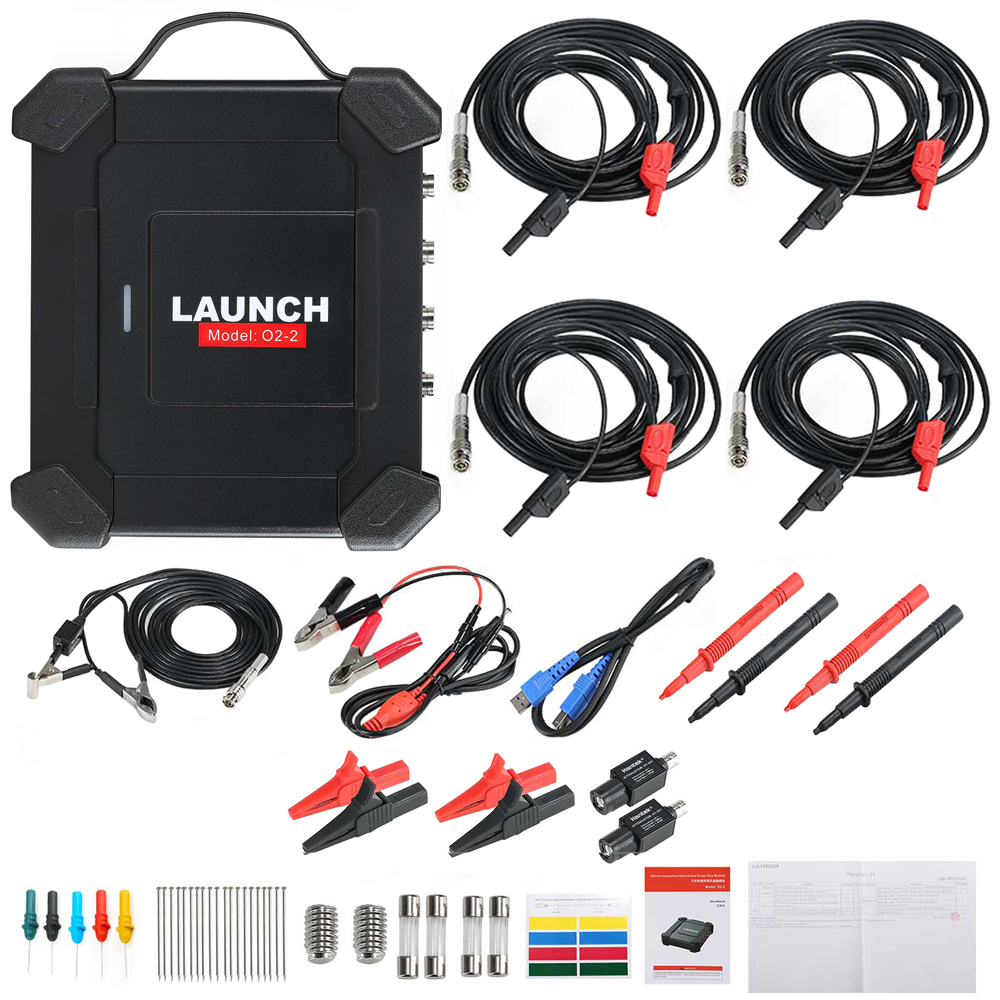

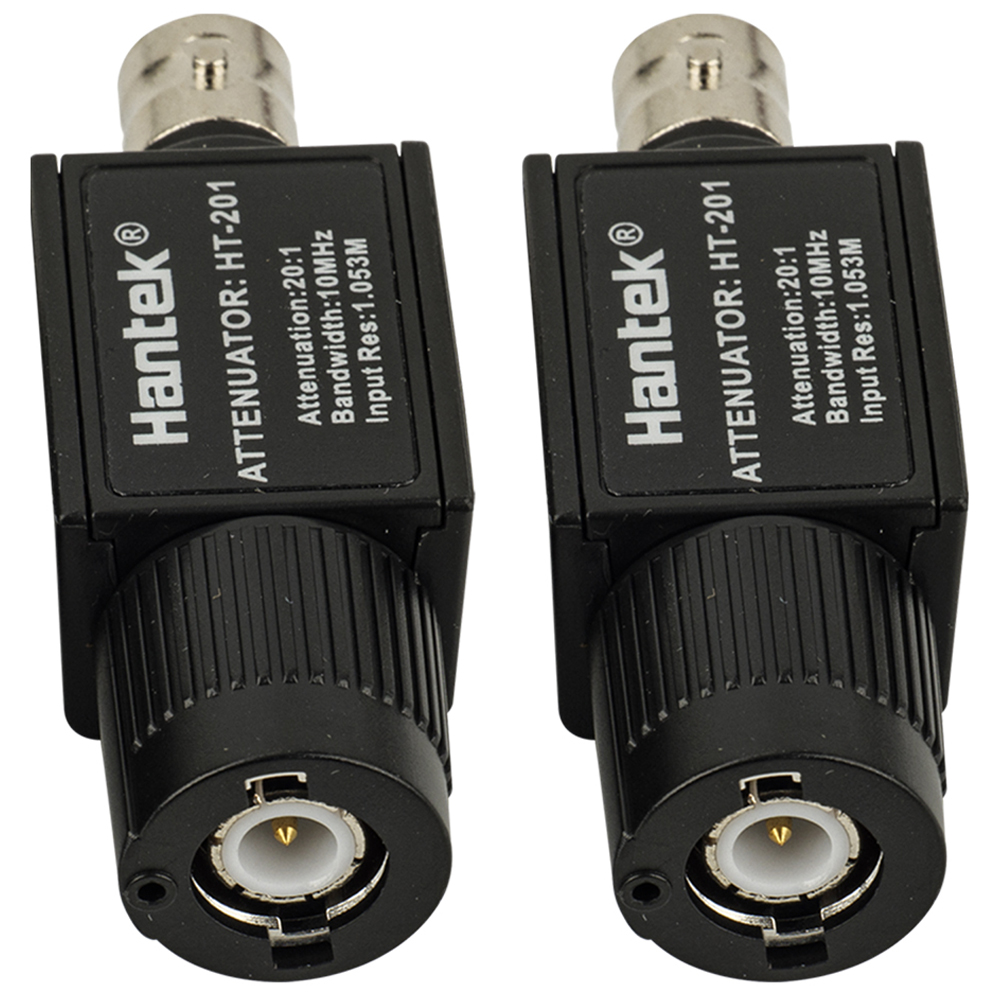

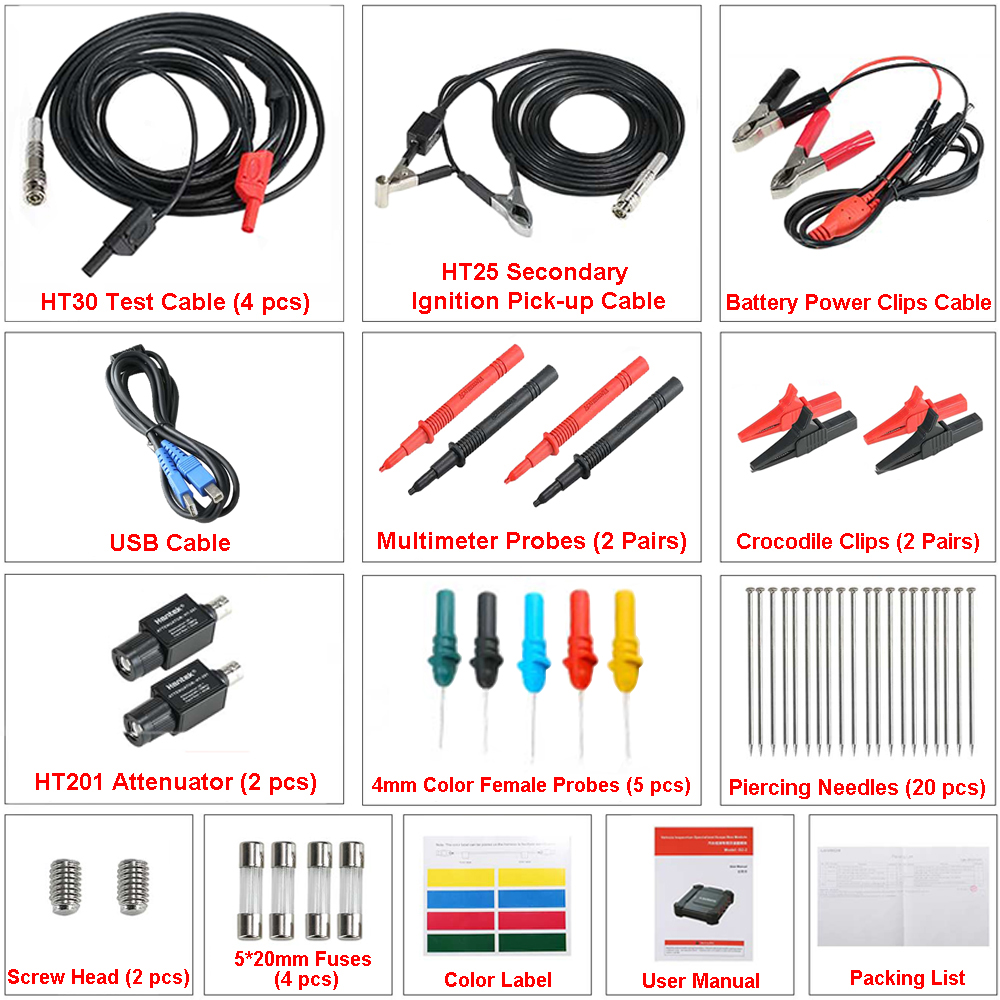

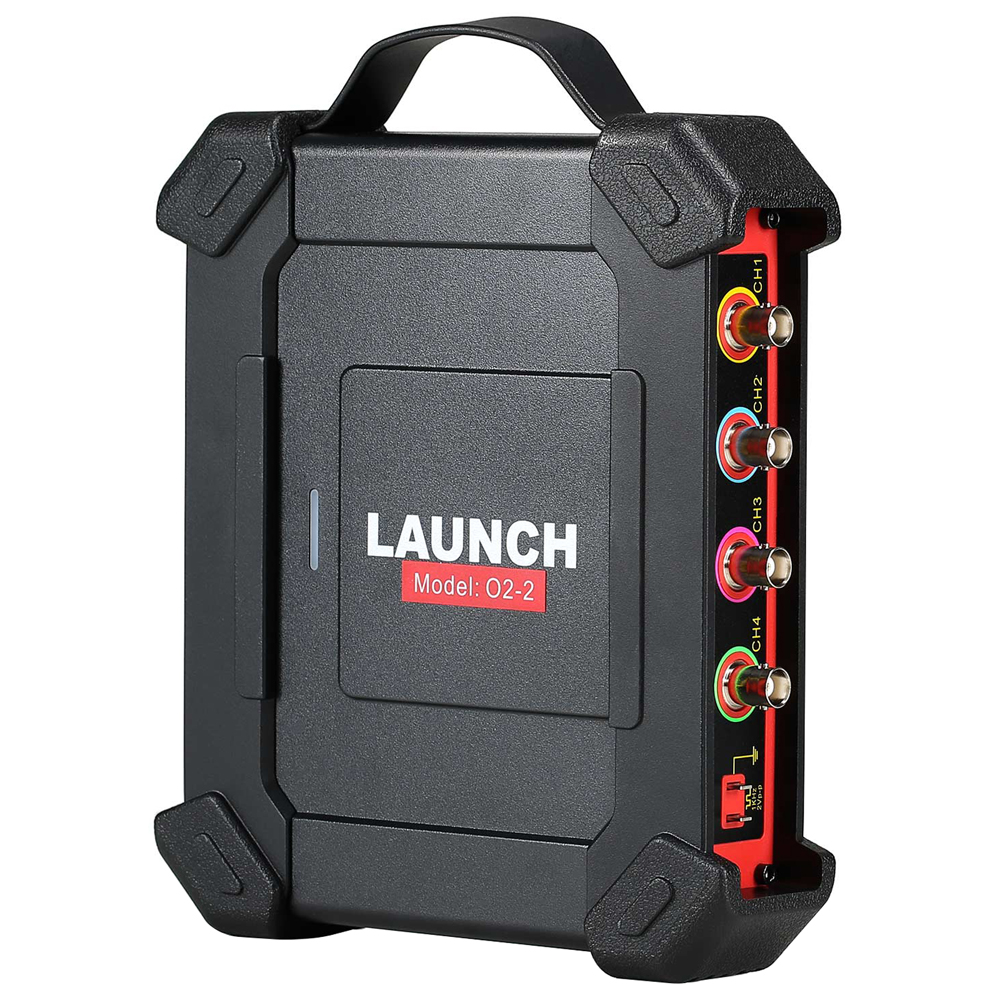

Featuring a new design and upgraded hardware, Launch X431 O2-2 Scopebox Oscilloscope is a versatile and easy to use add-on module that can detects high level faults on various electrical components, such as sensors, actuators and circuits. By integrating with the Launch X-431 series scan tools via O2-2 application, it delivers accurate and conclusive diagnostic faults that enable the shop and technician to enhance their scan tool functionality.

Launch O2-2 Scope Box allows the user to capture a particular waveform which makes the process 70% more efficient as compared to other scopes. It features the ability to record and playback high-resolution waveform data for future analysis. Its ability to input names and characters directly by clicking on the virtual keyboard streamlines the process and contributes to 90% of efficiency improvement.



Working with Launch X431 series scanners (such as Launch X431 PAD VII, X431 PAD V, X431 Pro3S+, X431 IMMO Plus, X431 IMMO Elite, Launch X431 PRO Elite, X431 Throttle, X431 Pad II AE, X431 Torque, X431 Turbo...) via the O2-2 application for conclusive diagnostic results.



Features:



1. ECU troubleshooting and Diagnostics.



2. Features the ability to record and palyback high-resolution waveform data for future analysis. One key enable function allows the users to capture.



3. A particular waveform which makes the process 70% more efficient as compared to other scopes.



4. Access to 23 variants of automatic measurements that are displayed on one screen for an easy switch.



5. Ability to input names and characters directly by clicking on the virtual keyboard, this operation streamlines the process and contributes to 90% efficiency.



6. Buffer memory up to 50M.



7. Use the zoom in/out feature to review precise details.



8. Customizable personal system settings that can be saved as configuration files for viewing.



9. The Self-calibration function allows optimization of the oscillosope signal path for maximum measurement accuracy.



10. Magnifies waveform math operations, such as addition, subtraction, multiplication and FFT function for high level waveform analysis.



11. Multiple automotive tests that include circuits, sensors, actuators, ignition tests and more.



12. Multi language user interface



13. USB sync. data transfer to external devices such as laptop, tablet PC, etc.

Functions:

1. Supports Multiple Vehicle Preset Project Tests
Supports a variety of automotive preset project tests, such as circuits, sensors, actuators, ignition tests, communication tests and combination tests, and presets various parameters and specific connection methods for each test.

2. 23 Automatic Measurement Settings
23 automatic measurement settings are displayed on one screen, which is clear at a glance and can be clicked with a light touch. It supports one-click clearing, eliminating the tediousness of turning pages and searching multiple times, making automatic measurement easy to use and convenient.

3. Quick Trigger Source Switching
Supports edge, pulse and other triggers. Simple and intuitive trigger settings and fast trigger source switching methods make the most difficult part of oscilloscope application extremely easy.

4. Quickly Create Waveform Preset Parameters with One Click
When testing waveforms, you can save the existing settings on the current interface as waveform preset parameters with one click. When testing similar waveforms later, you can directly load the preset parameters without repeated settings.

5. Quickly Save Waveforms with One Click
Quickly save the waveform currently displayed on the screen with one click and automatically save it in the specified format. It can be directly used as a reference channel waveform for display later.

6. Convenient Cursor Operation
Turn on the horizontal and vertical cursors with one click respectively. Each cursor can be dragged independently, and cursor tracking is also directly implemented through simple highlight touches, improving overall efficiency by more than 80%.

7. Support Cursor/Phase Ruler Changes Accordingly
When the waveform is zoomed in/out, the cursor and phase scale can change accordingly, keeping the measurement range unchanged.

8. Supports 2-Point Touch.
Waveform can be zoomed in or out vertically or horizontally. Drag horizontally or vertically with 2 points to zoom in or out the waveform horizontally or vertically.

9. Support Demonstration Function
Preset sine waveforms to demonstrate common functions without connecting an oscilloscope.

10. Supports Waveform Math Operations
Supports addition, subtraction, multiplication and division calculations of two channel waveforms, in addition to fast Fourier transform.

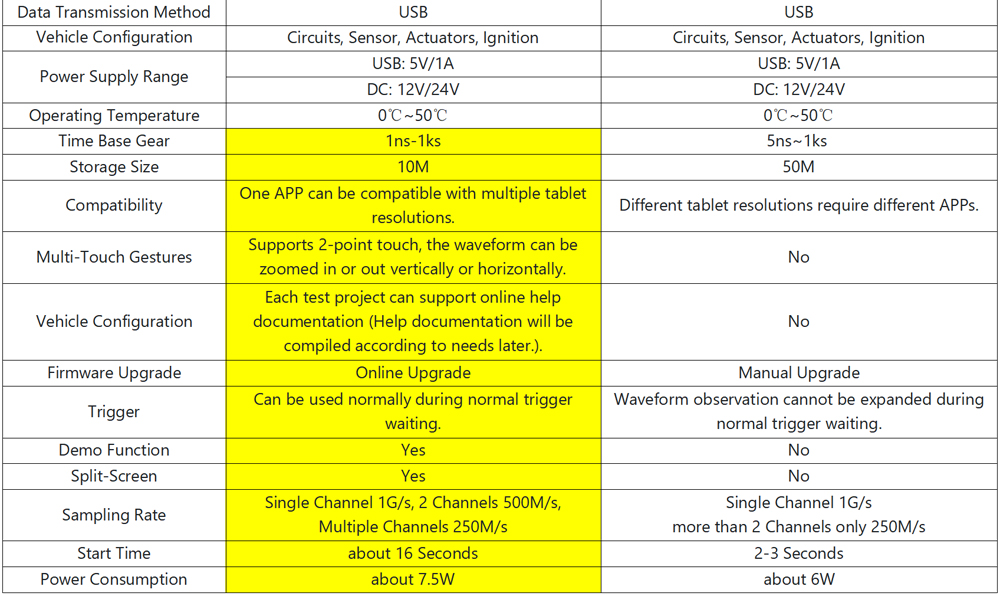

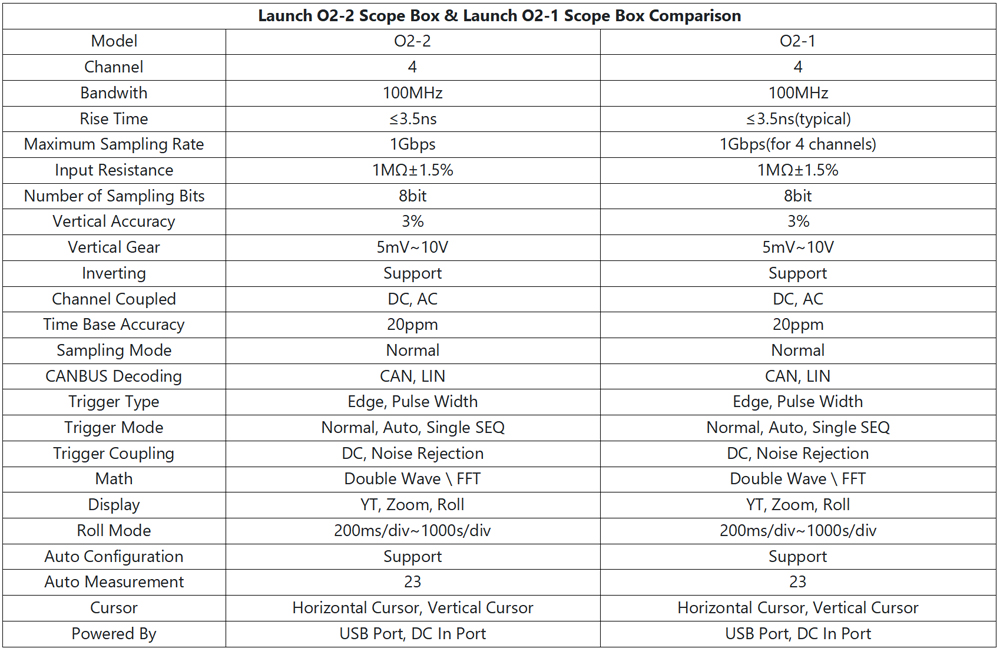

Specifications:

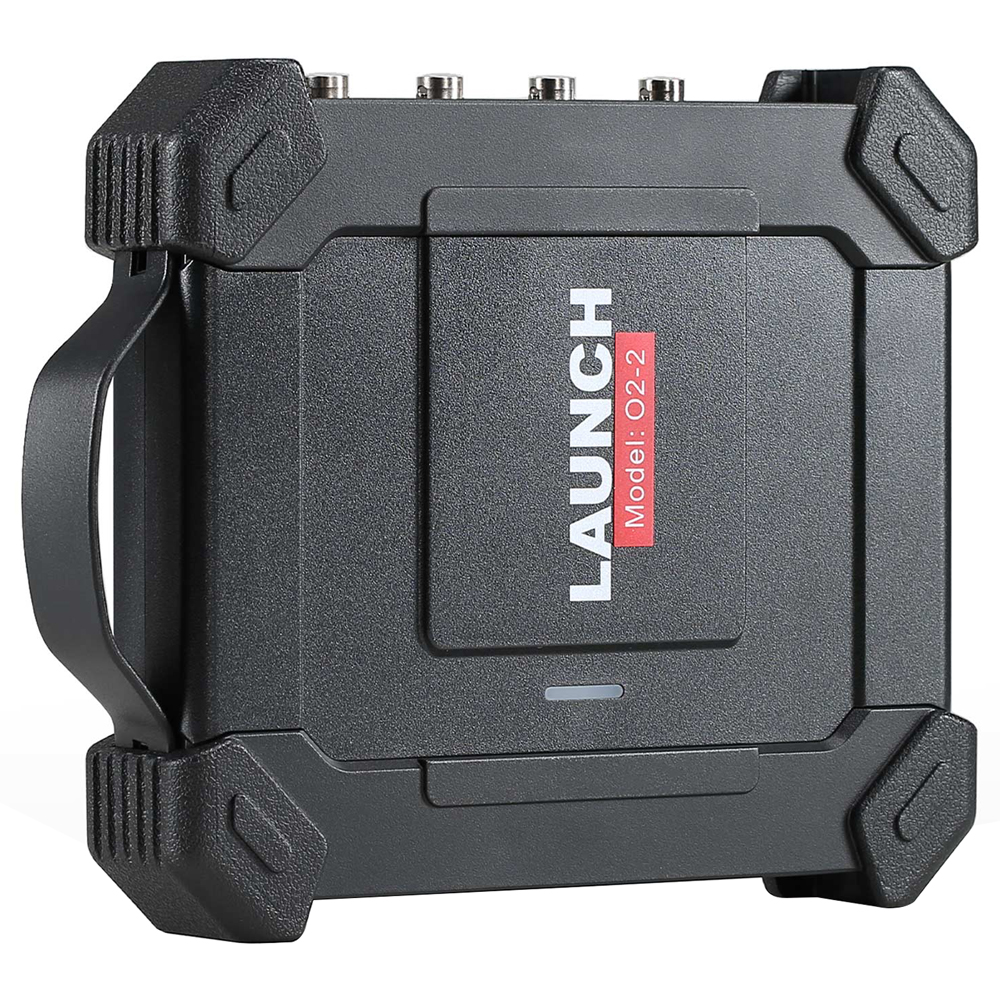

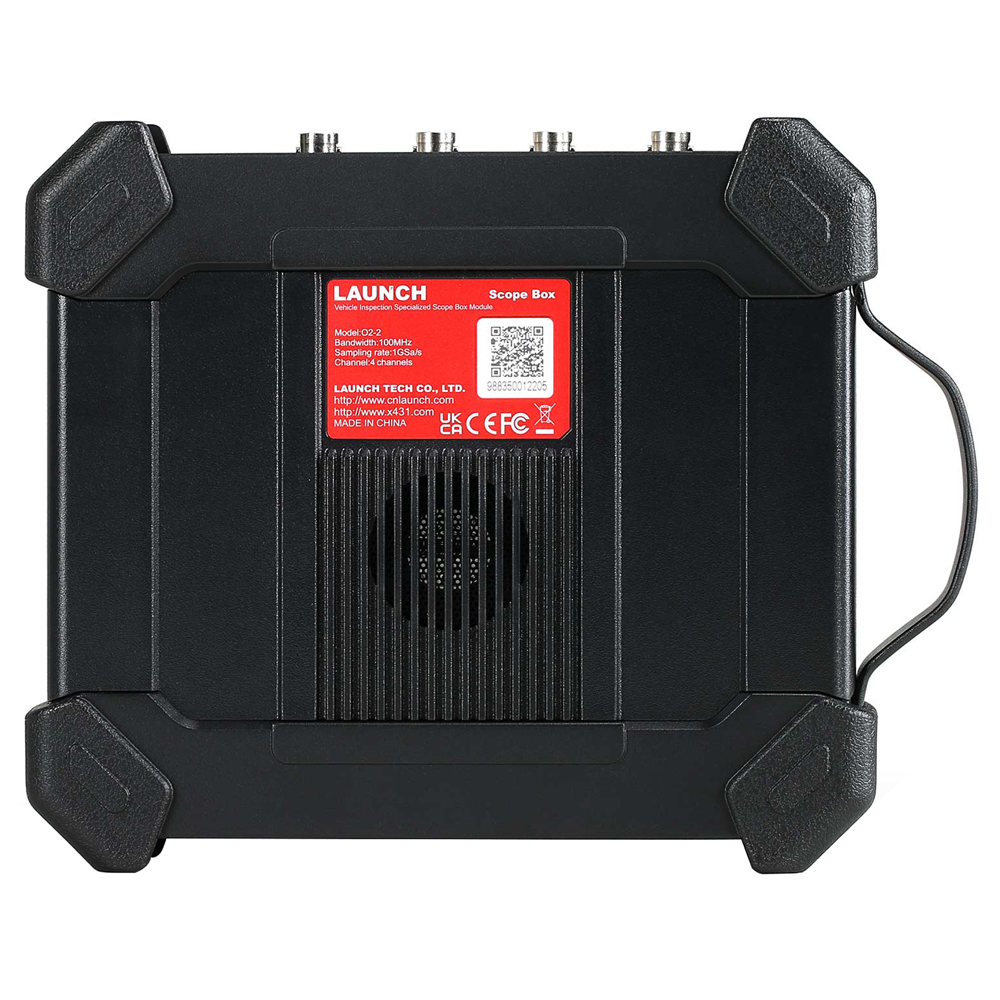

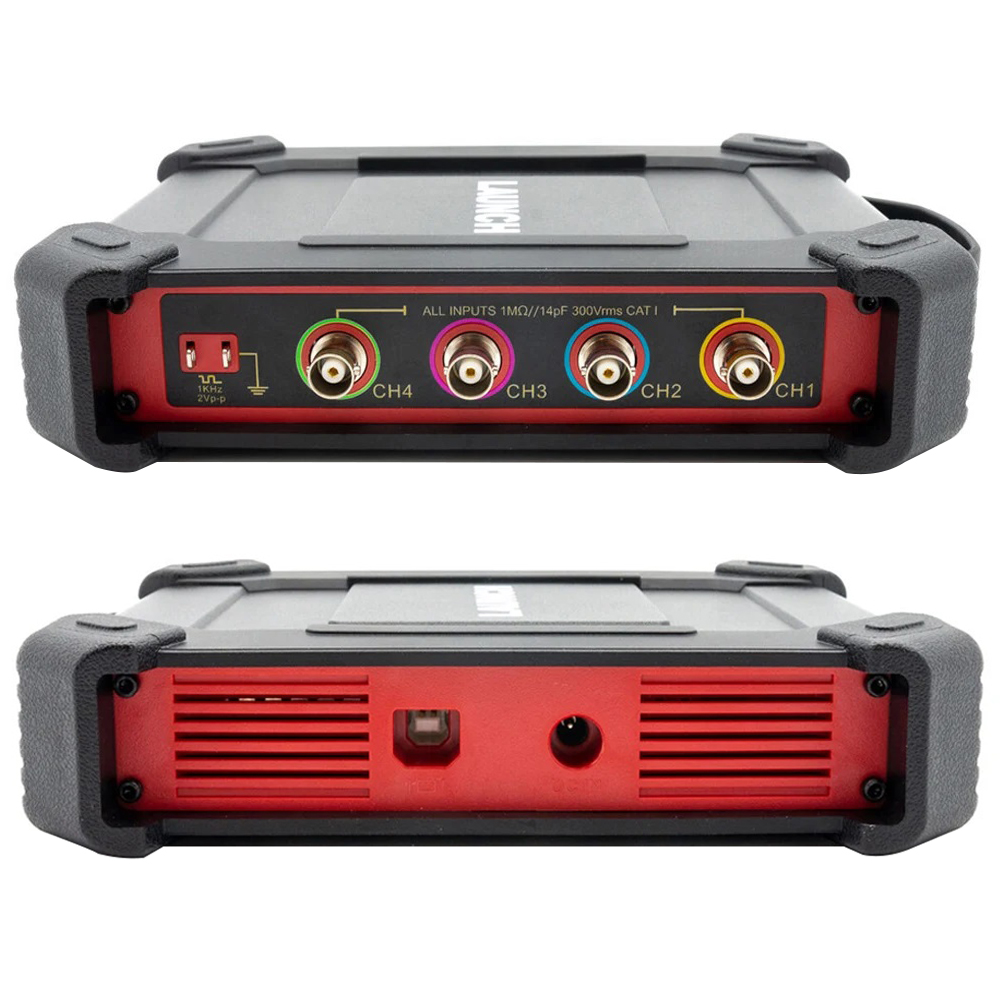

Channels: 4

Bandwidth: 100MHz

Rising Time : 3.5ns (typical)

Accuracy: ±3%

Input Impedance: 1M±1.5%

Input Type: single-ended, BNC connector

Input Coupling: DC, AC

Overload Protection: ±200V on single input

Timebase Ranges: 1ns~1ks (1 Channel) / 1ns~1ks (2 Channels) / 1ns~1ks (4 Channels)

Vertical Resolution: 8bits

Buffer Memory: 10M (for 4 Channels)

Trigger Mode: normal, auto and single SEQ

Advanced Triggers: edge, pulse width

Power Interface: USB port, DC in port

Data Exchange: via USB
