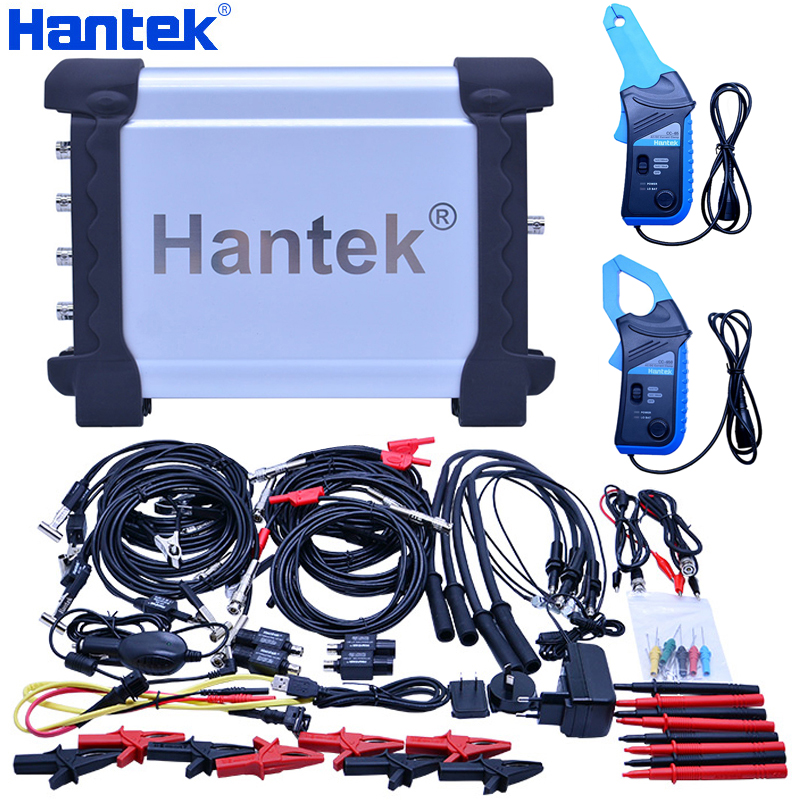

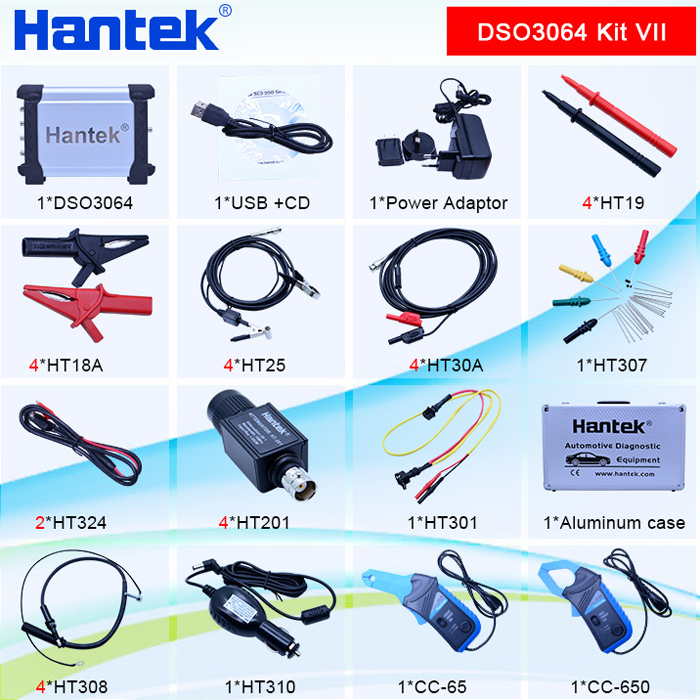

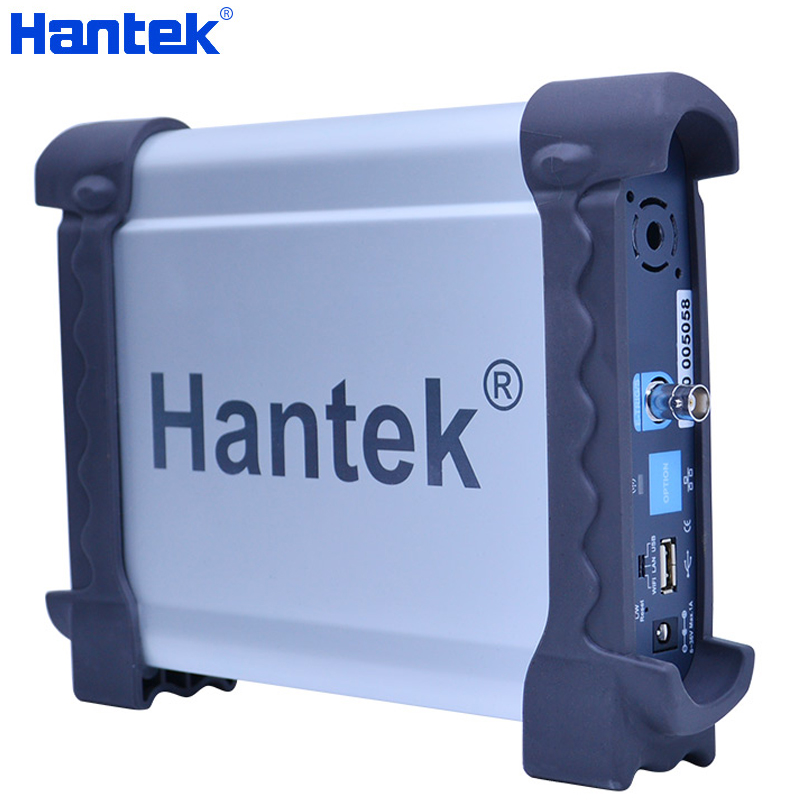

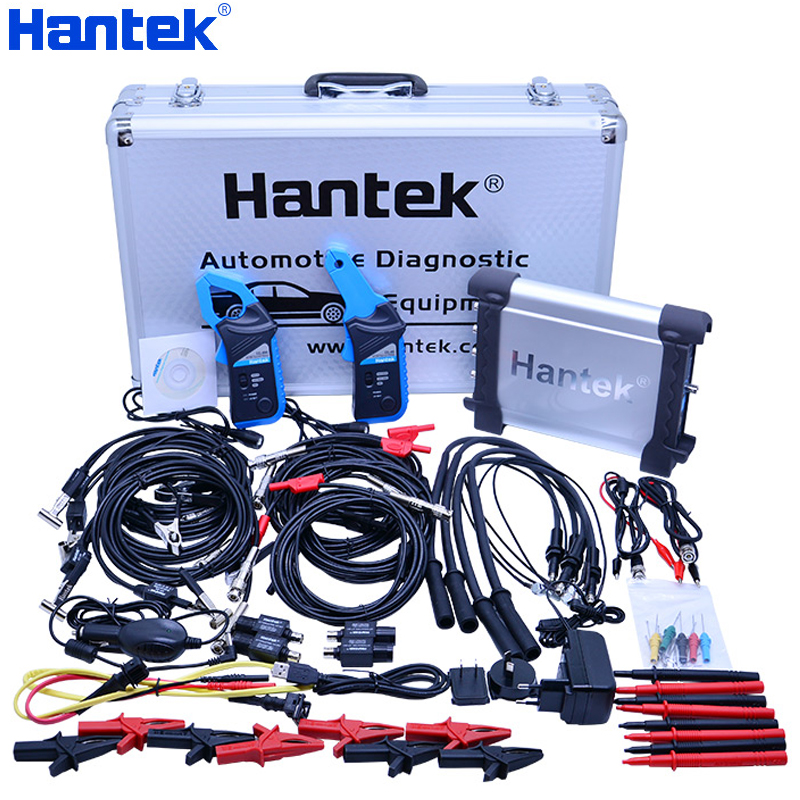

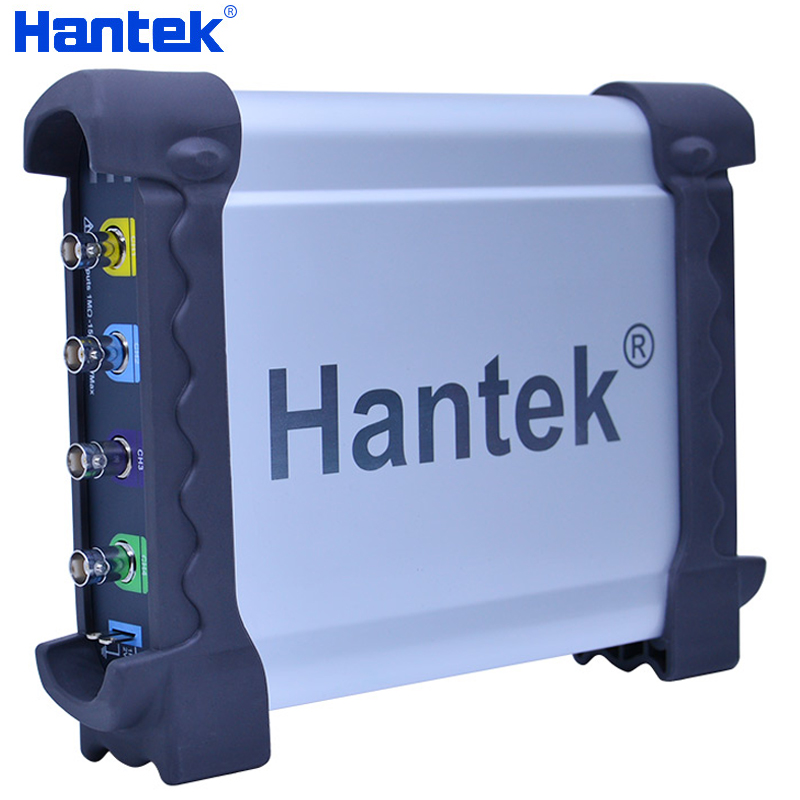

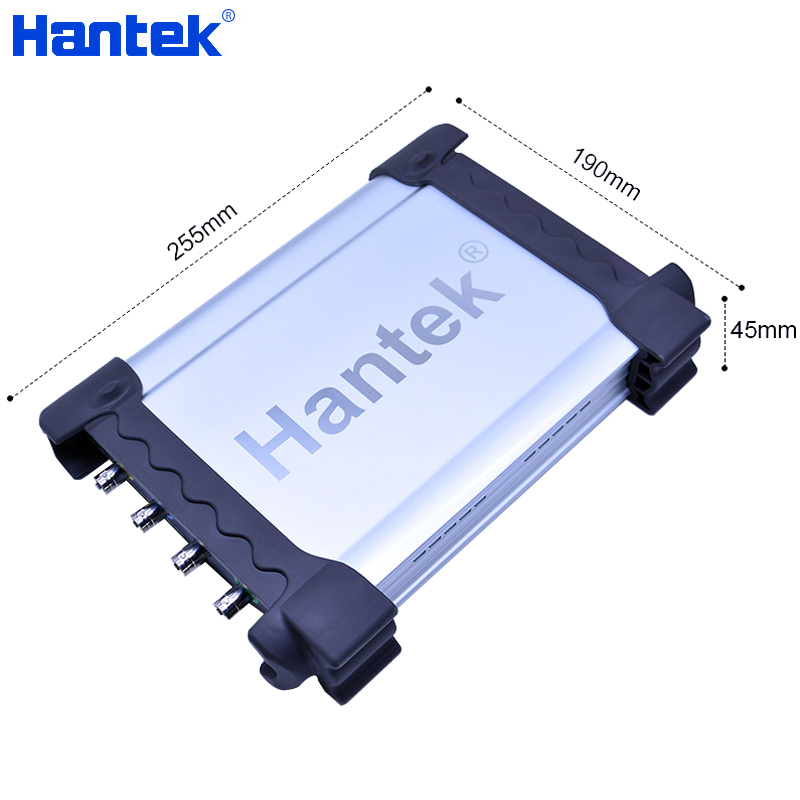

Name: Hantek DSO3064 Kit VII 4CH 60MHz Automobile Diagnostic Oscilloscope

Description:

Automobile Diagnosis:

First Diagnosis(Cranking Exhaust Diagnosis)
Ignition Action(Current/Voltage)
The Sensor(Air Flow Meter, Camshaft, Crankshaft)
BUS Diagnosis(CAN BUS Data View)
Performer(Petrol/Diesel)
Startup & Charge(Charging Circuits Current/Voltage)

Oscilloscope:

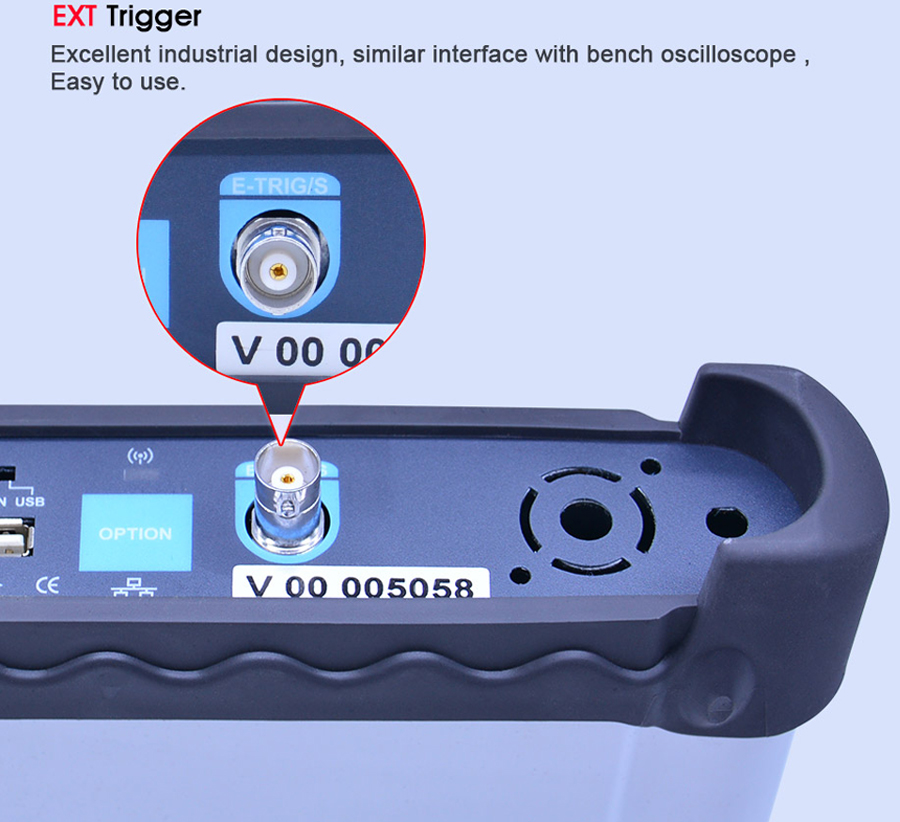

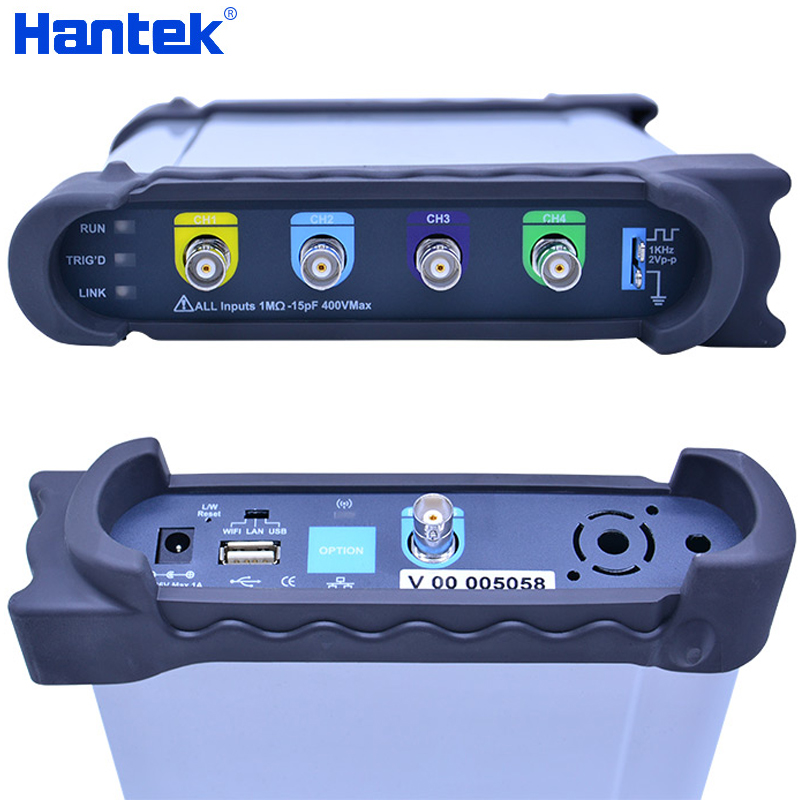

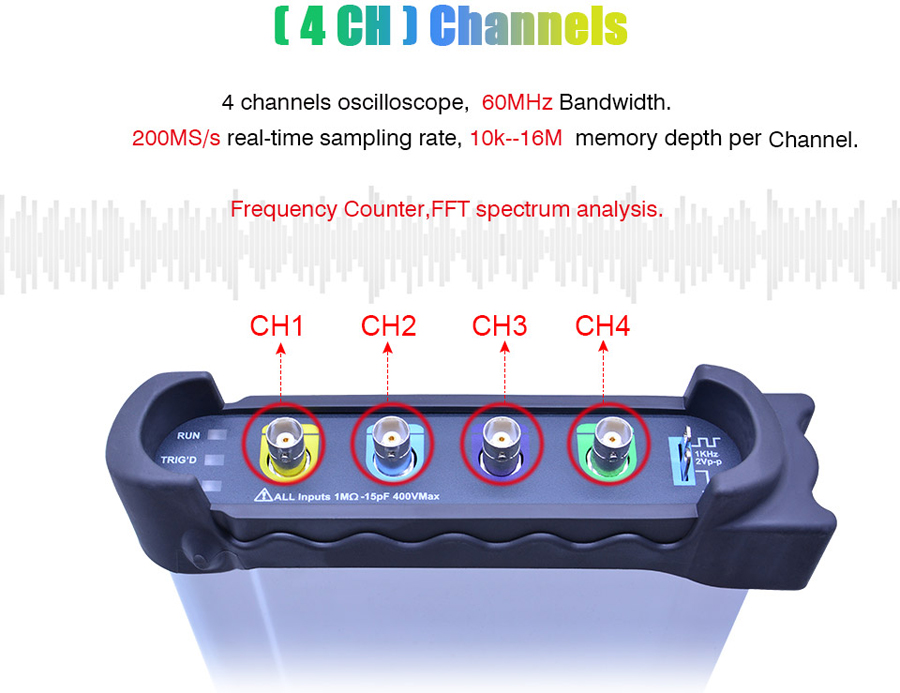

4 Channels and EXT trigger, 60MHz bandwidth.
200MS/s real-time sampling rate, 10k--16M memory depth per channel.
Frequency counter, FFT spectrum analysis.
8 - 36V wide range of input voltage, suitable for vehicle power test.

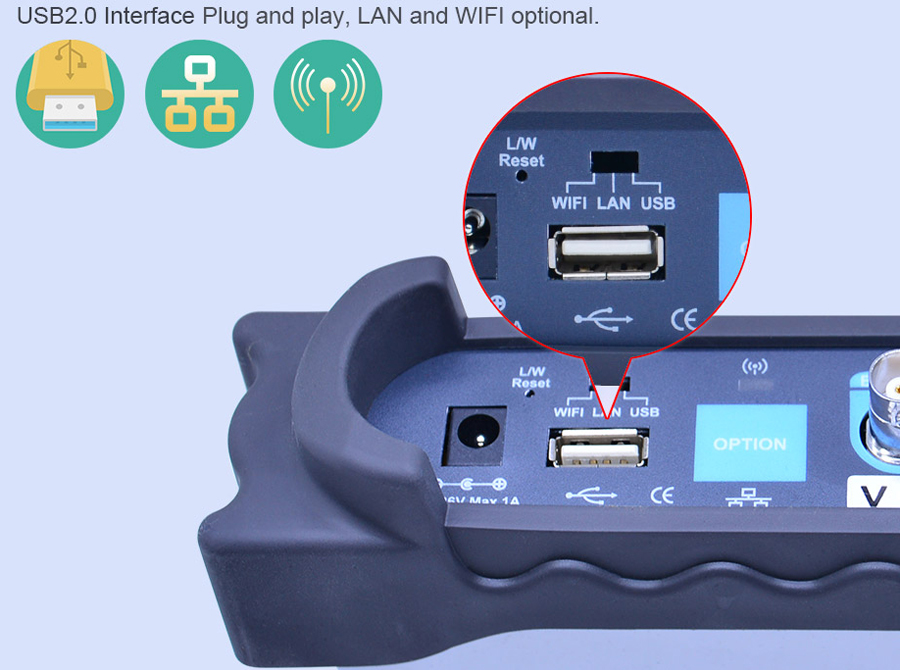

USB 2.0 interface plug and play, LAN and WIFI optional.
More than 20 kinds of automatic measurement and PASS/FAIL Check function which is suitable for engineering application.
Excellent industrial design, similar interface with bench oscilloscope, easy to use.
Supply DEMO code (VC, VB, LABVIEW) and technical support.

Supported OS: Windows / 2000 / XP / Vista / 7 / 8

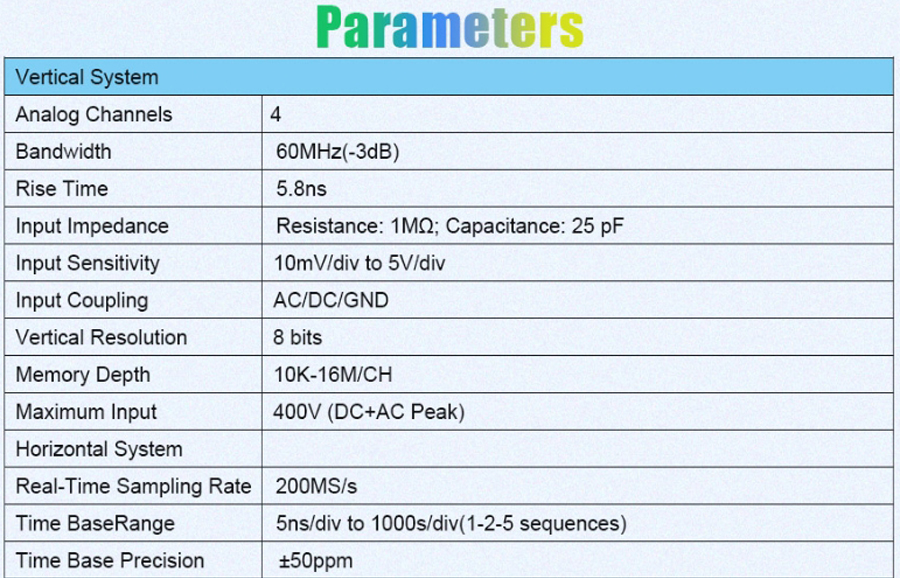

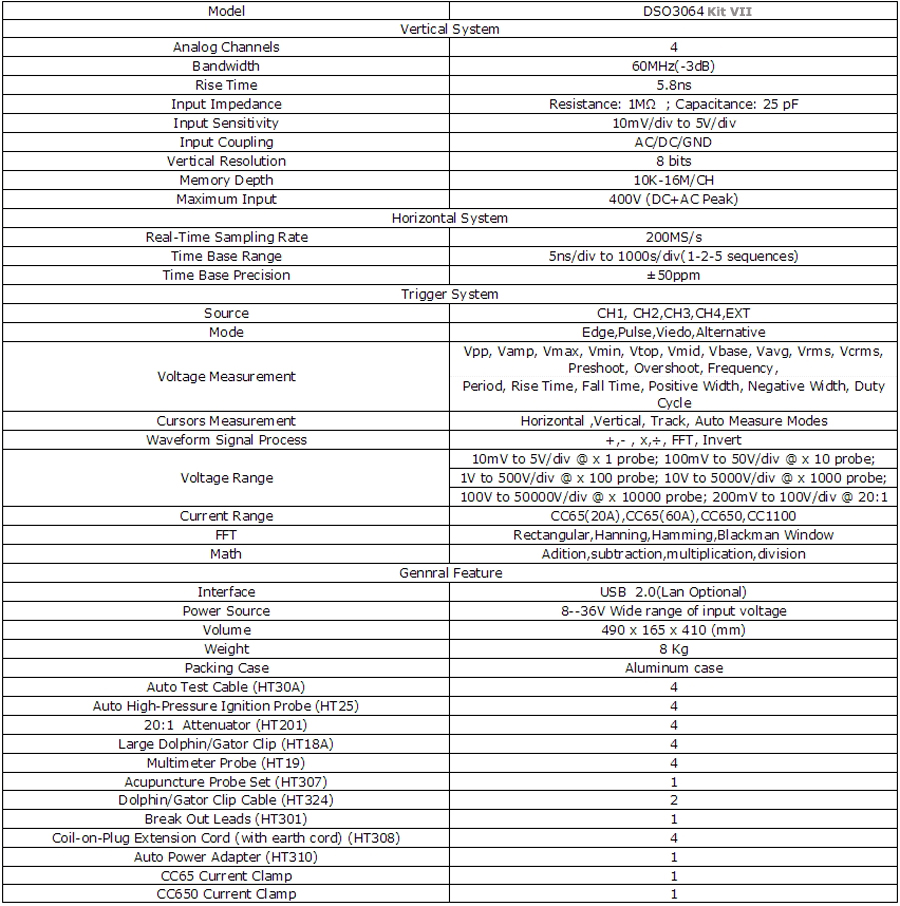

Specifications:

Vertical System:
1. Analog Channels:4
2. Bandwidth: 60MHz(-3dB)
3. Rise Time: 5.8ns
4. Input Impedance Resistance: 1MΩ; Capacitance: 25 pF
5. Input Sensitivity: 10mV/div to 5V/div
6. Memory Depth: 10K-16M/CH
7. Maximum Input: 400V (DC+AC Peak)

Horizontal System:
1. Real-Time Sampling Rate: 200MS/s
2. Time Base Range: 5ns/div to 1000s/div(1-2-5 sequences)
3. Time Base Precision: ±50ppm

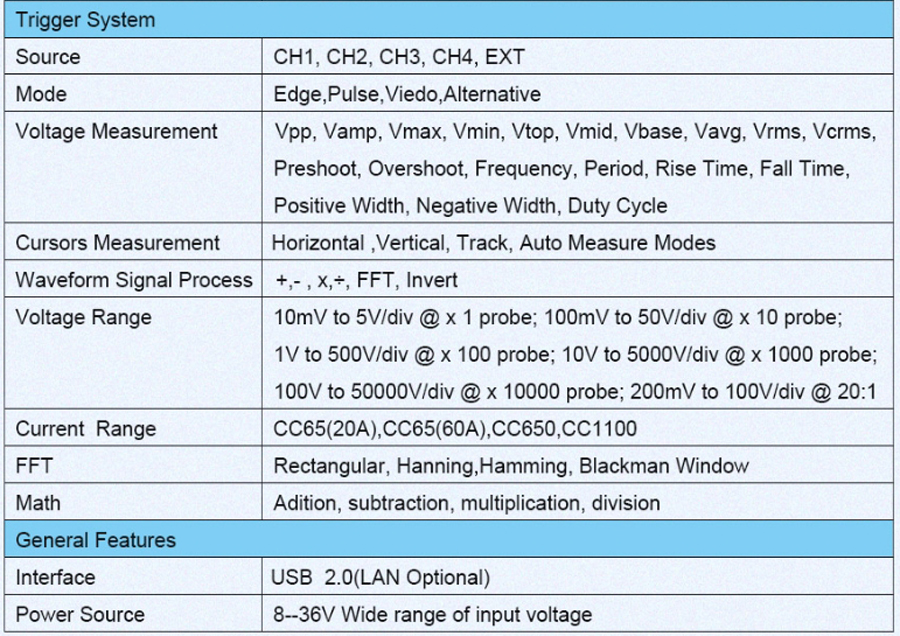

Trigger System:
1. Source: CH1, CH2, CH3, CH4, EXT
2. Mode: Edge, Pulse, Video, Alternative
3. Cursors Measurement: Horizontal, Vertical, Track, Auto Measure Modes
4. Waveform Signal Process: +, - , X, ÷, FFT, Invert
5. Interface: USB 2.0(LAN WIFI optional)
