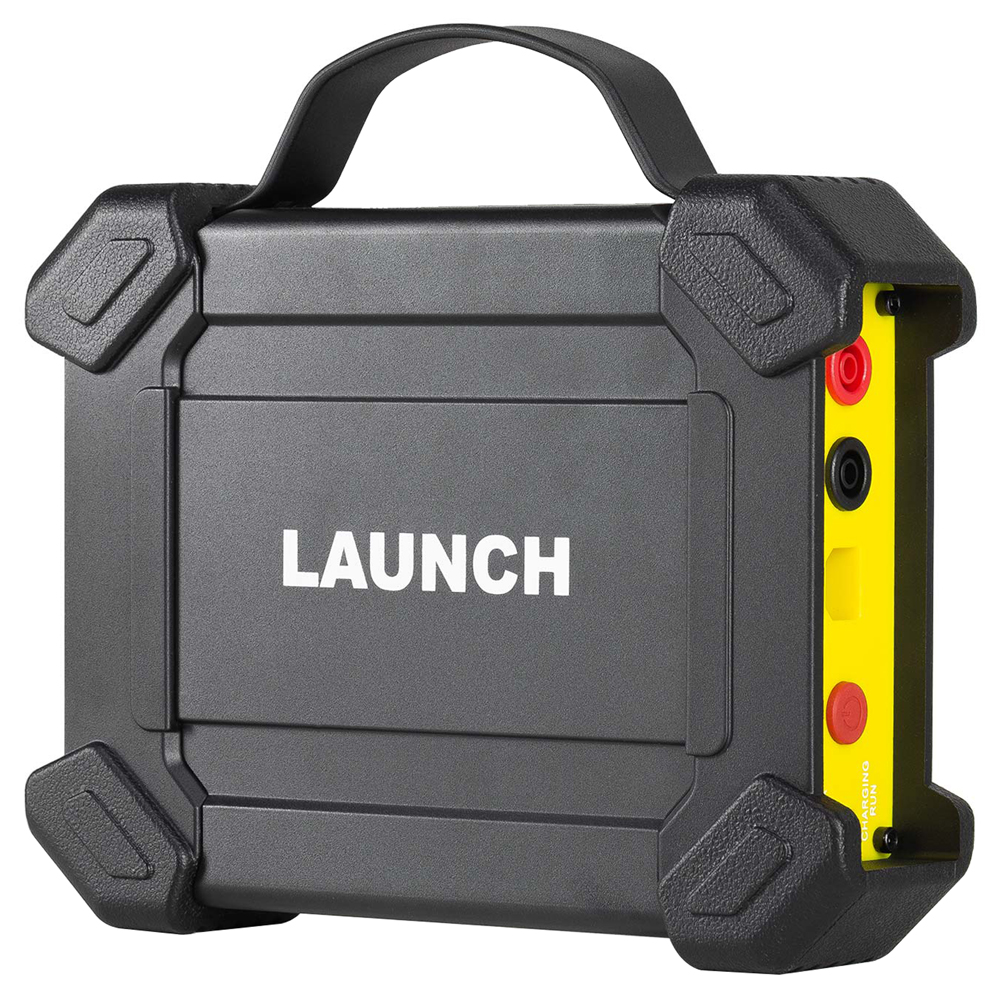

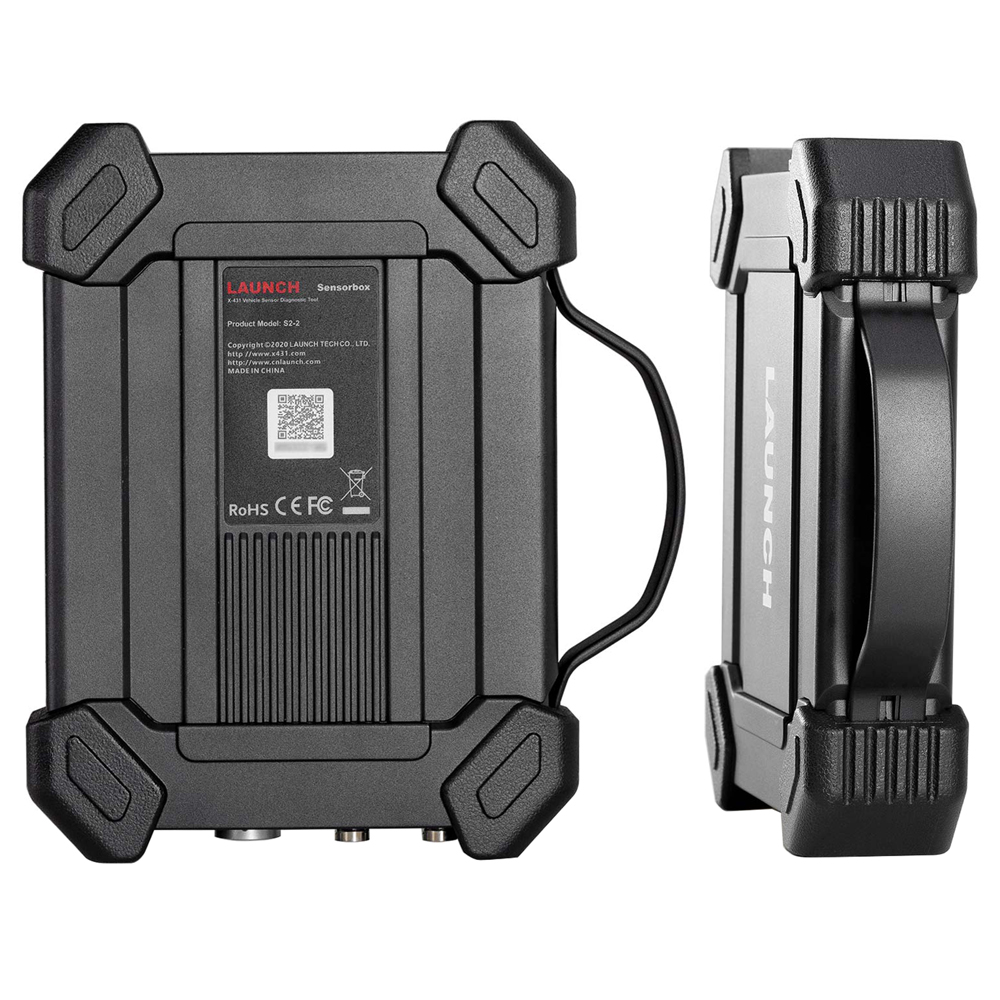

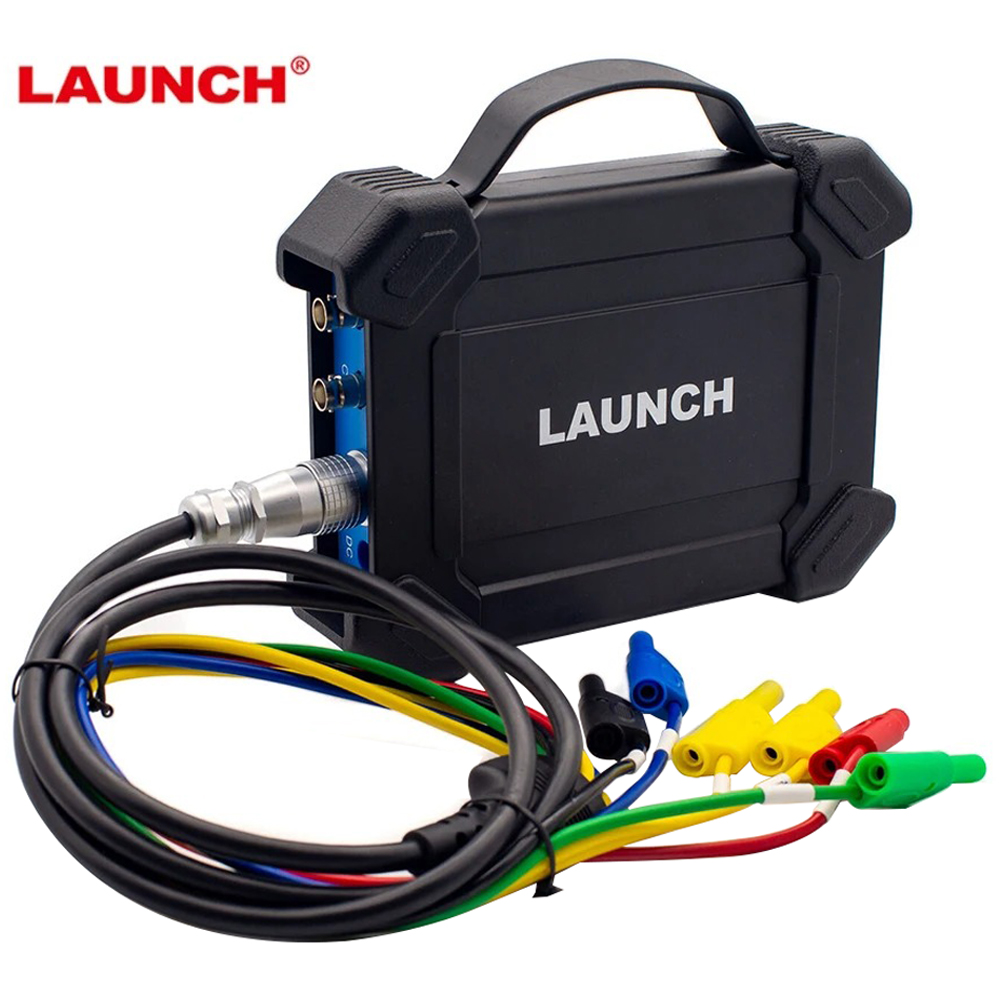

Name: Launch X431 S2-2 Sensor Box 2 Channels Oscilloscope
Description:
Launch X-431 S2-2 Sensorbox 2 Channels USB Oscilloscope is a handheld Sensor Simulator and Tester for Launch X431 PAD VII / X431 PAD V / X431 Throttle III / X431 Throttle...
Launch X431 S2-2 Sensor Box USB Oscilloscope it is designed to test and simulate most vehicle sensors, quickly troubleshooting the ECU. Launch X431 S2 2 Sensor Box can be compatible with Launch X431 series scanners such as Launch X431 PAD V, PAD VII, X431 Throttle III, X431 Throttle... to maximize the repair shop revenue.
Features:
Compatible with Launch X431 PAD V II, X431 PAD V, X-431 Throttle III, X-431 Throttle...
ECU troubleshooting and diagnostics.
It supports manually writing the waveform data.
Simulate the working condition of sensors without replacing parts.
Throttle & Pedal Sensor
Airflow Meters
Oxygen Sensor
Temperature Sensor
EGR Sensor
Injectors Sensor
Crank
Cam Sensors Inductive & Hall
Can e bused as Multimeter to measure resistance, voltage AC/DC, capacitance, frequency and pulse signals, etc.
Simulate some special working condition of sensors without replacing parts.
One click to enters the intuitive menu of sensor, actuator, defined/drawn the waveform, timing waveform, multimeter, system settings (working with scanner).
Functions:
Launch S2-2 Sensor Box is specially developed for diagnosing/simulating sensor faults.
It mainly includes Sensor, Actuator, Defined/Drawn, Timing Waveform, Multimeter.
Sensor:
It is used to simulate the input signals of the automobile electronic control system, and the automobile computer adjusts the running state of the engine according to these parameters.
Actuator:
It is used to simulate the output control signal of automobile electronic control system, so as to judge the working conditions of automobile actuators such as idle motor, EGR solenoid valve, etc.
Multimeter:
It is used to test voltage, resistance, and capacitance.
It cannot be used separately. It only works as accessory for Launch X431 PAD VII, X431 PAD V and X431 PAD III... diagnostic scanners.
Operation Instructions:
1. Connect the S2-2 Sensor Box with Launch X431 scanner via USB cable.
2. Press and hold the power button for over 3 seconds to start the sensor module. If the electric quantity is normal, the green LED will be on.

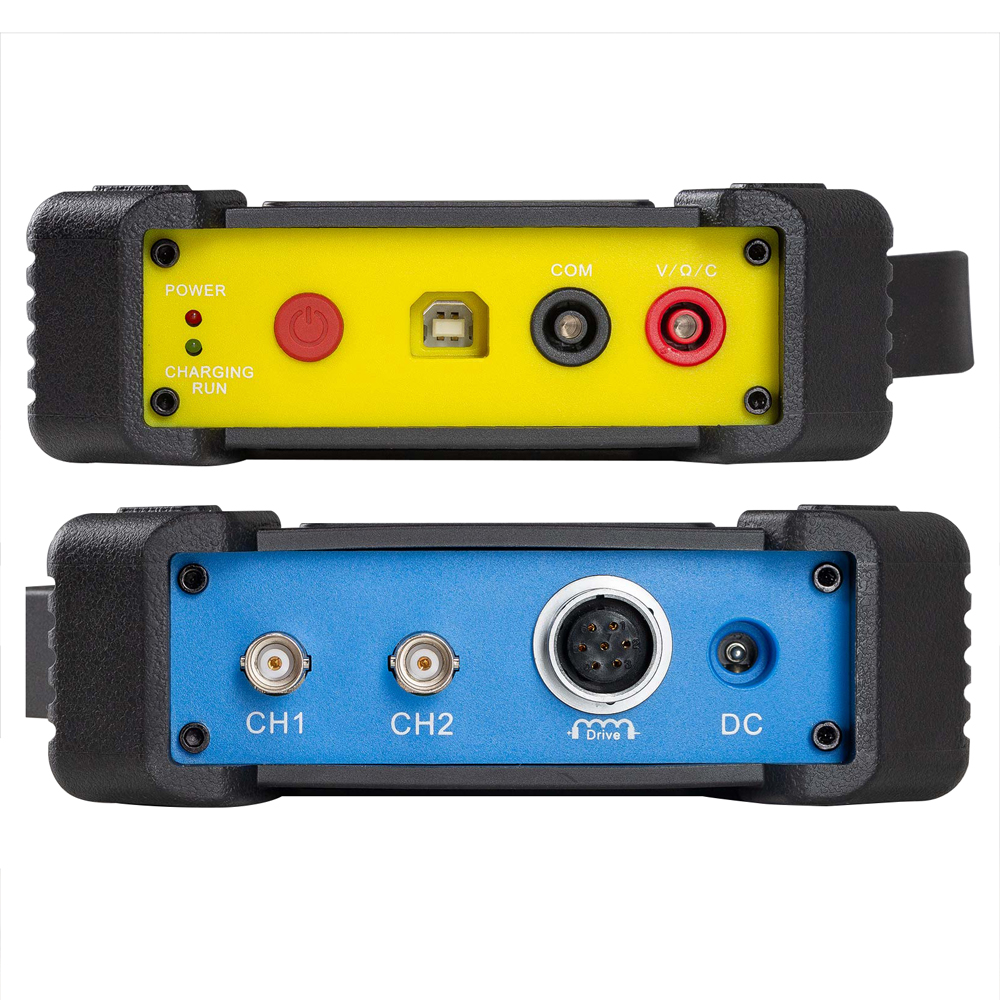

Green LED Status:
Steady: normal electric quantity.
Flashing at Intermediate Speed: low electric quantity (regardless of whether red lamp flashes)
Flashing at Low Speed: charging in progress
Red LED Status:
Steady: diagnostic tool connected.
Flashing: Diagnostic tool disconnected. It will enter the charging status only when the red LED is flashing. The green LED is flashing at a low speed during charging.
3. Start diagnostic scanner and access the toolbox. Tap Sensor Simulator to access the job menu of sensor.
The sensor module is mainly divided into 5 functional modules:
1) Sensor:
Use output voltage or waveform to simulate the working status of the on-board sensor, so as to accurately judge the quality of the sensor and reduce blind replacement of accessories.
2) Actuator:
Used to output PWM signal to drive the on-board coil actuator.
3) Defined/Drawn:
Users can customize sensor waveform to facilitate future sensor signal simulation.
4) Timing Waveform:
Customize timing waveform to match the engine (crankshaft + camshaft), and output in the same phase.
5) Multimeter:
Universal multimeter functions.
Specifications:
Sensor Module
Number of Channels: 2
Precision: 1%
Amplitude Range: 0V to 20V
Max. Output Current: 20mA
Predefined Frequency Range: 0 to 20KHz
Square Wave Signal Pulse Frequency: 0 to 15KHz
Square Wave Signal Duty Cycle: 0 to 100%
Power Supply: Simulator sensor output/max. current 20mA (Output is powered by battery.). Drive solenoid, ignition coil/output current 2A (external power supply).
USB: USB2.0 Type B (with charging and power supply function / 5V)
DC Voltage Simulation: support
Fixed Frequency Simulation: support
Predefined Waveform Simulation: support
Hand-Drawn Waveform Simulation: support

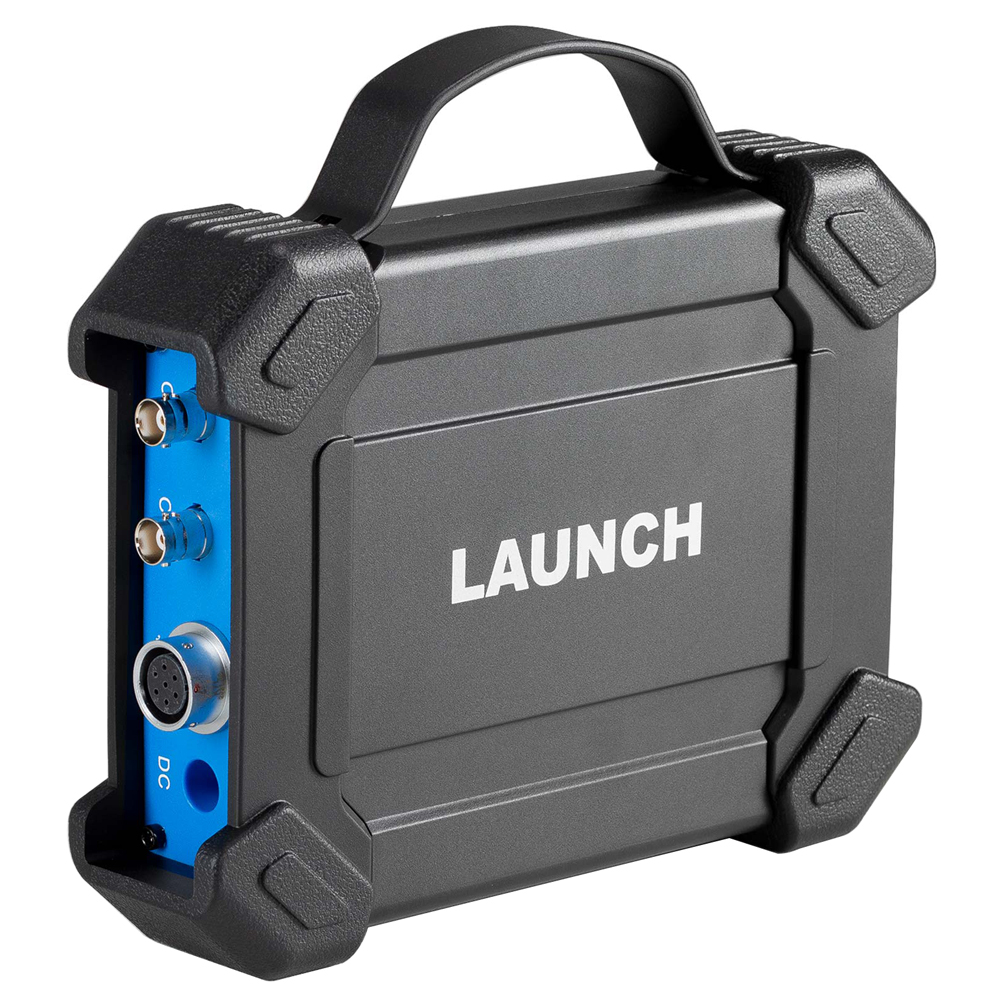

Signal Generator Interface: 2
External Power Supply Port: 1
Solenoid Interface: 1
Multimeter Interface: 2
Working Temperature: 0 to 50 degree centigrade
Storage temperature: -30 to 70 degree centigrade
Multimeter
DC Voltage: 0V to 700V
AC Voltage: 0V to 700V
Resistance: 0Ω to 40MΩ
Capacitance: 0F to 100 µF (maximum 30 seconds measurement time)
Diode: 0V to 1.5V
Continuity Detection: sounds below 30Ω
Defined
Waveform: There are 9 waveforms to choose; Forward sine wave, reverse sine wave, forward square wave, reverse square wave, medium voltage, straight line, high / low voltage straight line, triangle wave, and trapezoidal wave.
Frequency: Set the frequency of the selected waveform.
Amplitude: Set the amplitude of the selected waveform.
Offset: Set the offset of the selected waveform.
Phase: Set the phase of the selected waveform.
Duty Cycle: Set the duty cycle of the selected waveform.
Signal Sync.: Can cause CH1 and CH2 to output signals at the same time.
Hand-Drawn
Total Frame: 1-3 (optional). Indicate the total number of output points. Generally, one waveform is composed of 100 points. The values 1-3 indicate that you can select 100, 200, or 300 points to form a waveform.
Edit Frame: You can edit a single frame or edit all.
Waveform: You can select a preset waveform and place it in the hand-drawing area.
Frequency: Frequency of a single frame (for 3-frame output, the total frequency is the set frequency/3).
Amplitude: Amplitude of the output waveform.
Offset: Offset of the output waveform.

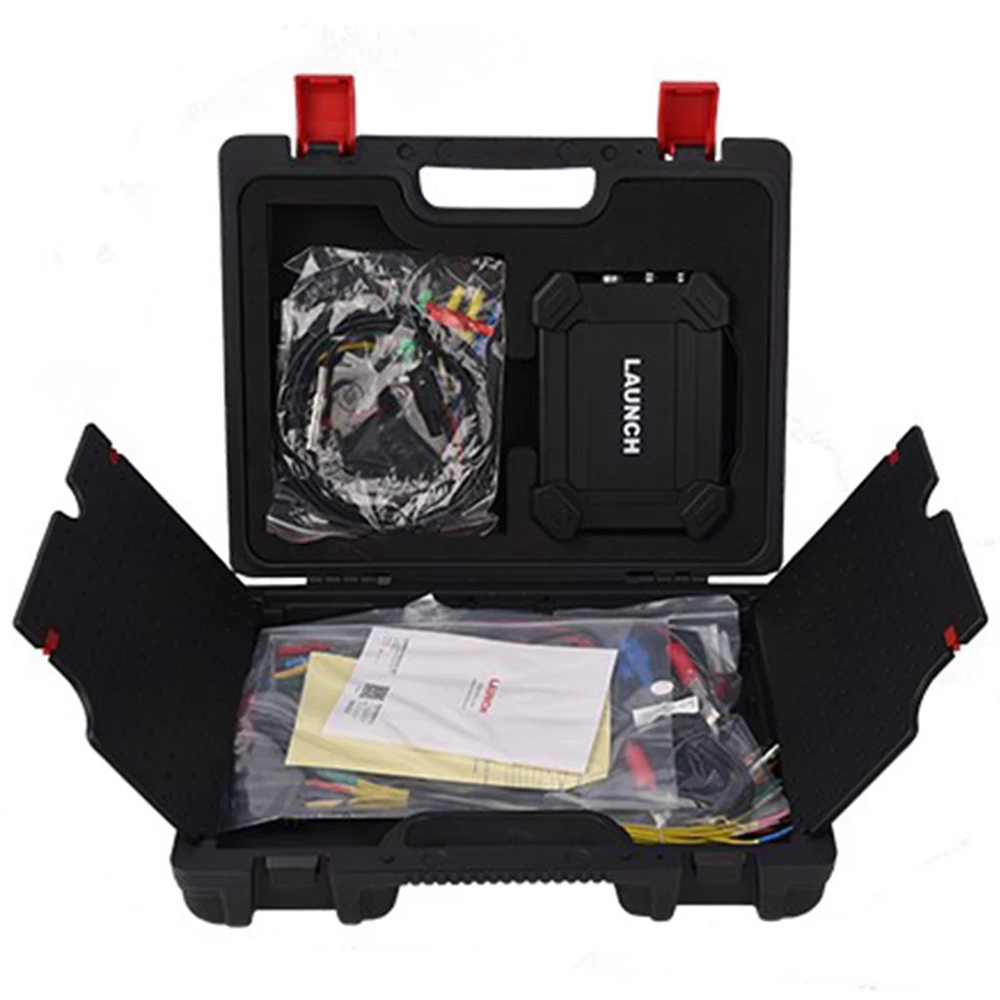

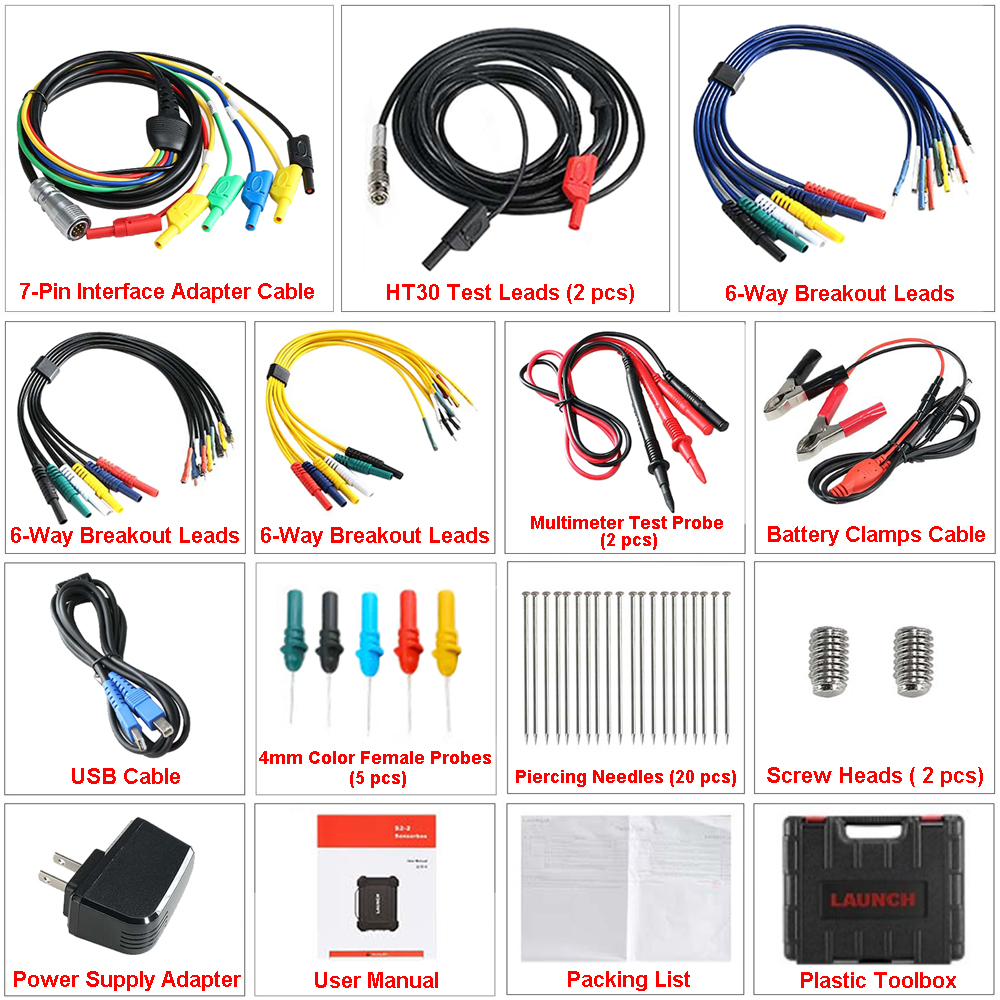

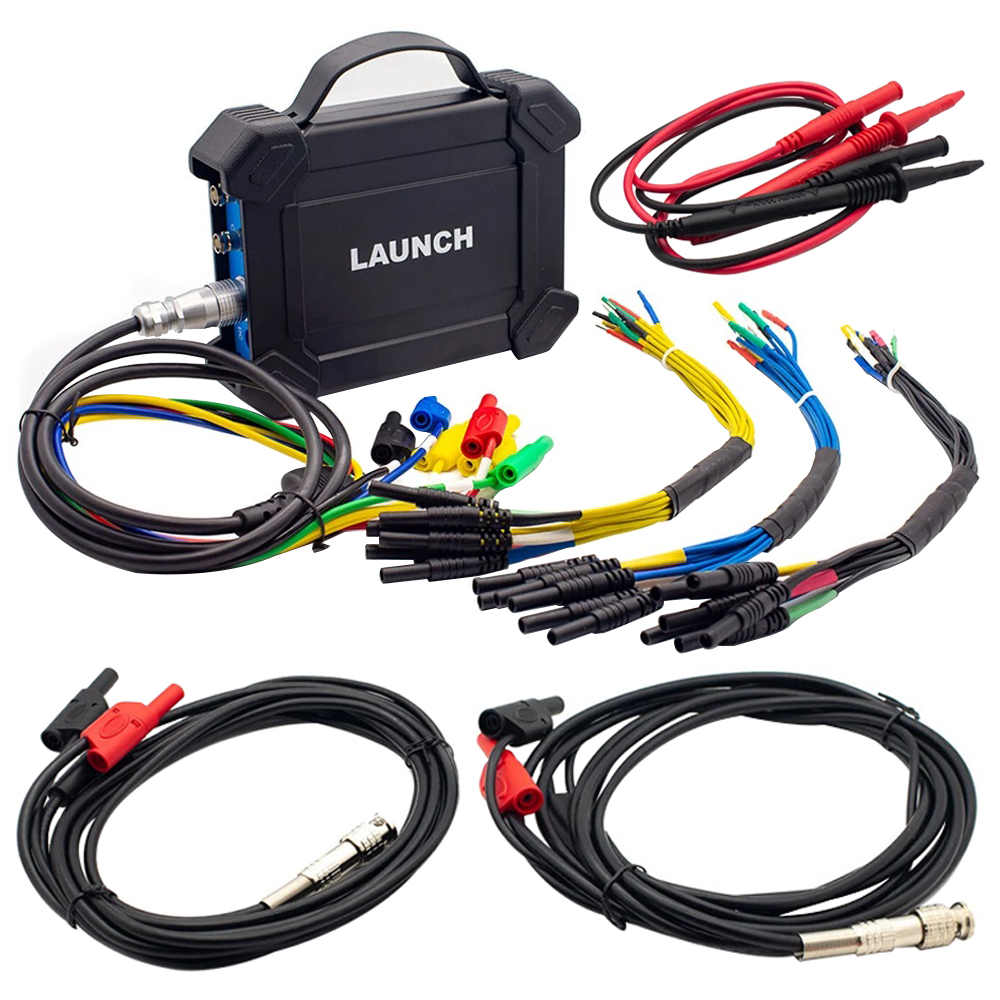

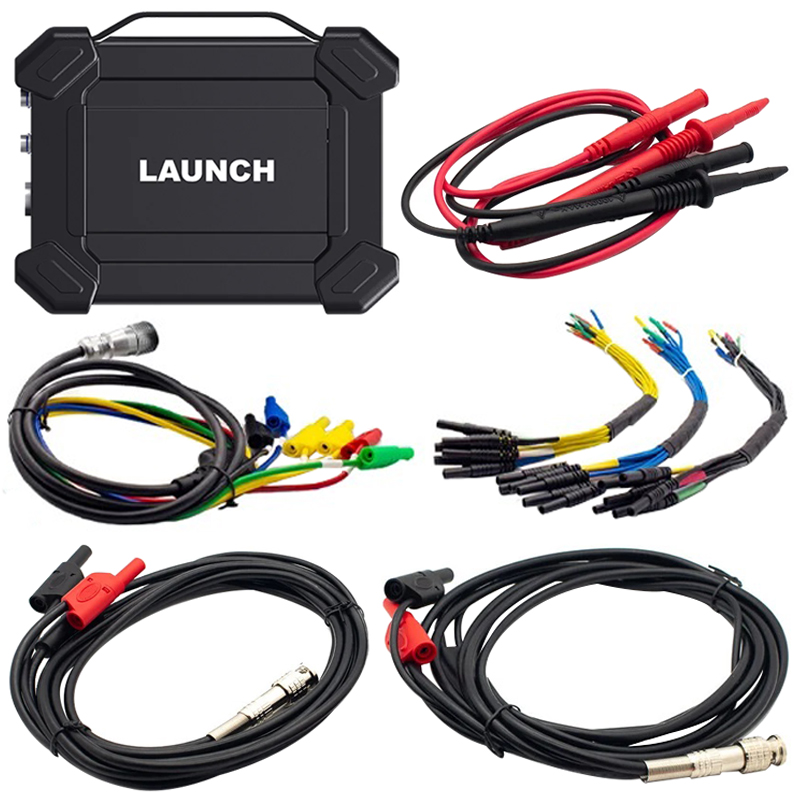

Packing List:
Launch X431 S2-2 Sensor Box 2 Channels Oscilloscope
7-Pin Interface Adapter Cable
HT30 Test Leads (2 pcs)
6-Way Breakout Leads (3 pcs)
Multimeter Test Probe (Black+ / Red- ) (2 pcs)
Battery Clamps Cable
USB Cable
4mm Color Female Probes (5 pcs)
Piercing Needles (20 pcs)
Screw Heads ( 2 pcs)
Power Supply Adapter
User Manual
Packing List
Plastic Toolbox
Packing Box
|
