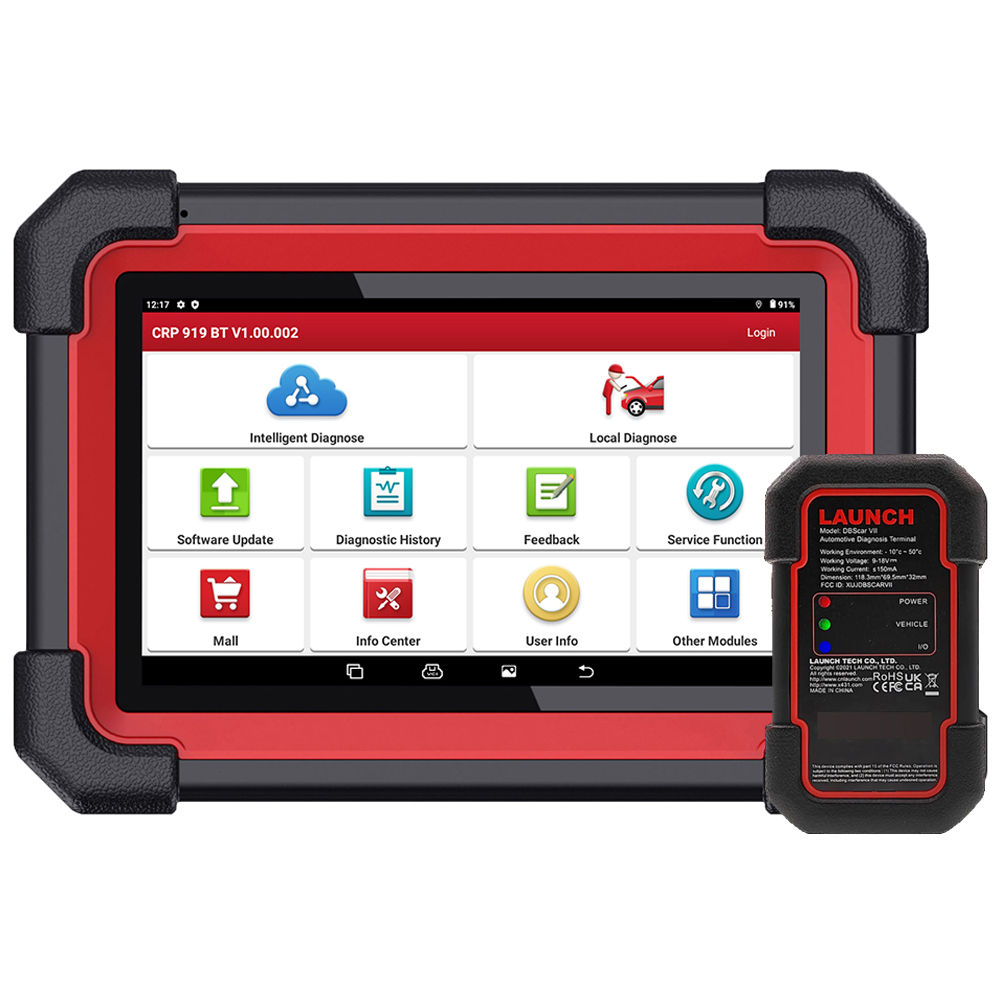

Name: Launch CRP919E BT Diagnostic Scanner Supports CAN FD DoIP and ECU Coding



Description:



Launch CRP 919E BT is a new generation of 7-inch automotive intelligent diagnostic equipment with superior hardware and super performance. Launch CRP919E BT adopts 2.0GHz 4-core high-efficiency processor and 4GB RAM + 64GB ROM large storage based on Android 10.0 system and is equipped with a high-endurance battery, which make diagnosis faster, more stable and more durable; Launch CRP919E BT is equipped with the latest DBScar VII Bluetooth Diagnostic Connector for wireless communication.



Supported Languages:



English,  French, Spanish, Portuguese, German, Italian, Russian, Turkish, Arabic, Dutch, Polish, Greek, Hungarian, Danish, Korean, Persian, Serbian, Finnish, Swedish, Czech, Japanese, Simplified Chinese, Traditional Chinese



Software Update: 2 years free update online (USD165/year for further update)



Highlights:



1. Upgraded of Launch scanner CRP909X / XTOO D7 / FOXWELL NT809 / Autel MK808S...

2. Comes with DBScar VII Bluetooth Adapter for wireless communication, Bluetooth version of Launch CRP919E.

3. All System Diagnosis + 31 Reset Service + FCA Auto Auth

4. Active Test ( Bi-Directional Test)

5. ECU Online Coding (same coding function as Launch X431 V/V+) to activate hidden functions.

6. Support CAN FD & DOIP

7. One-click AutoVIN & AutoScan with Diagnosis Report, Online Repair Resources.

8. 4 in 1 Live Data Graph, Record and Playback Live Data

9. Code Search: quickly obtain the DTC definition and connects to “Google” for more online help & tips.

10. Support 100+ Car Brands

11. Compatible with Launch X431 BST360 Bluetooth Battery Tester and X431 TSGUN TPMS.

12. Supports over 115 car brands and 10000+ models.



Functions:



1. ECU Coding

1). ECU Online Coding:

Online Coding functions directly connect to OEM server, quickly obtain the OEM online data from the server when the code data is lost, but ONLY compatible with VW/ Audi/ Skoda/ Seat. Such as 1. Acoustical Confirmation 2. Active Rear Spoiler 3. SiriusXM Coding 4. Digital Speedometer Coding 5. Start & Stop Button Coding 6. Remote Window Control Unlocking 7. Acoustic Pedestrian Protection 8. Active Cruise Control 9. Air Conditioning Setting Memory 10. Automatic Air Recirculation 11. Ambient Lighting Brightness...



2). Component Matching:

After replacing faulty actuators or specific parts, it is necessary to utilize this function to generate a new code and detect the new actuators, such as Matching, relearning, calibration, or initialization adaptive data for certain components. Simply adhere to the on-screen instructions to erase the original memories saved in the ECU, and input the adaptive data into designated components. LAUNCH CRP919E BT is a professional-grade diagnostic tool that will assist you in establishing stable communication between the new ECU modules with accuracy.



3). Personalization:

Unlock hidden features, deactivate annoying features.

A. Personalize Vehicle Settings

B. Unlock Vehicle Potential

C. Activate Advanced Functions,

D. Disable Certain Features.



Compatible with vehicles such as Mercedes-Benz, BMW, Porsche, etc. Such as a. Deactivating the Start/Stop function. b. Beeping when unlocking and locking. c. Disable seatbelt warning sounds. d. Mirrors automatically folding and unfolding...



4). Variant Coding(Offline Programming):

Variant Coding involves programming ECUs to accommodate different vehicle variants, such as left-hand drive or right-hand drive. In some states/countries, automatic headlight activation while driving is mandatory, resulting in yet another vehicle variant. Variant coding encompasses the activation and deactivation of software-driven functions. Compatible with Nissan, Nissan-GTR, Infiniti, Hyundai, etc.



5). Customize OE-Settings(Retrofit/Modification):

Designed to enhance vehicle performance and increase business profits, revise the default settings to modify the vehicle's original behavior, for instance, upgrade halogen fog lamps to xenon fog lamps, replace the battery with a higher capacity one, and install larger tires.x Additionally, incorporate adaptive cruise control, tire pressure monitoring system, and reversing radar through modification.



Note:



ECU Coding is NOT universally compatible with all vehicles!



2. Professional Diagnoses with All-Around & In-depth Diagnoses

LAUNCH X431 CRP919E BT automotive scanner can scan full modules like ECM(Engine), TCM(Transmission), ABS(Anti-Lock Braking System), SRS(Supplemental Restraint System), EPB(Electric Parking Brake), BCM(Body Control Module), EPS(Electronic Power Steering), HVAC(Heat, Ventilation and Air Conditioning), TPMS(Tire Pressure Monitor System Reset) and more to perform OE level diagnostics to Read Codes, Clear Codes, Smog Test, Read Live Data, Freeze Frame, EVAP Test, DTC Look Up, Detection Help, On-Board Monitor Test Mode, I/M Readiness Check, O.2 Sensor Test, Retrieve ECU Information, Matching & Adaptations, ECU Coding, Active Test, allows you to get a faster and more accurate test result on all electronic systems.



3. Extra Full OBD2 Functions

It supports OBD-ll functions to help you turn off the annoying instrument fault indicator and also can Read/Clear Codes, O2 Sensor Test, I/M Readiness, On-Board Monitor Test, Read Data Stream, Display Freeze Frame Data, EVAP System Test, Retrieve Vehicle Information (VIN, Calibration ID, Calibration Verification Numbers)



4. Supports CANFD and DoIP Protocol for 2020+ GM and Other New Car Models

1). It is the only product in this price range that is compatible with CAN-FD protocol and supports the latest Ford / GM vehicles manufactured after 2020. Adopts advanced CRC algorithms to accommodate more data from 8 to 64 bytes in the CAN frame, which runs faster than other products and reduces the risk of undetected errors to greatly enhance the user experience.



Supports Chevrolet Onix 2020-2021

Supports Chevrolet Tracker 2020

Supports Chevrolet Suburban 2021

Supports Chevrolet Tahoe 2021

Supports Buick

Supports Cadillac Escalade 2021

Supports Cadillac Escalade 2021

Supports GMC Yukon 2021

Supports GMC Yukon XL 2021

Supports Holden

Supports DAEWOO

Supports Alpheon

Supports Ravon

Supports Pontiac

Supports Saturn

Supports Hummer



2). DoIP

With Diagnostics over DoIP, diagnostics introduced over UDS are used over TCP/IP and Ethernet. This enables much higher data rates than with CAN. That makes LAUNCH CRP919E save both in terms of time and expenses in the case of complex diagnostic tasks and flash applications. Compatible with BMW (F&G chassis), Volvo models (2018 later), Land Rover & Jaguar models (2017 later).



5. Powerful Bidirectional Control (Active Tests)

Bi-Directional Control is a feature that allows for two-way communication and control between scanner and car systems. It enables drive solenoids and actuators for active testing, sending commands to the system/component to test its operating status without using the vehicle controls. By utilizing Bi-Directional Control, technicians, mechanics, car dealer, auto repair shop, DIYer or individual owner can actively monitor and control the behavior of a system, let you quickly understand whether a specific system, component, or subsystem is operating normally. It provides a more comprehensive and interactive approach to testing and troubleshooting, allowing for efficient identification and resolution of issues, pinpoint issues and greatly improve diagnostic efficiency.



Frequently-used Active Tests including: EVAP Tests / Purge Solenoid / Fuel Injector Test / Cycling A/C Clutch Relay / Cycling Abs Motor Pump  / Cooling Fan Test / Headlamp Test / Sunroof / Operate Mirrors / Turn On The Sound Horn / Turn On The Radiator Fan / Open/Close Windows / Turn On/Off The Lights / Test Door Lock Actuators / A/C Compressor Activation / Modulate The Throttle / Compression Test / Turn On/Off Front And Rear Side Acm Solenoid / Turn The Fuel Pump On And Off / Cycling The A/C / Clutch On And Off / Left Clutch Electromagnetic Coil Test / Acceleration Device Test / Oil Pressure Control Test / Dynamic Camera Aiming / Vehicle Level Position Calibration / Brake Vacuum Pump / Inlet And Outlet Valve Tests / Open Brakes Tests / Parking Brake Botors / Wheel Speed Sensor Supply/...



6. 31+ OE-Level Maintenance Functions

1). ABS Bleeding

When the ABS contains air, the ABS bleeding function must be performed to bleed the brake system to restore ABS brake sensitivity.



2). TPMS Reset

When due to the tire pressure is too low, tire leaks, tire pressure monitoring device is replaced or installed, tire is replaced and tire pressure sensor is damaged, the tire pressure resetting function must be performed to reset tire pressure and turn off the tire pressure MIL.



3). Oil Lamp Reset

Allows you to perform reset for a new calculation of engine oil life system once changed the oil.



4). Electronic Throttle Sensor Reset

To utilize the car decoder to initialize the throttle actuator so that the learning value of the ECU returns to the initial state.



5). Injector Coding

After the ECU or injector is replaced, injector code of each cylinder must be confirmed or re-coded so that the cylinder can better identify injectors to accurately control fuel injection.



6). SAS Reset

It helps clear the faulty steering angle sensor memories to reset the steering angle and plays an important role in the steering angle sensor calibration.



7). Brake-pad Reset

To deactivating and activate the brake control systems, assist with brake fluid control, open and close brake pads, and set brakes after disc or pad replacement.



8). Gear Learning

Perform gear learning for the car when the engine ECU, the crankshaft position sensor, or the crankshaft flywheel is replaced.



9). IMMO Service

To prevent the car being used by unauthorized keys, the anti-theft key matching function must be performed so that the immobilizer control system on the car identifies and authorizes remote control keys to normally use the car.



10). Battery Matching

Enables you to perform resetting operation on the monitoring unit of battery,in which the original low battery fault information will be cleared.



11). DPF Regeneration

It is used to clear PM (Particulate Matter) from the DPF filter through continuous combustion oxidation mode. Specially works for Diesel Particulate Filter system with DPF.



12). EGR Adaption

This function is used to learn the EGR (Exhaust Gas Recirculation ) valve after it is clean or replaced.



13). Suspension Matching

When replacing the body height sensor in the air suspension system, or control module or when the vehicle level is incorrect, this function can adjust the body height sensor for level calibration.



14). NOx Sensor Reset

If the NOx fault is re-initialized and the NOx catalytic converter is replaced, it is necessary to reset the catalytic converter learned value stored in the engine ECU.



15). Tyre Reset

This function is used to set the size parameters of the modified or replaced tire.



16). Windows Calibration

This feature is designed to perform door window matching to recover ECU initial memory.



17). Stop-start Reset

This function is used to open or close the automatic Start/Stop function via setting the hidden function in ECU (The precondition is the vehicle equipped with hidden function and hardware support.).



18). AC Initialization

AC system relearn/initialization must be performed when the vehicle AC ECU or actuator is replaced or the ECU memory is lost.



19). AdBlue Reset

After the diesel exhaust treatment fluid (car urea) is replaced or filled up, the urea reset operation is required.



20). AFS Headlamp Reset

This function enables you to initialize the adaptive headlamp system.



21). A/F Reset

This function is applied to set or learn air/fuel rate parameters.



22). Gearbox Reset

This function enables you to complete the gearbox self-learning to improve gear shifting quality



23). Coolant Bleeding

Use this function to activate the electronic water pump before venting the cooling system.



24). Transport Reset

To lower vehicle power consumption, user may perform the following operations: limit vehicle speed, not wake up the network for door open and disable remote key, etc. In this case, deactivating the transport mode is needed to recover the vehicle being normal.



25). Seat Calibration

This function is applied to match the seats with memory function that are replaced and repaired.



26). High Voltage Battery Detection

This function is used for high voltage battery diagnosis and status information detection.



27). Sunroof Initialization

This function enables you to set the sunroof lock off, closed when it rains, sliding / tilting sunroof memory function, temperature threshold outside the car ,etc.



28). Engine Power Balance Monitoring

This function is used to monitor crankshaft acceleration in the power stroke of each cylinder, to determine the relative power provided by each cylinder.



29). Language Change

This function is used to change system language of vehicle center console.note:you need to have language pack to do language change



30). Gas Particulate Filter (GPF) Regeneration

This function is used to perform the GPF replacement or regeneration after the fuel consumption is increased and engine output power is reduced resulting from a long time service of the GPF.



31). Intelligent Cruise Control System Reset

This function is used to matching the intelligent cruise control module after it is replaced or repaired.



Note:



1). Available maintenance functions vary depending on the vehicle make, year, and model.



2). Not only you can find 31 common Special Reset in "Service Function" application on home page, but you can also find more Special Reset on "Local Diagnose" > "Choose brand&year" > "Automatically Search" > "System Selection" > "ECM/BMC/..." > "Special Function", you will find more than 100 hidden advanced functions under vehicle menu totally. Such as ECU Configuration, Seat Weight Sensor Calibration, Language Change, A/F Settings, Fuel Alcohol Composition Reset, EVAP Test, Reset Control Unit, Rain/Light Sensor, A/C Relearn, VGT Relearn, FRM Reset, Clutch Adaptation, Speed Limit, Electronic Pump Activation, Disable Transportation, Performance Tire Upgrade...



7. 8-in-1 Live Data Stream

Launch CRP919EBT can combine 8 graphs in one page which will allows you to see what happened at what time and in relation to what else you are interested in, such as Fuel Pressure, Battery Voltage, Cylinder Misfire Data, Long/Short Fuel Trim, Engine RPM, etc. And You will easily focus on any symptom-specific or suspicious data parameters, the automotive diagnostic scanner allows maximum of 4 live data streams to be merged in one graph, Launch CRP919EBT also supports exporting data as CSV file, which can and save for a long time and share to pc, helping you further check potential problems of the vehicle.



8. IMMO Key Programming

Add/Delete New Fobs + Keyless Remote + Disable Lost Keys + Rewrite Smart Keys + Replace Knob Ignition



Note:



IMMO Keys function is designed for Asian vehicles that have low-grade anti-theft systems. If you need professional programming tool, you can consider Launch IMMO Plus Key Programmer. To check compatibility.



9. VAG Guided Function

With VAG Guide Functions, CRP919EBT can skip the security access code & channel number to make step by step Instruction to perform complex functions such as special functions, ECU coding and more, compatible with Audi/Volkswagen/Skoda/Seat, etc.



10. Battery Voltage Test

Detect the battery voltage in real-time figure on the right top of the Launch CRP919EBT tool to ensure the system is operating in good condition. Change or replace the battery when it is below the normal value.

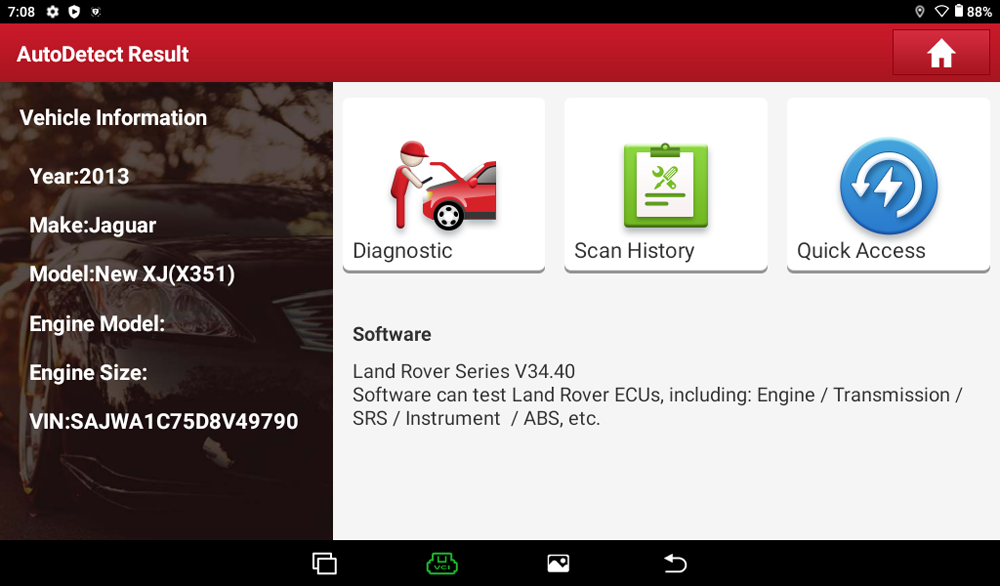

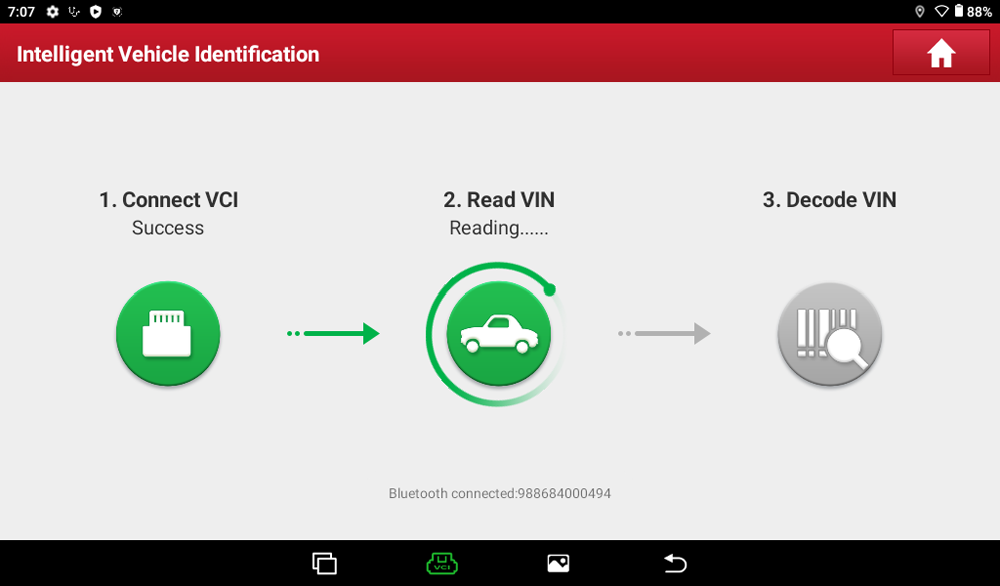

11. Auto VIN & Auto Scan

Launch CRP919EBT bidirectional scan tool adopts the latest VIN-based Auto VIN Technology that enables auto technicians or home mechanics to identify vehicle information at a single touch, like Brand, Year, Make, Model, etc. With the Auto VIN and Auto Scan feature combined, CRP919EBT can perform comprehensive diagnostics accurately and efficiently.



Note:



Auto VIN function can NOT work on all cars. You can always navigate your vehicle through the menu manually to perform diagnostics and services.



12. Programmable Module Installation

This function is for Ford/Lincoin/Mazda, etc. When you replace or initialize a new/used module for Ford/Lincoln/Mazda, Launch CRP919EBT scanner allows you to copy the data from the original module and install it to the new unit to finish the module replacement.



13. Online Repair Source

It offers online repair guidance options including Operation Tips, DTC Help, Technology Handbook, Relevant Cases and more.

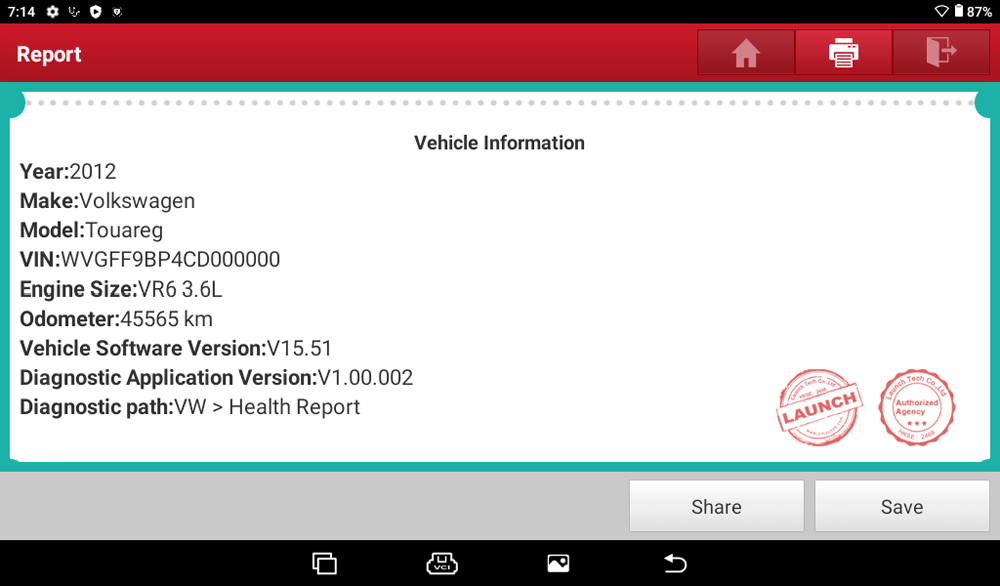

14. Share Report via Wi-Fi & Print Report

Rather than taking the additional hassle, with this LAUNCH scanner, you would easily be able to share the diagnostics report to your clients or technicians via Wi-Fi (Email Address) . They would take a look at the full, clear, accurate diagnostic report, and then understand what would need to be done. No more Googling unreliable fixes that would waste your energy.



15. Health Report & Feedback

Launch CRP919EBT can automatically generate Health Reports via one-click, the scanner will carry out in-depth inspections and calibrations for your vehicles, and you can send share, print via email, or local save the report in scanner.



LAUNCH CRP919EBT allows you to submit online feedback of your diagnostic problems to LAUNCH for analysis and troubleshooting. You can submit the detailed failure description to get valuable solutions.



16. Built-in Google Browser

Built-in Google browser that allows you to connect to Internet and search for resources online, making work more easier and convenient.



Supported Cars:



Europe

ABARTH, ALFA ROMEO, AUDI, BENTLEY, BMW, BUGATTI, CITROEN, DACIA, IZH, EURO FORD, FERRARI, FIAT, GAZ, OPEL(SOUTH AFRICA), IVECO, JAGUAR, LAMBORGHINI, LANCIA, LANDROVE, MASERATI, MAYBACH, MERCEDES, MINI, OPEL, PEUGEOT, PORSCHE, RENAULT, ROLLSROYCE, ROVER, SAAB, SEAT, SKODA, SMART, SPRINTER, VAUXHALL, VAZ, VOLVO, VW, ASTON MARTIN, VW_CV



Asia

ACURA, DAEWOO, DAIHATSU, HOLDEN(AUSTRALIA), HONDA, HYUNDAI, INFINITI, ISUZU, KIA, LEXUS, LUXGEN, MAHINDRA(INDIAN), MARUTI(INDIAN), MAZDA, MITSUBISHI, NISSAN, GTR(NISSAN), PERODUA, SAMSUNG, SSANGYONG, SUBARU, SUZUKI, TATA(INDIAN, TLISUZU, TOYOTA



America

BUICK, CADILLAC, CHEVROLET, CHRYSLER, DODGE, FIAT(BRAZIL), FORD, GM, JEEP, LINCOLI, GM(BRAZIL)



Optional Compatible Accessories:



1. Launch X431 VSP600 Video Scope

VSP- 600 Video Scope can check unseen parts of the engine, fuel tank, braking system, etc.; Helps technicians to check issues on unreachable area in a vehicle. With 6 levels light strength, technicians can easily adjust the brightness according to the environment. It works with LAUNCH X-431 scanners or any Android device and streams live video on it. Technicians can view, record and save images and videos



2. Launch X431 BST360 Bluetooth Battery Tester

Launch X431 BST360 can view the health status of the vehicle battery and electrical system. Allow you to fix battery detection faster and easier.



3. Launch X431 TSGUN TPMS Tire Pressure Detector

It works with X-431 diagnostic tools to expand new functions and generate new revenues for X-431 users, activate all 315MHz/433MHz sensors, relearn & program LAUNCH sensors.

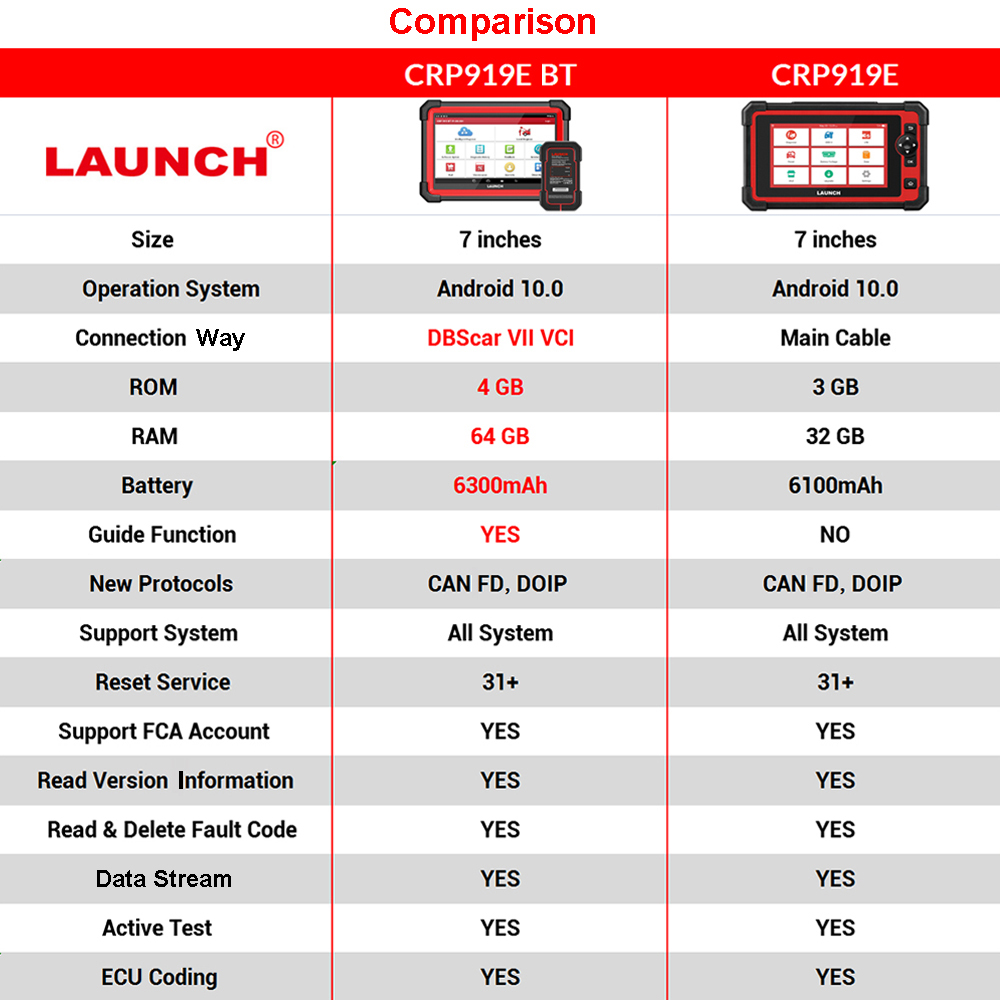

Specifications:



Operating System: Android 10.0

Processor: 2.0GHz, quad core

RAM: 4GB

Storage: 64GB

Display: 7-inch LCD screen with 1024*600 resolution

Camera: 8 megapixel rear

WiFi: 2.4GHz

Battery: 6300mAh

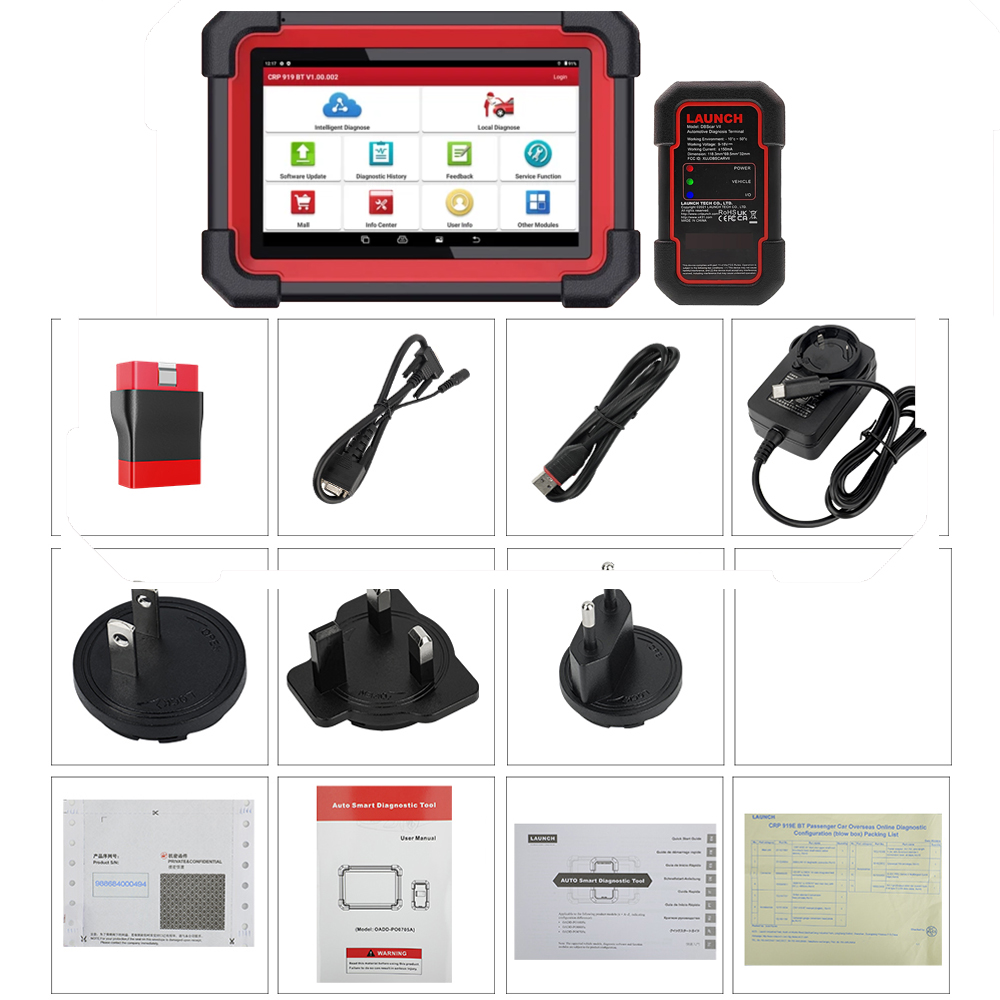

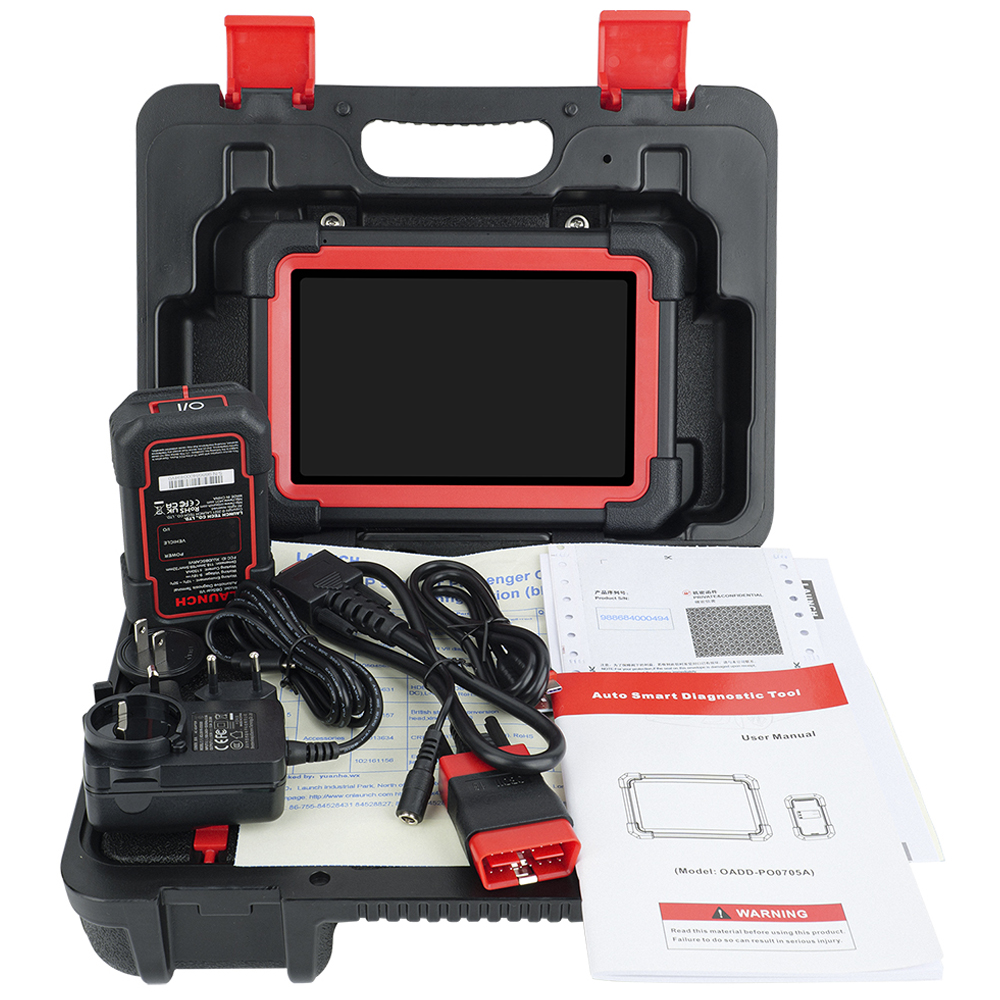

Packing List:



Launch CRP919E Bluetooth

Launch DBScar VII VCI

OBD2 Connector

OBD2 Main Cable

USB Cable

Power Adapter

Power Adapter Plug EU

Power Adapter Plug US

Power Adapter Plug UK

Password Envelope

User Manual

Quick Reference Guide

Packing List

Plastic Toolbox

Packing Box
