Description:

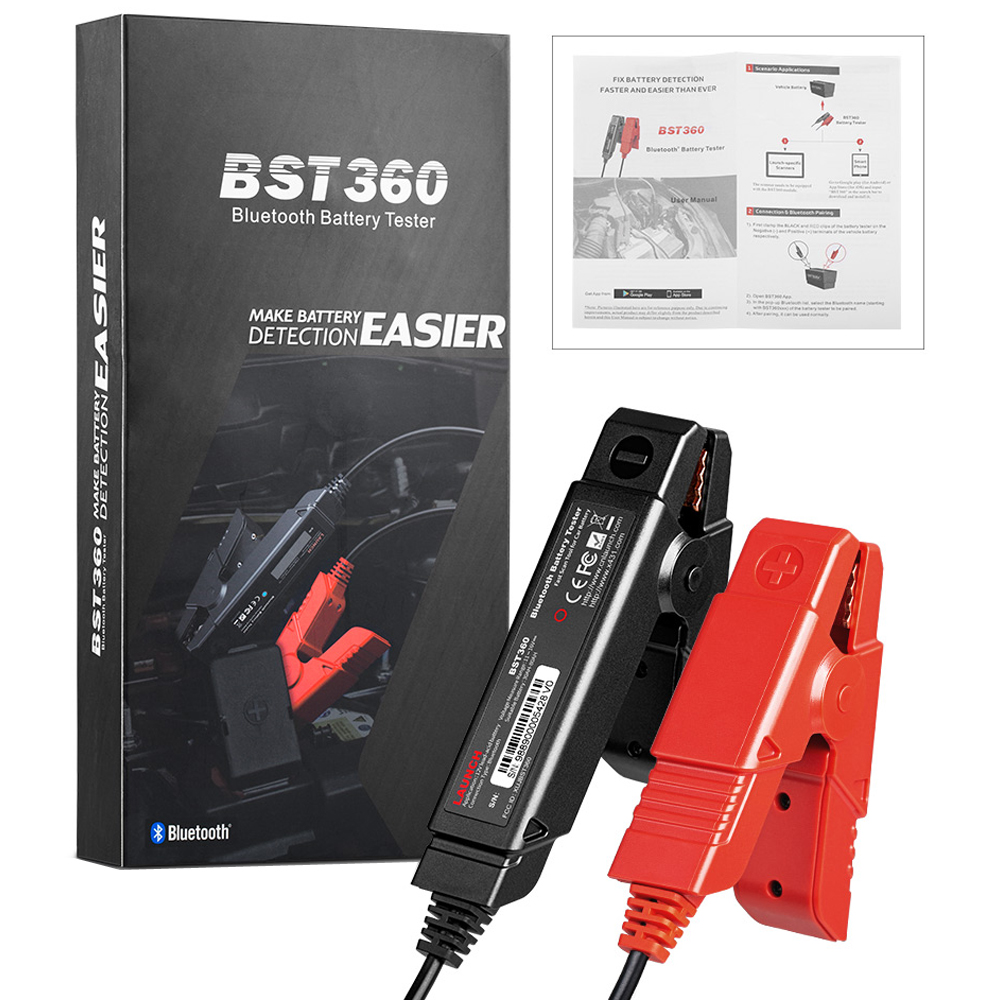

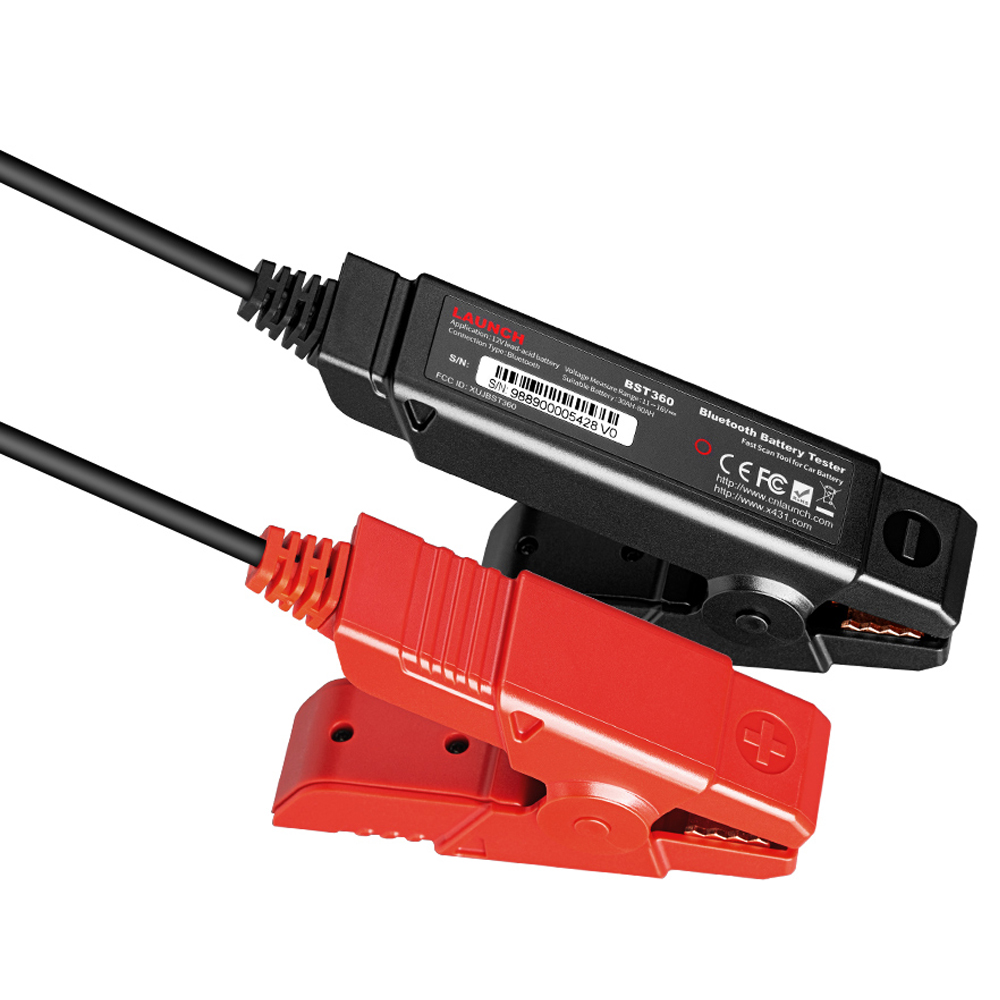

Launch BST360 is suitable for technicians and on the go consumers, is safe to use with its anti-heat characteristics and prevention against backfire electrical sparks that can occur during electrical system diagnosis.



Launch BST360’s advanced conductance testing capability that measures the accurate cold start current capacity of the vehicles battery to deliver conclusive results. Additional scope includes depicting battery health, and an overall indicator of the vehicles starting and charging system.



Launch BST-360 enables the user to identify charging system issues accurately and timely. Adding to its compact and practical usability is Bluetooth wireless technology that is able to synchronize with smart phones and Launch Diagnostic Scan Tools. It can monitor the battery health status to identify batteries that are not optimally performing within specs. Comprehensive and conclusive starting and charging system analysis to determine related faults / issues.

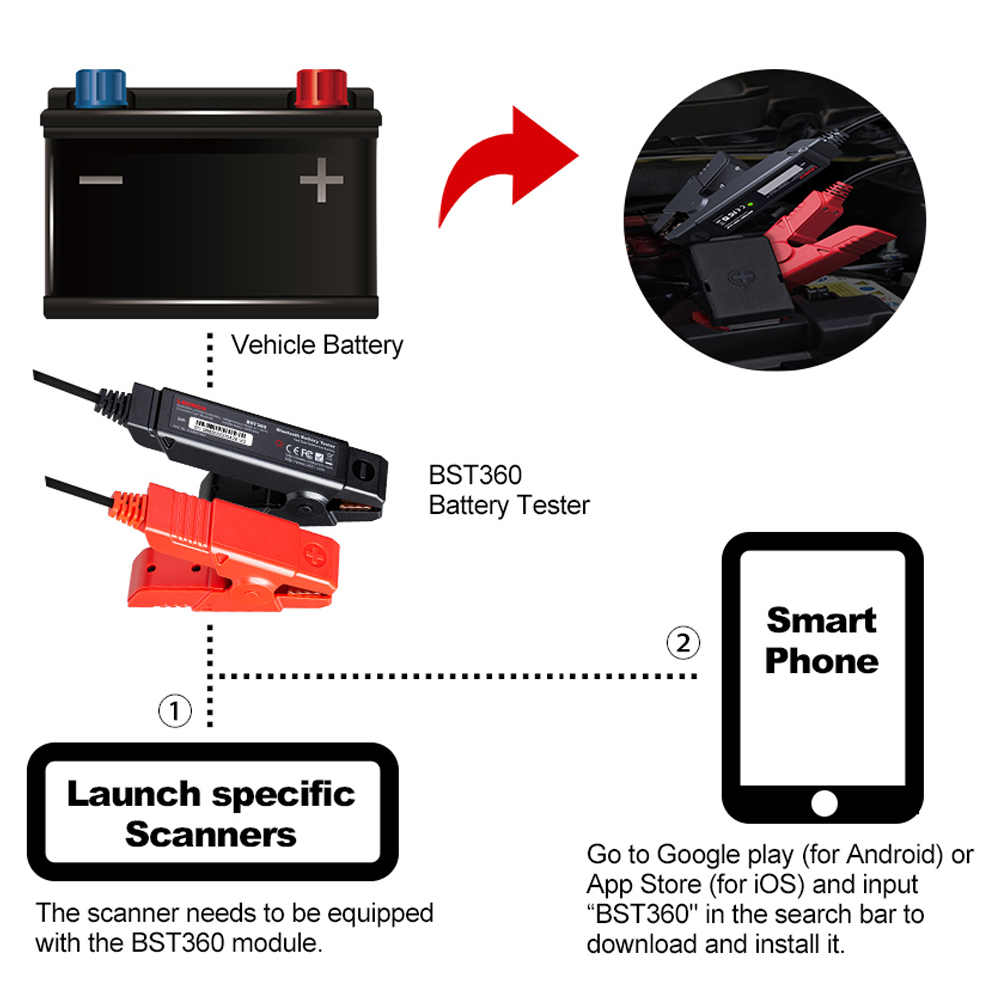

Bluetooth capability allows for a seamless synchronization with smart phones and diagnostic scan tools allowing the user to download test reports on their smart phones and diagnostic scan tools. Portable and light weight design makes this tool easy to use and store.



6 Kinds of Tests:



1. Ripple Detection

2. Battery Test

3. Electric Current Test

4. Starter Test

5. Charging System Test

6. Voltage Test



Functions:



1. Identify battery status good or replace, real-time monitor the battery health status.

2. Check Battery Capacity - Cold Cranking Amps (CCA), DIN, EN and IEC information relative to battery rating.

3.Check internal resistance value (Ohm)

3.Display battery life in percentage (%)

4.Battery Cranking Test, Load Test

5.Battery Charging Test, Ripple Test

6.Support battery ripple test and review test data



Advantages:

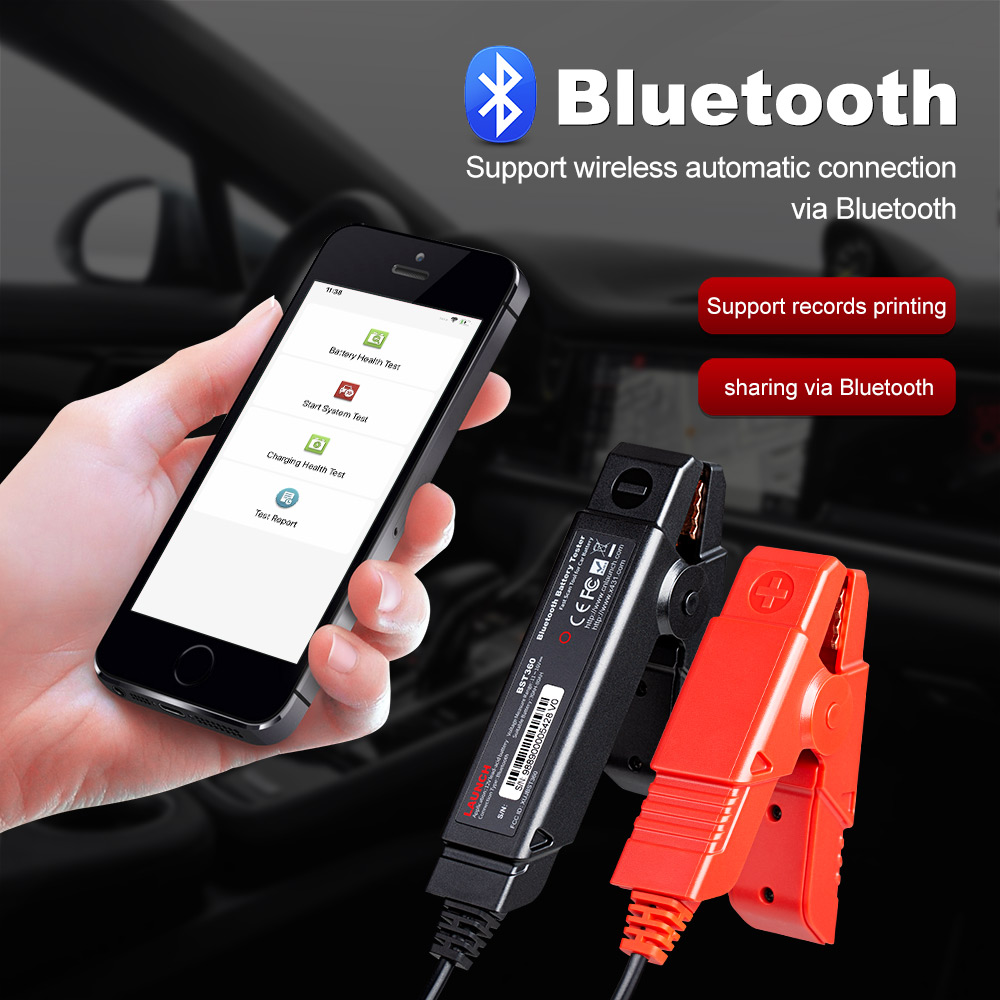

1. Support Bluetooth wireless automatic connection. Allow user to download test reports on their smart phones and diagnostic scan tools by Bluetooth wireless technology.



2. Support X431 scanners (X431 V / V+ / PRO3 / PRO3S+ / PAD / PAD II /PAD III /PAD V / PAD VII ) and mobile phones.



3. Portable small size and light weight, easy to carry.



4. Immediately use, no heat, no sparks, no operational risks.



5. Support common battery standards, such as CCA, DIN, JIS, EN, IEC, AH, SAE, BCI.



6. Support common battery types, such as ordinary battery (Regular Flooded), AMG start-stop battery (AGM Plate), GEL start-stop battery (GEL), EFP start-stop battery (EFP)



7. Support report printing, Bluetooth sharing.

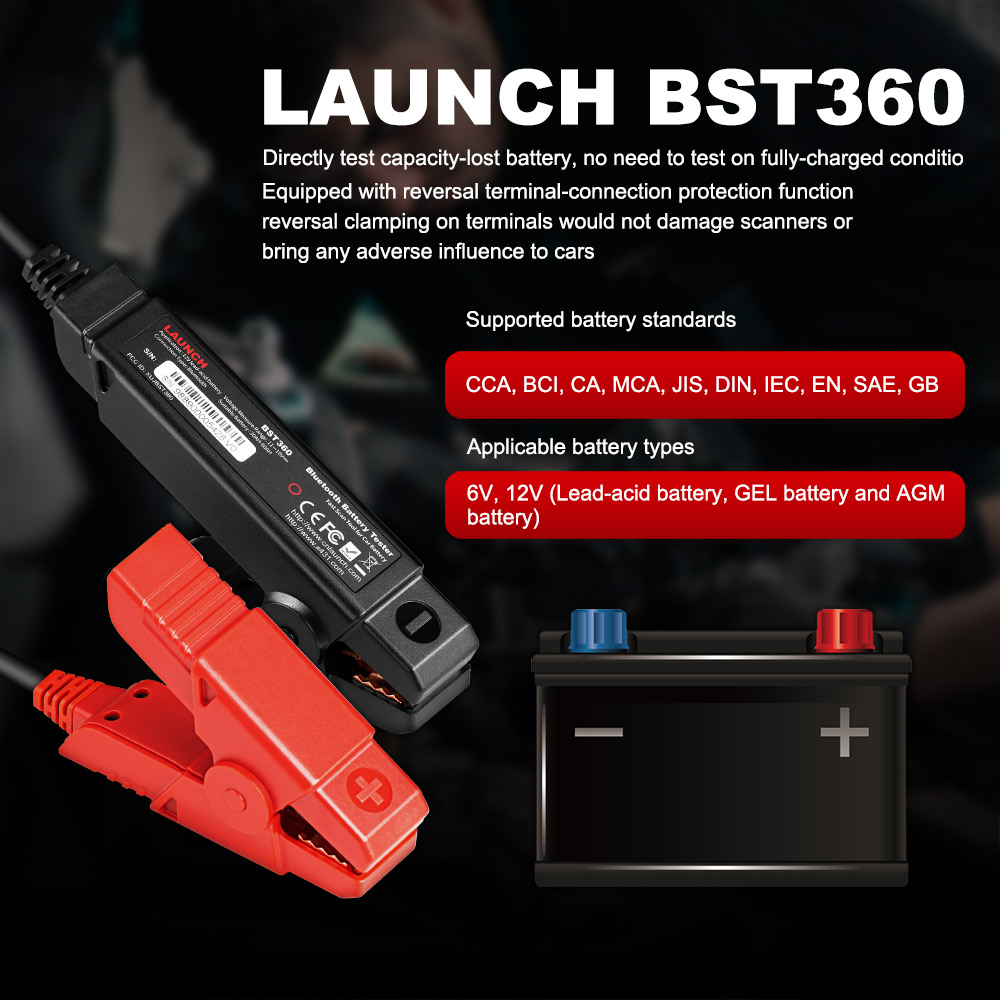

8. It has the function of reverse polarity protection, and the reverse connection of the clip will not damage the tester, nor will it have any adverse effects on the car and the battery.



9. You can directly test the battery that is losing power without having to fully charge it before testing.



Supported Test:



1. Battery Health Test

It mainly analyzes the health status of the car battery, calculates the actual cold start capacity of the battery, and judges the aging degree of the battery, so as to provide a reliable analysis basis for the inspection and maintenance of the car battery.



2. Smart System Test

It is mainly to detect and analyze the starter motor of the car, and detect the actual starting current and starting voltage of the starter motor, so that it can be judged whether the starter motor is normal.



3. Charging Health Test

Let you know the output voltage of the generator, the rectifier diode and charging current. Moreover, it analyzes the state of the charging system and battery through the above data, provide you with an accurate charging system test



4. Test Record

Including Battery Health Test, Smart System Test and Charging Health Test Report



Supported Battery Standards:



CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE, GB



Supported Languages:



English, French, German, Spanish, Portuguese, Russian, Italian, Japanese, Chinese



Compatible LAUNCH X-431 Scanners:



X-431 V, X431 V+, X431 PRO, X-431 PRO3, X-431 PRO3S, X-431 PRO5, X-431 PAD III, X-431 PAD V, X431 PAD VII



Specifications:



Connection Method: Bluetooth

Test Voltage Range: 11V - 16V

Measuring capacity range: 30Ah-80Ah

Working Temperature: -10 to 50 degree centigrade

Storage temperature: -20 to 60 degree centigrade

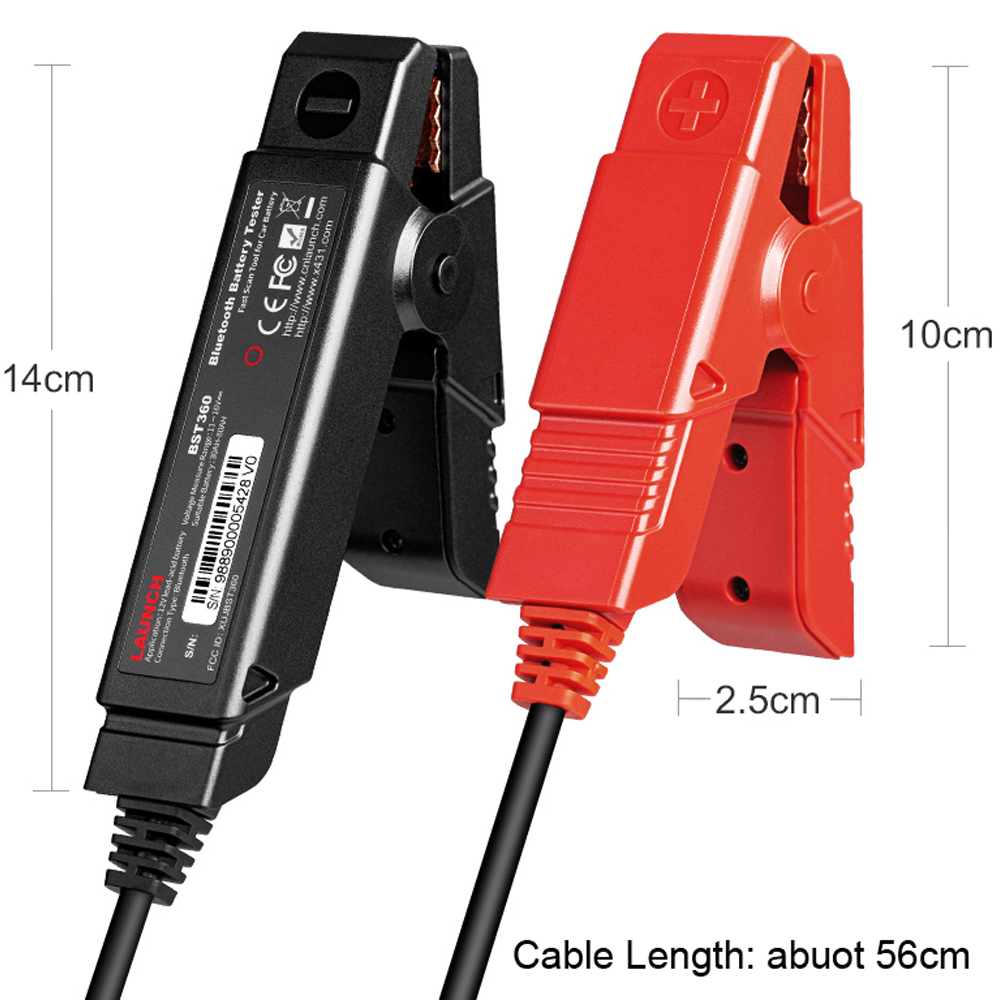

Cable Length: 56cm
