Name: Autel MX-Sensor 433MHz/315MHz 2-in-1 (4 pcs)
Description:

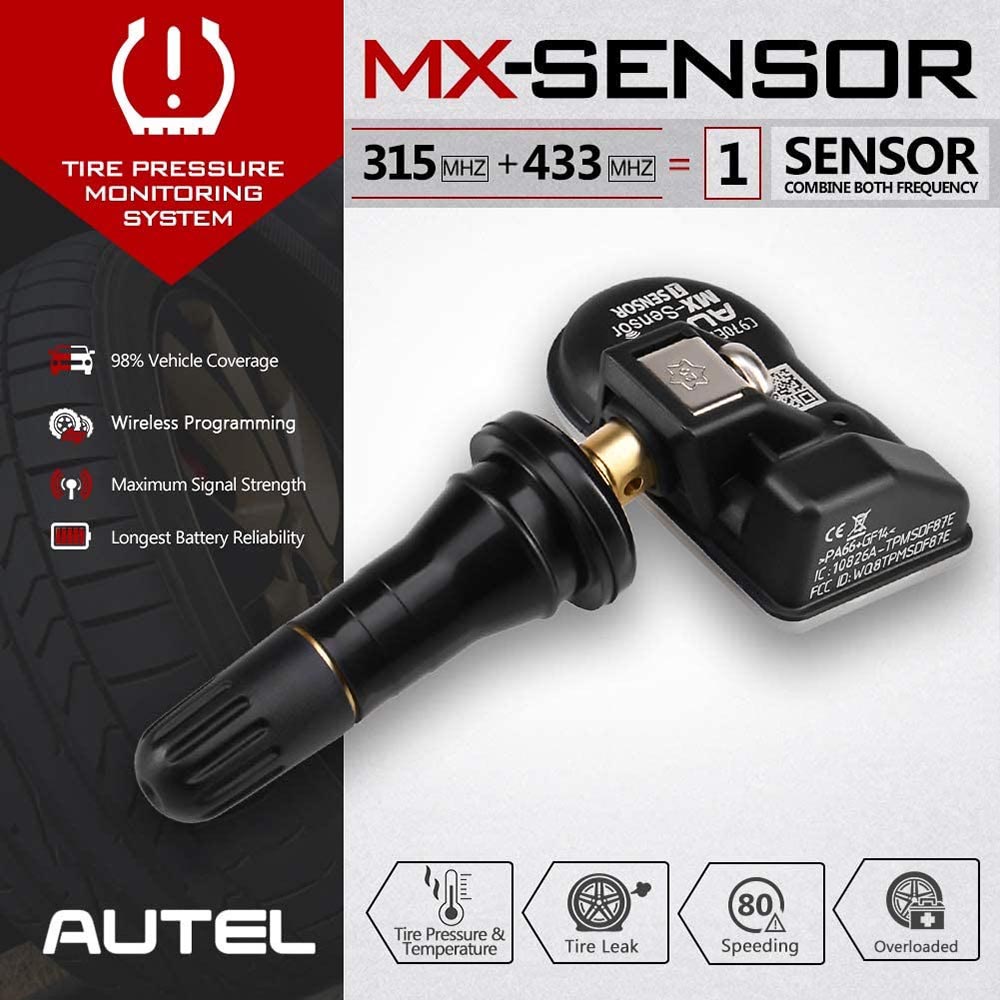

Autel MX-Sensor 433MHz and 315MHz 2 in 1 programmable universal sensor is smart and efficient and specially built for sensor replacement to perform like OE sensors. It supports up to 99% of the US and Canadian vehicles. Covers over 98% of all OE sensors on the market.
Material: Metal / Rubber
Features:
1. 99% Vehicle Coverage
2. Interchangeable Valve Stems
3. Programmable Universal TPMS
4. 2 Frequencies: 315MHz + 433MHz
5. Exclusive Press Release Button for Easy Removal

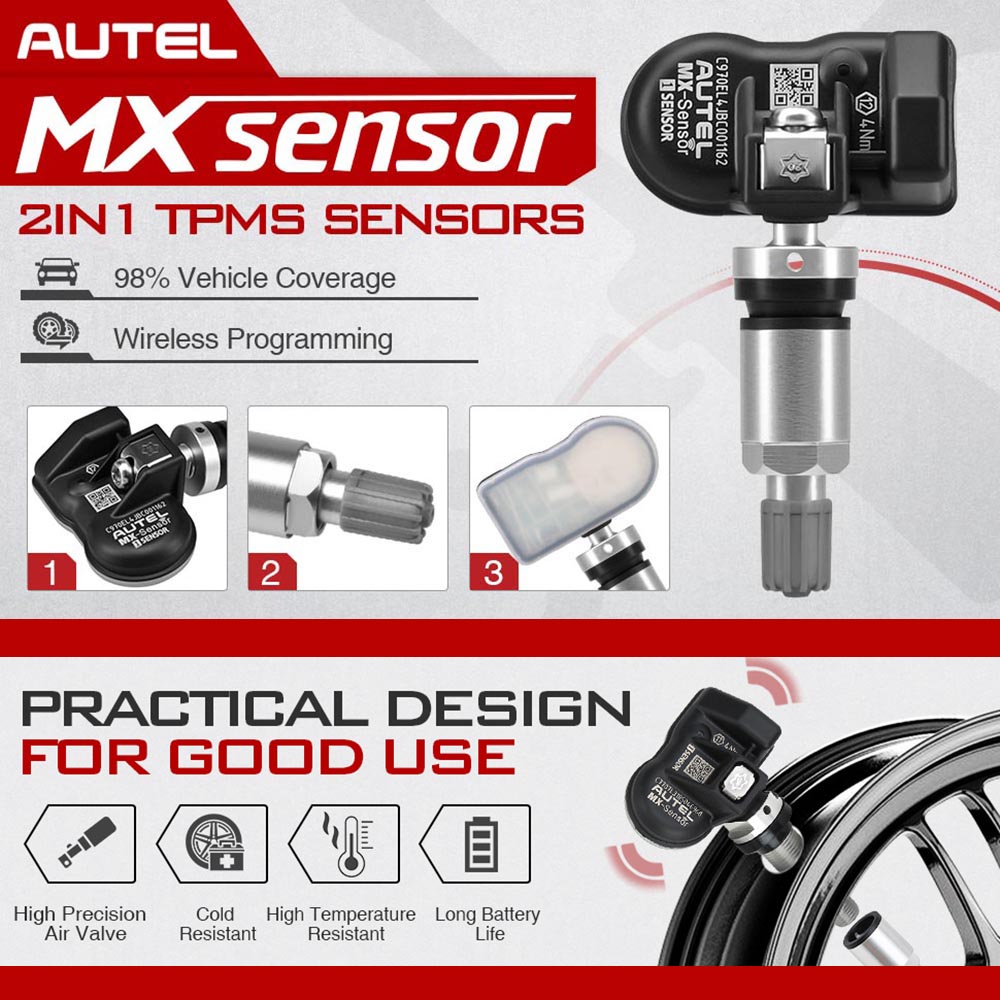

Highlights:
1. High-precision air valve to prevent air leakage.
2. Fast and simple assembly minimizes installation time.
3. Automotive battery grade to meet severe weather conditions.
4. Built to perform like OE sensor in terms of signal, durability and functionality.
5. Replaceable aluminum valve stem is anodized for corrosion resistance (for Clamp-in Sensor).
6. Robust clamp-in pivoting stem design allows for 0-35 degrees angle adjustment to fit all types of wheels (for Clamp-in Sensor).
7. 98% vehicle coverage.
Specifications:
Operating Frequency: 315MHz / 433MHz
Transmission Power: 5dBm - 8dBm
Battery: 3.0 V
Battery Life: ≥5 years
Pressure Monitoring Range: 100kPa to 900kPa
Pressure Reading Accuracy: ±10kPa
Operating Temperature: -40°C to +125°C
Storage Temperature: -40°C to +125°C
Operating Humidity: ≤90%
Temperature Reading Range: -40°C to +125°C
Temperature Reading Accuracy: ±5°C
G Sensor Reading Accuracy: ±15%

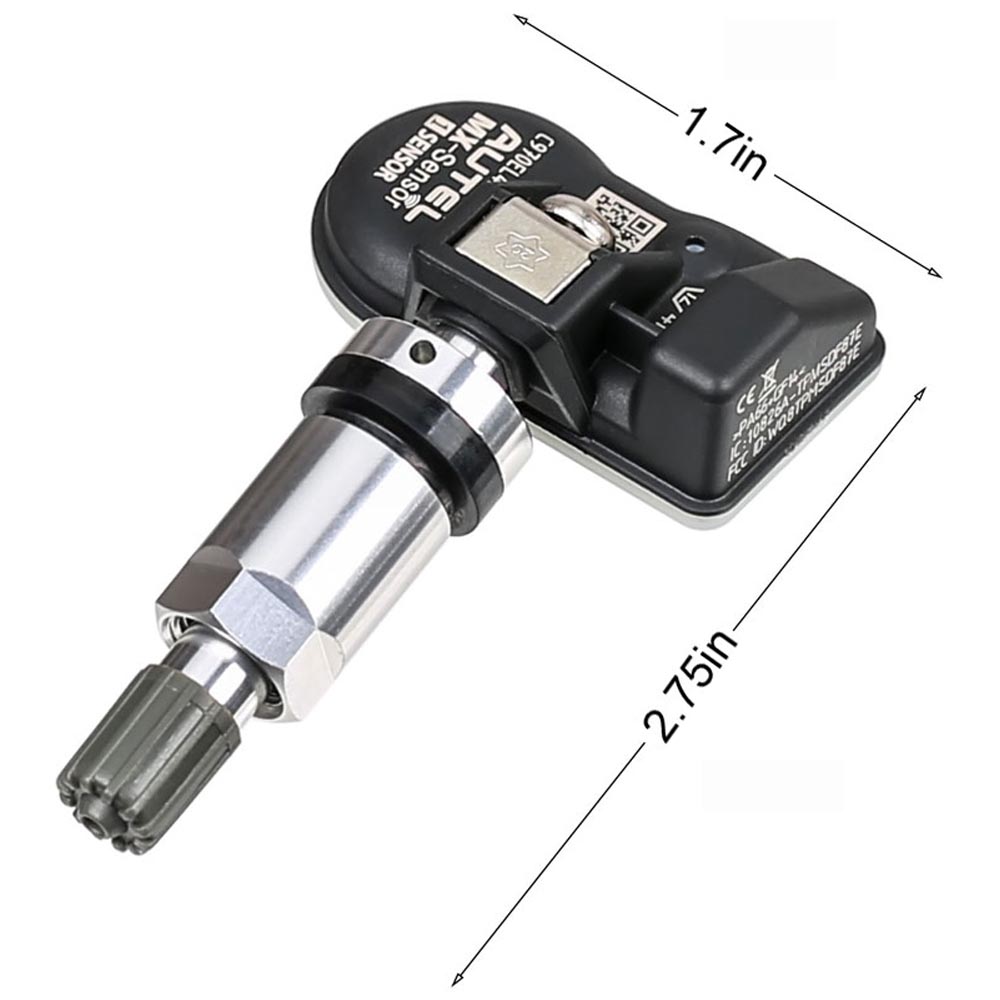

Dimensions (W*H*D): 42.2*27.9*17.4mm
Weight (Without Valve): 12g
Operation Steps:

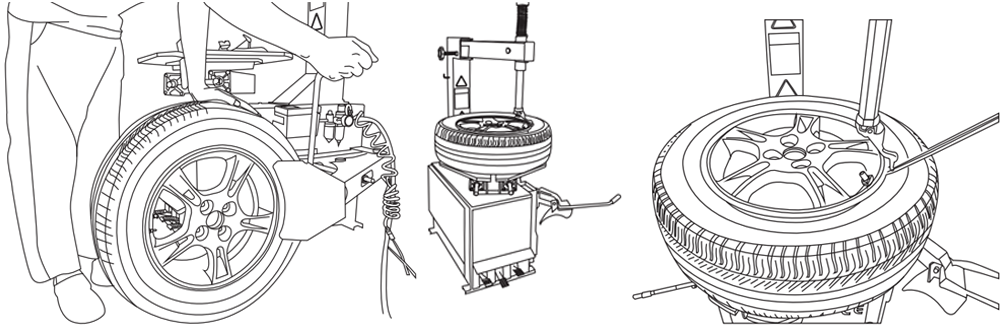

1. Loosening The Tire
Remove the valve cap and core and deflate the tire.
Use the bead loosener to unseat the tire bead.
CAUTION: The bead loosener must be facing the valve.
2. Dismounting the Tire
Clamp the tire onto the tire changer, and adjust the valve at 1 o'clock relative to the tire separation head. Insert the tire tool and lift the tire bead onto the mounting head to dismount the bead.
CAUTION: This starting position must be observed during the whole dismounting process.
3. Dismounting Sensor
Remove the screw nut from the valve stem, and then remove the sensor assembly from the rim.

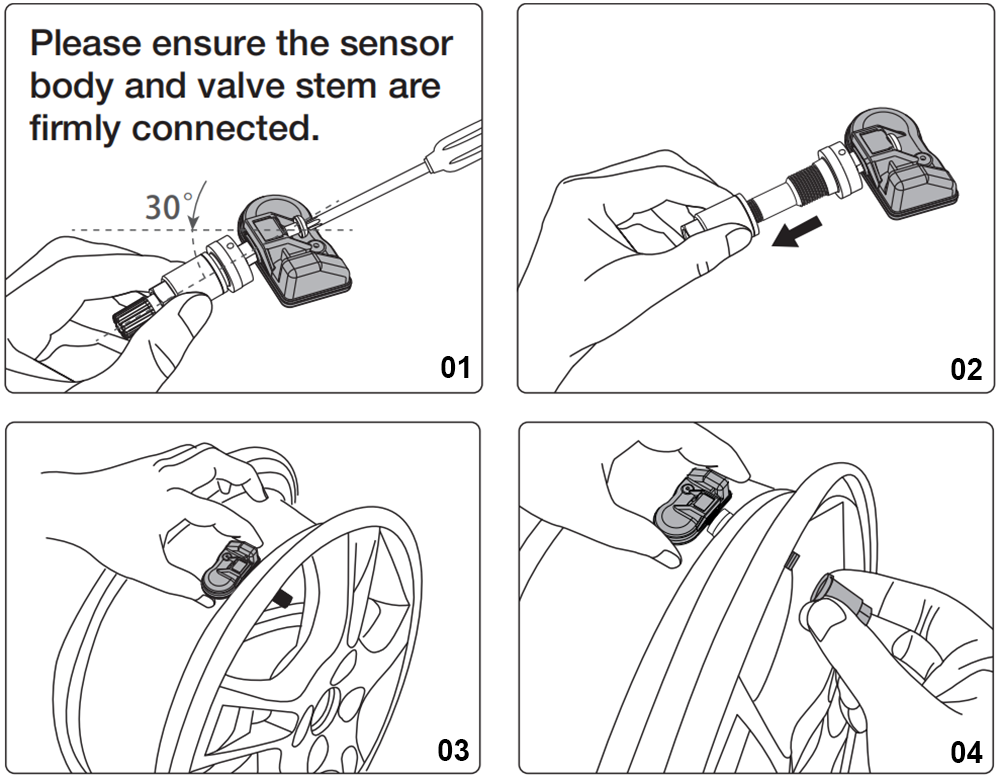

4. Mounting Sensor and Valve
01). Connect the sensor body and valve stem at a suitable angle(Normally use the maximum angle of 30 degree) and tighten the screw.
02). Remove the screw nut from the valve stem.
03). Slide the valve stem through the valve hole of the rim with the sensor on the inside of the rim.
04). Assemble the screw nut back on the valve stem with 4.0Nm power, then tighten the cap.
CAUTION: 30 degree is suitable for most rims. If the angle does not match the rim while installing in step 03, please loosen the screw then re-operate from step 01.
5. Mounting the Tire
Place the tire on the rim, make sure that the valve faces the separation head at an angle of 180 degree. Mount the tire over the rim.
CAUTION: The tire should be mounted to the wheel using tire changer manufacturer's instructions.
Important Caution:
1. The TPMS sensor assemblies are replacement or maintenance parts for vehicles with factory installed TPMS.
2. Before operating or maintaining this unit, please read these instructions carefully and pay extra attention to the safety warnings and precautions. Use this unit correctly and with care to avoid personal injury and installation failure.

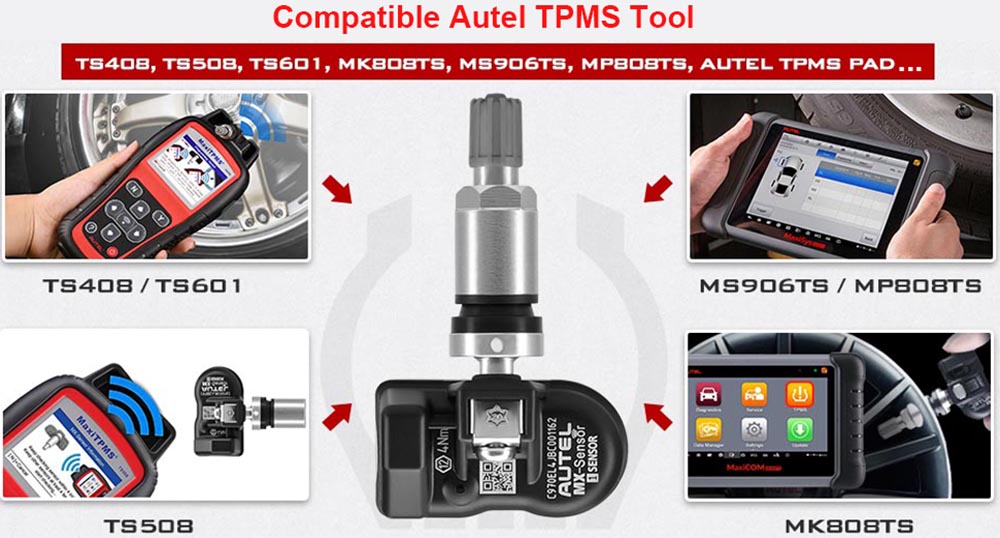

3. Make sure to program the sensors by Autel TPMS sensor programming tools by the specific vehicle make, model and year before installation.
4. Do not install programmed TPMS sensors in damaged wheels.
5. In order to guarantee optimal function, the sensors may only be installed with original valves and accessories provided by Autel.
6. Upon completing the installation, test the vehicle's TPMS following the procedures described in the original manufacturer's user guide to confirm proper installation.
Safety Instructions:
Read instructions carefully. For reasons of safety and for optimal operation, we recommend that any maintenance and repair work be carried out by trained experts only and make sure the process is in accordance with the guidelines of the vehicle manufacturer. The valves are safety-relevant parts which are intended for professional installation only. Autel does not assume any liability in case of faulty or incorrect installation of the product.

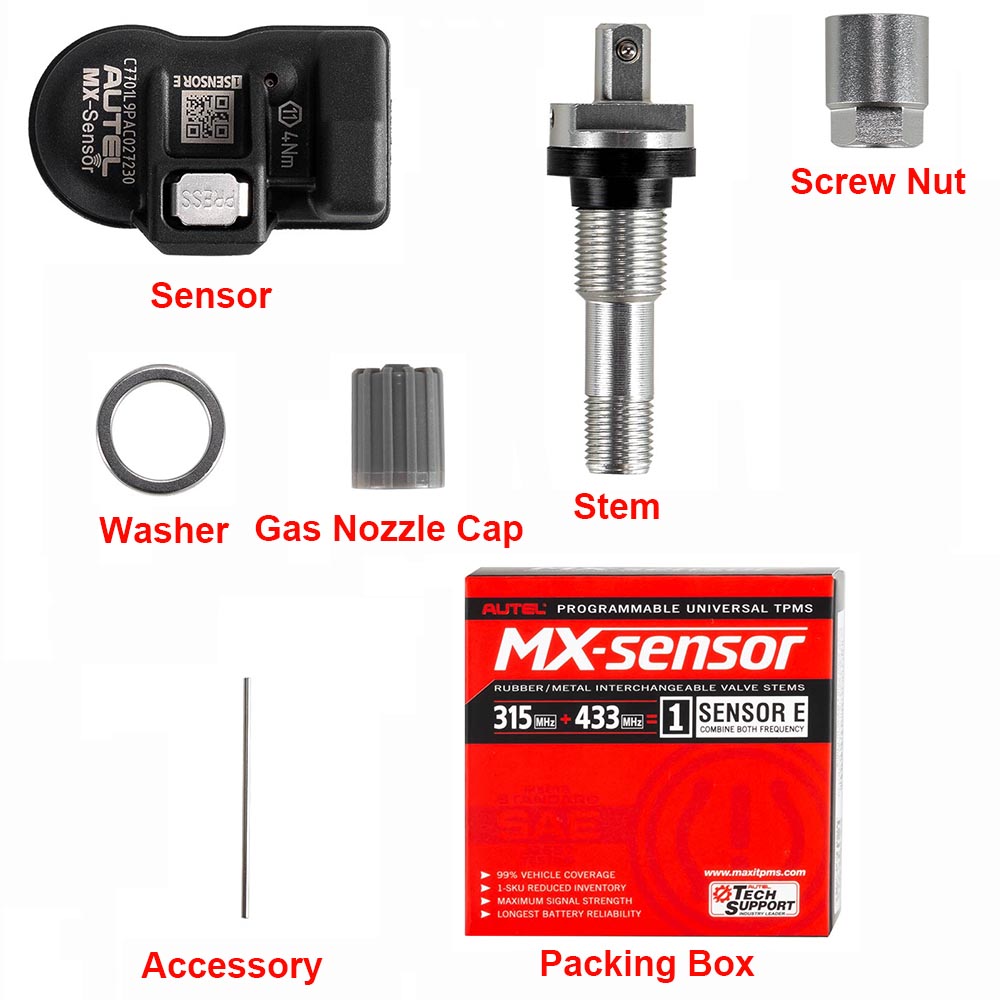

Packing List:

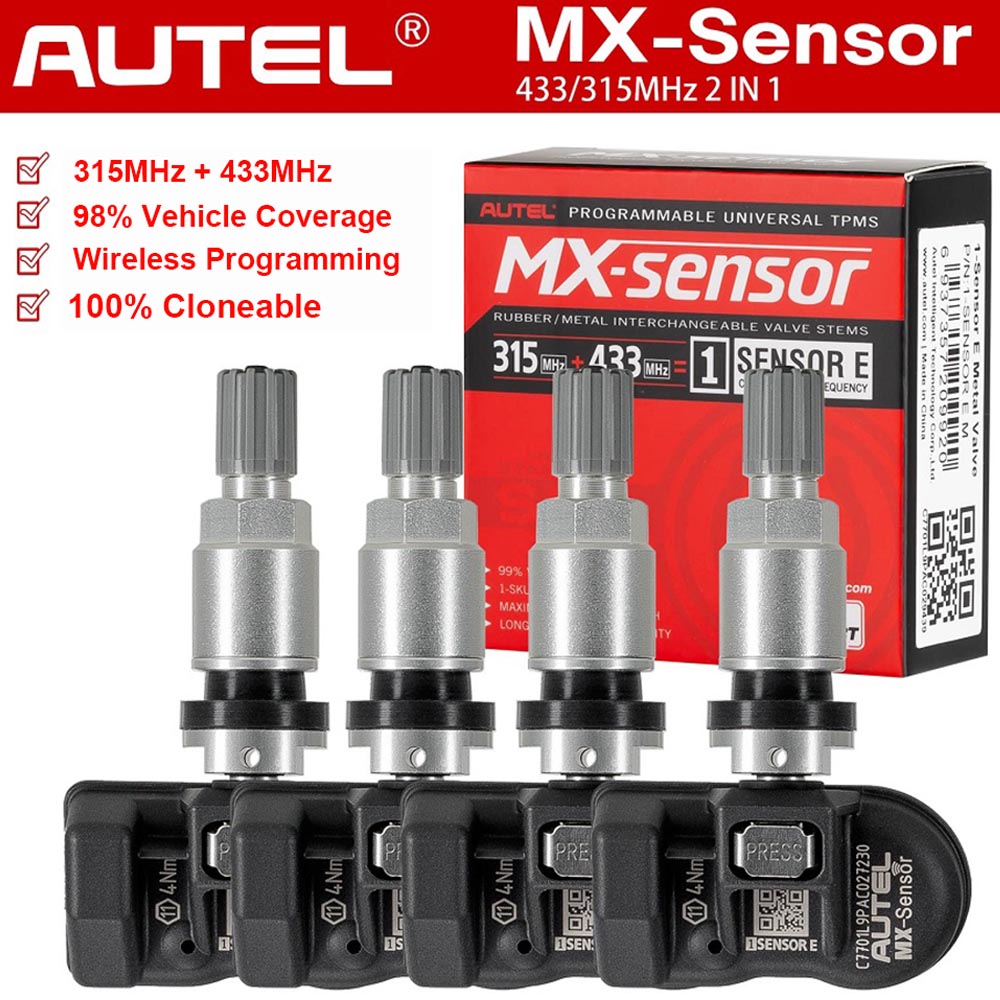

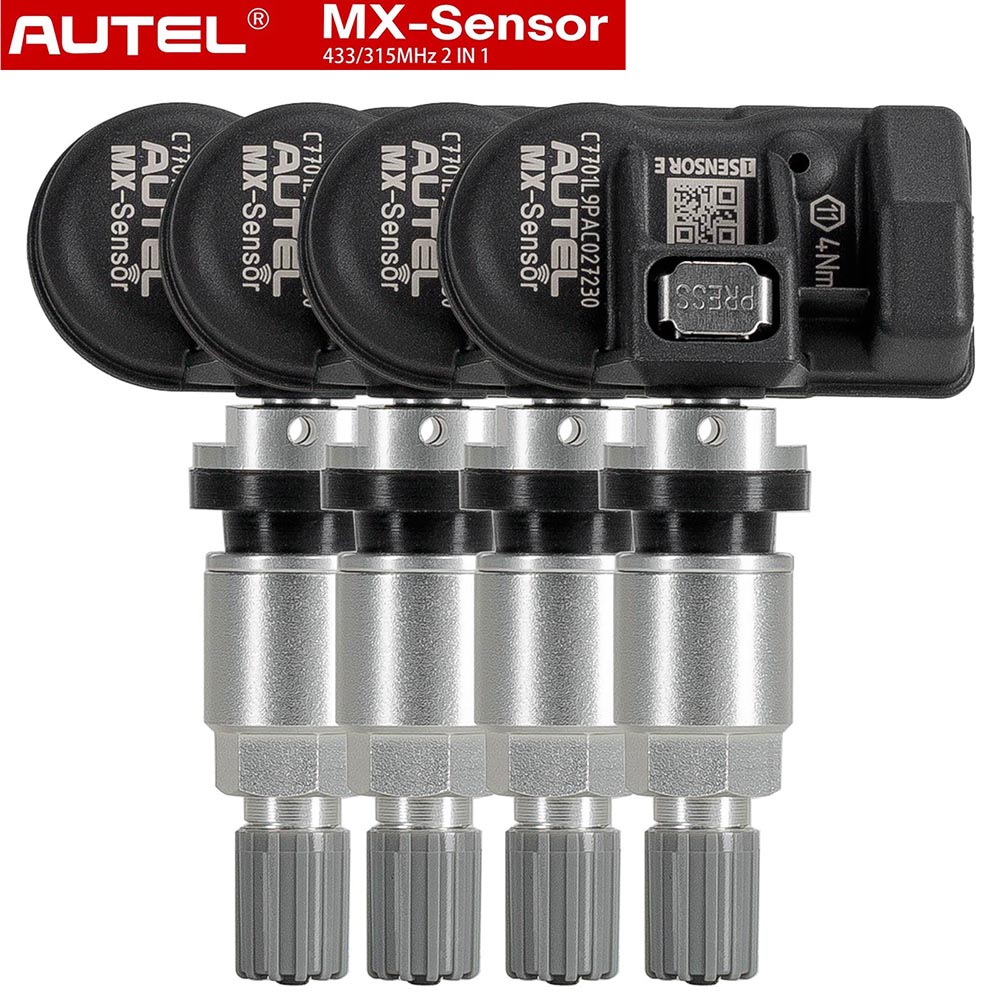

Autel MX-Sensor 433MHz/315MHz 2 in 1 (4 pcs)
 |
