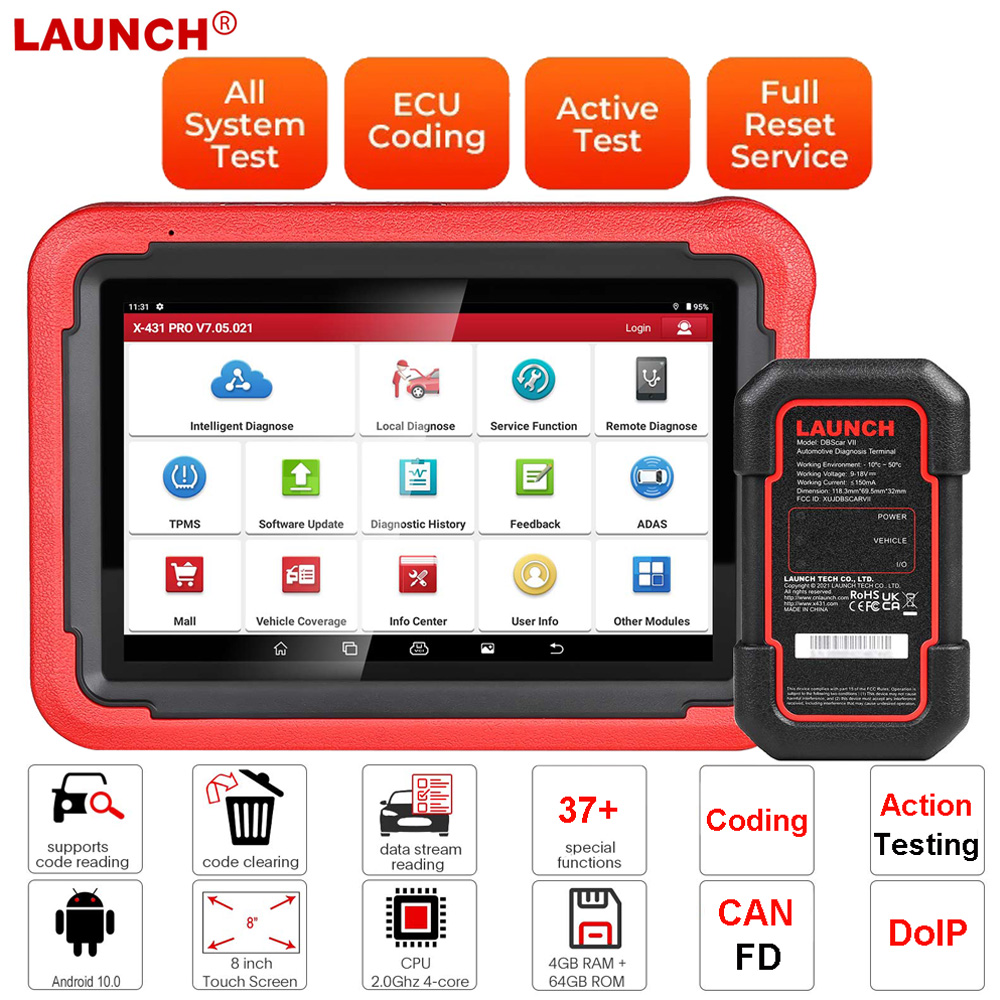

Name: Launch X431 PROS V5.0 Supports CAN FD DoIP
Description:
Launch X431 PROS V5.0 is a new generation of 8-inch automotive intelligent diagnostic tablet scanner with high configuration and super performance. The tablet scanner is developed based on the Android 10.0 system, using a 2.0GHz 4-core efficient processor, 4GB RAM + 64GB ROM large storage, and equipped with a high-end battery to make diagnosis faster, more stable and longer-lasting.
Launch X-431 PROS V5.0 can cover more than 98% of cars on the market. It supports fault diagnosis for all models and systems, and supports Code Reading, Code Clearing, Data Stream Reading, Special Functions, Action Testing, Coding, Matching and powerful diagnostic functions.
Software Update: 2 years free update online
Supported Languages:
English, Italian, German, Japanese, Russian, French, Spanish, Portuguese, Polish, Turkey, Dutch, Greek,Hungarian, Arabic, Denish, Korean, Farsi, Romanian, Serbian, Finish, Swedish, Czech.
Versions:
Global Version: for global market except EU and UK
EU Version: for EU/UK market
Highlights:
1. Higher configuration system, longer battery life, making diagnosis faster, more stable, and more durable.
2. Android 10 system, large RAM/ROM, faster speed.
3. Wide car model coverage, strong diagnostic function, supports full system diagnosis of all car models.
4. Supports full system diagnosis + 37 special functions + Auto VIN.
5. Comes with Launch DBScar VII connector for supporting CAN FD and DoIP protocols.
6. Supports VAG guided function (optional).
7. Support VIN code intelligent identification function to quickly enter diagnosis.
8. Special Functions for Coding, Service Reset, Body Adjustment, Car Angle Reset Steering, Electronic Brake Reset...
9. Remote Diagnosis with the Golo tool, expand the possibilities of your workshop(sold separately).
10. Supports TPMS function with add-on Launch TSGUN.
11. Supports key programming with add-on Launch X431 X-Prog3.
Functions:

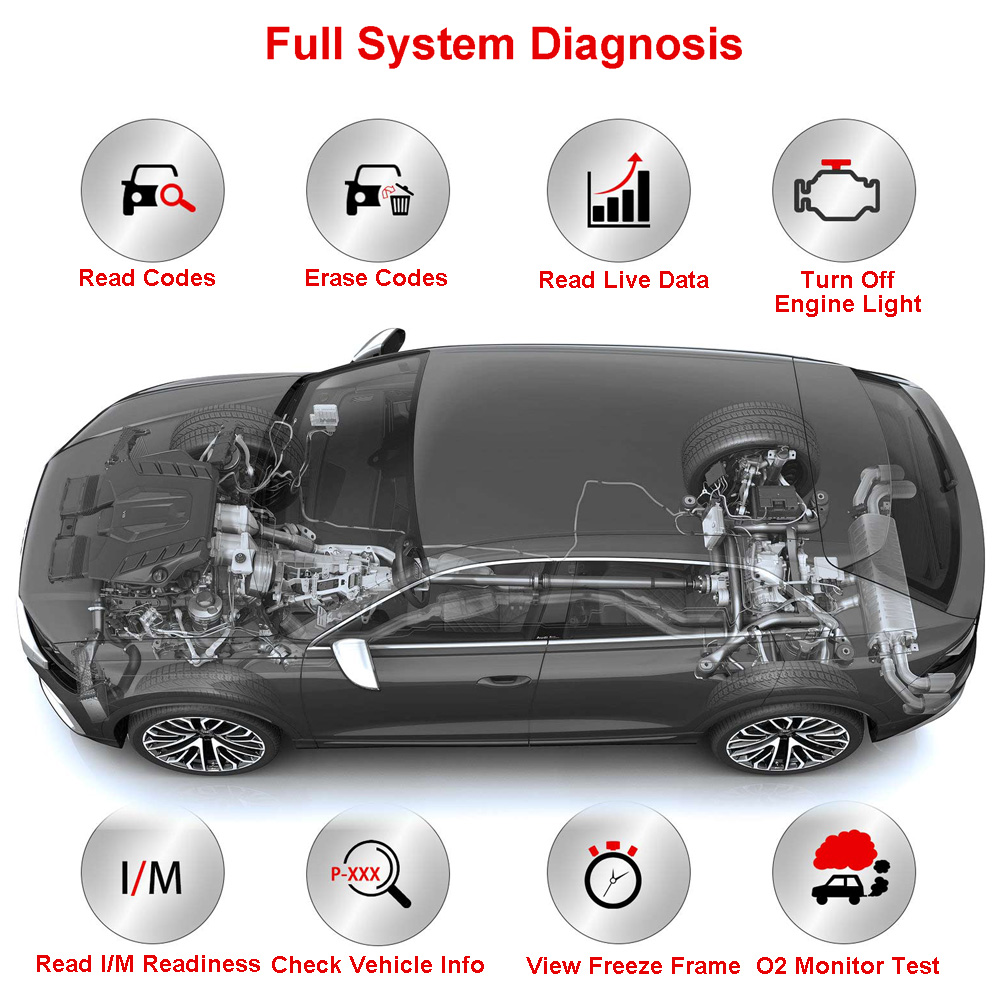

1. All System Diagnosis
This LAUNCH diagnostic scanner can establish a data link to all systems and subsystems of the vehicle being serviced to:
1). Retrieve ECU information of the tested control units including unit type, version numbers, and other specifications, etc.
2). Read & erase DTCs to locate problem areas and clear the codes.
3). View Live Data of each parameter item.
The following is a list of modern vehicle systems that this scan tool can get access to:
Engines / Auto Transmission / Airbags / Immobilizer / Key Coding / ABS / Cruise Control / Instruments / Self Leveling Suspension Systems
Seats / Doors / Gateway / Steering Angle / Air Suspension / Body Systems / Electronic Power Steering & Motor Assisted / Power Steering / Tyre Pressure / Rain Sensors / 4WD System
Stabilizer / Intelligent Parking Assist/Door Motors / Audio Systems / Air Conditioning / Tiptronic / Anti Theft / Soft Top / Headlamp Leveling / Central Locking / Automatic Clutch / DPF Reset
Electric Windows / Plip Programming / Heated Rear Window / Xenon Headlights / Wash Wipe / Fuel Burning Heater / Transfer Box / Seat Memory / Oil Life Service Reset / Sliding Doors / Electronic Throttle
Navigation System / Rollover Sensor / Cruise Control / Multi Function Steering Wheel / Aux Heating / Electronic Parking Brake / Clutch Electronics ... and more.
This comprehensive scanning process is able to locate the faulty systems and retrieve the DTCs related easily. So you can work on all parts of the vehicle systems to enhance the performance, save energy, reduce emissions, and everything else.

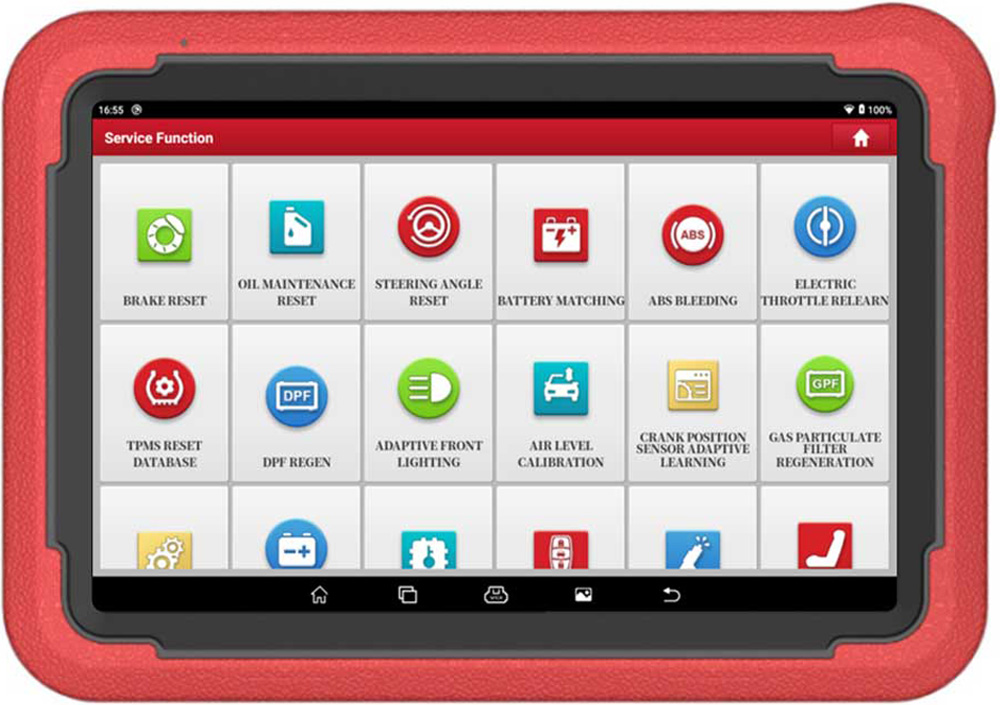

2. 37+ Reset Functions
1). Oil Reset Service - Close the oil service light and reset service mileage & service interval after replacing the engine oil.
2). Steering Angle Calibration - Clear memories of the previous steering angle sensor and store the replaced one.
3). Electronic Parking Brake Reset - Reset the new electronic parking brake for braking wheels safely again.
4). Battery Register & Battery Maintenance - Perform a reset on the vehicle battery for clearing the fault information and re-match the battery.
5). ABS Bleeding - Get a firm brake pad after air exhaustion.
6). Electronic Throttle Position Reset & Learn - Initialize the throttle actuators to the default state for regulating throttle (or idle engine) operations accurately.
7). Diesel Particulate Filter (DPF) Regeneration - Clear particulate matter from the DPF filter to stabilize the filter performances
8). Tire Pressure Monitor System Reset - Relearn TPMS sensors so that new sensors can be recognized by ECU.
9). Tooth Learning - Finish tooth learning after changing crankshaft in the car engine, so the new part can be used.
10). Anti-Theft Matching (IMMOBILIZER) - Add a new programmed key. PIN code is required.
11). Injector matching - Write the new injector numbers into the ECU for accurate communication and injection control.
12). AFS Reset - It detects the light of the environment, then decides whether to automatically turn on the headlights or not. It can also adjust the headlights in time by monitoring the driving speed and body posture of the vehicle.
13). EGR Adaption - Reduce nitrogen oxides (NOx) in the exhaust gas and improve fuel economy at partial load.
14). Gearbox Matching - Test the gearbox based on the driving conditions after the gearbox is disassembled or repaired, for a more comfortable and ideal shift quality.
15). Sunroof Service - Set the sunroof lock switch to be on / off according to weather, temperature, and memory.
16). SUS Reset - When the body height sensor and control module in the air suspension system are replaced or the level of the car is wrong, this function needs to be performed to level the body height sensor.
17). Windows Calibration
18). Seats Calibration
19). Tire Reset, Language Change
20). A/F Reset, Coolant Bleed
21). Transport Mode
22). NOx Sensor Reset
23). Dblue Reset
24). Stop/Start Reset
More...
3. Active Test (Bi-Directional Test or Actuation Test)
With Active Test, you can output the command into the ECU in order to turn on/off actuators, to find faults in the subsystems of your car effortlessly, without using the vehicle’s control, such as:
Turn On The Radiator Fan, Modulate The Throttle, Open/Close Windows, Operate Mirrors, Turn On/Off The Light, Turn On/Off The Sound Horn, Test Door Lock…
4. ECU Coding
From manufacturer-specific reprogramming to full diagnostic capability, this LAUNCH diagnostic scanner also has the magic power “ECU Coding” to keep you on the cutting edge:
1). You can match, relearn, and code the newly installed ECU module after making repairs or replacements.
2). You can change the market-specific settings to activate higher-level car functions and disable unneeded features, breaking limitations.
5. VAG Guided Functions
This function is for Audi, Volkswagen Skoda and Seat, etc.: On-screen instruction step by step, X431 PROS guide you to be an expert in Car Diagnostics even you are a newbie. Thanks to this function , you do not need to rely on a mechanic’s suggestion all the time.
6. Intelligent Diagnose
LAUNCH has accumulated automotive diagnostic technology for more than 20 years, and was the first to propose Intelligent Diagnosis technology. Through "Intelligent Diagnose", it can quickly read the vehicle VIN code, quickly enter the diagnosis, and review historical diagnosis records.
7. Local Diagnose
Support the diagnosis of the whole system of 110+ brand models in the world basic function diagnosis, support Reading Version Information, Reading Code, Clearing Code, Reading Data Stream, Action Test, Code Setting, Matching, etc., can read and record data stream, etc., to help rapid positioning the fault.
8. TPMS
Supports tire pressure activation, programming, learning, detection and other functions with a LAUNCH X-431 TSGUN TPMS WAND(need additional purchase).

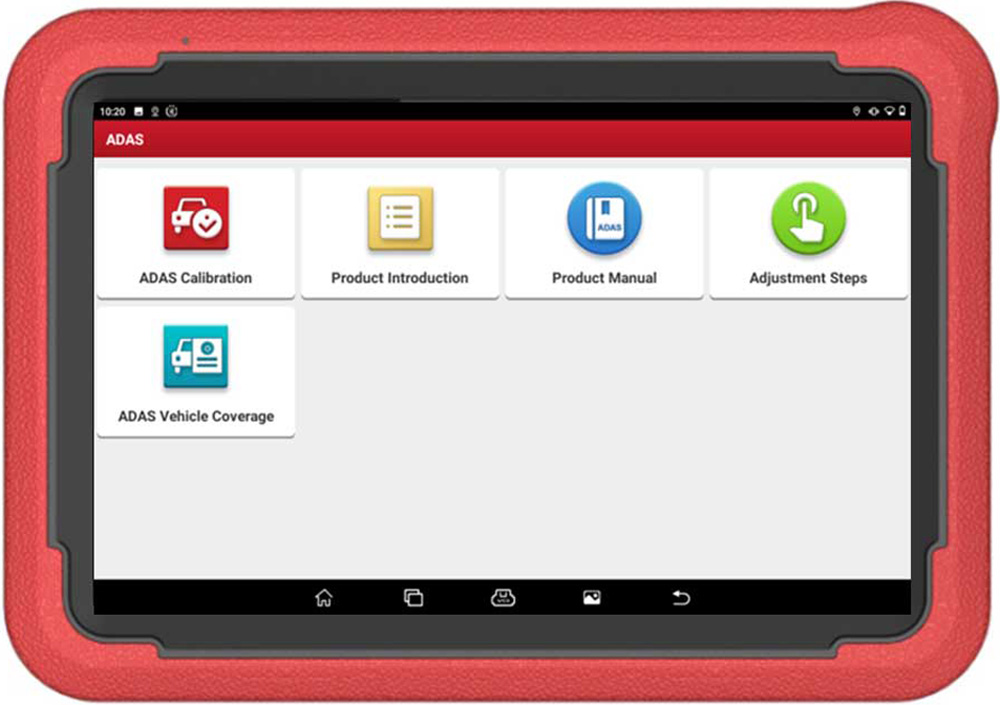

9. ADAS Calibration
It supports ADAS calibration function with ADAS PRO or ADAS MOBILE(need additional purchase), which can realize the calibration of LDW, ACC, RCW, AVM, BSD, NVS and other ADAS systems.
10. Remote Diagnosis
"Remote Diagnosis" can realize real-time communication between equipment and equipment or equipment and computer, complete vehicle remote diagnosis, and make it a reality for repair technicians to diagnose vehicles thousands of miles away.

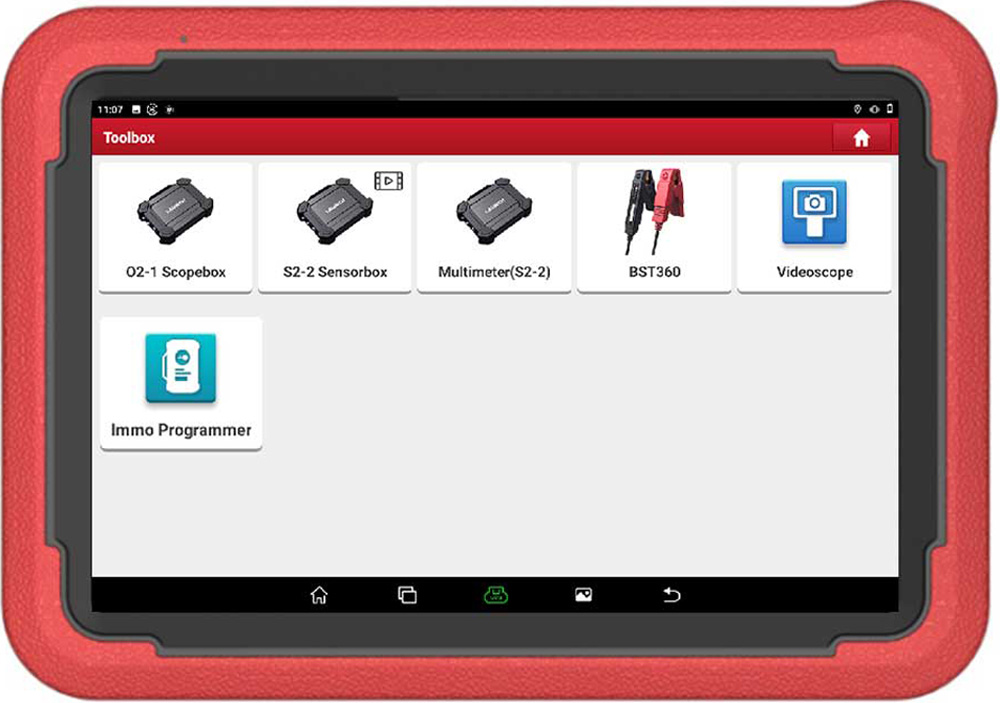

11. Toolbox Addon Modules
Compatible Modules: O2-1 Scopebox, S2-2 Senserbox, BST-360 Battery Tester, VSP600 Videoscope, X431 XProg3, ADAS, TSGUN, WiFi Printer...

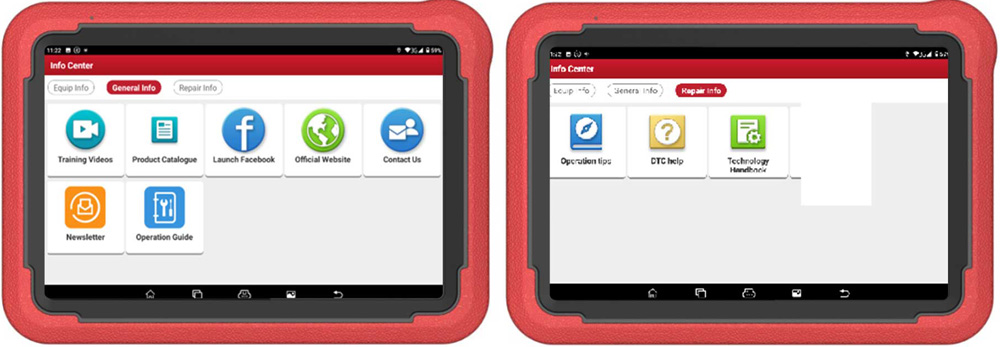

12. Info Center
The Information Center integrates maintenance materials, general information and equipment information, and is an information query center.
The maintenance information includes operation skills, fault code help, vehicle maintenance technical manual and IMMO database;
General information provides various types of car maintenance videos and information website online query;
Device information includes product manuals and answers to frequently asked questions.
13. Feedback
When users encounter vehicle models and functional abnormalities under special circumstances during use, they can provide their opinions to Launch through "feedback", and specialized technicians will track and handle the problem in a timely manner.
14. Diagnostic History
For each diagnosis, vehicle diagnosis records are automatically generated for easy viewing and comparison at any time to help locate faults.

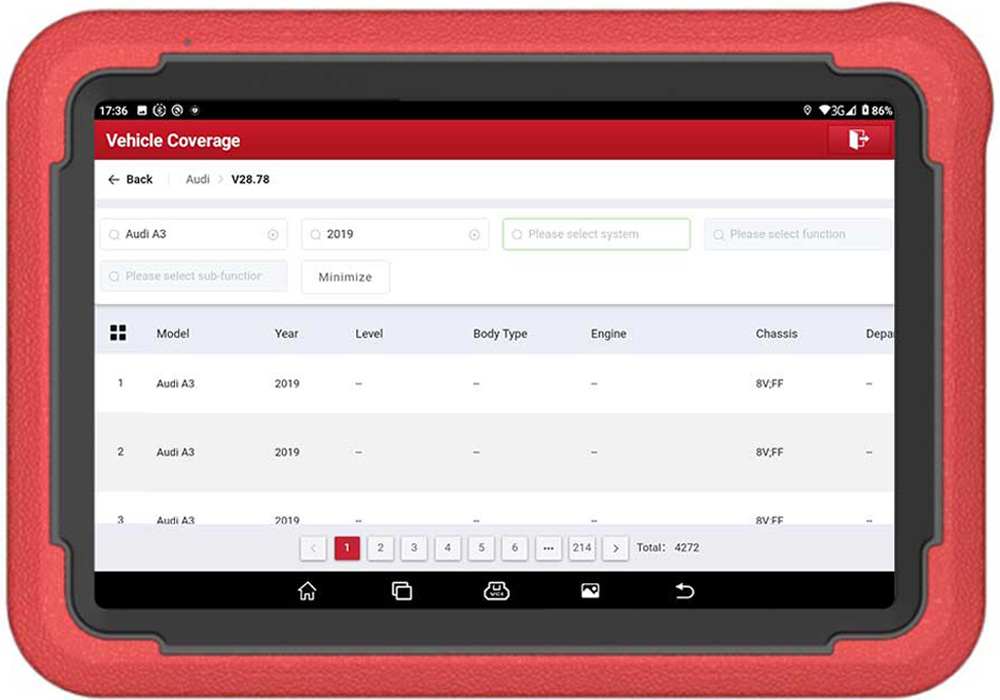

15. Vehicle Coverage
Supported brands, models, systems and functions can be checked online at any time.

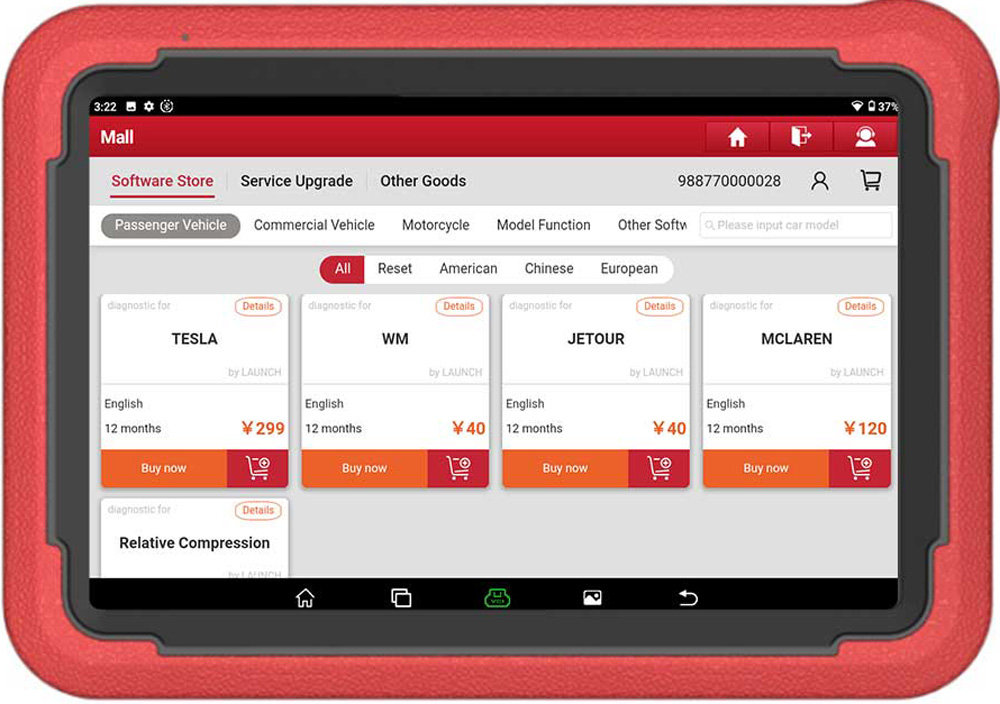

16. Mall
Supports online purchase of software, functions and some hardware outside the configuration, software renewal, etc., and more functions are coming online.
Supported Cars(Gasoline and Light Diesel Vehicles):
America:
Ford America, Chrysler, GM, GM Brazil, Buick, Cadillac, Chevrolet, Dodge, Fiat Brazil, Jeep, Lincoln, Holden...
Europe:
Audi, BMW, Fiat, Ford Euro, MB, MINI, Opel, Peugeot, Renault, Seat, VW, Volvo, Smart, Skoda, Saab, Abarth, Alfa Romeo, Aston Martin, Bentley, Bugatti, Citroen, Dacia, Ferrari , Jaguar, Lamborghini, Lancia, Maserati, Maybach, Porsche, Paz, Rolls-Royce, Rover, Skoda, Sprinter, Vauxhall...
Asia:
Acura, Daewoo, Daihatsu, Holden Australia, Honda, Hyundai, Hyundai Korea, Ikco, Infinity, Isuzu, KIa, Kia Korea, Lexus, Luxgen, MVM, Mahindra, Maruti, Mazda, Mitsubishi, Nissan, Perouda, Proton, Saipa , Samsung, Subaru, Suzuki, Tata, Toyota...
Chinese:
BAIC, FAW, JAC, MG, GAC, Great Wall, Chery, Brilliance, BYD, Fukang, Geely, Hafei, Gonow, JMC, Lifan, Maxus...
Specifications:
Tablet:
Processor: 2.0GHz 4 core
Operating System: Android 10.0
Display: 8 inch screen with 1280*800 resolution
RAM: 4GB
Storage: 64GB
WIFI: 2.4GHz/5GHz (dual frequency)

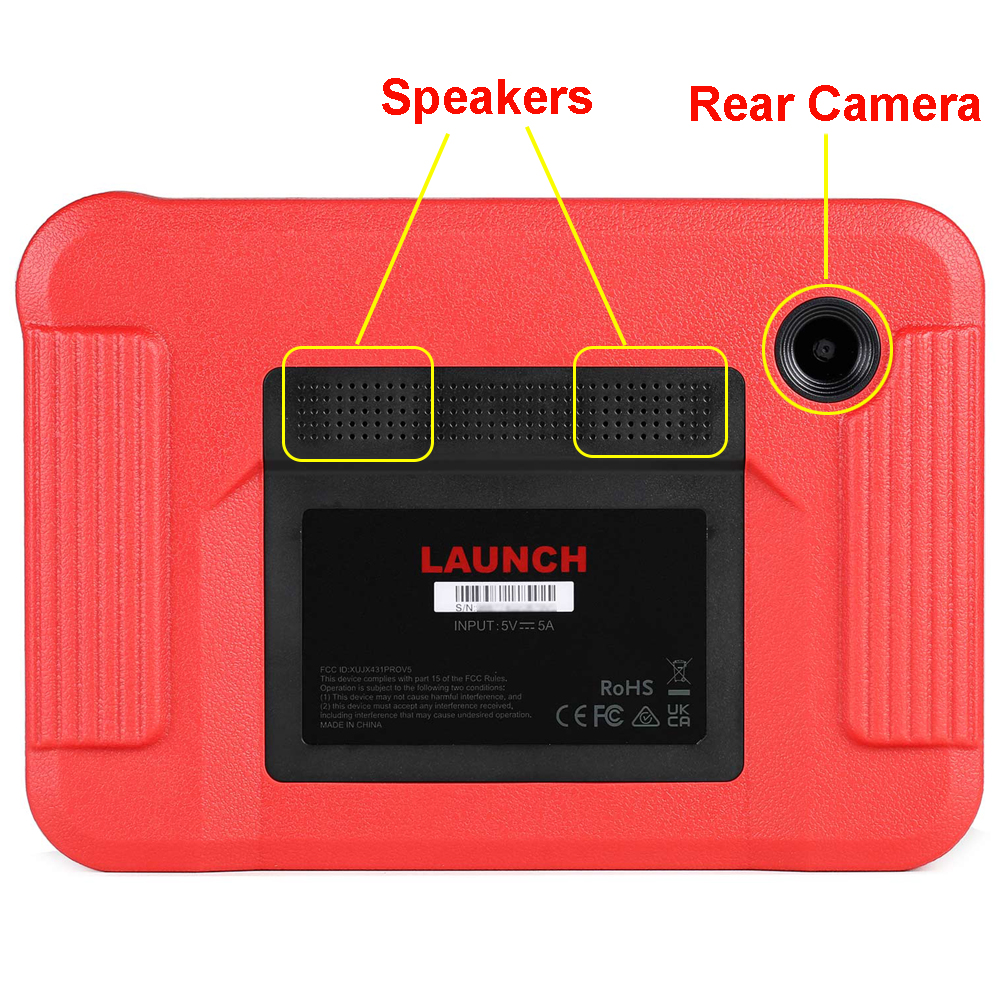

Rear Camera: 8 mega pixels

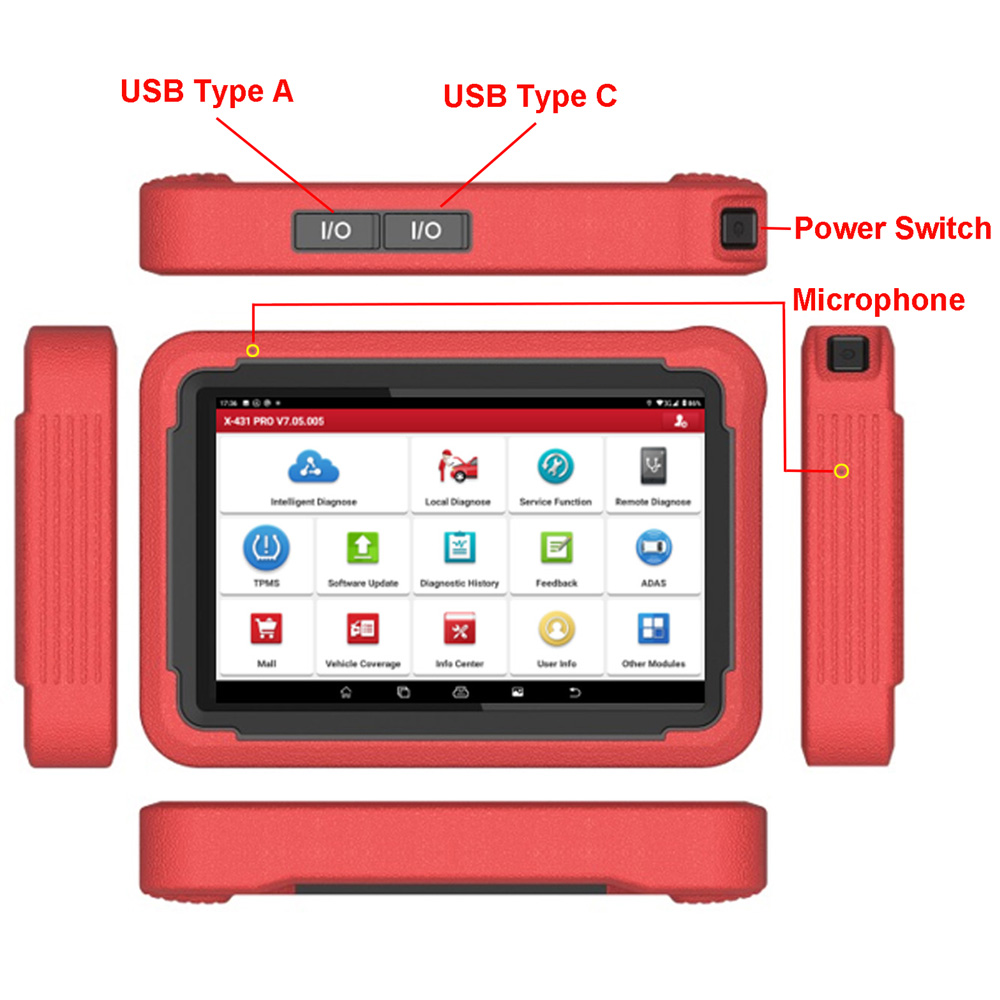

Interface: USB Type A, USB Type-C
Battery: 47880mWh(7.6V/6300mAh)
Working Temperature: 0 to 50 degree centigrade
Size: 228*160*37.4mm

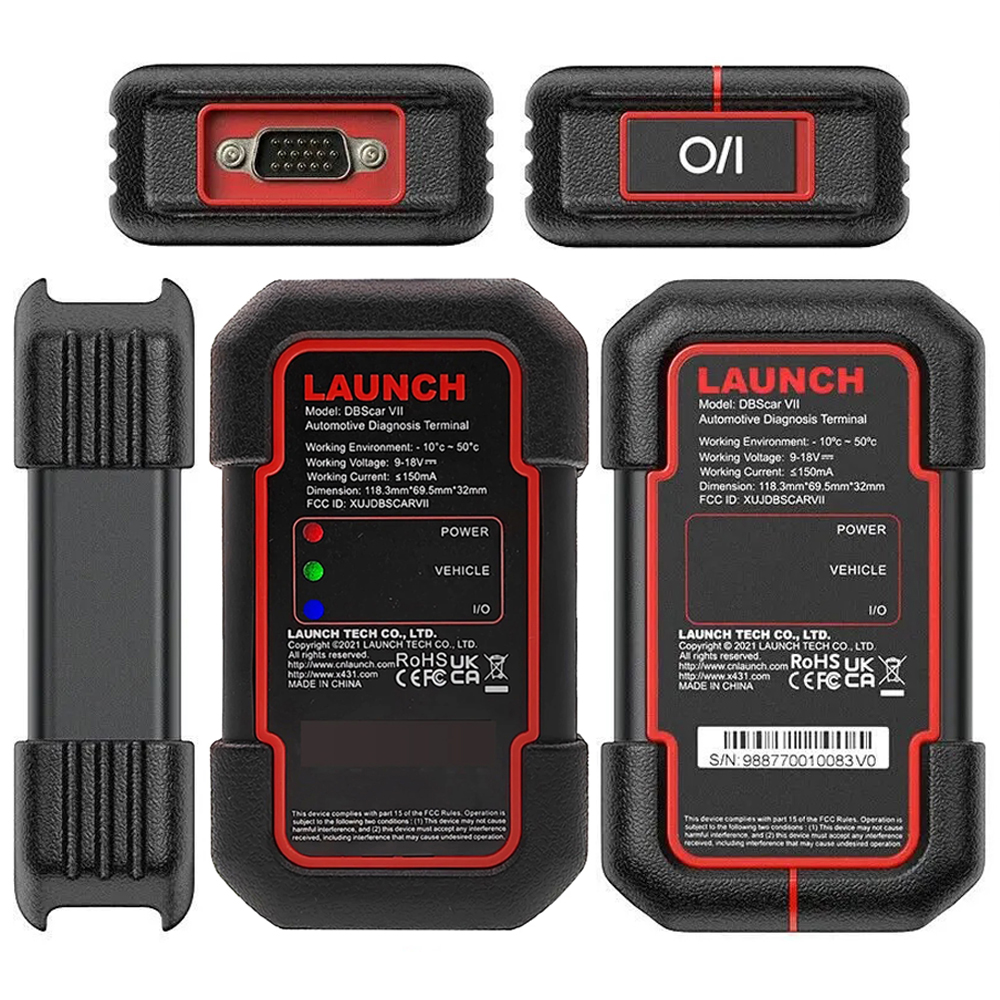

DBScar VII VCI:
Working Voltage: DC 9V - 18V
Communication Method: Bluetooth
Size: 118.3*69.5* 32mm
Power LED: Indicator light will illuminate when the VCI diagnostic connector is connected to the vehicle OBD-II diagnostic socket
Vehicle LED: Indicator light will flash when the VCI diagnostic connector is communicating with the vehicle ECU,
IO LED:
1. When the VCI diagnostic connector communicates with the diagnostic host via Bluetooth, the indicator is in blue light.
2. When the VCI diagnostic connector communicates with the diagnostic host via USB, the indicator is in red light.

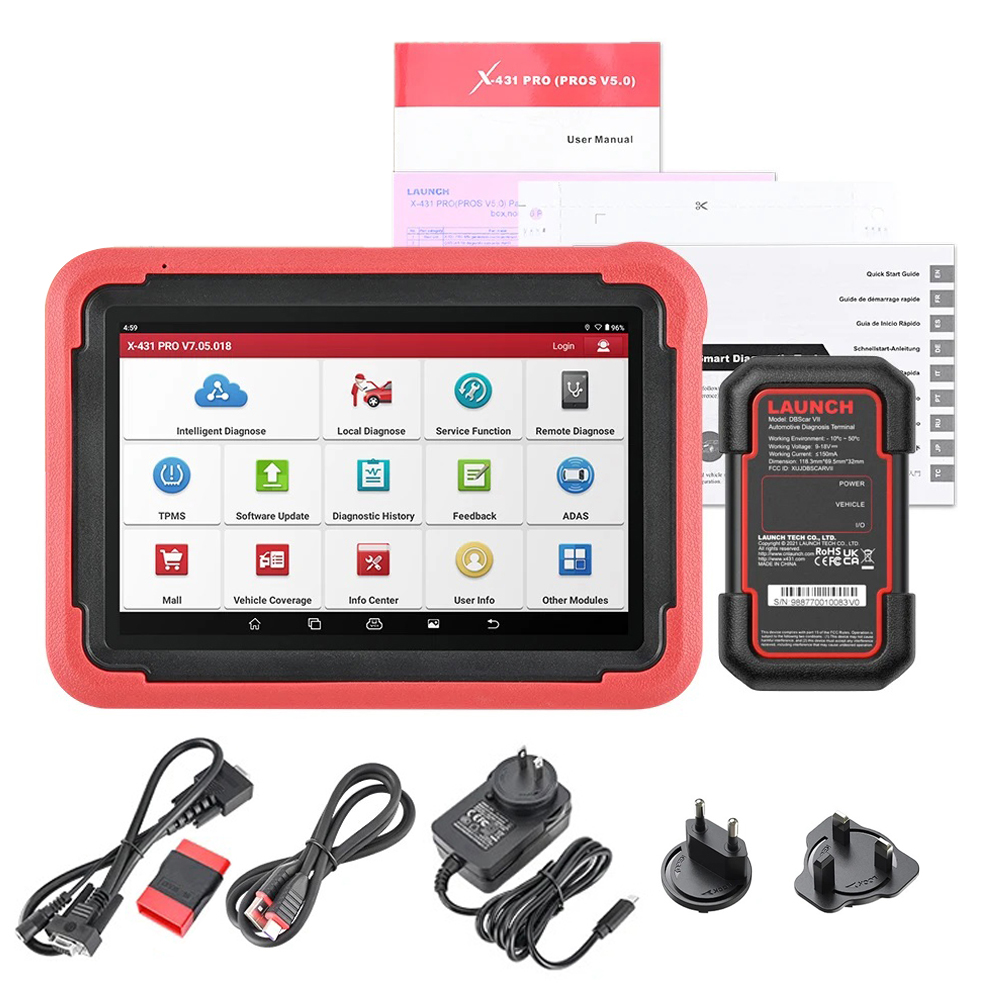

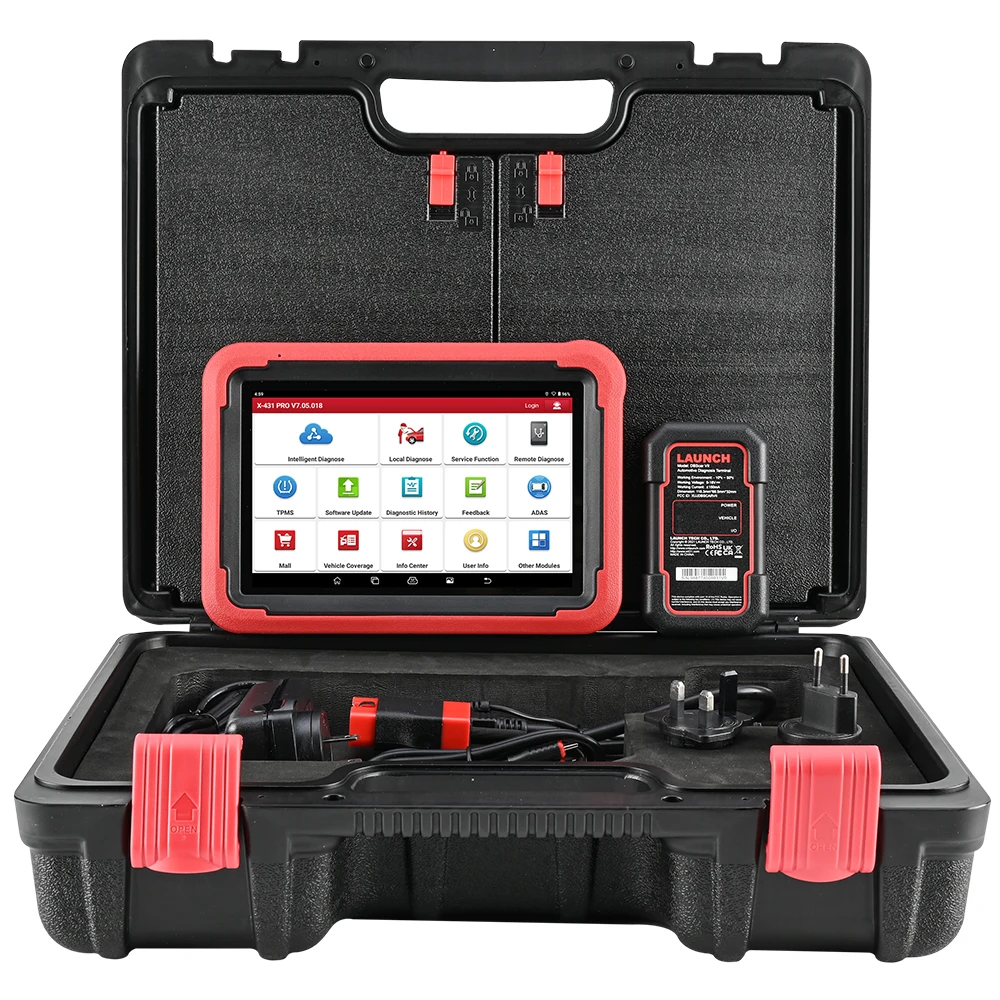

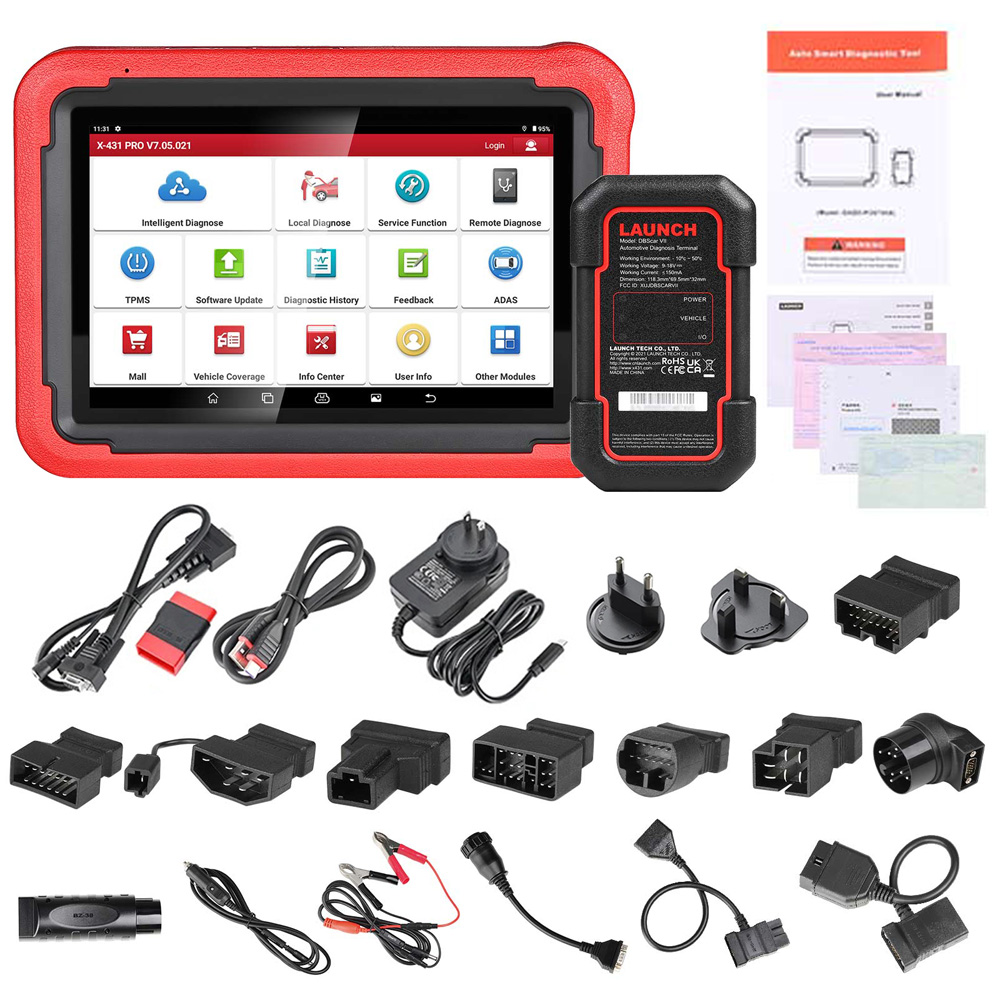

Packing List:
Launch X-431 PROS V5.0
DBScar VII Bluetooth VCI
Main Diagnostic Cable with
OBD2 Connector
USB Type-A to Type-C Cable
Power Adapter
EU Power Plug
US Power Plug
UK Power Plug
User Manual
Password Envelope
Quick Guide
Plastic Toolbox
Packing Box

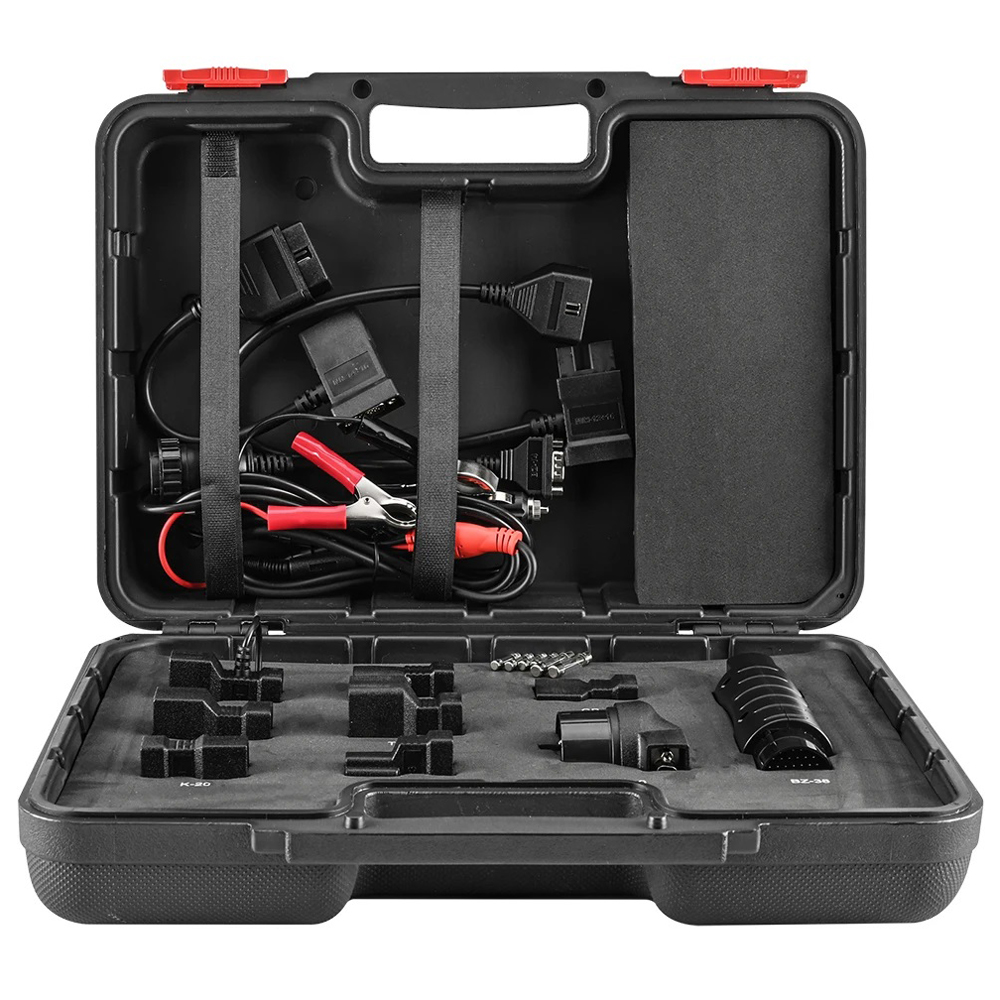

Non-16 Pin Adaptor Box:
BMW-20 Connector
Benz-14 Connector
Benz-38 Connector
Chrysler-6 Connector
Ford-6+1 Connector
GM/Vaz-12 Connector
Honda-3 Connector
Kia-20 Connector
Mitsubishi/Hyundai-12+16 Connector
Nissan-14+16 Connector
Toyota-17 Connector
Toyta-22 Connector
Battery Clamps Power Cable
Cigarette Lighter Power Cable
Fuse(6 pcs)
Plastic Toolbox
Packing Box
 |
